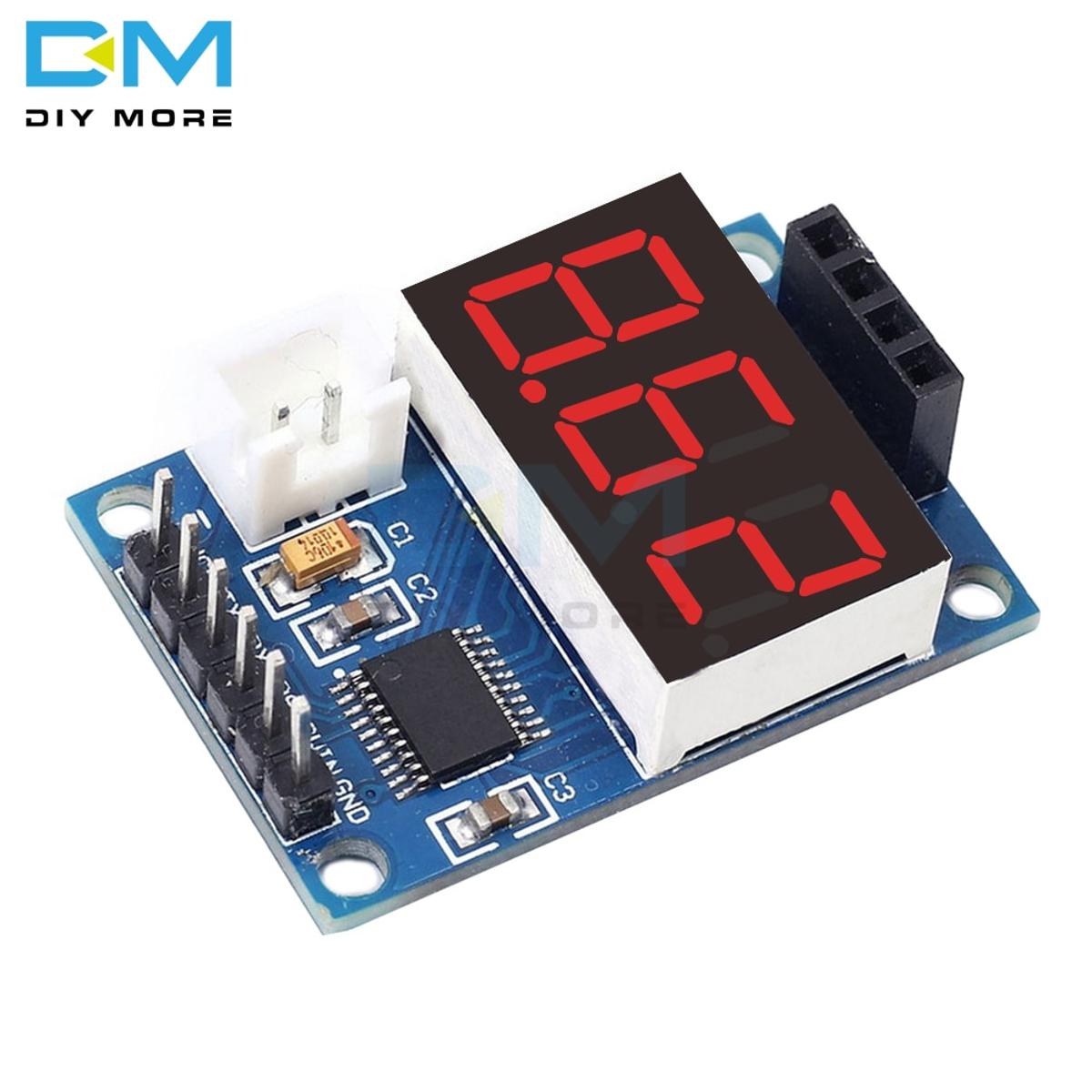

📏 Distance Measurement Module – STM8S103 with Digital Display
🔧 Function Features:
- 🧠 Onboard STM8S103 high-performance microcontroller
- 🔢 Integrated digital display for real-time distance visualization
- 🔌 Serial output supported – transmit data via UART interface
- 📐 Effective measurement range: 3cm to 400cm
- 📏 Measurement unit: centimeters (cm)
- ⚠️ High accuracy with ~1% maximum error
- 🔋 Operates at 5V DC

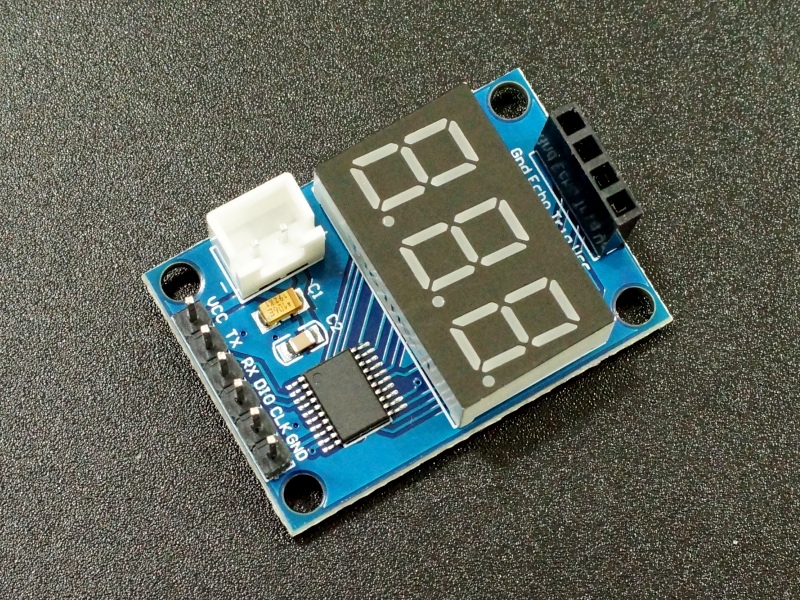

📦 Hardware Overview:
- 📐 Board size: 42mm × 60mm
- 🔌 Interfaces:
- VCC & GND: 5V power input
- 2.54mm white socket: alternative 5V power interface
- TX/RX: UART data communication pins
- NRST, SWIN: reserved pins for STM8 programming
💡 Usage Instructions:
- 👀 Measured distance is displayed directly on LED screen
- 📤 Optionally, output data through serial interface for integration with other systems
