Battery Meter Battery Capacity Voltage Monitor, DC 12/24/36/48/60/72/84V Battery Capacity Voltage Gauge Indicator (1 Button)

Original price was: 480.00৳ .Current price is: 390.00৳ .

  • Voltage Display Range: 9-100V
  • Working Current: less than 5mA
  • Sleeping Mode Current: 12uA (12V test)
  • Working temperature: -10℃~50℃
  • Applicable : Acid (DC 12/24/36/48/60/72/84V); Lithium (3 ~ 24 strings); Lithium iron phosphate (4 ~ 26 strings)
  • colour: black
  • Material: ABS
Add 2,910.00৳  to cart and get free shipping!

95 in stock

SKU: X30678 Category:
Description

Product Description

12-72V Lithium Battery Accessories Battery Indicator Battery Pack Level Indicator



Advantages:



* Anti reverse connection protection

* Low voltage alarm

* Low power consumption

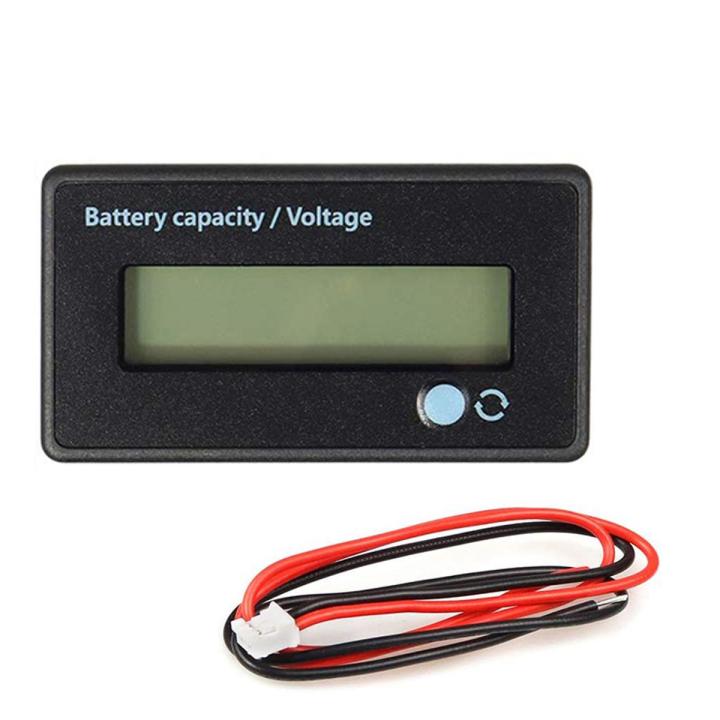

* Red wire connect to battery pack positive pole, black wire connect to battery pack negative pole.

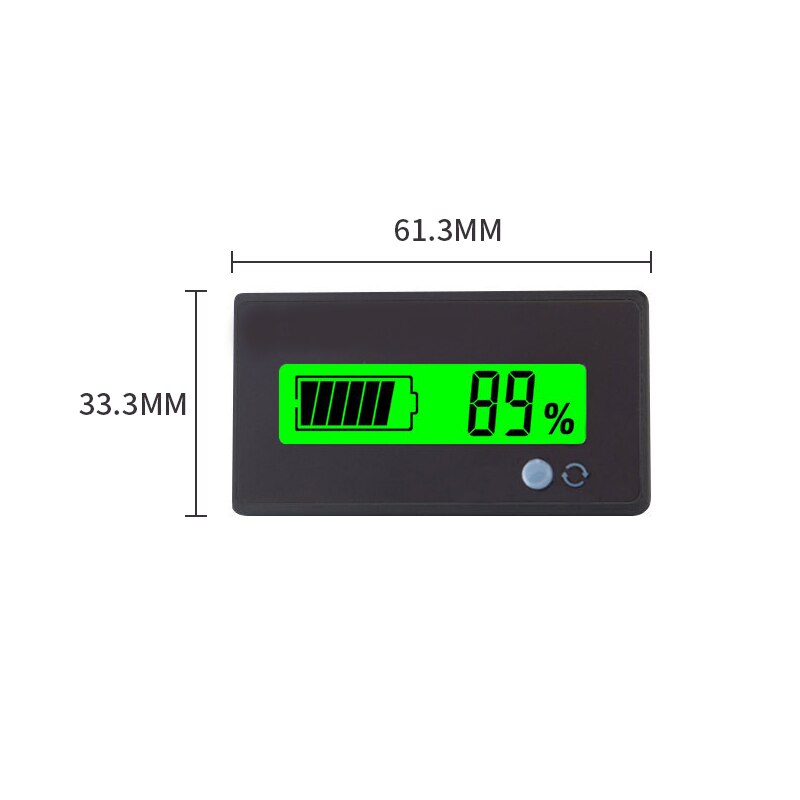

Indicator size: 61.3*33.3*13.5mm

Insert Opening size: 58.5 * 28.5mm

Net weight: 21g

Working voltage: DC12-72v

Working power consumption: 5mA

Working temperature: – 10 ºC – 60 ºC





Compatible with 12-72v lead-acid battery, dry battery, water battery, ternary lithium battery, lithium polymer lithium-ion battery, LiFePO4.  Can measure 12V, 24V, 36V, 48V, 60V, 72V, 84v lead-acid battery, lithium battery 3.7V, including ternary lithium battery, lithium polymer battery 3 / 4 / 5 / 6 / 7 / 21, etc.



Note: the electric quantity display is designed according to the battery discharge curve. During the use of dynamic battery or equipment battery, the percentage of electric quantity display will change with the decrease of discharge voltage, so we suggest that it is the most accurate to observe the percentage of remaining electric quantity of the meter when it is static.

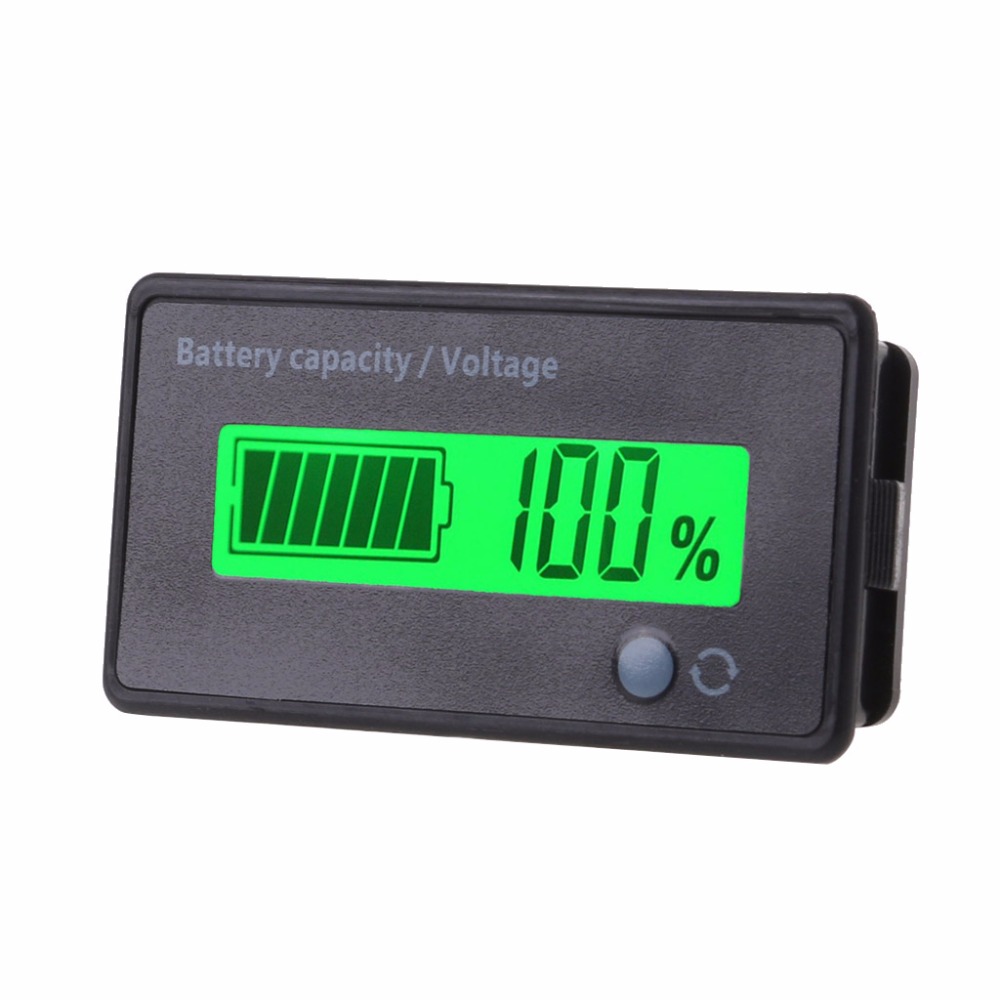

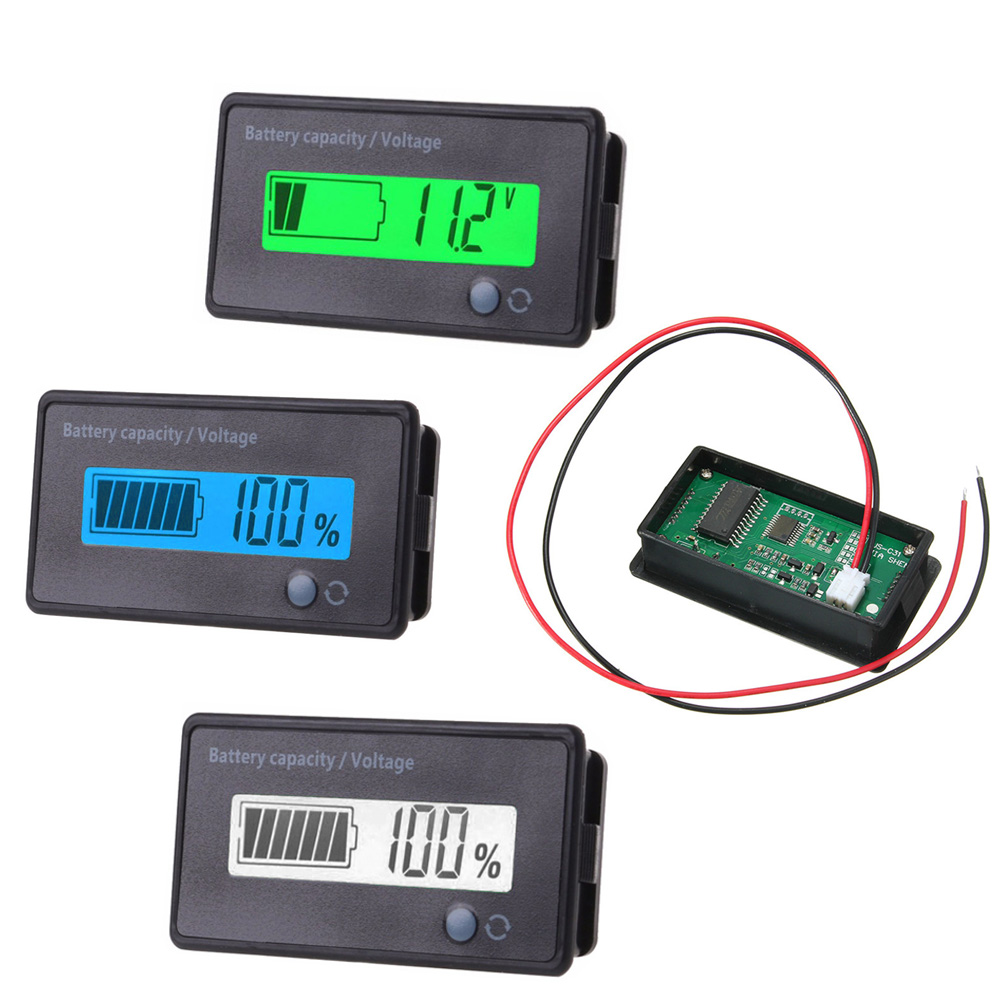

Pictures:



Detail parameter



Data Minimum Typical Maximum Unit Value
Size mm 61.3*33.3*13.5mm
Install size mm 58.5*28.5
Indicate size mm 36*19.5
Weight 20 21 22 V
Work voltage 12 72 V
Consumption 5 6 mA
Voltage tolerance ±0.1 ±0.5 %
Sleep consumption 6 10 12 uA 20V
Alarm voltage 11.5 100 V Adjustable
Alarm volume 60 70 75 db
Work tempetarue -10 25 55 °C

Applications:



Different battery packs.
