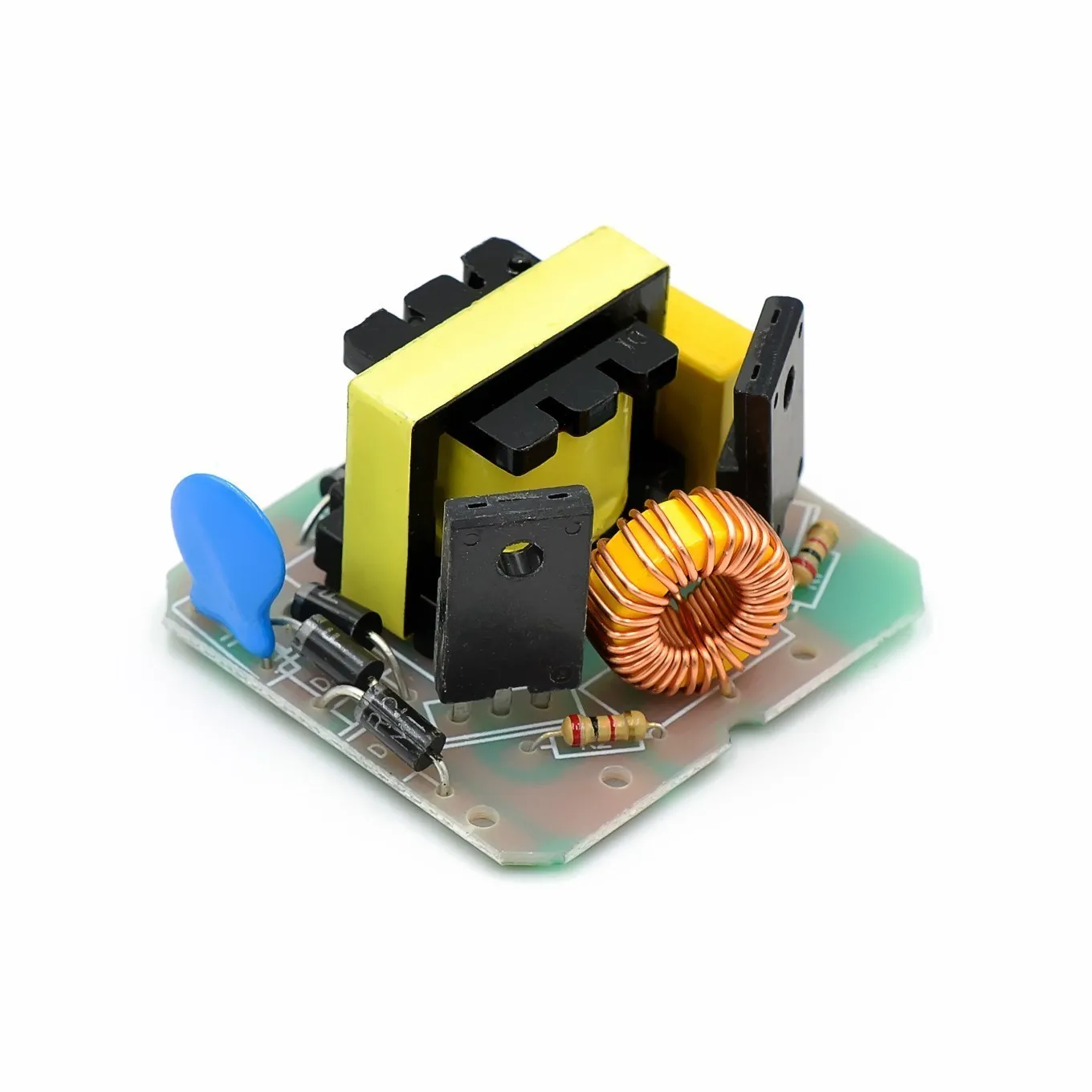

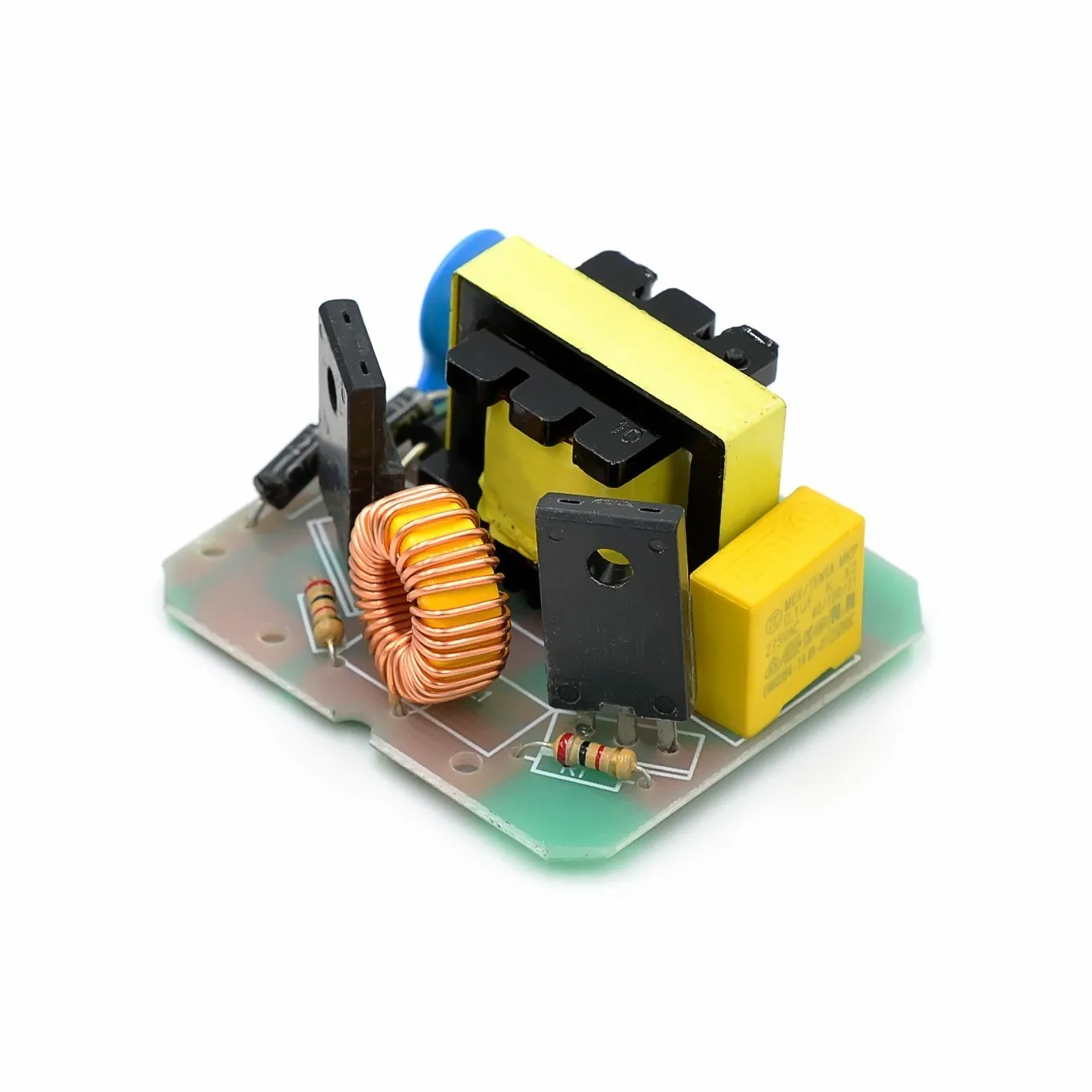

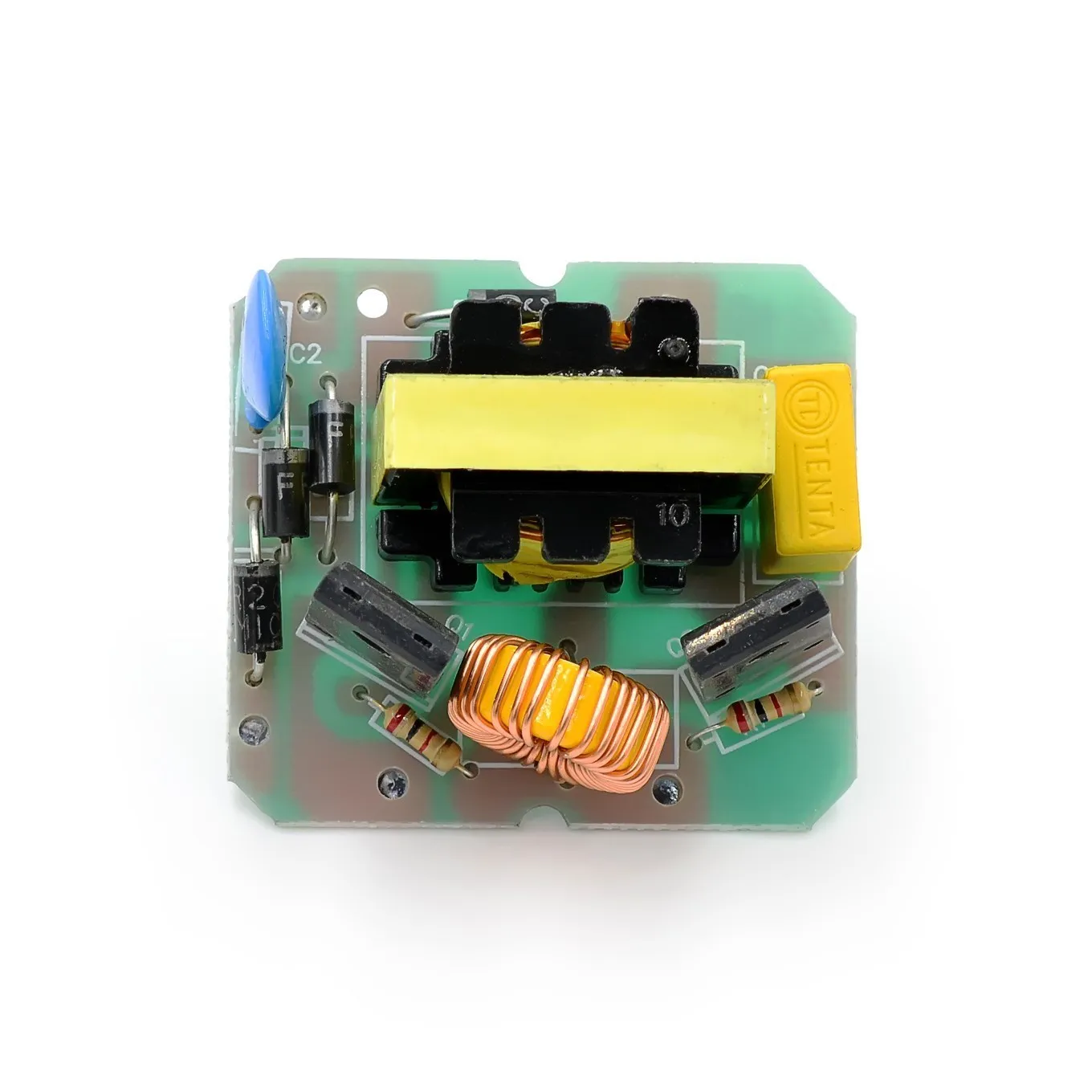

12V to 220V Step UP Power Module 35W DC-AC Boost Inverter Module Dual Channel Inverse Converter Booster Module Power Regulator

The actual voltage of this product is between 210V and 240V, in line with the electrical input safety voltage. Now the upgraded version is dual-mode output,

Output DC and AC dual output, can output DC and AC voltage, fully compatible with all kinds of more household electrical appliances

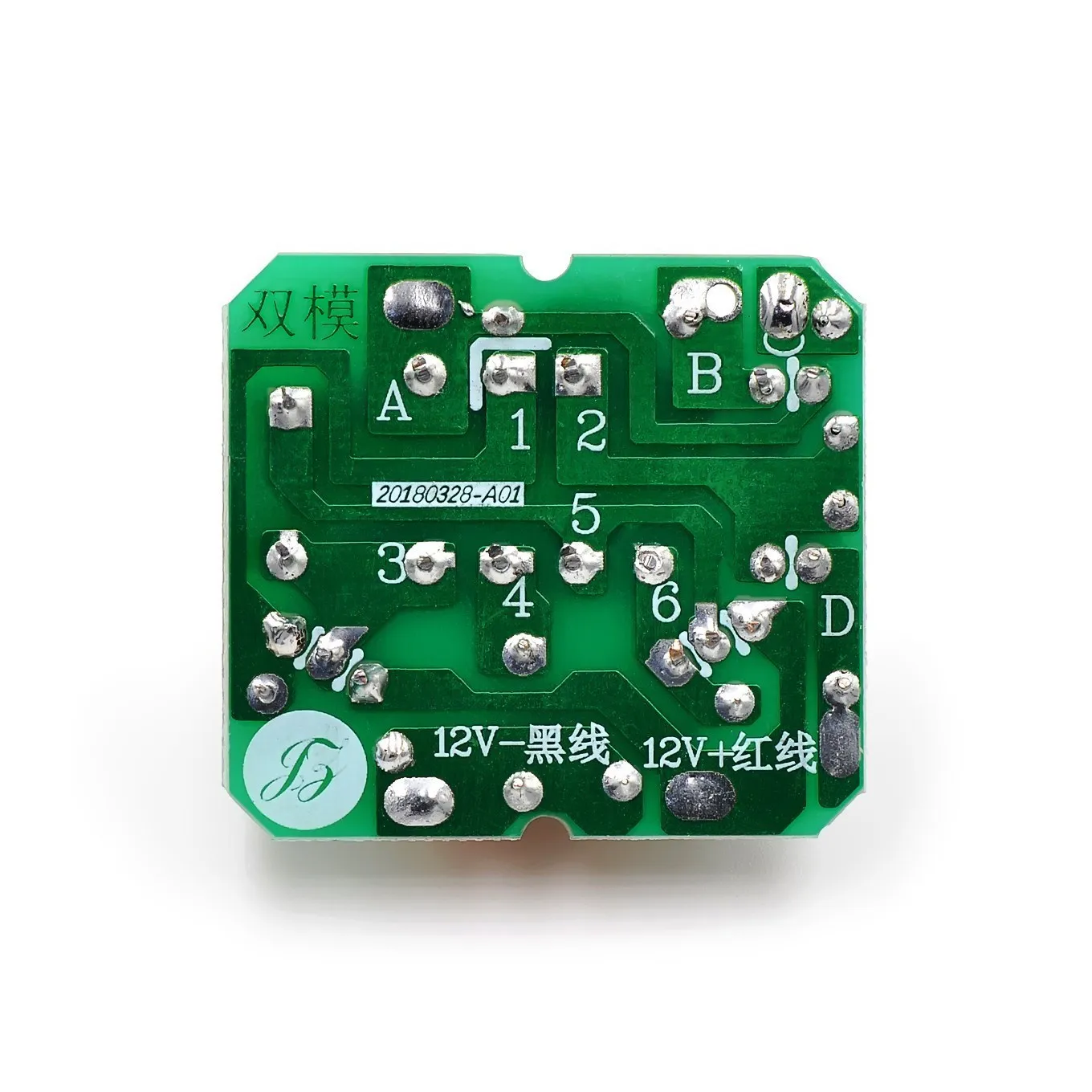

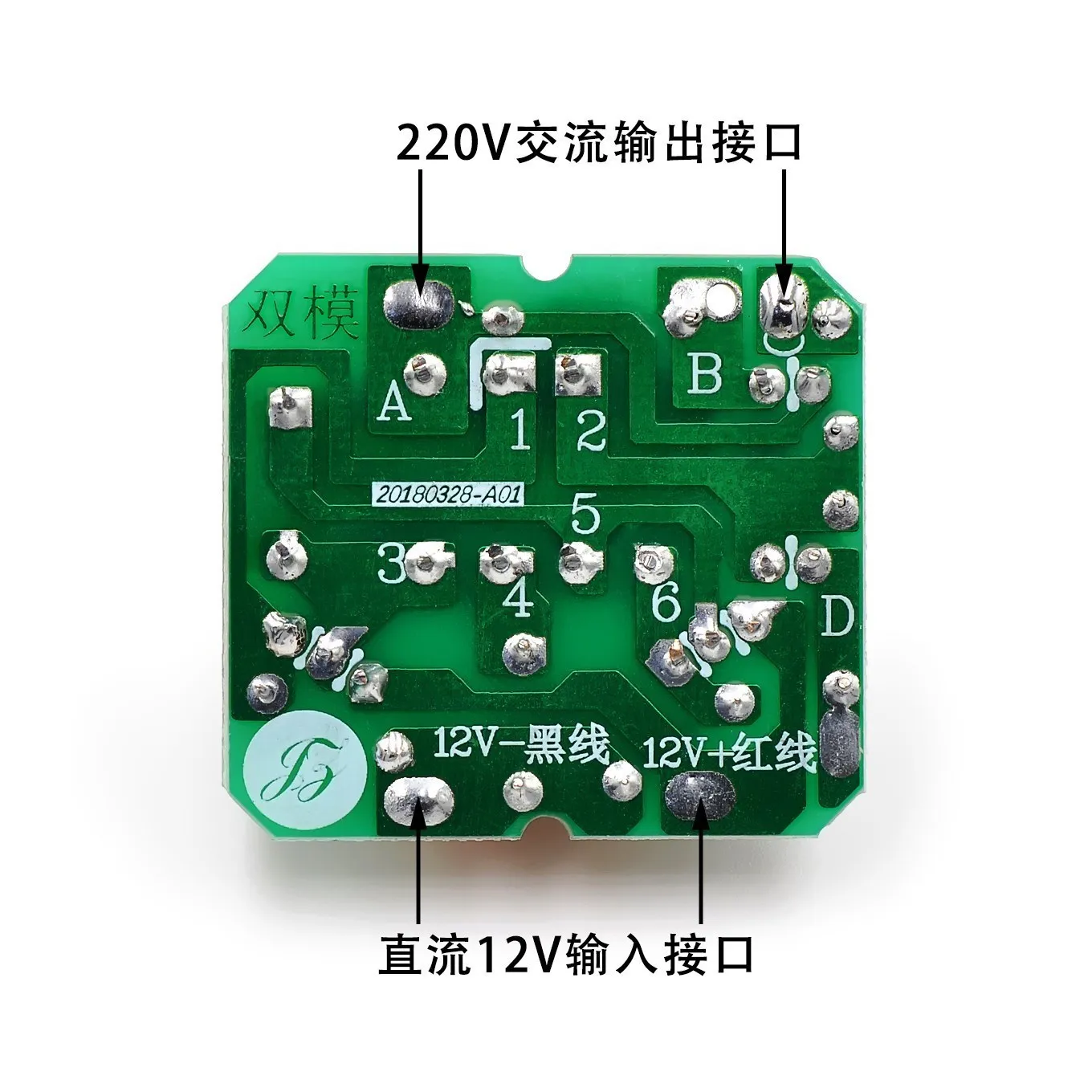

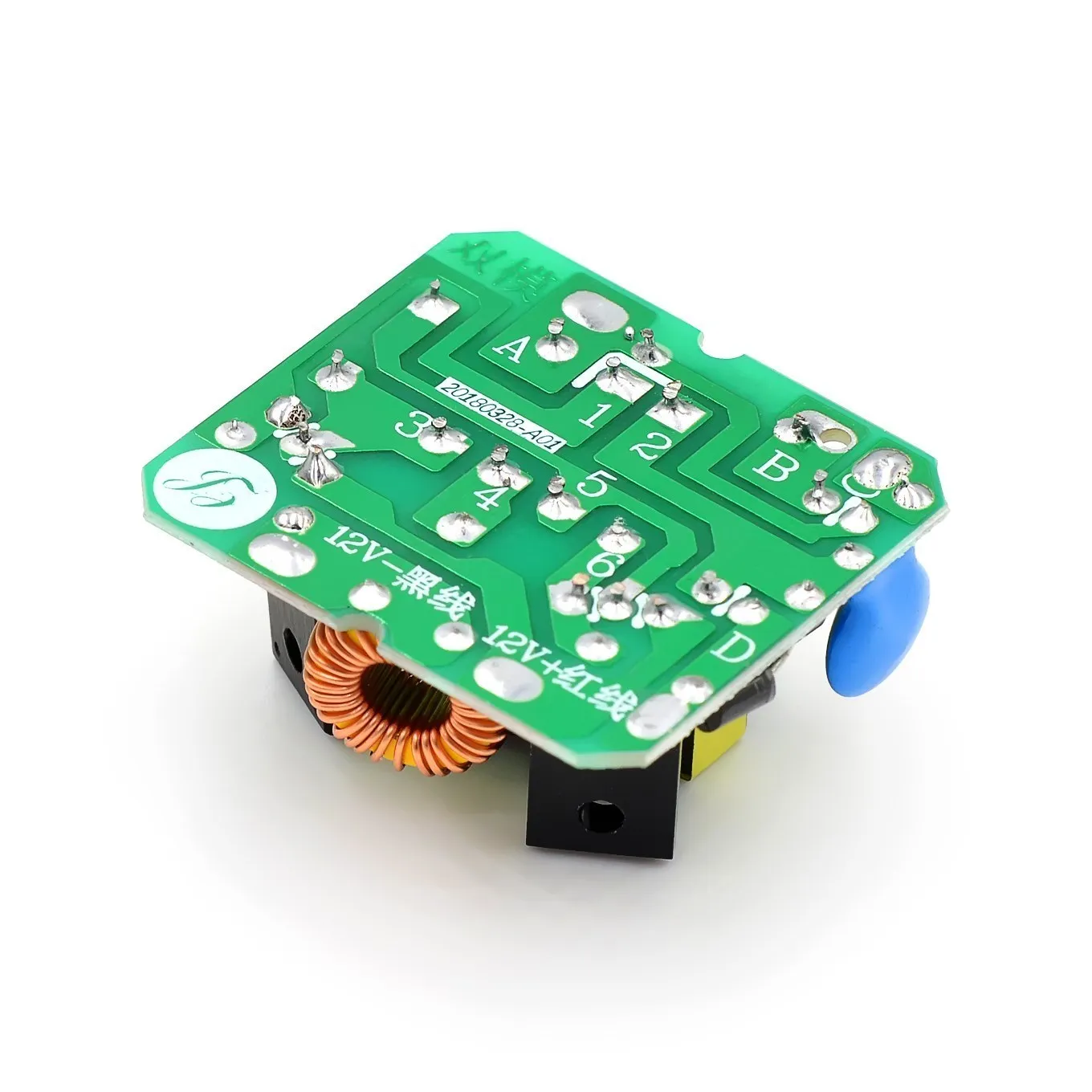

Before connecting the wires, you need to weld the input and output wires yourself.

Instructions: This product can convert the direct current of 8V-13V battery into 220V AC power for home use and dual output of DC output.

Output EU 220V 1-20W with overload protection

A C 220V with overload protection 1-15W

BD 220V no overload protection 1-35W

It is recommended to use the device with maximum power 40w, maximum power 35w

This product is the latest 4th generation boost module, boost transformer. Input 12V DC, the other end can receive 220V AC and 220V DC voltage. The higher the frequency, the greater the output power, can drive 40W energy-saving lamp.

Power failure for power supply (open):

Modem broadband cat Internet access cat telecom cat router satellite receiver

Phone main phone charging energy-saving lamp lighting fluorescent lamp lighting IED lamp lighting

DVD player VCD player EVD player speaker switch power supply mobile phone charger

Electric soldering iron

It worked pretty well.

This product can be used in any household electrical circuit; Excellent, powerful performance as energy-saving lamps; More stable power; Better effect, quality, significantly more durable than the old model:

Can make its own boost circuit; If the power is very small, the maximum power of a circuit is 40W; Circuits can be connected in parallel; 10 circuits in parallel, the power can reach 120W-200W; Can be used for other high-power household appliances! When the power is out; It can be used for any electrical appliances; If the power of household appliances is large, it can only be used in parallel; After parallel connection, it still belongs to the automatic current state, and will not burn the electric appliance due to overcurrent! After parallel connection, it still saves 48.26% of electricity than other similar products “12V-220V inverter booster”!

Available power: 220V 0.1W-40W

In this declaration: LED lights are divided into 2 kinds (cross-current power supply driver and resistance and capacitance driver)

This circuit can only be used in cross-current power supply drivers of good market quality.

For low quality resistance and capacitance driver, it is not suitable for use.

The circuit voltage is pulled up due to the resistor-capacitance driver. The voltage is too high and the resistance in the capacitance driver is too high.

(The power factor line LED lamp driver can not be used with any inverter “10W, plastic shell LED lamp, can be: power factor line LED lamp”)

(Note: this circuit actually consumes 40W; Output power 40W; When used in energy-saving lamps, it can instantly activate 50W energy-saving lamps. Then automatically reduce the ground current; Keep the current optimally at 40W; But it has the same brightness as CFLS 40W)

0.1W to 40W energy-saving lamp best for 220V actual consumption power! Compatible with 21W-50W energy-saving lamps; 40W or so after starting the brightness!

Product voltage DC12V: inverter output voltage AC220V maximum power output 36 watts; Actual power consumption 40W!

(Note: “This circuit is patented, please pay attention to the way of use. “The actual consumption of this circuit is 40W, and the actual power is 40W. It can be used in 40W household appliances; Small power; Can be used in parallel; Automatic current switching!

Parallel 10 circuit boards power can be up to 12W-200W; You can use 12W-200W lamps; 12W-200W household appliances! (Note: support all “electronic products”), such as “energy-saving light soldering speakers audio switch power supply, satellite TV receiver LED bulb light LED energy-saving fluorescent lamp DVD VCD machine EVD machine LCD TV black and white TV color TV flat screen TV notebook monitor all electronic charging products, etc. “All can use; Buying customers can consult the owner!

Electrical appliances that do not meet the requirements shall not be used:

 First; Do not use: iron core transformer! Electric fans and other purely inductive loads cannot be used.

Second; It cannot be used on non-electronic products!

Third; laptop power supply, adapter, charger with lightning protection accessories. Remove the lightning protection parts and use them.

Fourth; Cannot be used; capacitance power supply on the LED lamp!

Note: Please test the output voltage with load, without load it is easy to burn the voltmeter.

It is strictly required that each batch of goods must pass 40W load test before leaving the factory, under normal use can be more than 2 years!

Circuit output “voltage AC220V: power 0.1W to 40W!

Usage range “less than or equal to 40w”
