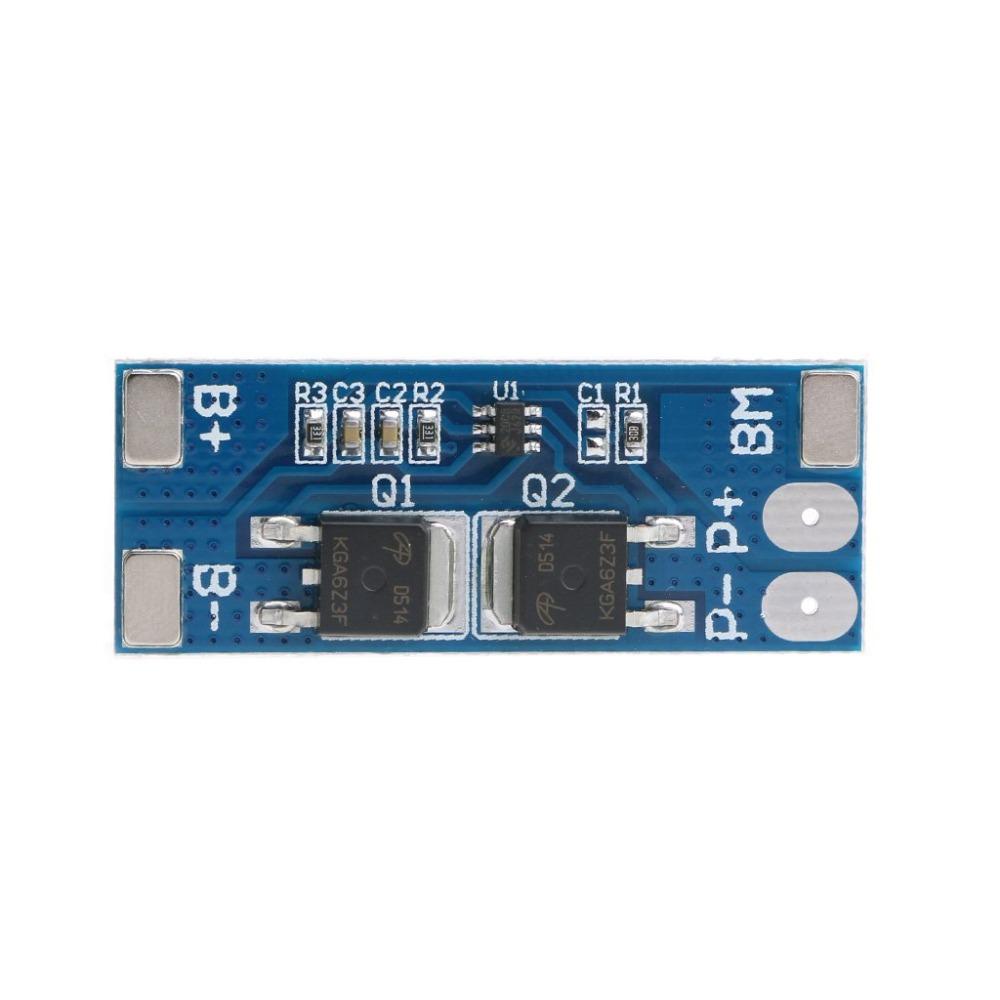

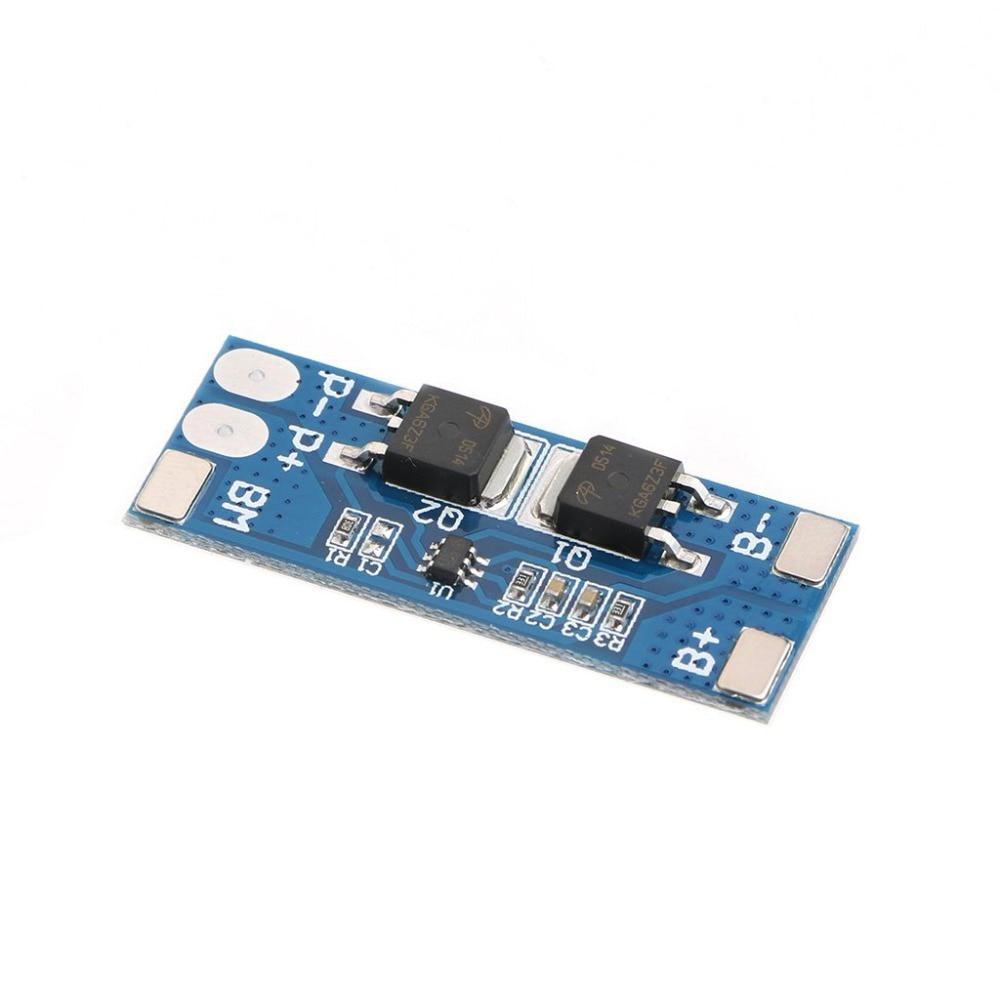

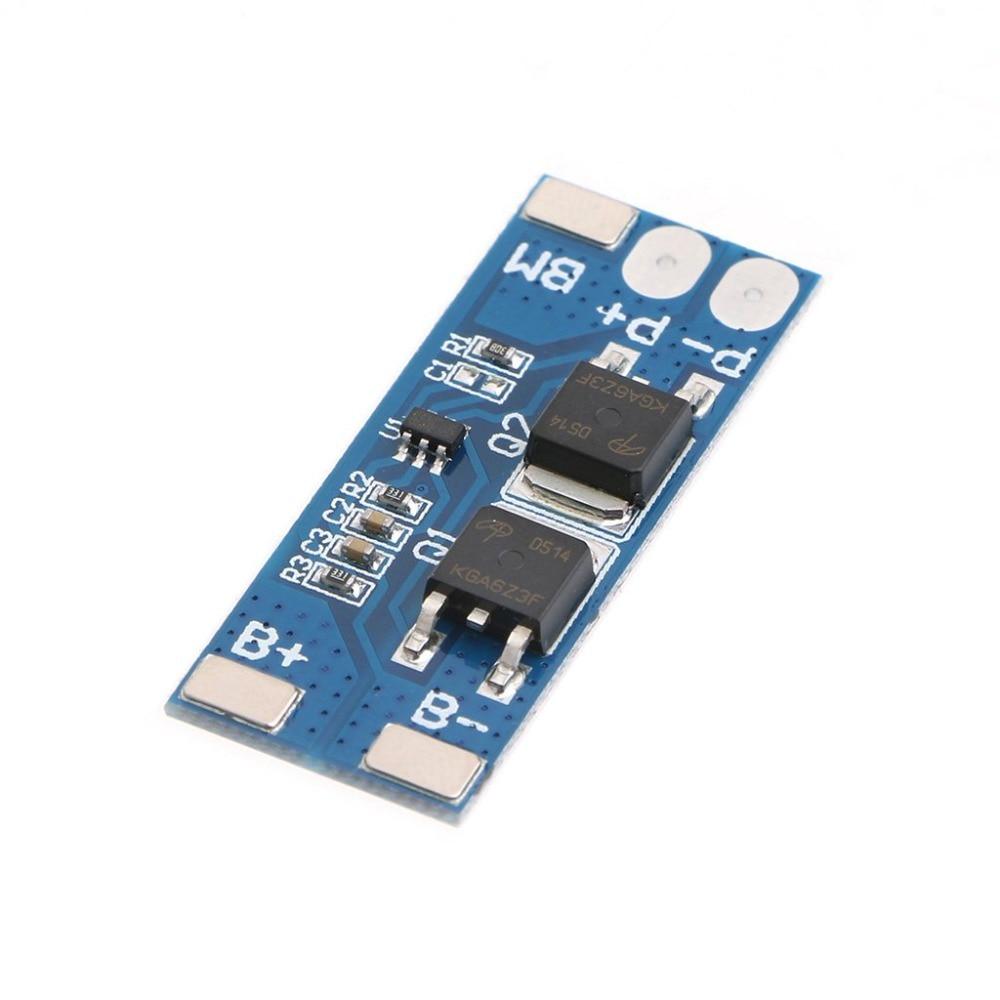

2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A Peak Current Battery Protection Board bms Pcm For Li-ion Lipo battery Cell Pack

Original price was: 125.00৳ .Current price is: 90.00৳ .

  • High-accuracy voltage detection circuit;
  • Terminal of the charger using high voltage device;
  • Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
  • MOS transistor can control the battery charge and discharge;
  • Low standby current consumption.
Add 3,000.00৳  to cart and get free shipping!

Out of stock

SKU: X12928 Category:
Description
Features:
1) High-accuracy voltage detection circuit;
2) Terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) Low standby current consumption.
Parameter:
Over charge voltage:4.25-4.35v±0.05v
Over dishcarge voltage: 2.5-3.0v±0.05v
Max continuous current:8A
Max peak current:15A
Working temperature:-40—+50
Storage Temperature:-40– +80
Small current:less than 3uA
Life cycle :more than 50000hours
Resistance:Less than 300mΩ
Short cut protection :Protectable,charge can repair

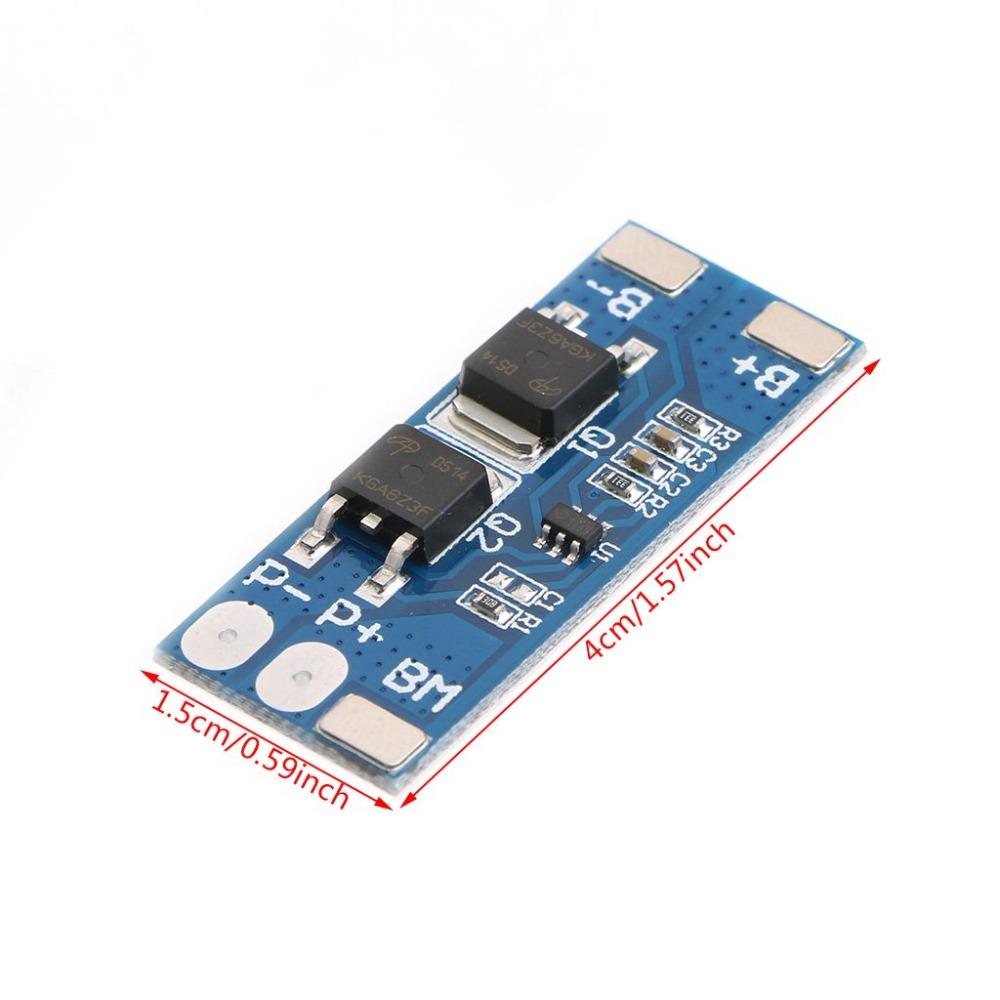

Size: 41*16*3.5mm
