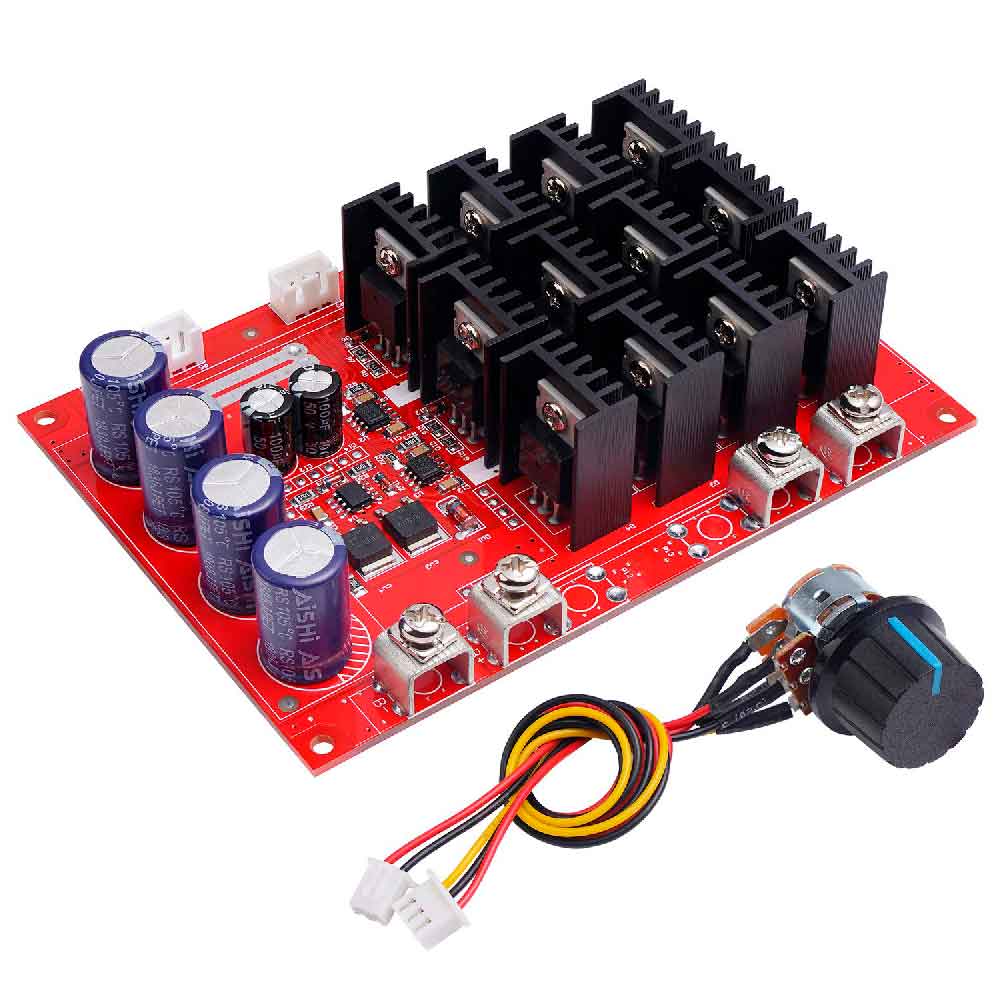

3000W 60A 50V Speed Controller PWM Pulse Motor Speed Regulator Voltage Regulator Control Switch For LED Light DC 10-50V

Specifications:
(1) working voltage: DC10V – DC50V wide working voltage range
(2) control power: 0.01 2000 w (40 a) maximum rated current different working voltage corresponding to the control power of the different species as follows;
When the work voltage 12 v 12 v * 60 a = 720 w
When the working voltage 24 v 24 v * 60 a = 1440 w
When work voltage is 36 v 36 v * 60 a = 2160 w
When the work voltage 40 v 40 v * 60 a = 2400 w
When the working voltage 50 v 50 v * 60 a = 3000 w
(3) the static current: 0.04 A (working voltage when DC10V to DC50V Static electricity will be no more than 40 ma)
(4) the PWM duty ratio: 5%-100%
(5) the PWM frequency: 15 kHz
(6) working temperature: – 20 — 40 (environment temperature is 20 degrees below zero to 40 degrees centigrade) the governor for the industrial quality, can work in below-freezing environment stability, speed governor is not in the general commercial-grade quality can be sub-zero stable jobs.
(7)Size:122x87x32mm

Application:
1. all kinds of general-purpose have a dc motor speed control
2. all kinds of automobile motor car,(car wiper, car fan control cooling fan control, automobile air-conditioning fan speed control motor speed)
3. production line conveyor belt, pipe exhaust fan speed control of speed and running machine control of motor speed, multiple computers parallel speed control, electronic fan speed control.
4. all kinds of dc lamp dimming, all kinds of dc heater temperature adjustment.

Package Inlcuded:
1 x DC Motor Speed Controller
