Name: 300W 20A DC-DC Buck Converter Step-down Module Constant Current LED Driver Power Step Down Voltage Newest
SKU: 012359
Price: 599
Availability: OutOfStock

300W 20A DC-DC Buck Converter Step-down Module Constant Current LED Driver Power Step Down Voltage Newest

🔧 Key Features:
- 🔋 Input Voltage Range: 6V–40V DC (10V–40V suggested for best results)
- 📤 Output Voltage: Adjustable from 1.2V to 36V DC
- 💪 Current Capacity:
  - Max Output: 20A
  - Stable Recommended: 15A
- 🚀 Efficiency: Up to 96% (tested at 24V input to 12V output @ 20A)
- 🎚️ Ripple Control: ≤50mV — low ripple, clean output
- 🛠️ Components:
  - Dual 75V/80A MOSFETs for large current load
  - High-frequency electrolytic capacitors
  - 30A screw terminals for secure wiring
  - Dual heat sinks for enhanced thermal dissipation
- ⚠️ Note: Reduce current when input-output voltage difference is high to avoid thermal stress

Add ৳ 3,000 to cart and get free shipping!

Out of stock

Description:
With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.
The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.
It is designed with 75V/80A large current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
Wiring is convenient with these large current 30A screw terminals.

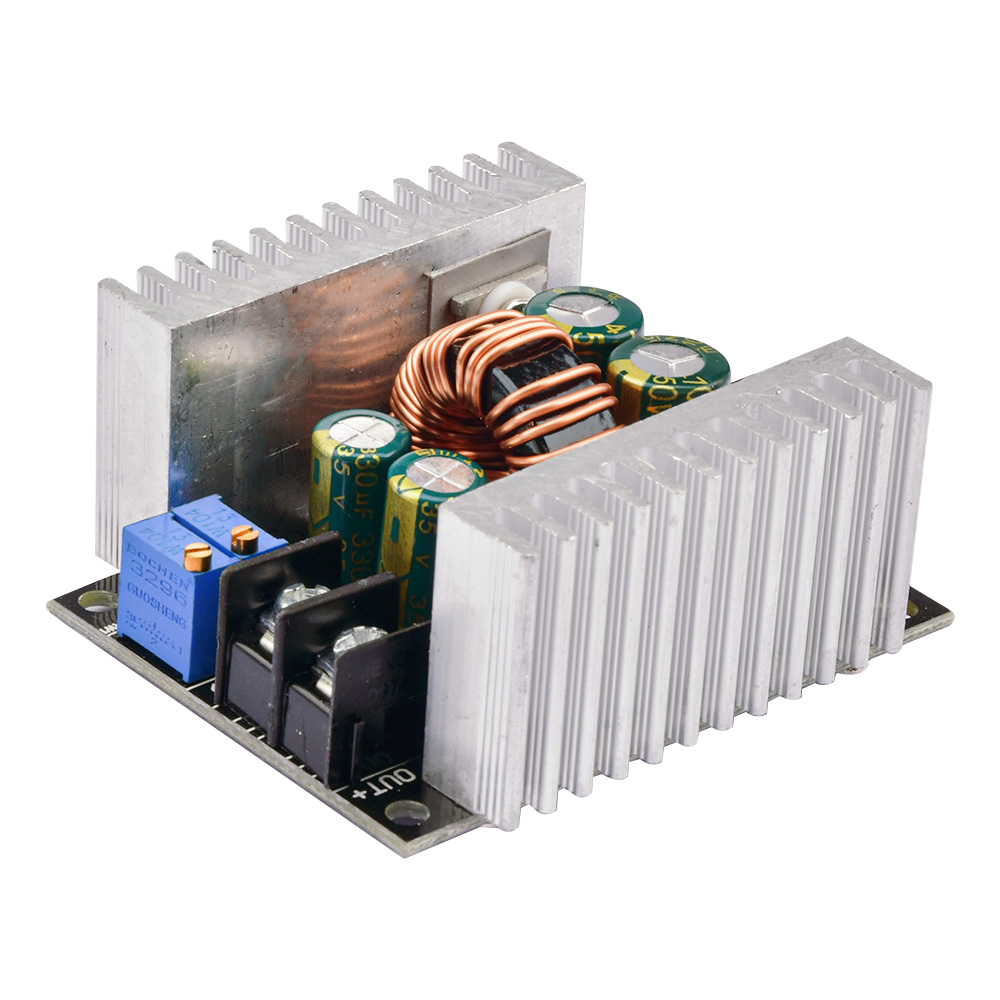

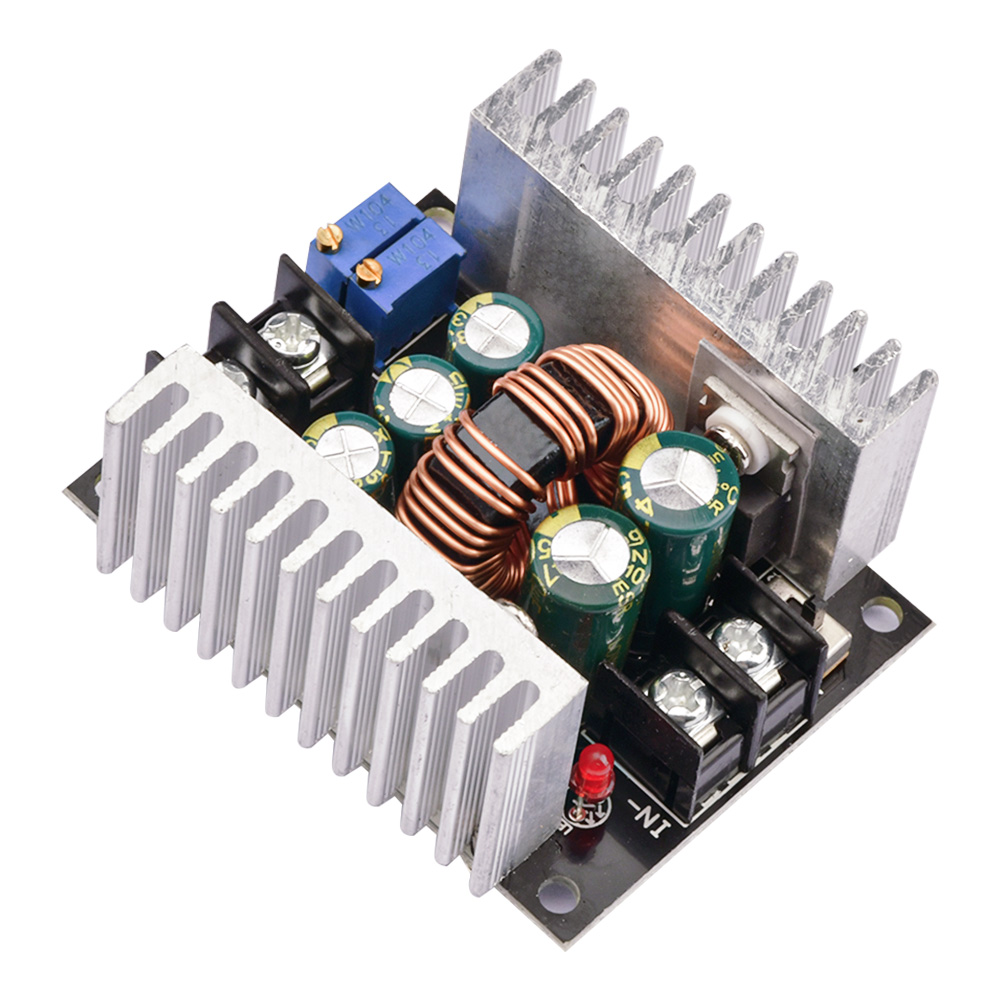

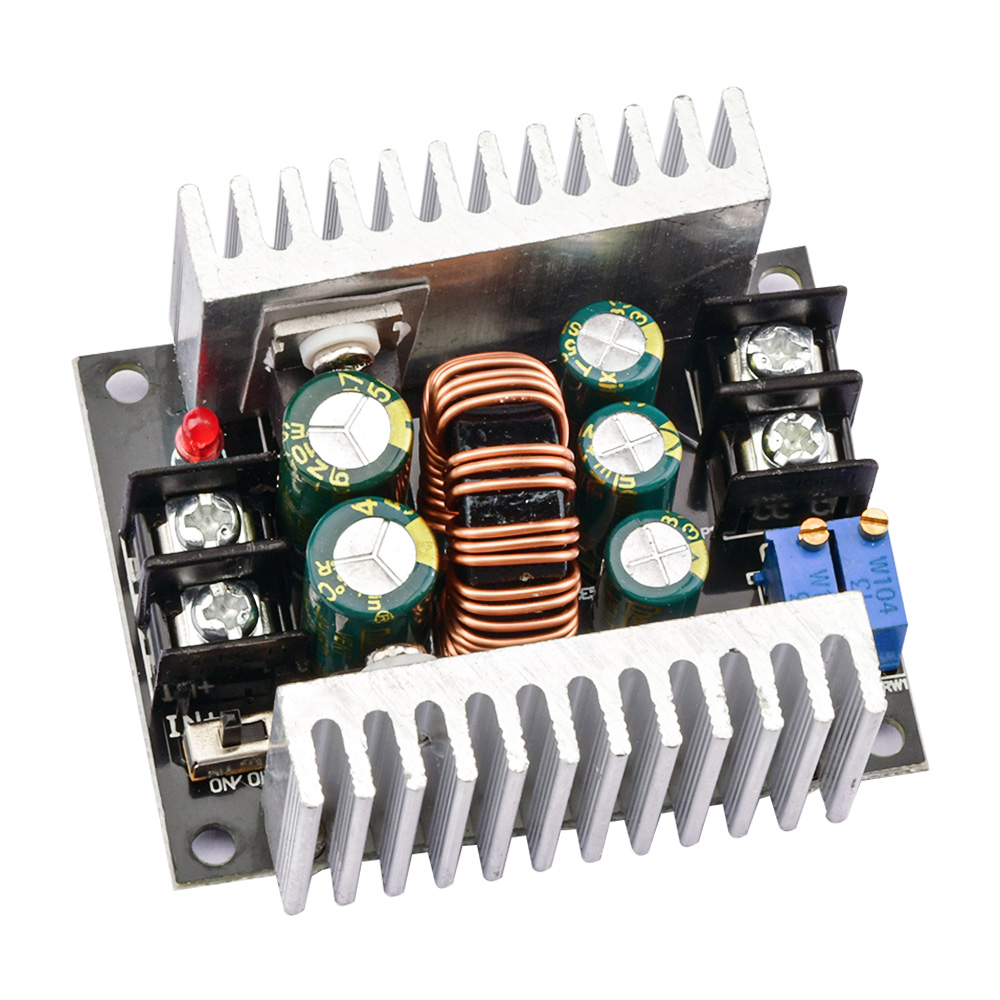

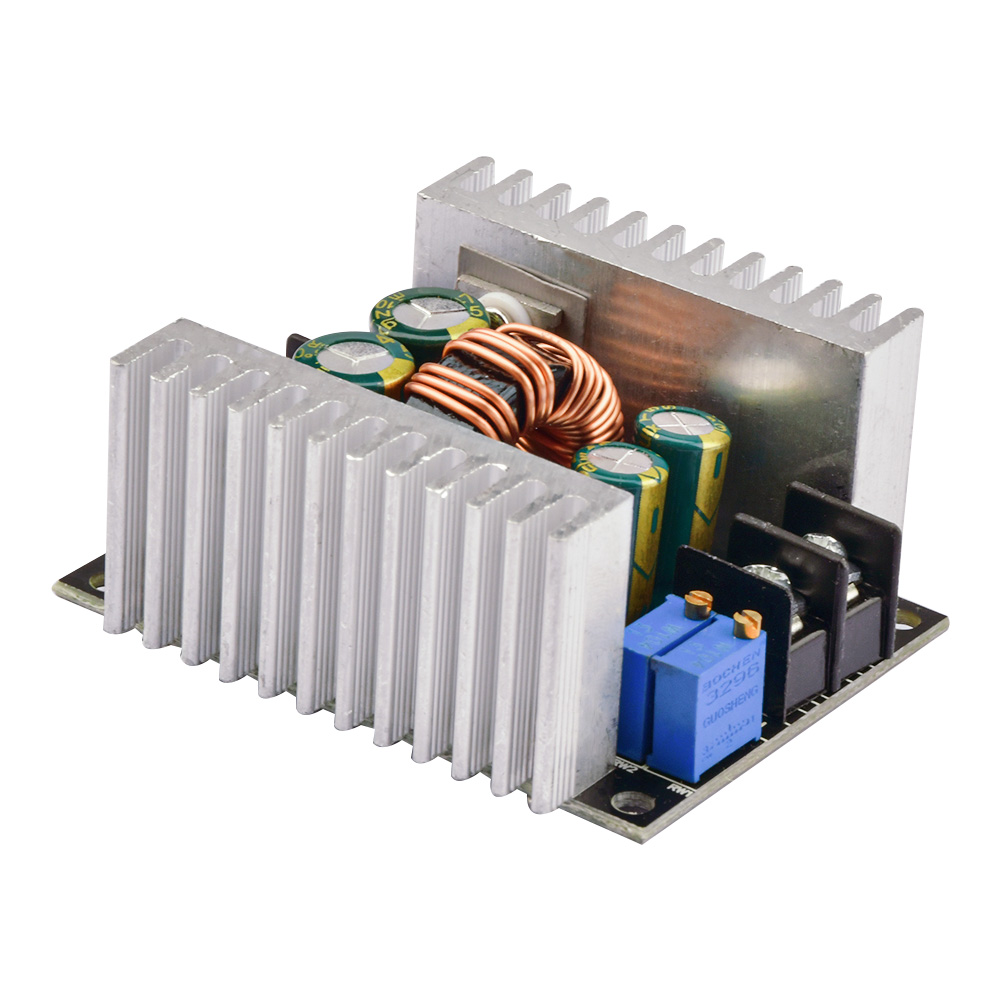

The buck module has 2 heat sink that could enhance heat dissipation.
When there is a big difference between input and output voltage, please decrease power and current.

Specifications:
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Output Ripple: ≤50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06″

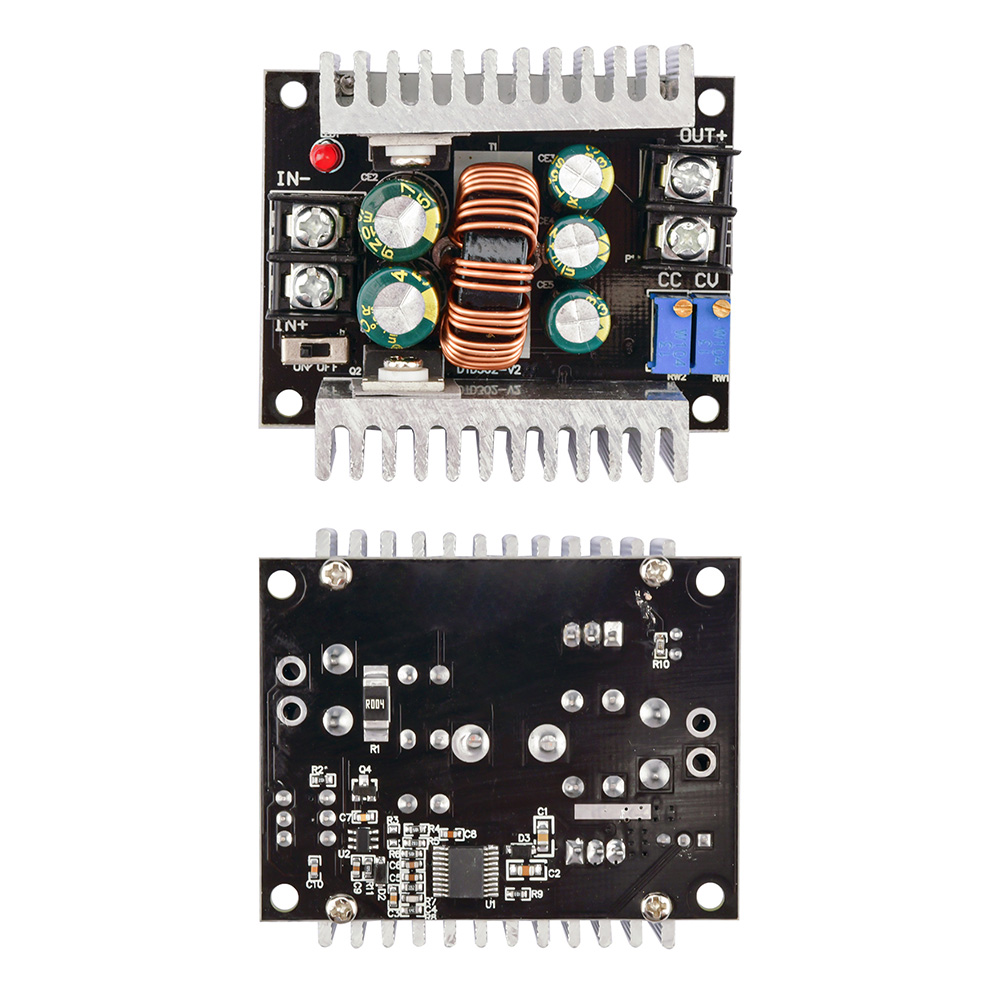

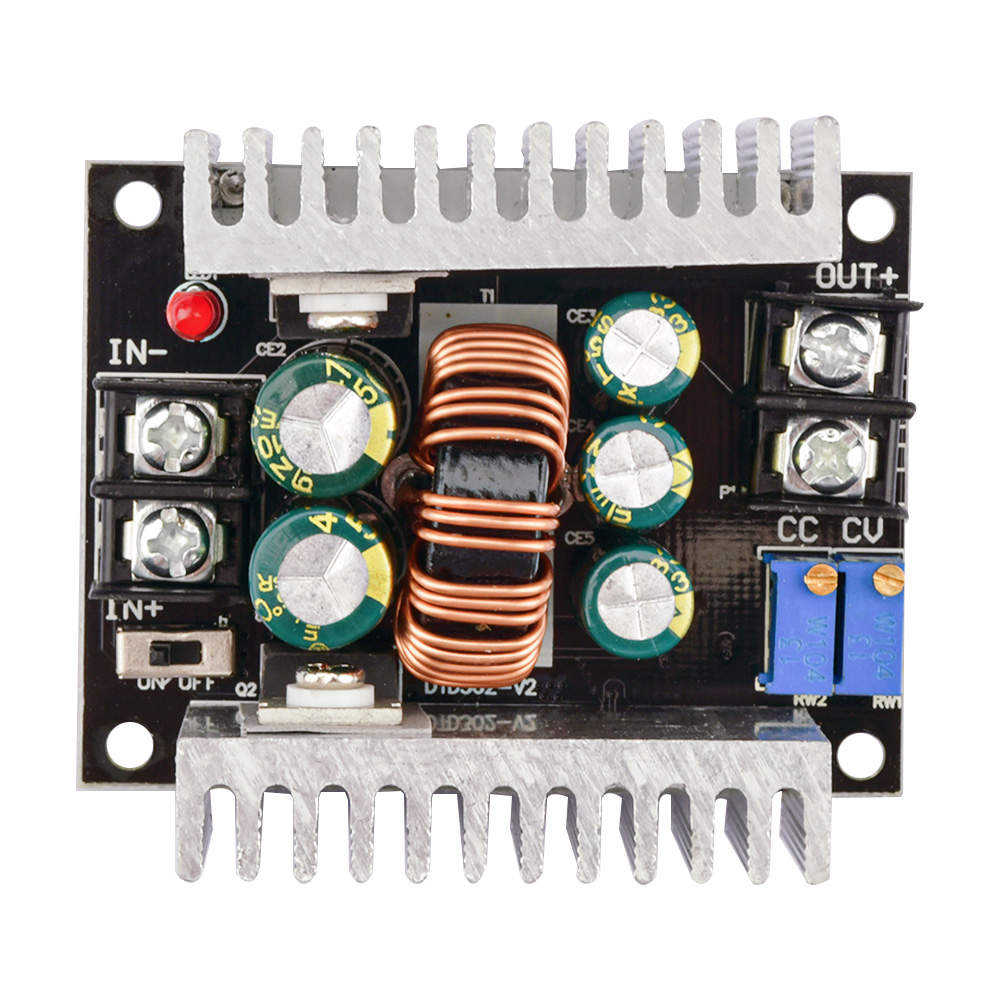

VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current DC-DC Buck Converter Step Down Module High Power Low Ripple Adjustable Power Supply Module - RC GEAR BD
