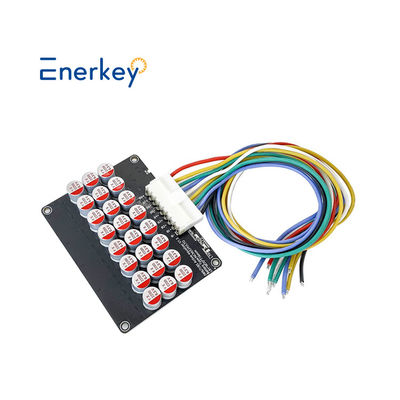

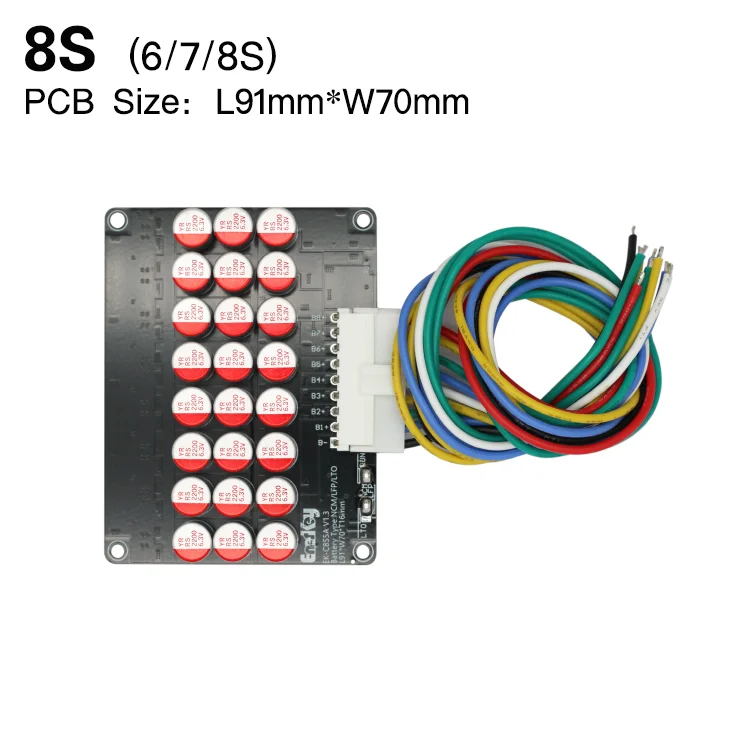

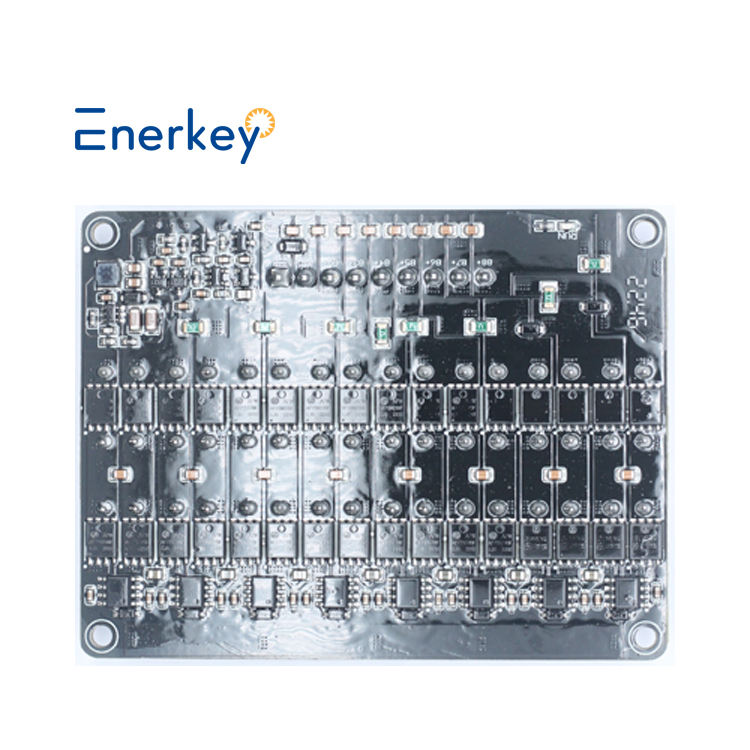

5A EK-C8S5A Active Equalizer Balancer 24v 6s 7s 8s Lifepo4 LTO Battery Energy Equalization Capacitor BMS Board

2,200.00৳

📌 Performance Overview:

🔋 Working Voltage: 1.8V–4.5V – compatible with ternary lithium, lithium iron phosphate, and lithium titanate batteries

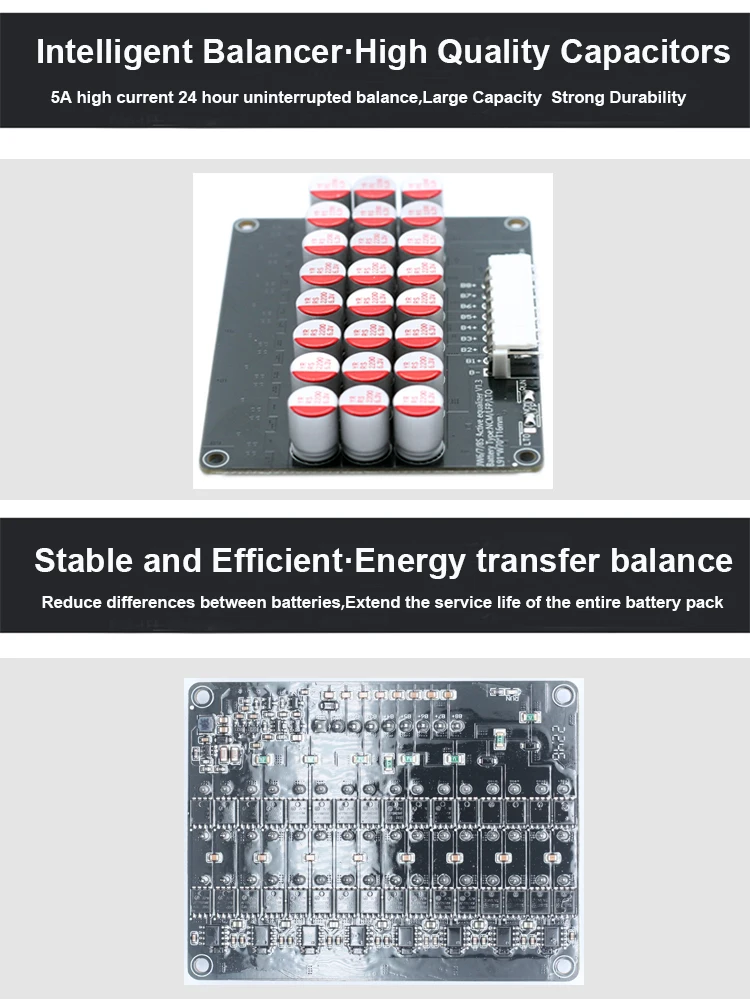

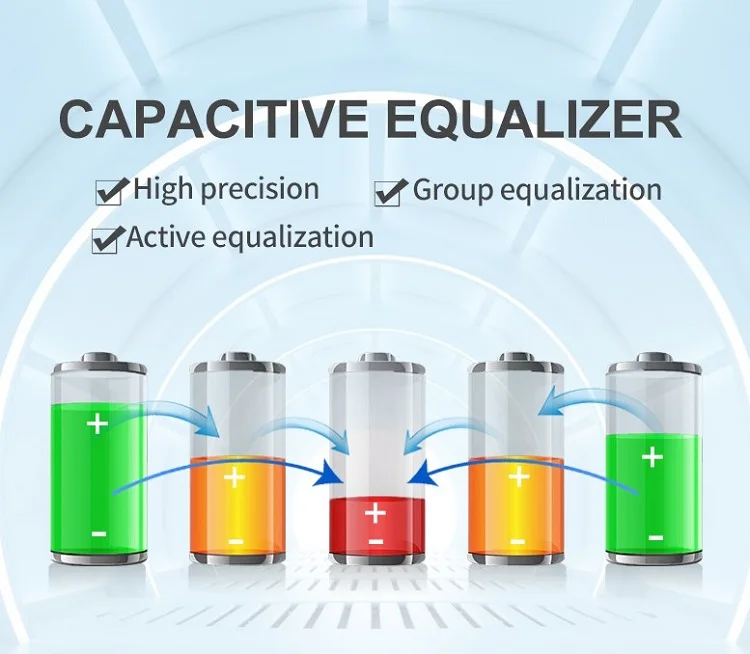

🔧 Balancing Technology: Capacitor-based charge transfer ensures stable and efficient equalization
🧱 Component Quality:
- Ultra-low internal resistance MOSFETs
- Durable 2OZ copper thickness PCB
🔄 Dynamic Balancing Current: Up to 5.5A (current decreases as battery balance improves)

Add 3,000.00৳ to cart and get free shipping!

1 in stock

Add to wishlist

Category: Uncategorized

Description

Product performance description

1. Working voltage 1.8V-4.5V, suitable for ternary lithium, lithium iron phosphate, lithium titanate.

2. Working principle, the capacitor fit transfers the charge porter, and the balance board is connected to the battery to start the balance work. It adopts the brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, and the balance current is 0-5.5A.

3. The more balanced the battery, the smaller the current. Reserve the wiring position of the sleep switch, the working current of the sleep -off mode is less than 0.1mA, and the equalization voltage accuracy is within 5mv!

4. The quiescent current is about 12 mA, and it is recommended that the battery capacity should be 30-300AH for batteries! With under-voltage sleep protection, the voltage willautomatically stop entering the sleep state when the voltage is lower than 3.0V, and the standby consumption is less than 0.1 mA.

Product Name :	8S 5A Active Balancer	Product Model:	EK-C8S5A

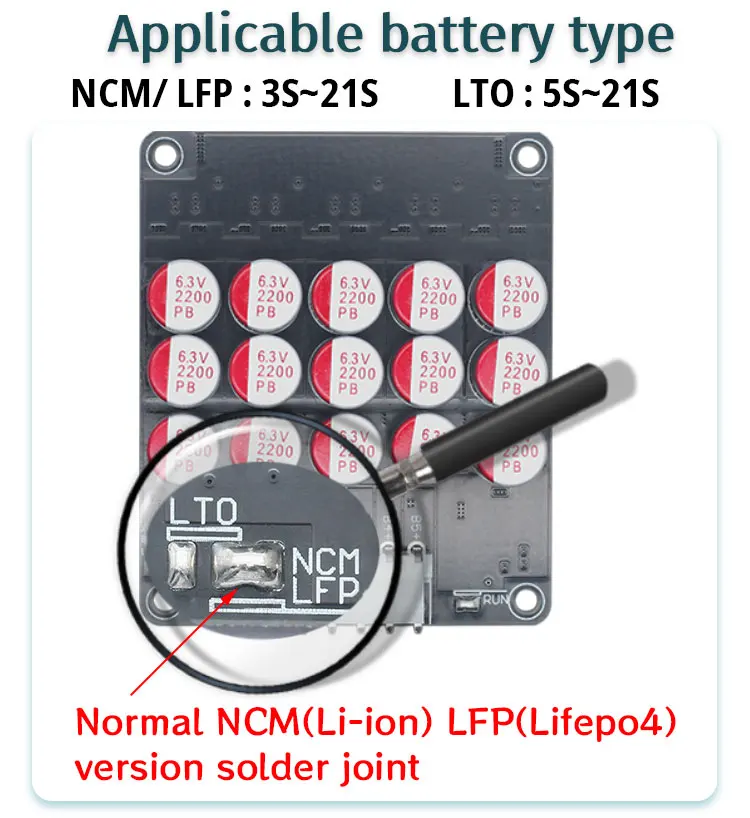

Base Material :	FR-4/HASL	Battery Type:	6S-8S Li-ion/Lifepo4//Lto
Product Size:	L91W70T16mm	Weight With Box:	0.19kg

Technical Parameters

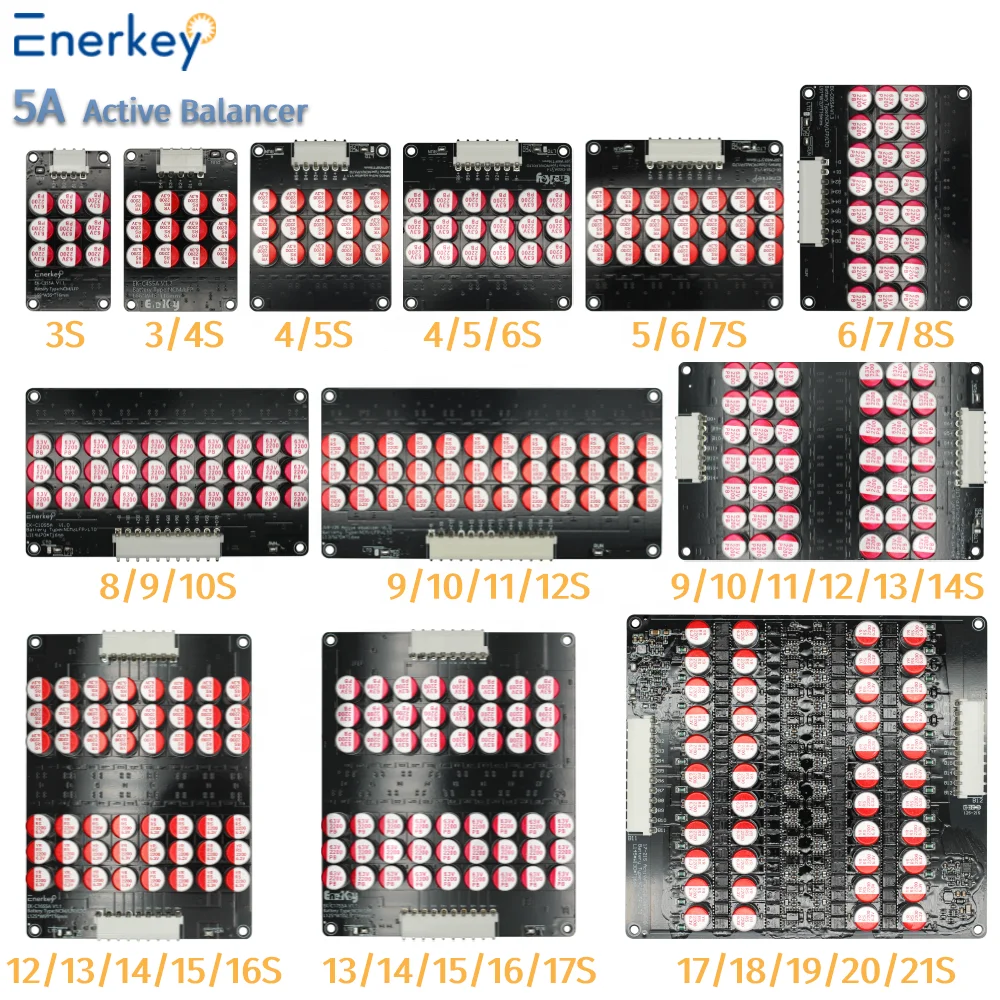

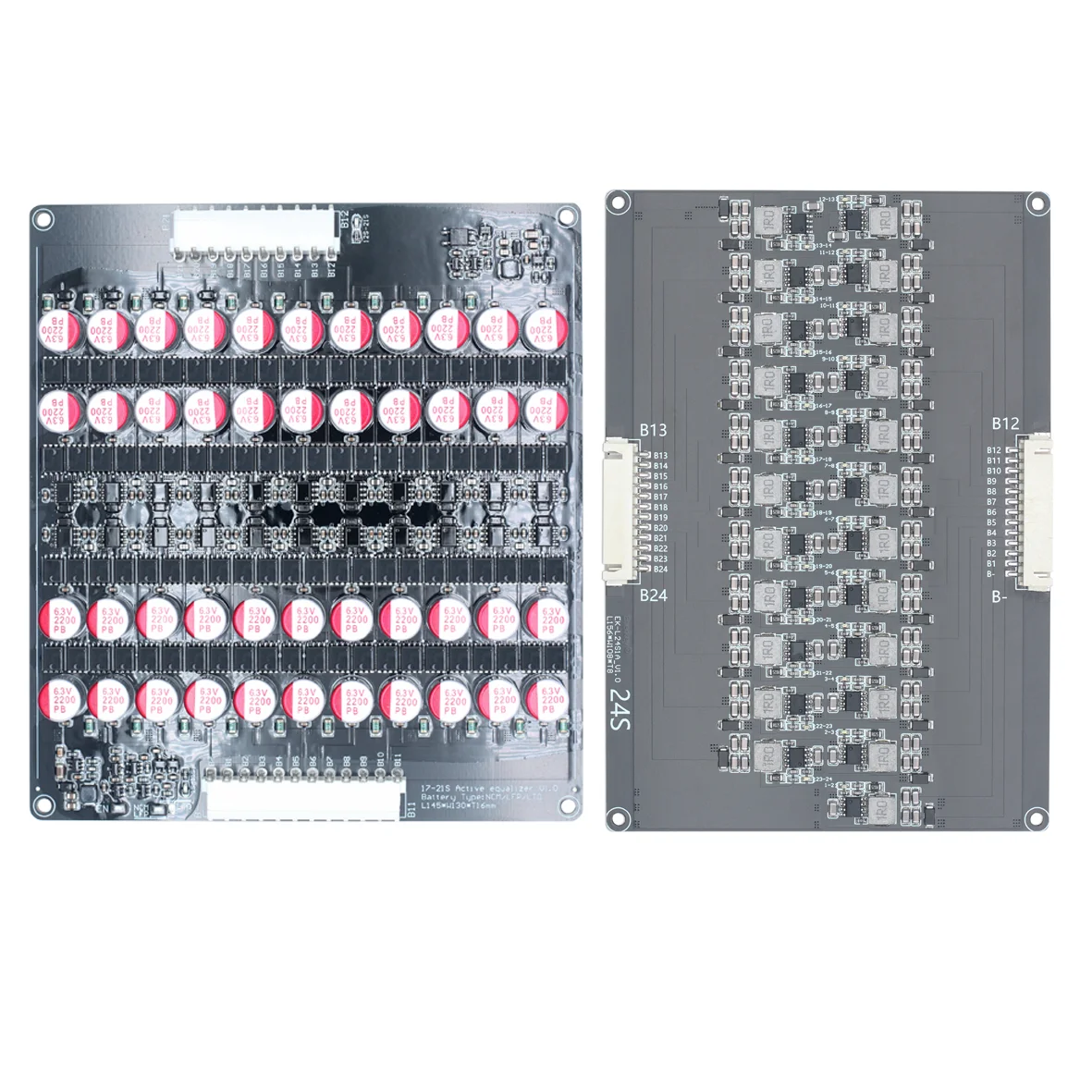

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product strings	4S	5S	7S	10S	12S	14S	16S	17S	21S
Suitable strings	3-4S	4-5S	5-7S	8-10S	9-12S	9-14S	12-16S	13-17S	17-21S
Size(LxWmm)	66*46	69*58	80*70	114*70	137*70	125*80	125*91	115*102.5	145*130
Weight with box(kg)	0.13	0.15	0.18	0.24	0.25	0.28	0.32	0.33	0.39
Thickness	16mm								18mm
Battery Type	NCM/LFP	NCM/LFP/LTO
Material	FR-4/HASL

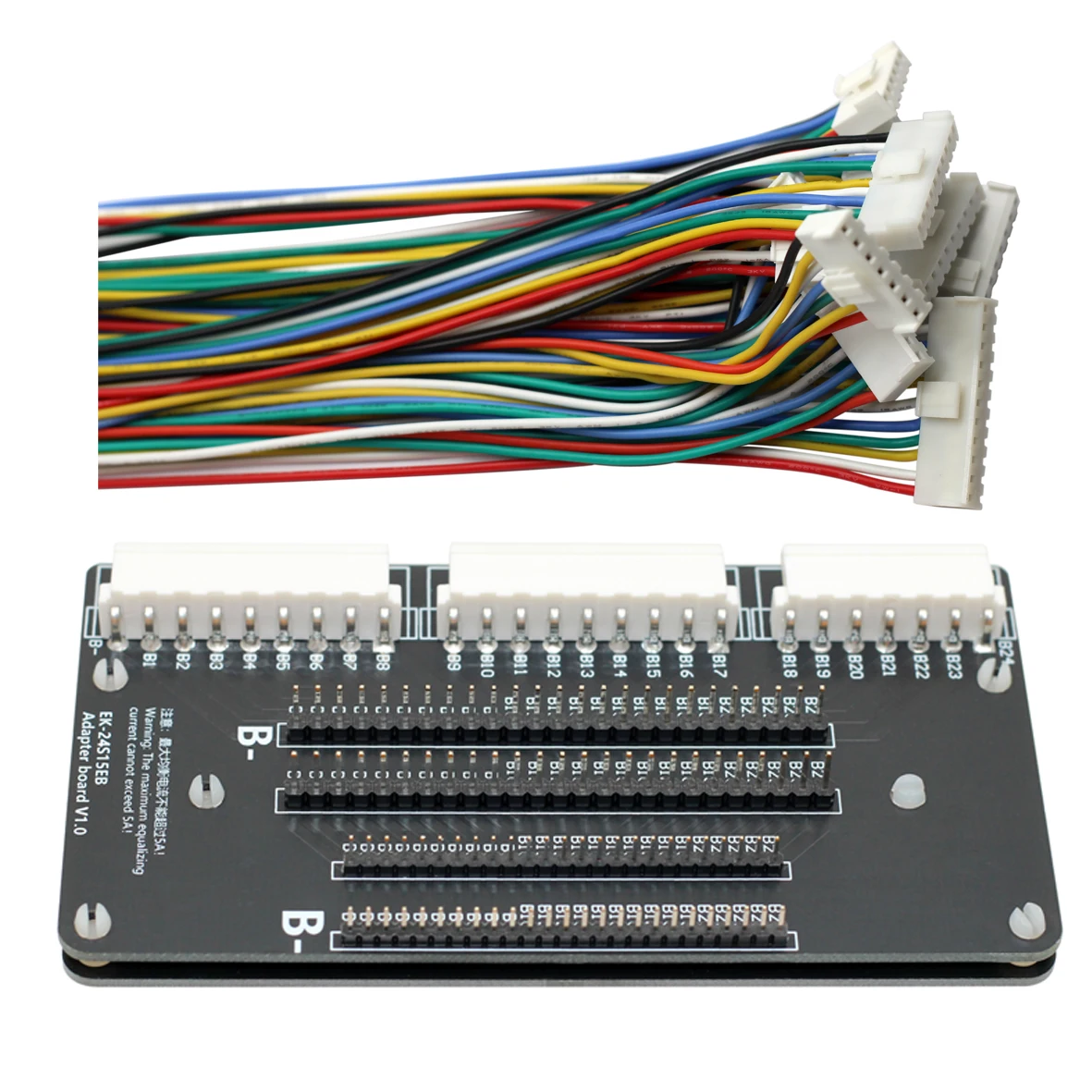

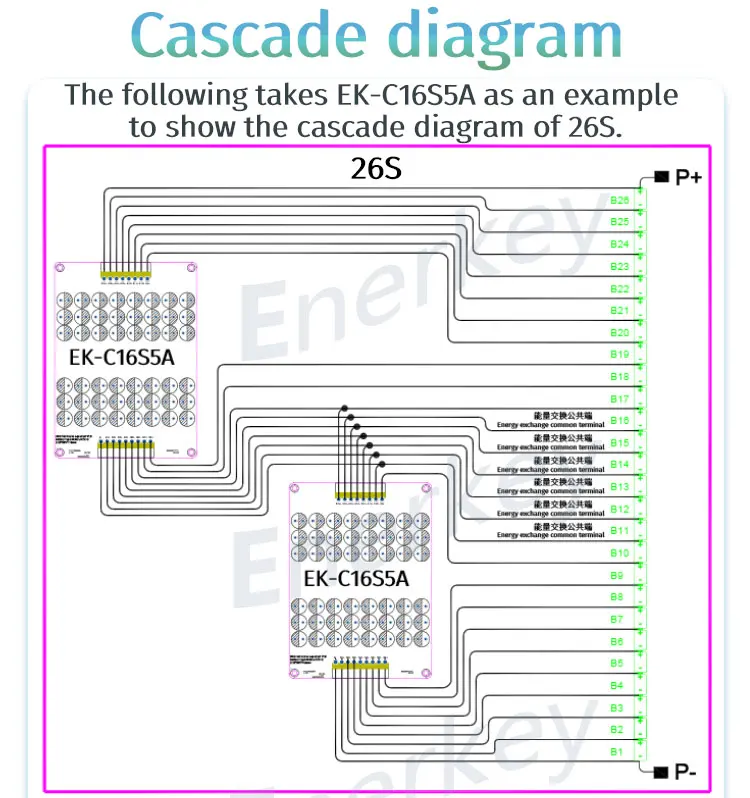

Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S….and so on

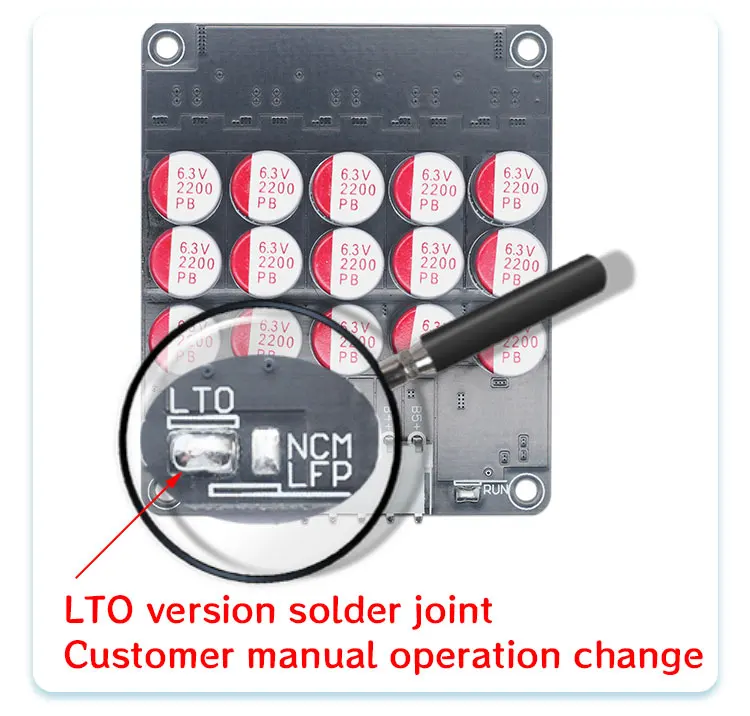

Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V LTO version＜1.8V
Equilibrium method	The whole battery group simutaneously participates in the energy transter active equalizatior
Equilibrium current	0.1V Differential pressure 1A Balanced current, the differential pressure is proportional to the balanced current, the maximum allowable operating current is 5.5A
Voltage equalization accuracy	5mV (typical value)
External power supply	No need for an external power supply, relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃

Product Use Tutorial

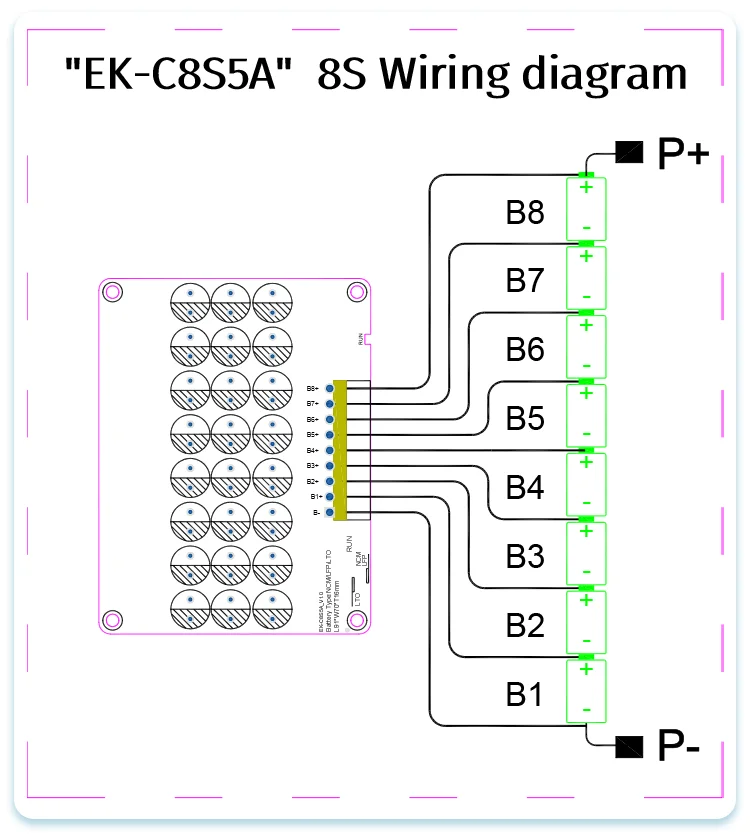

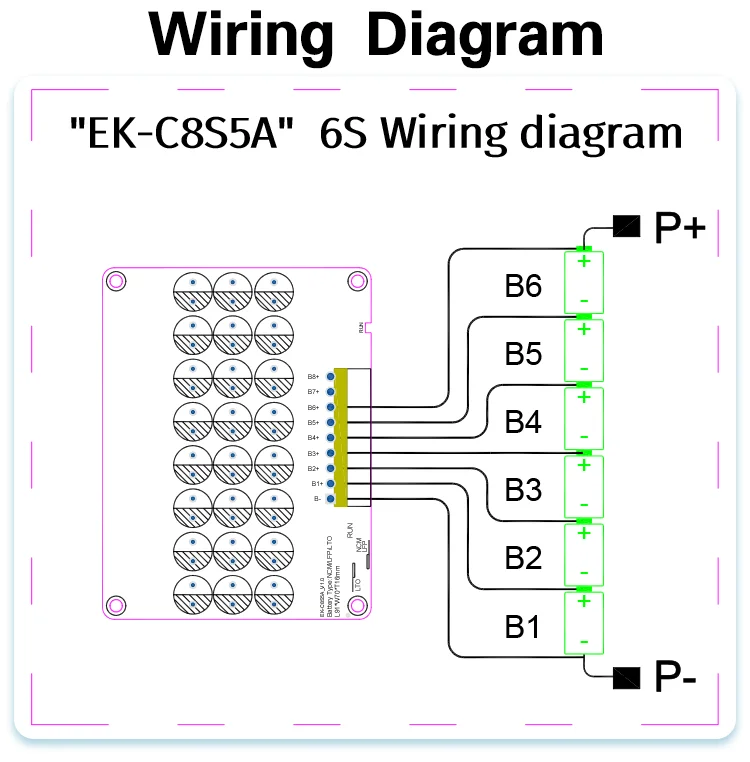

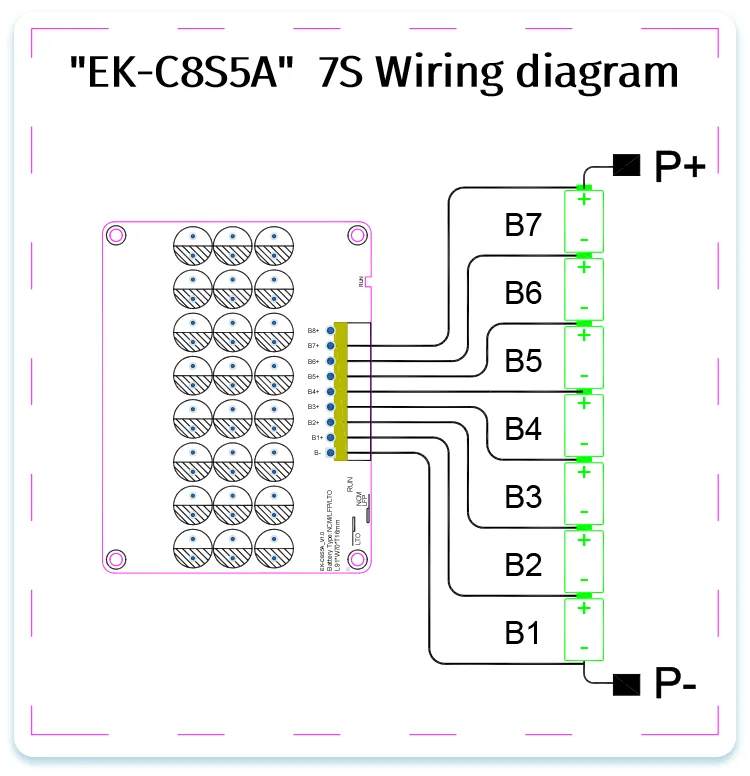

NOTE: As shown in the figure above,there can be multiple common ends of energy exchange,so that the efficiency of equilibrium will be higher;It is also possible to use only one common end of the energy exchange at the junction of two modules,The other free feet are suspended,and it is best to distribute the number of strings equally on each board. Wiring definition B-, the total negative pole of the battery pack(the negative pole of the first battery).B1, the positive electrode of the first battery. B2，the positive electrode of the second battery. B3……. and so on. Direction for use D The first, terminal wire is soldered to the battery pack.Next,Connect the terminal wire to the PCBA.2 13 or more string plugs need to be inserted obliquely,first touch the B-pins and insert them obliquely upwards,otherwise it may cause the board to burn out.
