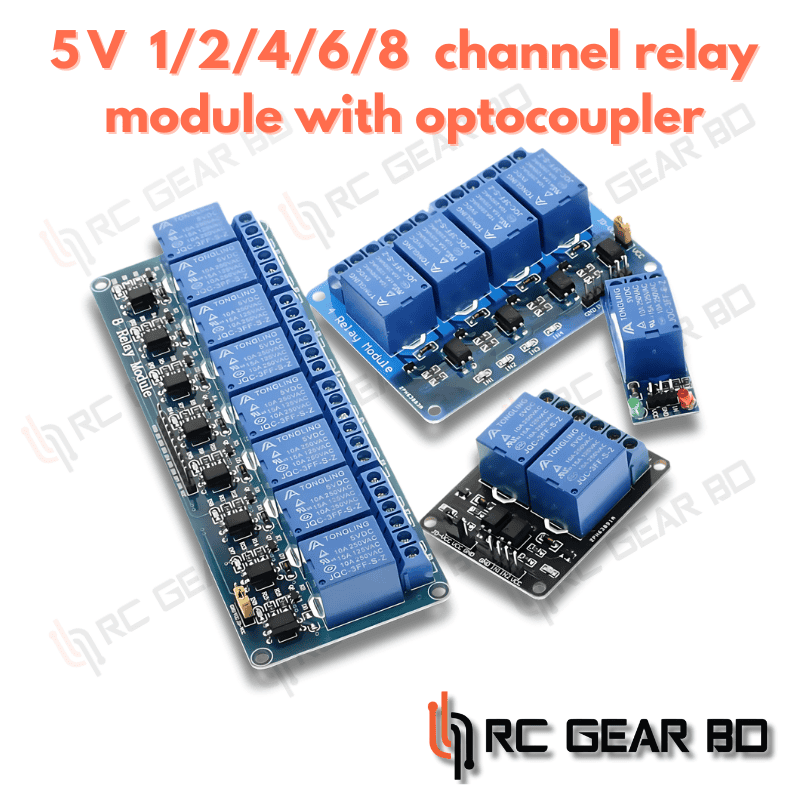

5V 12V 1 1 2 4 6 8 Channel Relay Module With Optocoupler 5V Relay Output 1 2 4 6 8 Way Relay Module For Arduino - Image 1
Click to enlarge
FT232RL FTDI USB 3.3V 5.5V to TTL Serial Adapter Module Mini Port for arduino
FT232RL FTDI USB 3.3V 5.5V to TTL Serial Adapter Module Mini Port for arduino
Back to products
ESP8285 ESP-M2 CH340 CH340g Wifi Wireless Shield Development Board IOT SPI Micro USB Module For Arduino ESP-M3 ESP8266 ESP-12E
ESP8285 ESP-M2 CH340 CH340g Wifi Wireless Shield Development Board IOT SPI Micro USB Module For Arduino ESP-M3 ESP8266 ESP-12E 450.00৳

5V 12V 1 1 2 4 6 8 Channel Relay Module With Optocoupler 5V Relay Output 1 2 4 6 8 Way Relay Module For Arduino

Price range: 80.00৳  through 600.00৳

šŸ”Œ 1ā€“8 Channel Relay Module ā€“ 5V with Optocoupler for Arduino & MCU Control
šŸ§  Available in 1, 2, 4, 6, and 8 channel configurations
āš” Relay Ratings: AC 250V/10A or DC 30V/10A
šŸ”§ Input Voltage Options: 5V
šŸ›”ļø Optocoupler isolation for enhanced signal protection and noise immunity
šŸ“¶ Trigger current: ~5mA | Compatible with high/low level signals
šŸ”— Interfaces: NO (Normally Open), NC (Normally Closed), COM (Common)
šŸ’” Status LEDs for power and relay activation
šŸ› ļø Mounting holes for easy installation on dev boards
šŸ“± Compatible with Arduino, Raspberry Pi, STM32, ESP32, PLCs, and smart home systems
šŸ“¦ Includes: 1Ɨ Relay Module (choose channel & voltage

Add 2,885.00৳  to cart and get free shipping!
Add to wishlist
SKU: N/A Category: Tags: , , , , , , , , ,
Description

1 Channel low level

Feature:

1. There are isolation slots in the control zone and load zone.
2. With power and relay action indication, it lights up when connected, and disconnects when disconnected.
3. When the signal input has a signal, the common and common terminals will jump.
4. It can be used not only as a microcontroller development board module, but also as a home appliance control.
5. It can control not only DC or AC signals, but also 220V AC loads.
6. Has permanent opening and closing vent contact.
7. It is convenient to connect the blue KF301 terminal access control cable.

Specification:

1. VCC: power interface, 5V
2. GND: Ground
3. IN: Control interface.Ā Drive current at least 4mA
4. COM: Control circuit is grounded and connected to GND
5. Size: approx.Ā 41Ɨ16Ɨ16mm / 1.61Ɨ0.62Ɨ0.62ā€
6. Weight: approx.Ā 12g5V Relay Module 4-Channel
This is a 5V 4-Channel Relay interface board.
Be able to control various appliances, and other equipments with large current.
It can be controlled directly by Micro-controller (8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) .
5V 4-Channel Relay interface board, and each one needs 50-60mA Driver Current.
Equipped with high-current relay, AC250V 10A ; DC30V 10A.
Indication LED’s for Relay output status.

Additional information
Variant

1 Way

,

2 Way

,

4 Way

,

6 Way

,

8 Way
Volt

5V
