Name: AC 220V 50HZ 1 Way 4 Wire Touch Control Sensor Switch Touch Lamp Desk Light Parts Switch Repair For Light Bulbs
SKU: 012200
Price: 115
Availability: OutOfStock

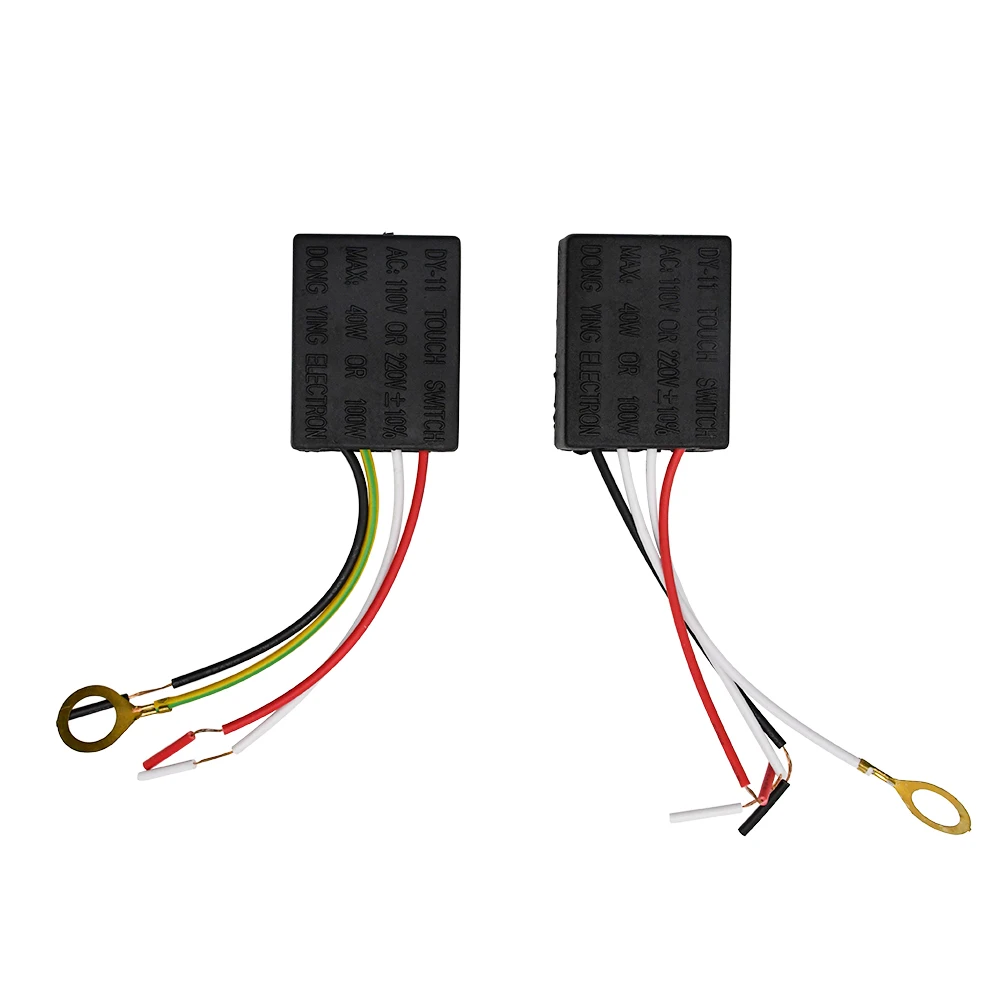

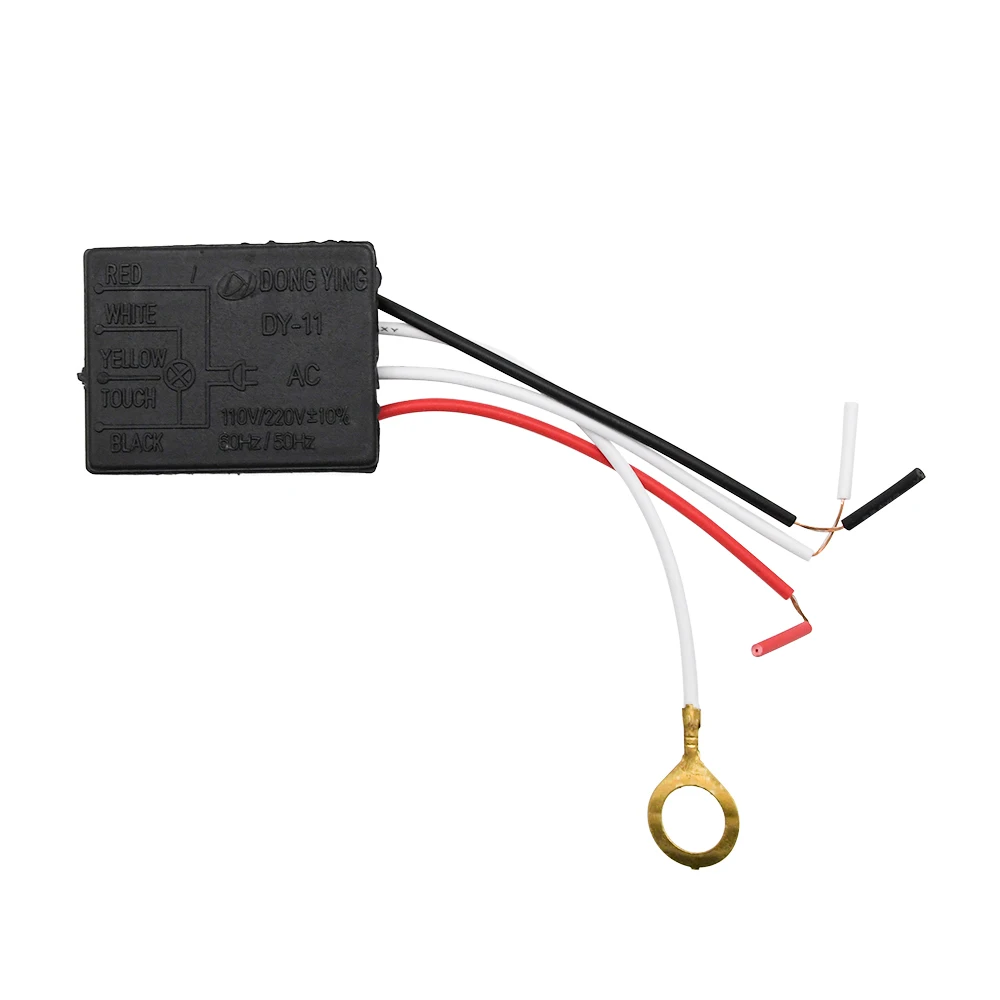

AC 220V 50HZ 1 Way 4 Wire Touch Control Sensor Switch Touch Lamp Desk Light Parts Switch Repair For Light Bulbs

💡 Product Description – Touch Lamp Sensor Switch (1-Way, 4-Wire)

👆 Touch-Activated Control – Instantly switch your lamp on or off by touching any metal part like the harp or saddle
🔌 No Dimming Function – Simple on/off operation, ideal for energy-saving and regular bulbs
⚡ Rated Voltage: AC 220V ±10%, 50Hz – Compatible with standard household power supply
🧰 4-Wire Configuration – Easy to install with clearly defined wiring layout
🖤 Color: Black – Sleek and minimal design for unobtrusive installation
📐 Compact Size: 4.4×3.4×1.3cm – Perfect for tight spaces and hidden compartments
🛠️ Wiring Guide:
- 🔴 Red = Live line input (AC 220V)
- ⚪ White = Live line output to the lamp
- ⚫ Black = Common neutral line
- 🟡 Yellow = Touch line to metal body
🆕 100% Brand New & High Quality – Built for long-lasting performance
🔧 Ideal for Lamp Repairs & Upgrades – A must-have part for DIY fixers and lighting tinkerers

Add ৳ 3,000 to cart and get free shipping!

Out of stock

Description

Description:

Touch lamp desk light 1 Way 3Way Sensor Switch Repair

Lamp parts: Off-on 4-wire touch switch that (once installed) works by touching any metal on your table lamp(including the harp or saddle).

Voltage: AC 220V +/- 10% , 50HZ

This is off/on only, can not adjust the brightness

Suitable for ordinary light bulbs and energy-saving lamps

100% brand new and high quality

Size (LxWxT): 4.4×3.4×1.3cm/1.73″x1.33″x0.51″(approx.)

Color: Black

Wiring method: black and red wire are connected to AC220V input, black wire is connected with white wire, and yellow wire is connected to touch metal body. [That is, the red is connected to the 220V live line input, the white is connected to the 220V live line output, the black is the common zero line, and the yellow band is the touch line to the touch metal body. 】
