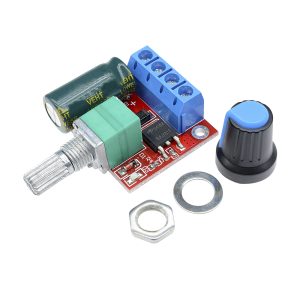

Mini 5A PWM Max 90W DC Motor Speed Controller Module 3V-35V Control Switch LED Dimmer Hot Sale
Mini 5A PWM Max 90W DC Motor Speed Controller Module 3V-35V Control Switch LED Dimmer Hot Sale Original price was: 200.00৳ .Current price is: 95.00৳ .

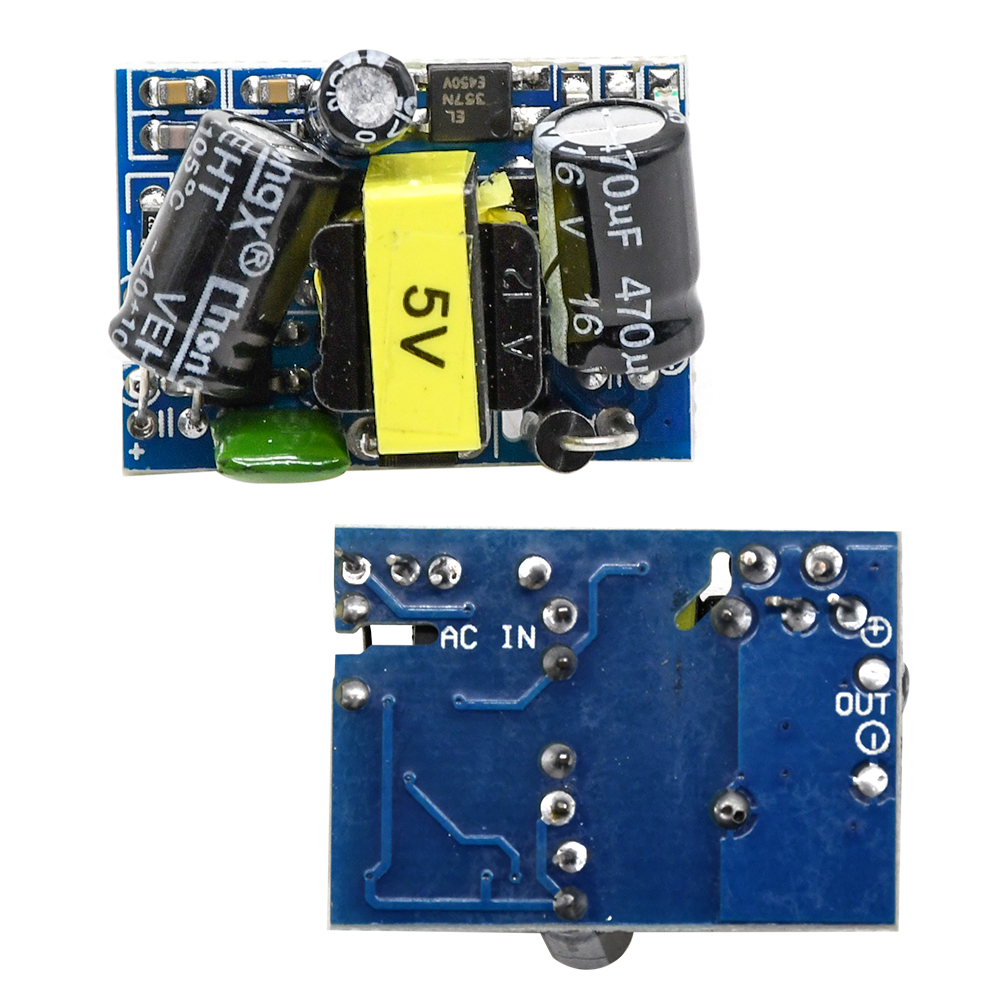

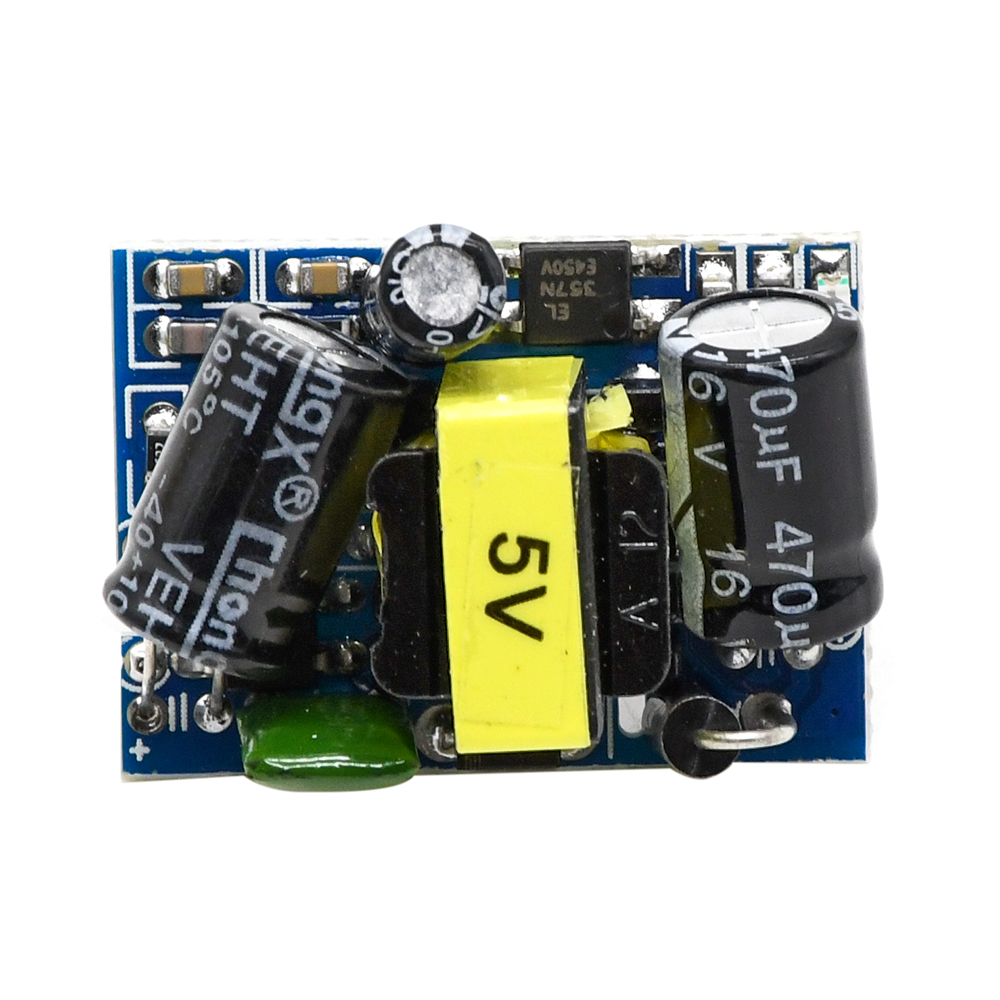

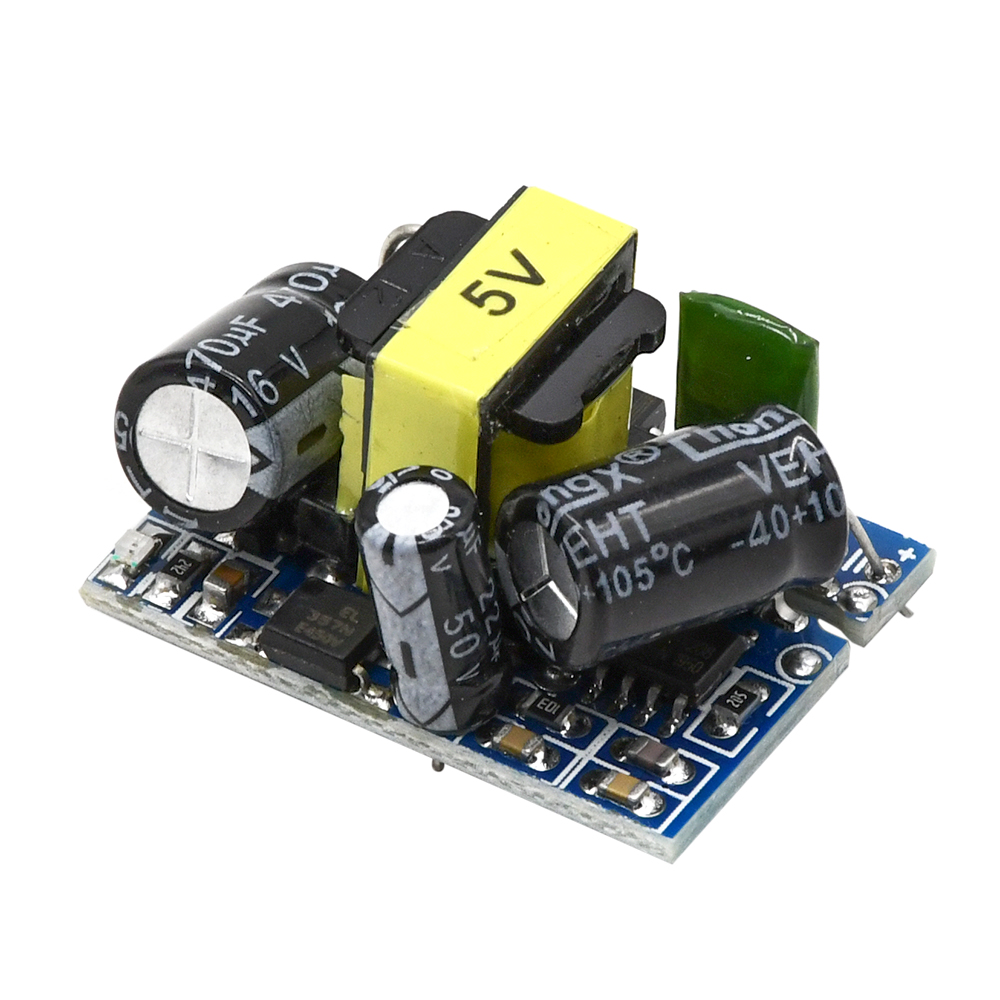

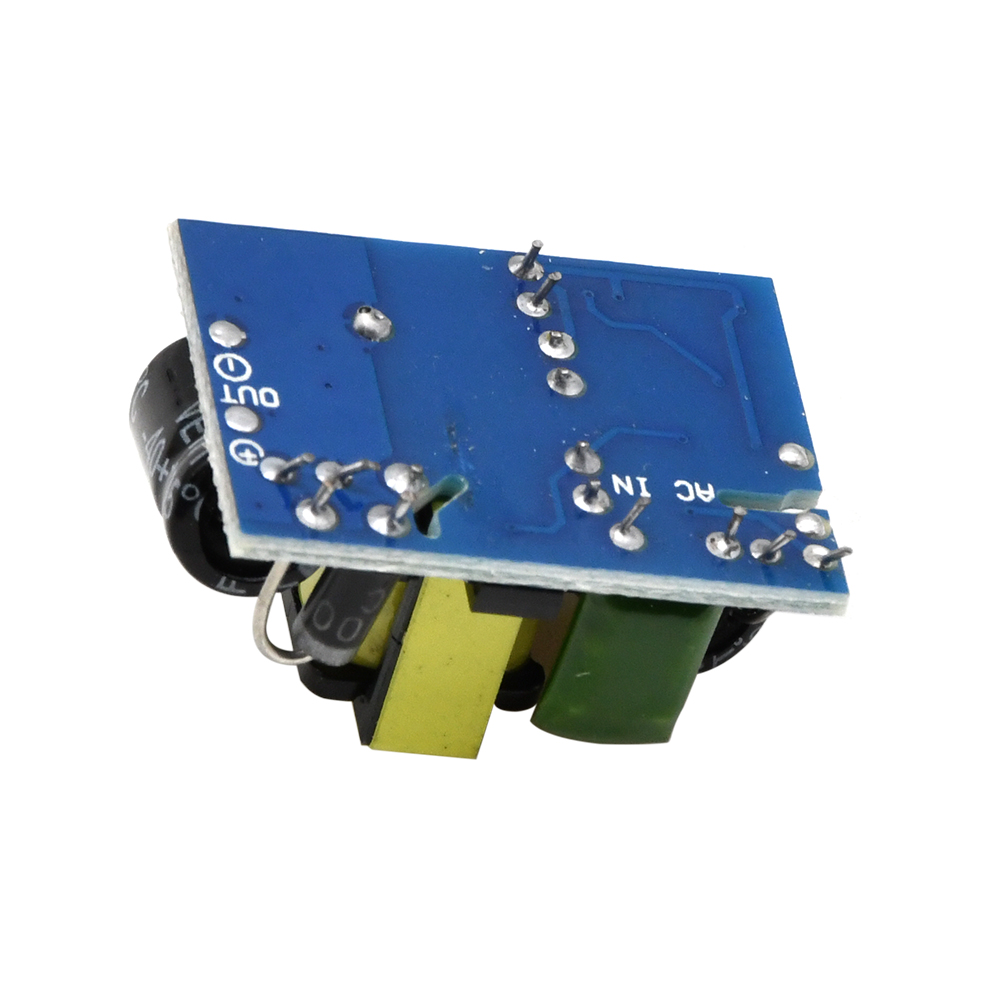

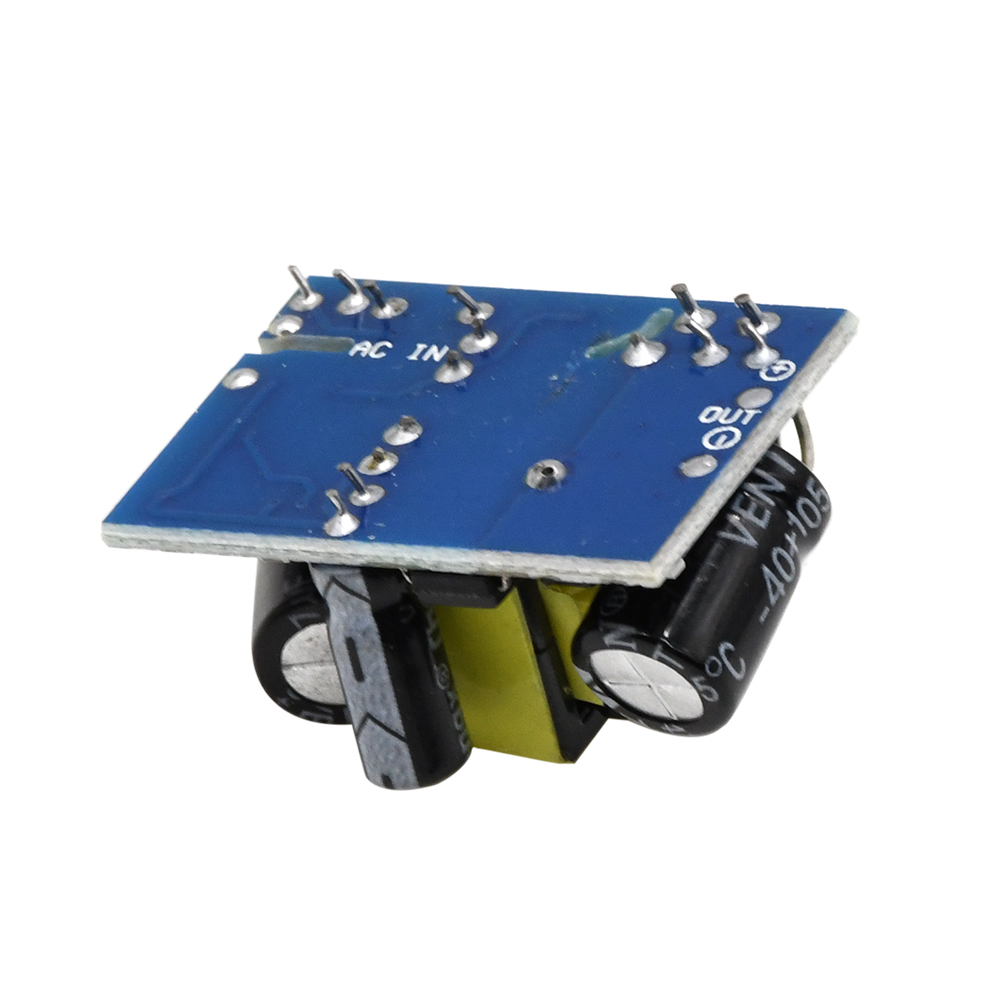

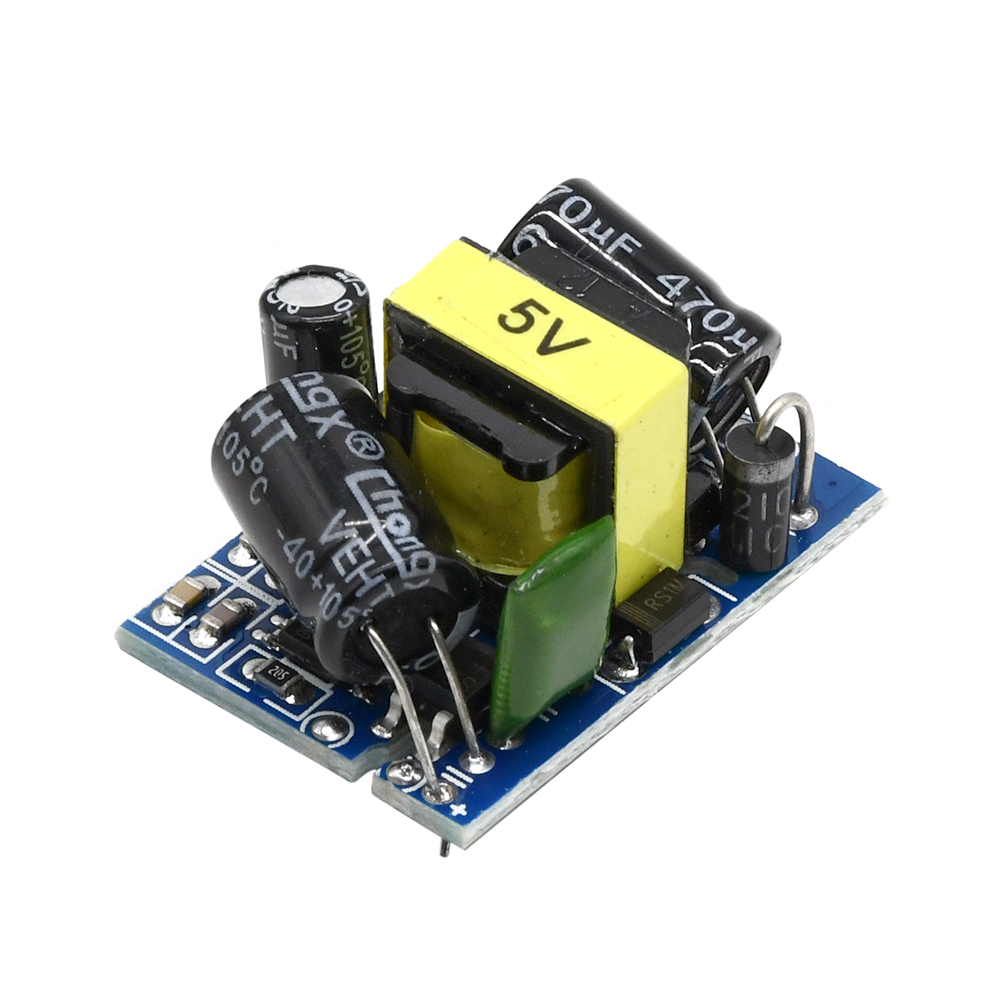

AC-DC 5V 800mA 110V 220V to DC Buck Converter Step Down Board Transformer Power Supply Module Voltage Isolation

Original price was: 220.00৳ .Current price is: 130.00৳ .

  • Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
  • Input current: 0.0273A(AC110V) 0.014A(AC220V)
  • Input Inrush Current: 20A
  • Output voltage: DC 5V (+ / – 0.2 V)
  • Output current 700 mA
  • Power 3.5 W
  • Operating temperature -20~60℃
  • Relative humidity 40-90%RH
Add 2,900.00৳  to cart and get free shipping!

Out of stock

SKU: 010751 Category:
Description

Step Down Module
Condition: New
With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v
wide voltage input, ac/dc current , 431 precision voltage stability DC5V output
I
Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV
Output power:0-4W(DC current)
Output efficiency: 80%
Switch machine overshoot: MAX 10%
Output voltage rise time: MAX 100MS
Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
Output over power protection:YES ,recovery:Lock, restart after recovery
Short-circuit protection: YES, automatic recovery after problem solved
Temperature protection: YES,recovery:Lock, restart after recovery
Overcurrent protection: YES,recovery:Lock, restart after recovery
