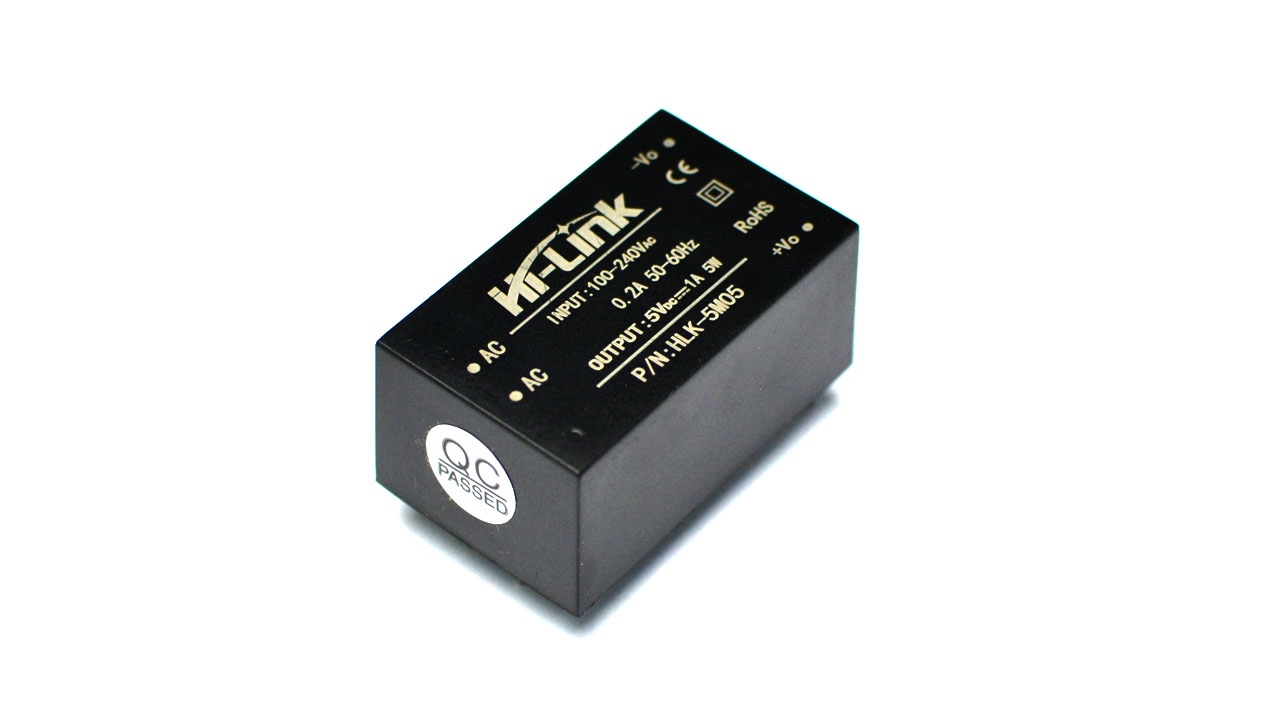

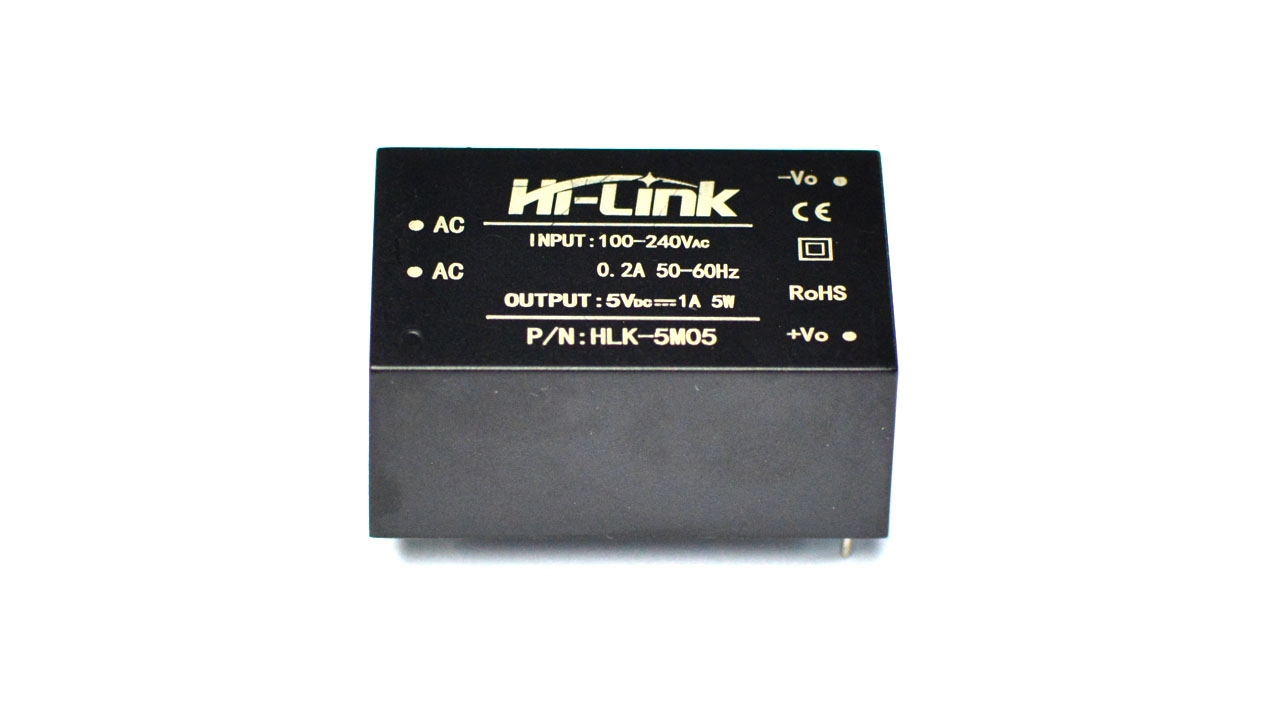

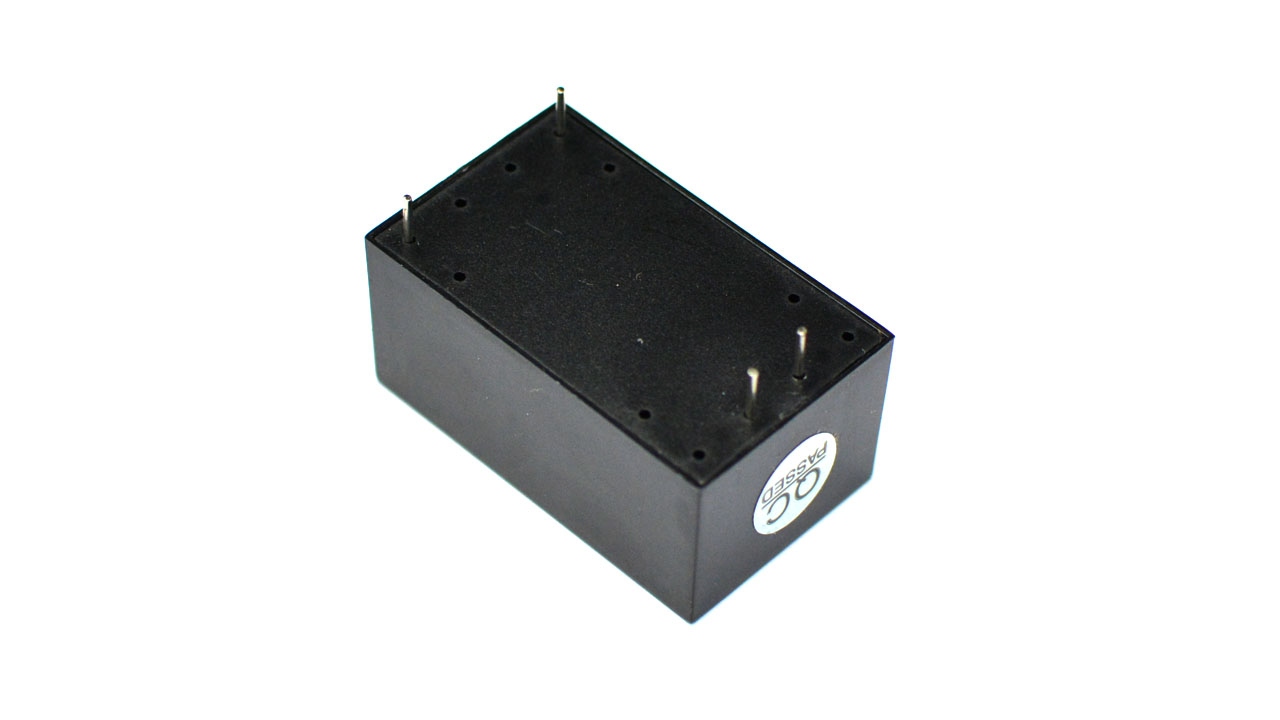

AC DC Power Supply Module HI Link HLK 5M05 5V 5W

AC DC Power Supply Module HI Link HLK 5M05 5V 5W

Upgrade your projects with this high-efficiency 5V power module, designed for reliability and longevity. With a universal input voltage range of 90-264VAC and a robust isolation voltage of 3000VAC, this module ensures safe and stable operation. Featuring a low no-load power loss (<0.1W) and an impressive MTBF of over 100,000 hours, it is ideal for medical, industrial control, electric power, instrumentation, communication, and railway applications.

Key Features

• This power module supports a universal input voltage of 90-264VAC / 70-350VDC.
• It ensures high isolation voltage at 3000VAC for enhanced safety.
• It operates with low power consumption, featuring a no-load loss of less than 0.1W, making it energy efficient.
• The durable design includes shockproof, moisture-proof, and flame-retardant potting for longevity.
• With high output quality, the module maintains a stable 5.0V±0.2% voltage with low ripple/noise of ≤100mVp-p.
• It provides overload protection, supporting a maximum load of 110-150% to prevent damage.

Technical Specifications

Safety & Protection

• Fuse Recommendation 1A/250VAC or 10Ω wire wound resistance, slow blow
• Varistor Protection 10D561K to prevent surge damage
• PCB Fire Rating 94-V0 for fire resistance
• Electrostatic Discharge Protection IEC/EN 61000-4-2 Level 4 (8KV/15KV)
• Temperature Rise Safety Max internal component temperature ≤90°C; shell surface ≤60°C

Application:

• Medical Equipment: Stable power for medical devices
• Industrial Control: Reliable for automation and control systems
• Electric Power Systems: Converts high-voltage AC to stable low-voltage DC
• Instrumentation: Powers sensitive instruments with low ripple
• Communication Systems: Ensures steady power for telecom devices
• Railway Systems: Powers control circuits and communication equipment

Why should you choose the HLK 5M05 5V 5W Power Supply Module?

It is energy-efficient with a low no-load power loss (<0.1W), ensures safety with a high isolation voltage of 3000VAC and overload protection, is suitable for various applications like medical, industrial control, and telecom, is reliable in harsh environments with shockproof, moisture-proof, and flame-retardant features, and offers a long lifespan with an MTBF of over 100,000 hours.

Packaging Details

• AC DC Power Supply Module HI Link HLK 5M05 5V 5W
