ACM91 Clamp Multimeter Digital AC DC Current Clamp Meter True RMS Auto Range 6000 Counts 100 amp Mini Meter With Temperature Capacitance NCV Measure LoZ Volts

Original price was: 6,500.00৳ .Current price is: 3,999.00৳ .

Key Features:

AC/DC Current Measurement: Measures both AC and DC current down to 1mA using the clamp jaws.
Microamp Measurement: Precise microamp (μA) measurement down to 0.1μA via terminals.
AC/DC Voltage Measurement: Measures both AC and DC voltage.
Multifunction: Measures resistance, continuity, capacitance, and frequency.
Low Impedance Mode: Features low impedance (LoZ) voltage measurement.
Temperature Measurement: Includes temperature measurement capabilities.
Safety Features: Live wire check and non-contact voltage detection (V-alert).
Clamp-on Frequency: Measures frequency using the clamp jaws.
Convenient: Auto range, data hold, auto power off, and backlight.
Safety Compliance: Meets IEC standards and features CAT III 300V / CAT II 600V over-voltage protection.

Add 3,000.00৳ to cart and get free shipping!

Out of stock

Add to wishlist

Category: Uncategorized

Description

Features:
Measure both DC current and AC current (minimum 1mA by jaws)
Measure microamps μA (minimum 0.1μA by terminals)
Measure AC and DC voltage
Measure resistance, continuity and capacitance, frequency
Low impedance voltage measurement
Measure temperature

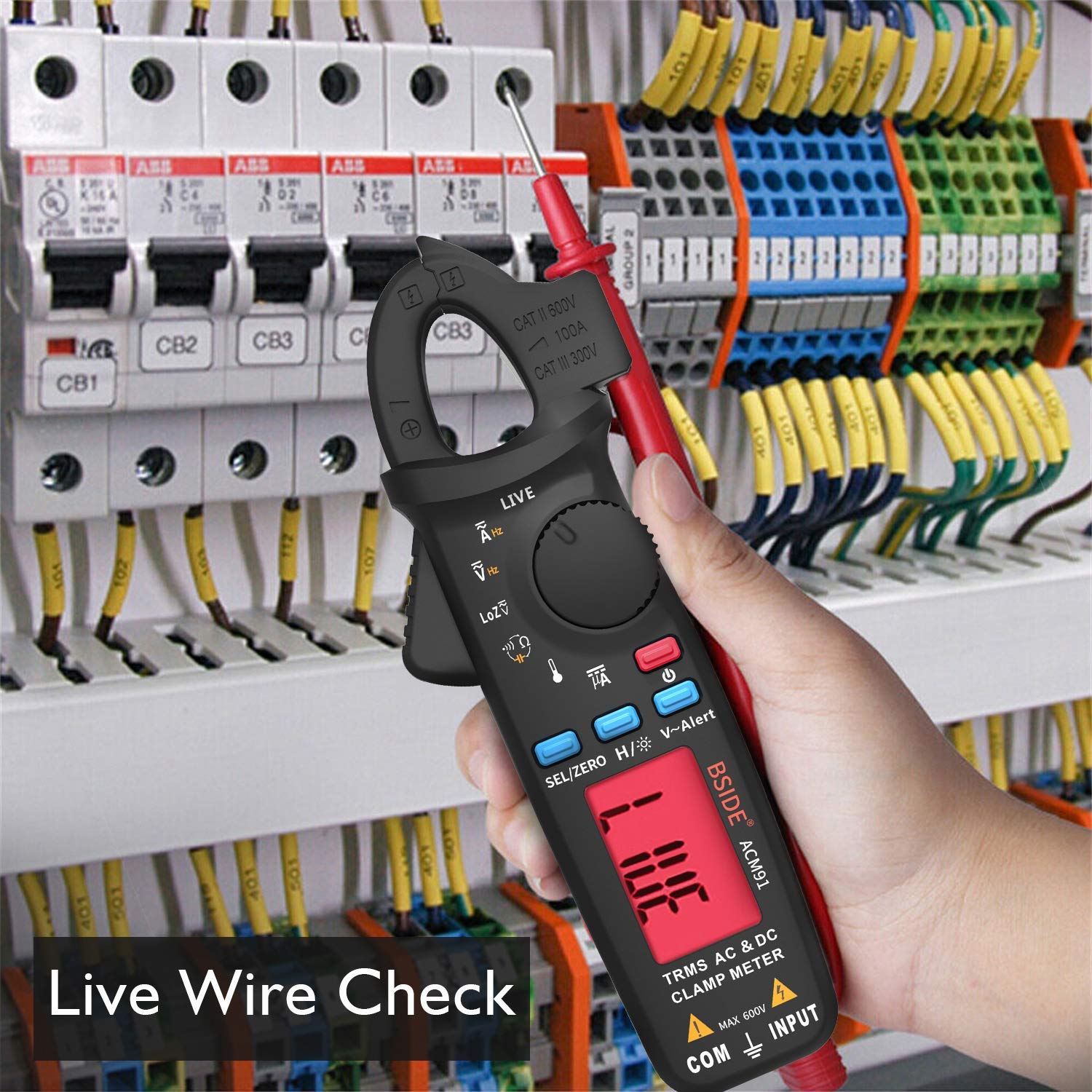

Live wire check function

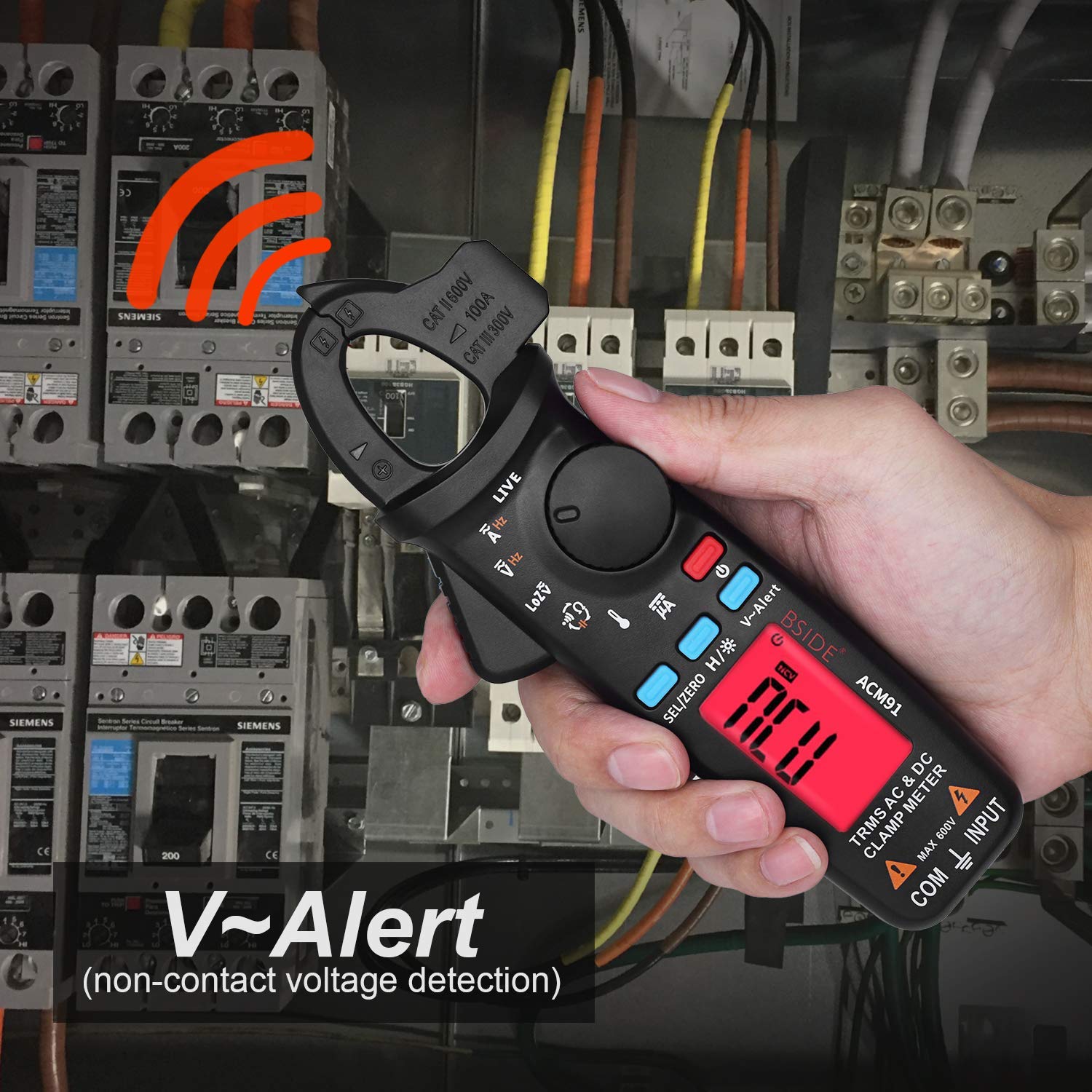

V-alert measurement
Clamp on frequency function
Auto range, Data hold, Auto power off, Back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II

Specifications:
Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts)
DC current(uA):0-200uA 0.1uA ±(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts)
DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600/6k/60k/600k/6M ohm 0.1/0.001K/0.01K/0.1K/0.001M ohm ±(1.0%+3counts)
60Mohm 0.01Mohm ±(1.2%+20counts)
Capacitance: 600uF/6000uF 0.1uF/1uF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency（by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds.
Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137g
