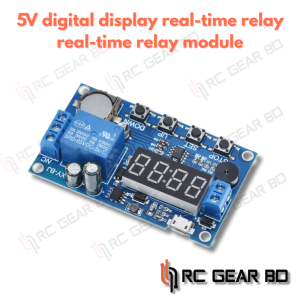

DC 5V Real-Time Delay Timer Relay Module Switch Control Clock Synchronization Multi-Mode Control Wiring Diagram
DC 5V Real-Time Delay Timer Relay Module Switch Control Clock Synchronization Multi-Mode Control Wiring Diagram Original price was: 670.00৳ .Current price is: 650.00৳ .
Back to products
XH-A393 Car Audio Modified Bluetooth Digital Power Amplifier Board 50W*4 DC12-18V Support TF card AUX Bluetooth Input
XH-A393 Car Audio Modified Bluetooth Digital Power Amplifier Board 50W*4 DC12-18V Support TF card AUX Bluetooth Input Original price was: 2,000.00৳ .Current price is: 1,490.00৳ .

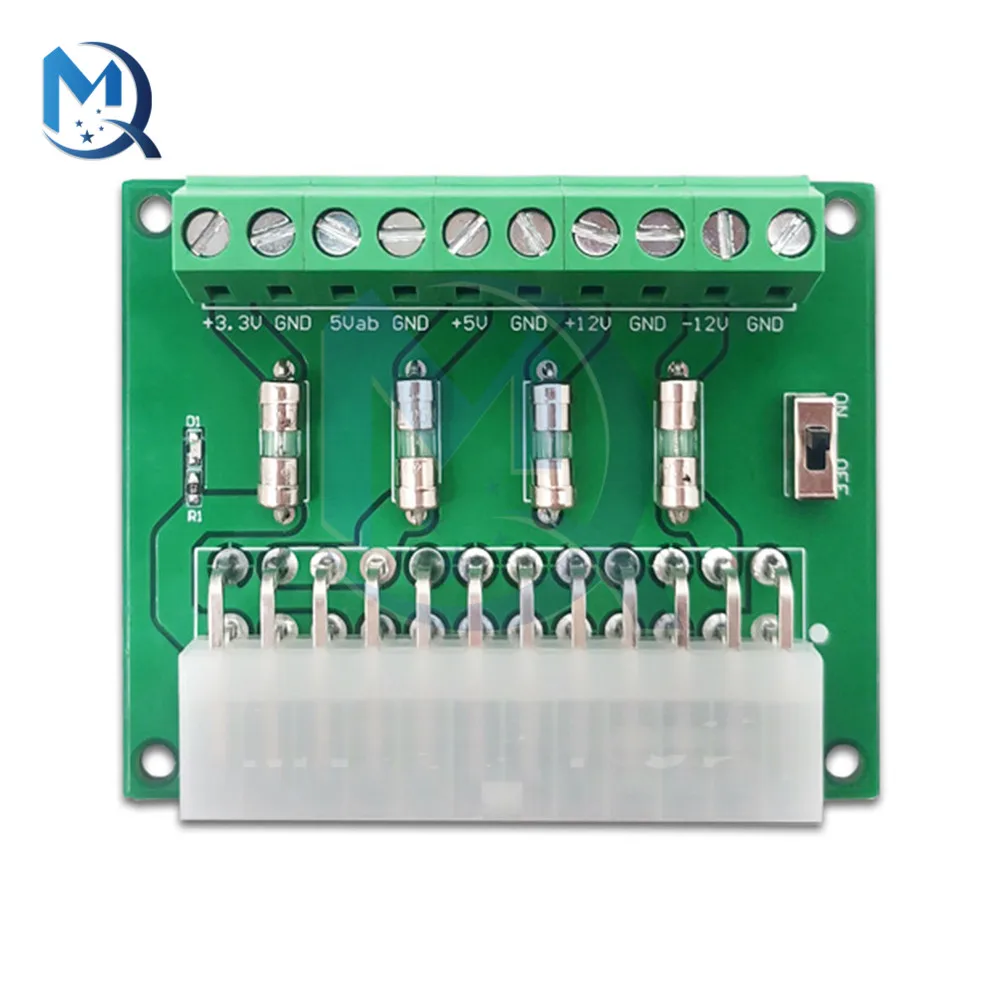

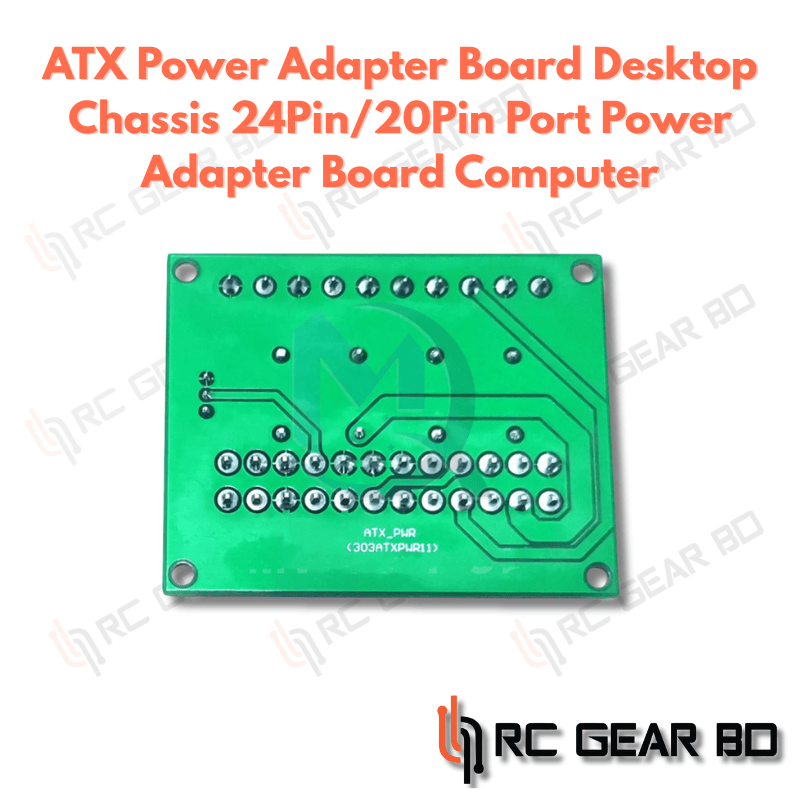

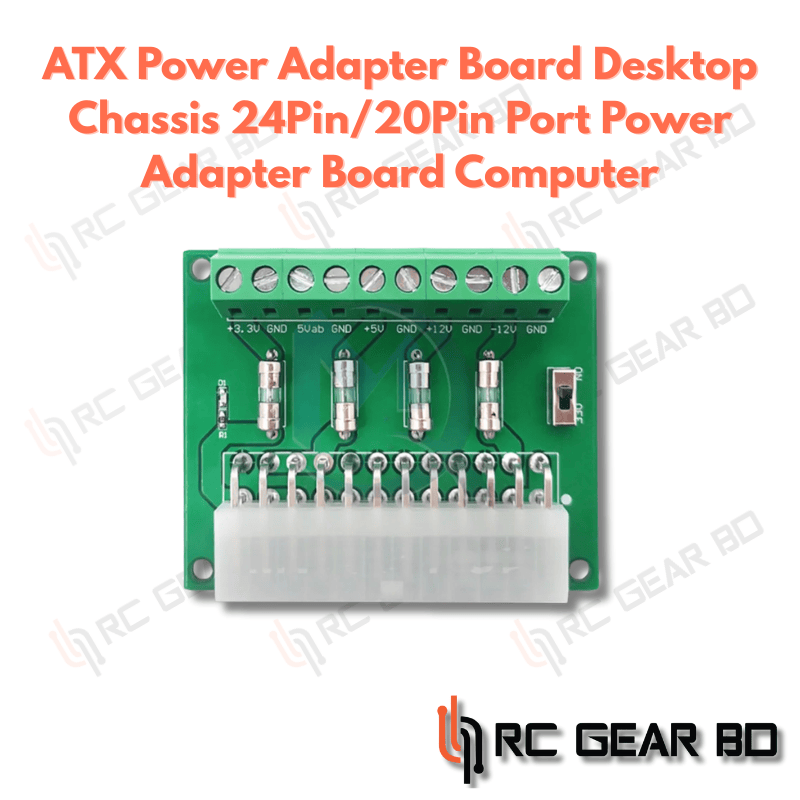

ATX Power Adapter Board Desktop Chassis 24Pin/20Pin Port Power Adapter Board Computer

Original price was: 200.00৳ .Current price is: 189.00৳ .

🔌 Converts ATX 24Pin/20Pin PSU to usable voltage rails for DIY builds
⚡ Output voltages: +3.3V, +5V, +12V, -12V, and 5Vab standby
🎛️ DIP switch control—manually toggle voltage outputs as needed
📏 Board size: 65×52mm | Weight: 34g—compact and lightweight
🧠 5Vab standby rail powers control circuits even when system is off
🛠️ Compatible with both 24-pin and 20-pin ATX connectors
🔧 Ideal for PC testing, bench power setups, and embedded projects
🎯 Widely used in desktop chassis mods, PSU diagnostics, and prototyping
📦 Includes: 1× ATX power adapter board (no other accessories)
📢 Note: Align 20-pin plug carefully with origin mark on PCB

Add 3,000.00৳  to cart and get free shipping!
Description

ATX Power Adapter Board Desktop Chassis 24Pin/20Pin Port Power Adapter Board Computer



Features:
Widely used
The output is controlled by the DIP switch
Small size
Easy to use
Output voltage: +3.3V, 5Vab, +5V, +12V, -12V

Product description:

24PIN port: Power supply for the computer motherboard in the host computer. Normally, this port is used together. If your power supply is a 20PIN port or other ports other than 24PIN, the socket needs to be plugged from the origin mark on the circuit board. Please use it. pay attention to.

Product parameter:

Input interface: computer power supply ATX24PIN or 20PIN

PIN number: 24P;

Output voltage: +3.3V, 5Vab, +5V, +12V, -12V:

5Vab is the standby power supply, which is available when the power is powered on, and can be used for the standby control circuit

The output is controlled by the DIP switch

Board size: 65*52mm weight: 34g

Package included

1*ATX power adapter board

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
