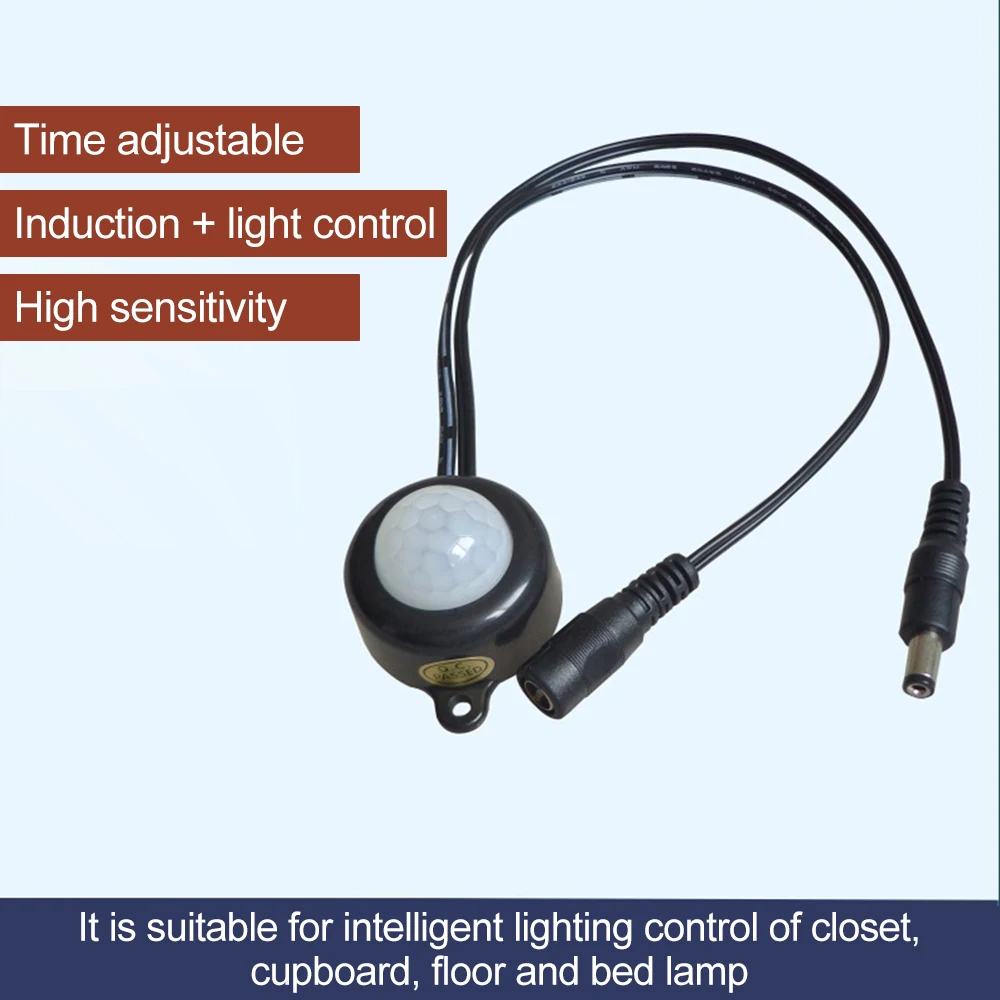

DC 5-24V PIR Infrared Motion Human Body Sensor Detector USB Interface 5.5 DC Plug Mini Corridor Cabinet Underbed LED Light Switch

Original price was: 550.00৳ .Current price is: 500.00৳ .

šŸ†• 100% brand new, compact design with high sensitivity
šŸ“” Passive infrared sensor detects motion within 5–7 meters
šŸŽÆ 120° cone angle ensures wide coverage in corridors, bathrooms, garages
ā±ļø Adjustable delay time: 18–350 seconds (factory set to 18s)
šŸ”‹ Ultra-low static current <50μA, wide voltage range: 6V–24VDC
⚔ Output current: 5A (DC head) / 2A (USB head), matches input voltage
šŸŒ™ Optional light control (black lens disables light sensing)
🧠 Continuous trigger mode for seamless automation
šŸ“ Size: 43Ɨ21mm, cable length: 300mm, fits tight installations
šŸ“¦ Includes 1x human body sensing switch module

Add 3,000.00৳  to cart and get free shipping!
Description
Features:

1.100% brand new and high quality
2. Sensing range (3-5m)

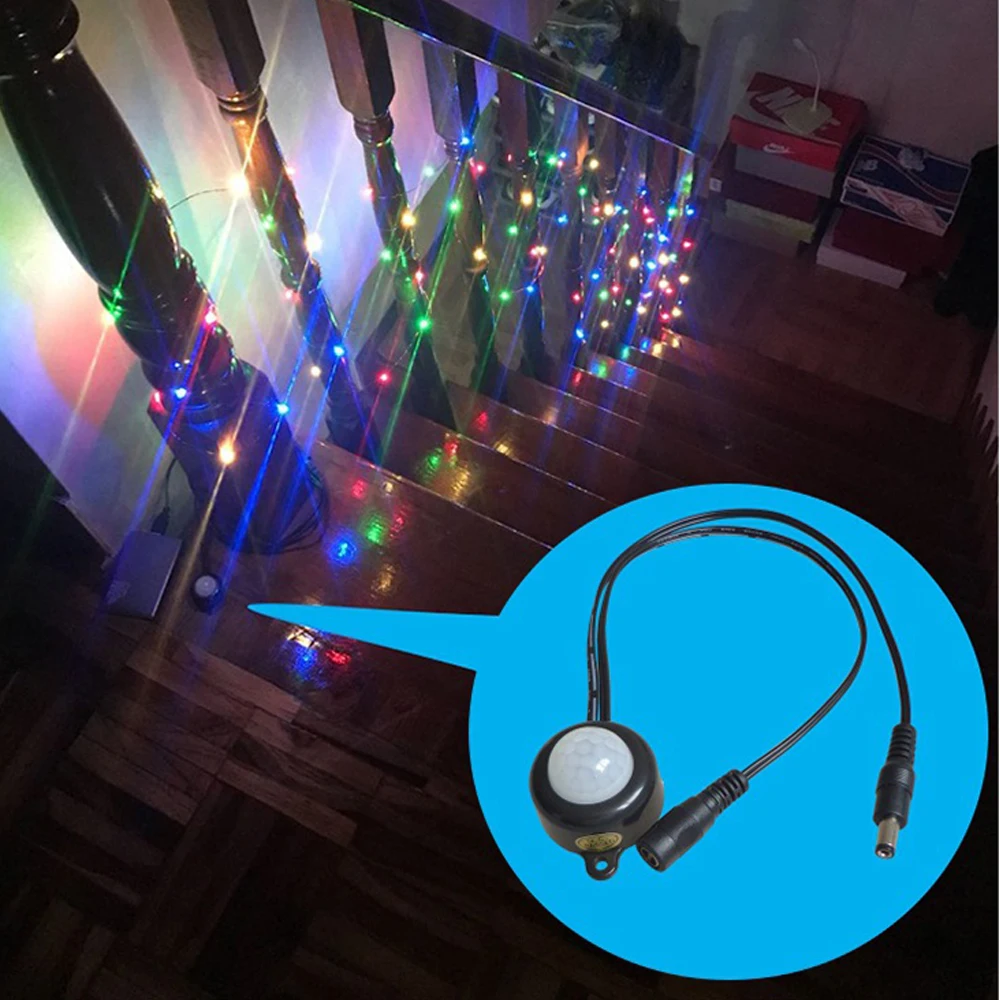

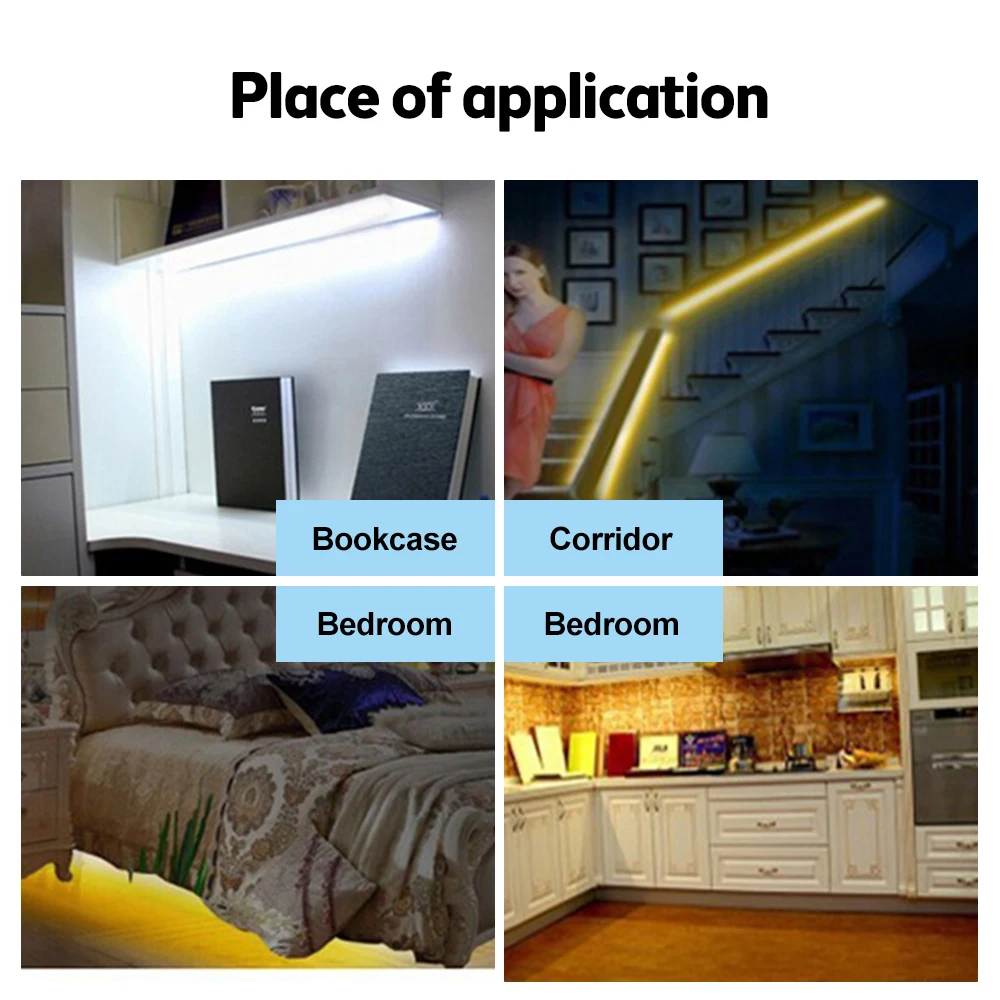

3. Scope of application: used in corridors, hallways, bathrooms, basements, warehouses, garages and other places, automatic ventilation and exhaust fans and other electrical appliances 4. Automatic control and other functions
5. Delayed automatic shutdown and other functions
6. The product is compact, low in consumption, and has good sensitivity

Parameters:
Product type: Infrared motion sensing switch
Product interface: DC head, 5.5 * 2 1 Specification
Description Function: Human infrared sensing module, wide voltage, output voltage is the same as the input voltage,
working voltage: 6V -24VDC (wide voltage)
Working temperature: -20° C~+50° C
Static current: <50uA
Output current: 5A
flow Trigger mode: continuous trigger
mode: inductive

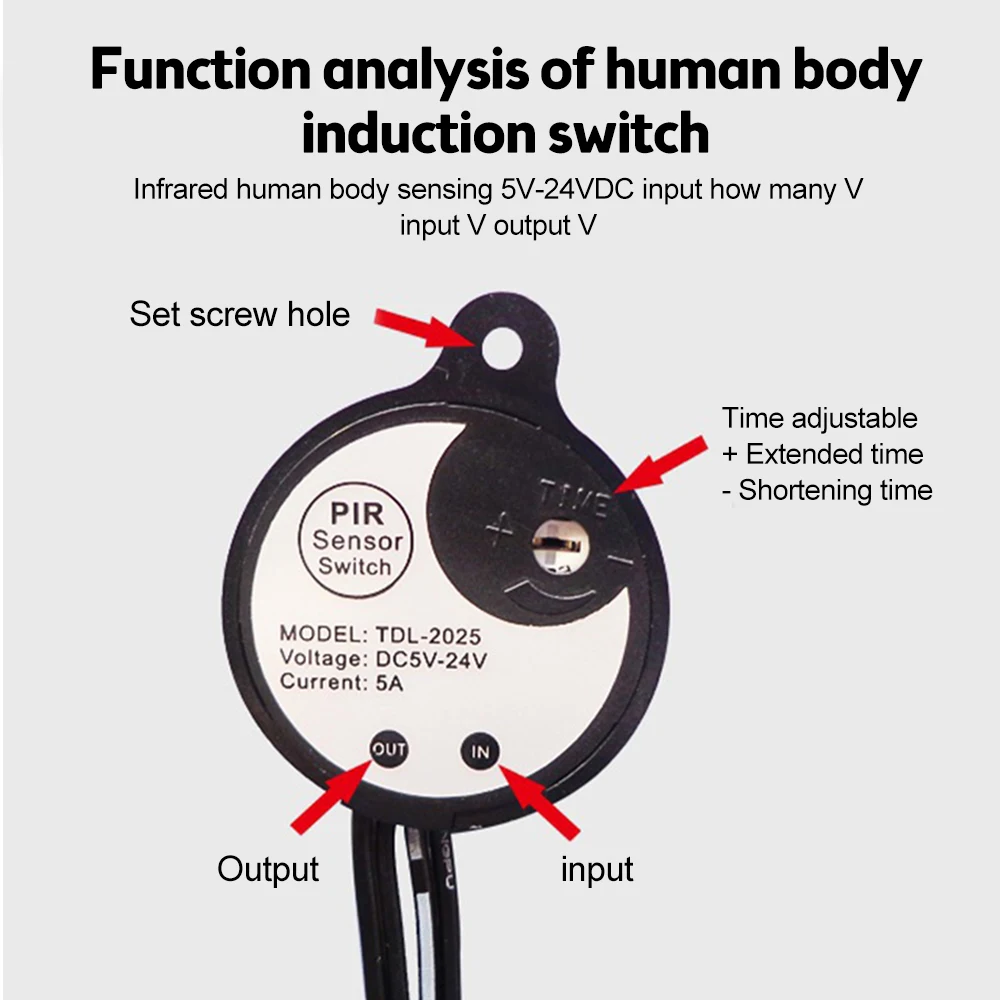

output Delay range: factory set to 18S (adjustable from 18 to 350 seconds)
Induction method: passive

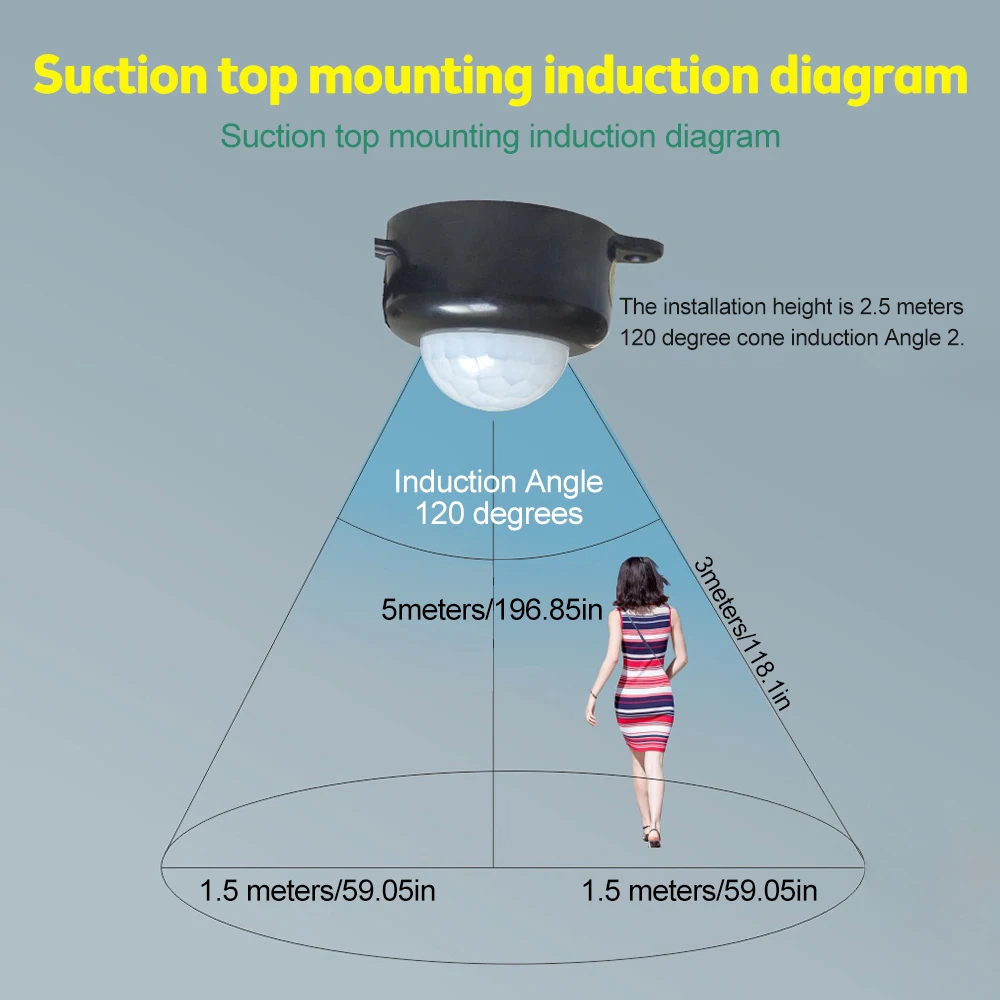

Sensing angle: 120 degree cone angle
Sensing distance: 5-7 meters
Load power: 5V/25W 12V/60W 24V/120W
Induction Light control: with light control (Ā black lens without light controlĀ )
Induction time: 15 seconds (adjustable Custom between 2 and 360 seconds)
Product size: 43mmX21mm
Product line length: 300mm (including controller but not probe)
Computer host Mobile phone charger (not available with power bank)
Product interface: USB head
Working voltage: 5V -24VDC (wide voltage)
Output current: 2A

Package includes:
Human body sensing switch X1
