DC-DC 8~32V To 45~390V High Voltage Boost Converter Step-up Booster Module Board

Original price was: 750.00৳ .Current price is: 480.00৳ .

  • 🔧 Key Features: Non-Isolated DC-DC Step-Up Module
    • 📥 Input Voltage: 8V to 32V (default: 10V to 32V)
    • Output Voltage: Adjustable from +45V to +390V (default ±50V)
    • 🔌 Input Current: Up to 5A max
    • 🌙 Quiescent Current: 15mA at 12V input (increases with output voltage)
    • 🔋 Output Current: Max 0.2A (varies with voltage differential)
    • 🚀 Power Output: 40W continuous, 70W peak
    • 🔧 Voltage Boost Capability: Ideal for high-voltage applications
    • 🧩 Compact and efficient module for DIY electronics, robotics, and automation
    • 🔒 Non-isolated design for streamlined high-voltage performance

Add 500.00৳  to cart and get free shipping!

Out of stock

Description

Description:
Module Properties: Non-isolated step-up module
Input Voltage: 8~32V input(the default is 10~32V input.)
Input Current: 5A (Max)
Quiescent current: 15mA (12V liter 50V, the output voltage, the higher the current will increase too quiet)
Output Voltage: +45~390V continuously adjustable (default output ±50V)
Output Current: 0.2A Max(with input, output pressure-related, the higher the output voltage, the output current is smaller)
Output Power: 40W (Peak 70W)
Working Temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75 kHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes.
Overcurrent protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Overvoltage protection: Yes. (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, try not reversed.)
Installation: Four 3 mm screws
Wiring: free welding output terminals

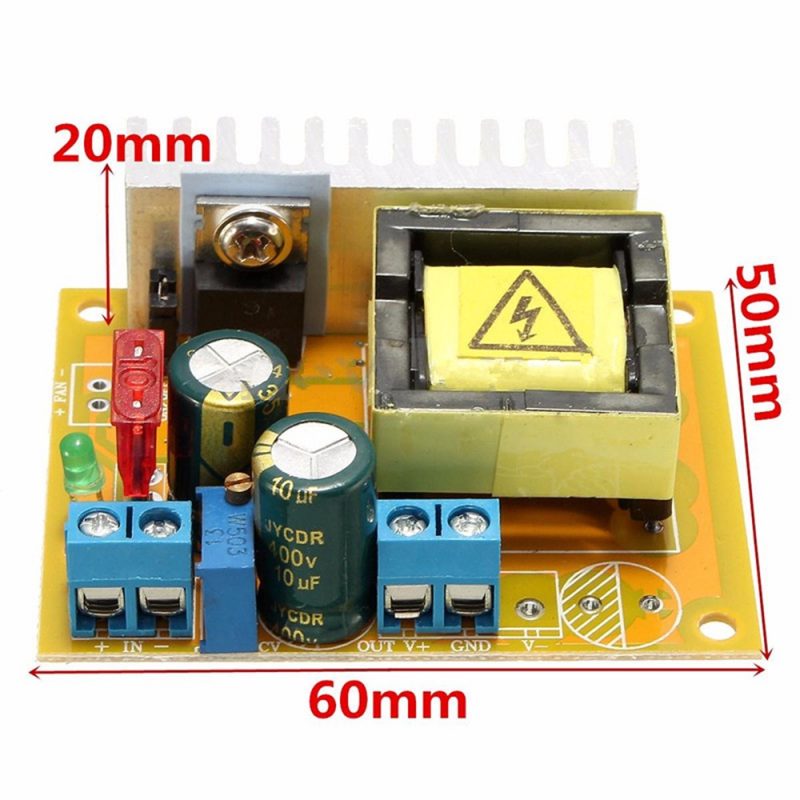

Size(L*W*H):60 x 50 x 20 mm

Applications:
1.Pressure test power.
2.Hunting, eradication of mice.
3.Capacitor charging, electromagnetic guns power supply.
4.The power supply for your electronic device, according to your system can set the output voltage value.

Package Included:
1 x Booster Module
