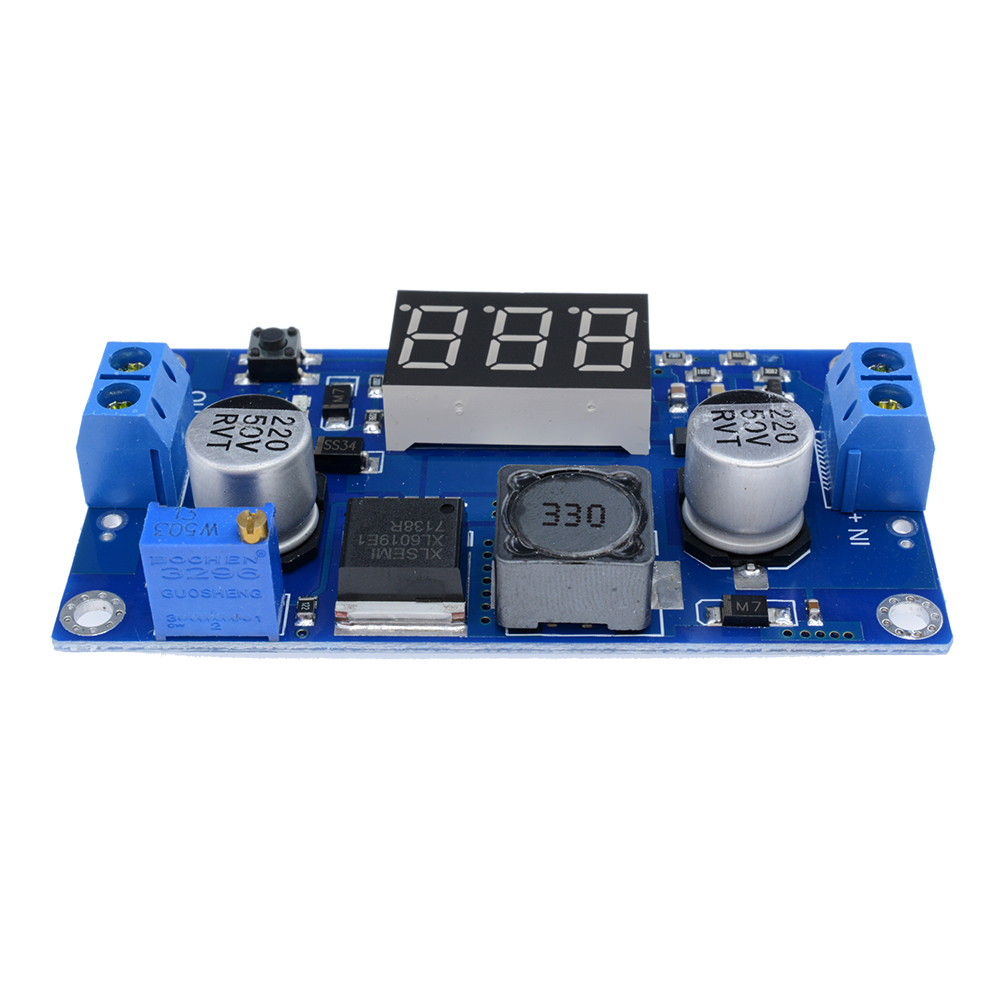

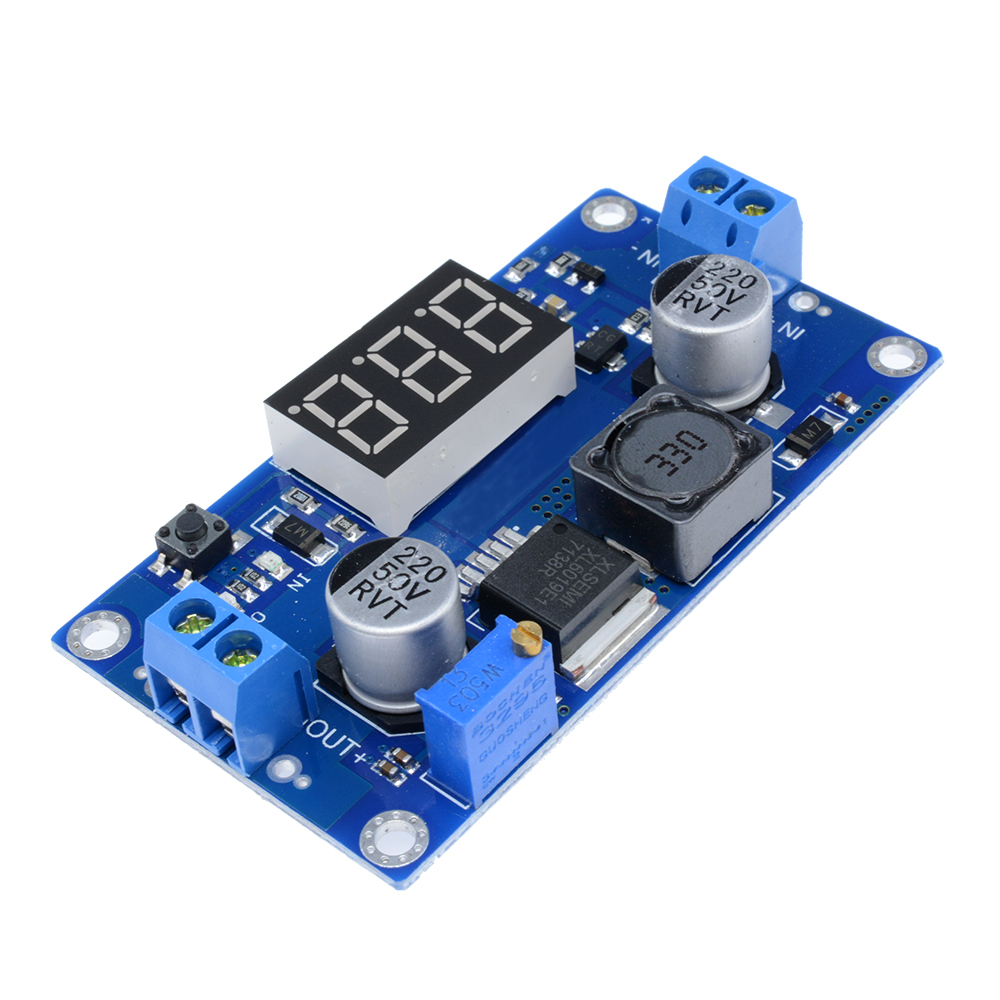

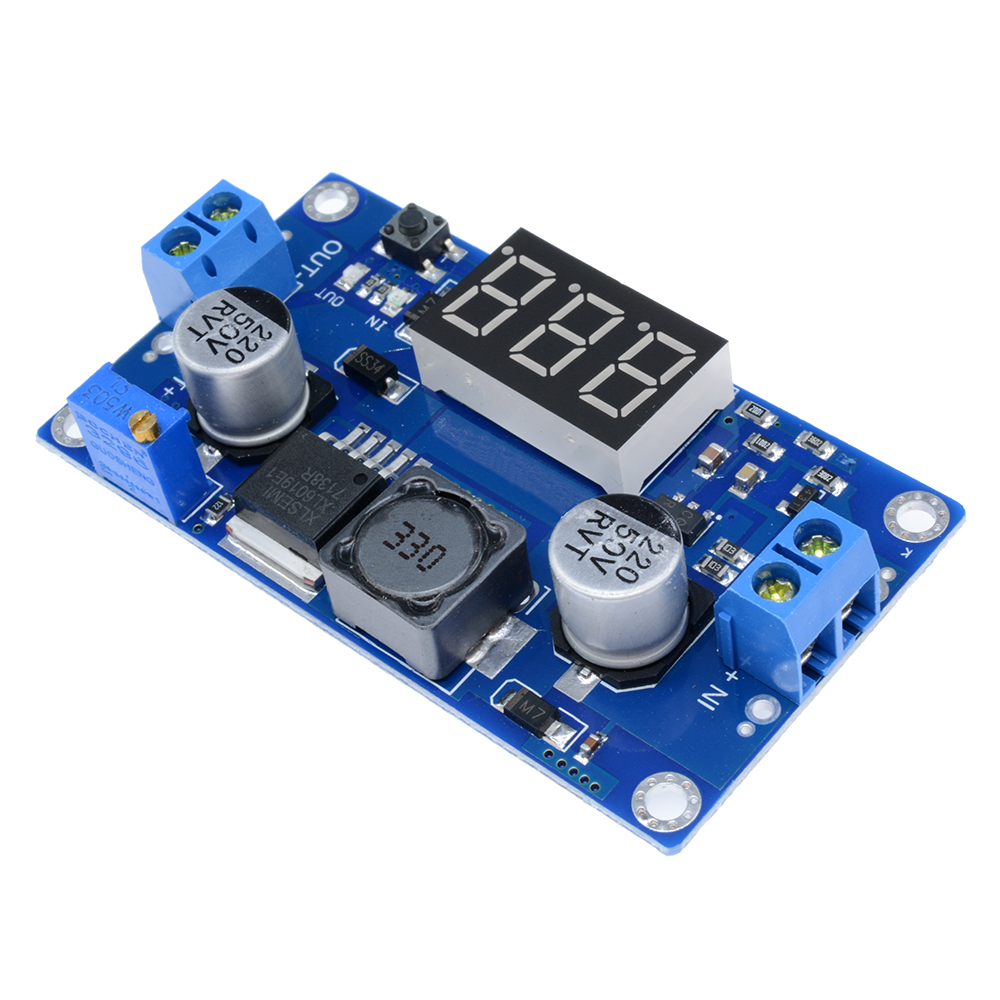

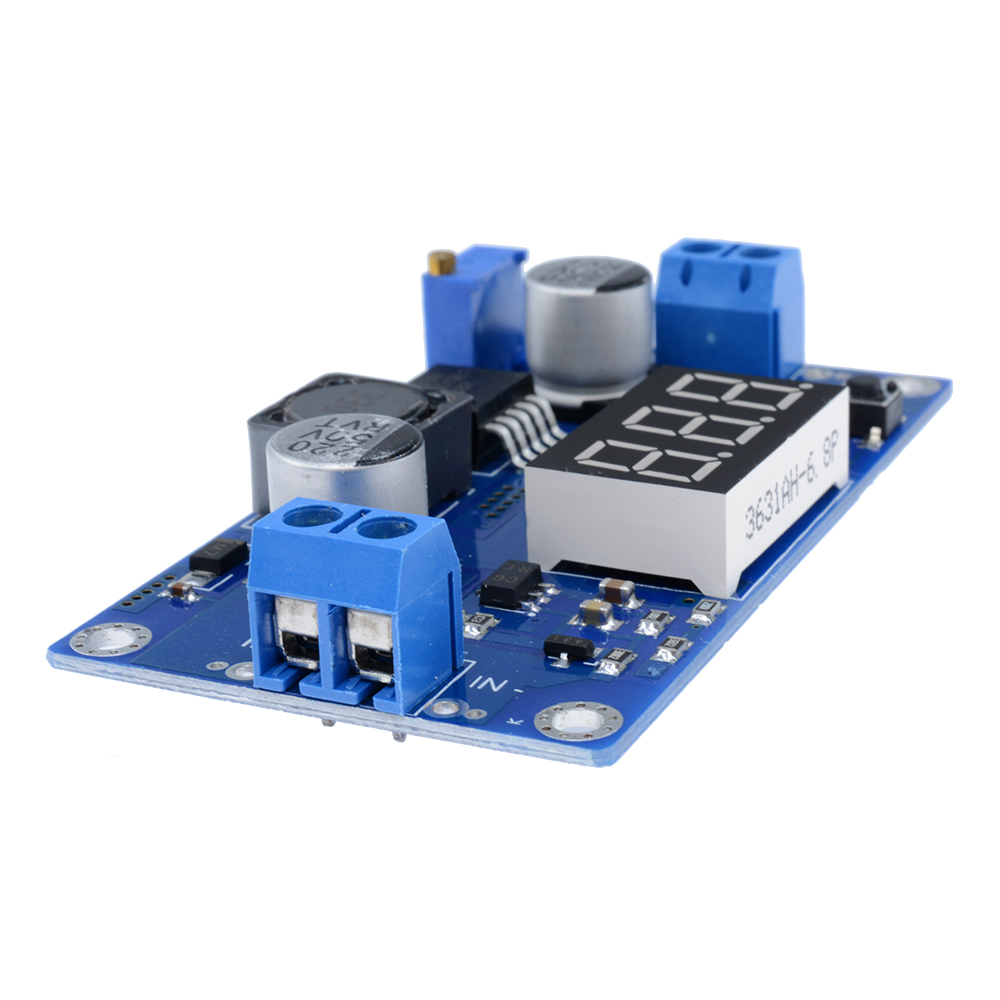

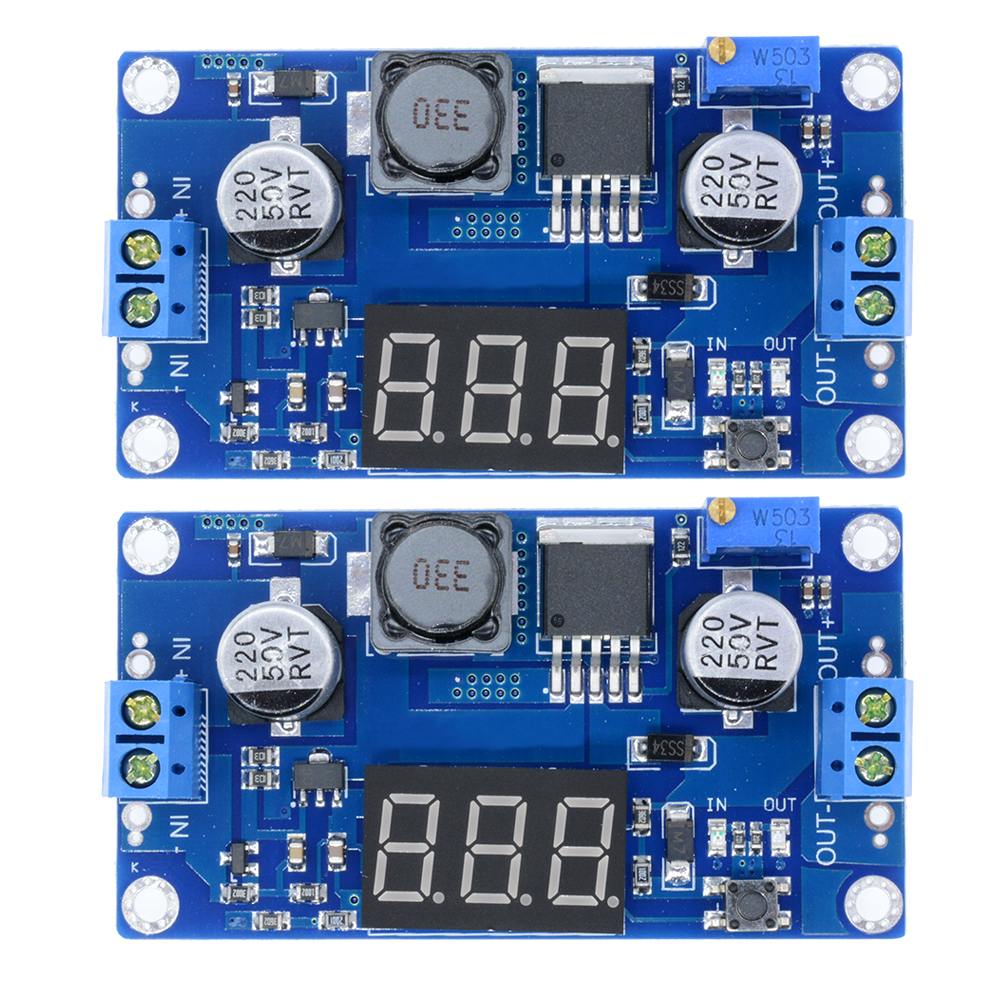

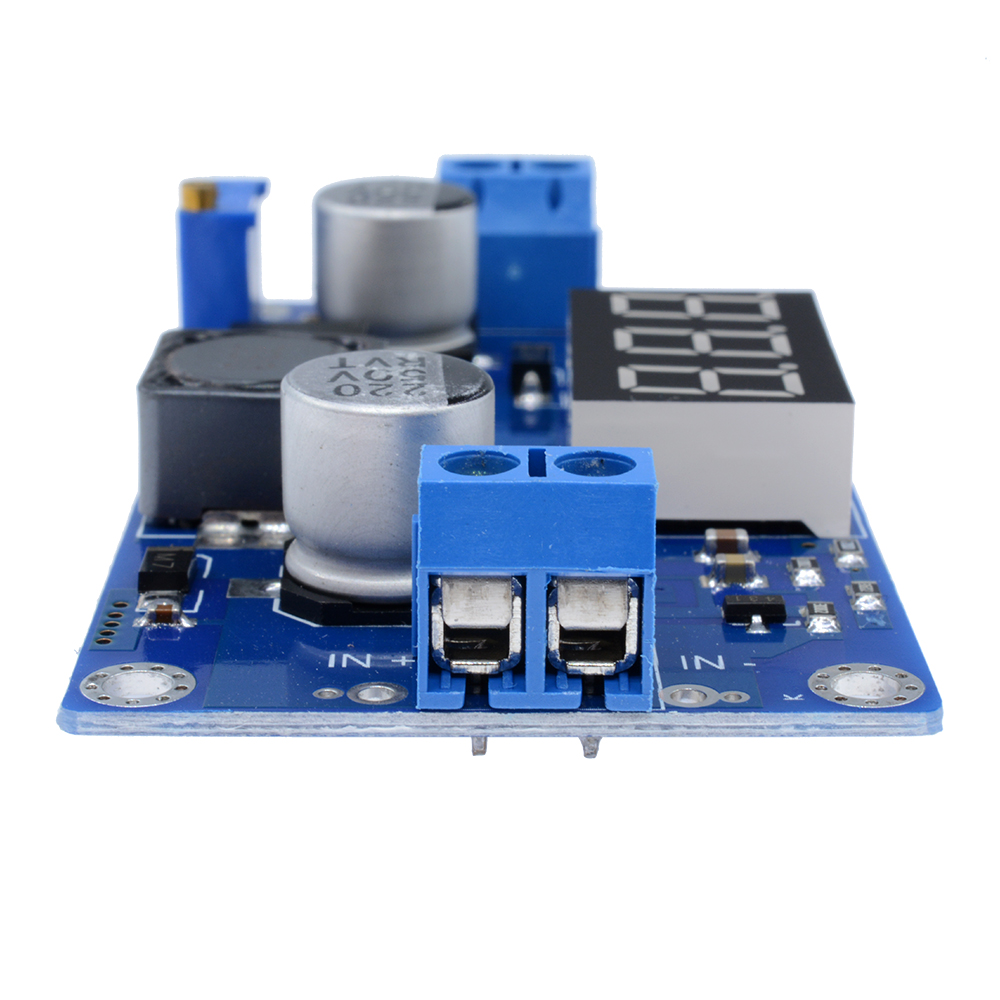

DC-DC XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-35V Step-up Voltage Regulator With LED Voltmeter

365.00৳

  • Module Feature: Non-isolation booster
  • Ectifier system:Not synchronous rectifier
  • Input voltage:4.3V-32V
  • Output voltage: 5V-35V
  • Incoming current:4A(maximum)
  • Transfer efficiency:94%(The highest)Normal efficiency for85%
  • Switching frequency:400KHz
  • Output ripple:50mV
  • Load regulation:±0.5%
  • Voltage regulation:±0.5%
  • operating temperature:-40°~+85°
  • Size:6.98cm*3.80cm
Add 3,000.00৳  to cart and get free shipping!

Out of stock

SKU: 010049 Category:
Description

Specification:
1.Module Feature: Non-isolation booster
2.Ectifier system:Not synchronous rectifier
3.Input voltage:4.3V-32V
4.Output voltage: 5V-35V
5.Incoming current:4A(maximum)
6.Transfer efficiency:94%(The highest)Normal efficiency for85%
7.Switching frequency:400KHz
8.Output ripple:50mV
9.Load regulation:±0.5%
10.Voltage regulation:±0.5%
11.operating temperature:-40°~+85°
12.Size:6.98cm*3.80cm

Function key:
1).Short press: input/output display options
2).Moderate press: Enter the fine-tuning state .Increase or decrease the offset (the default is 0), when the voltage display
inaccurate use .Short according to the regulation, long press or long according to restore
3).Long press: the state of low power consumption, the digital tube and the lights are out, the normal work of the module. Click
the button again to restore. Normal display
