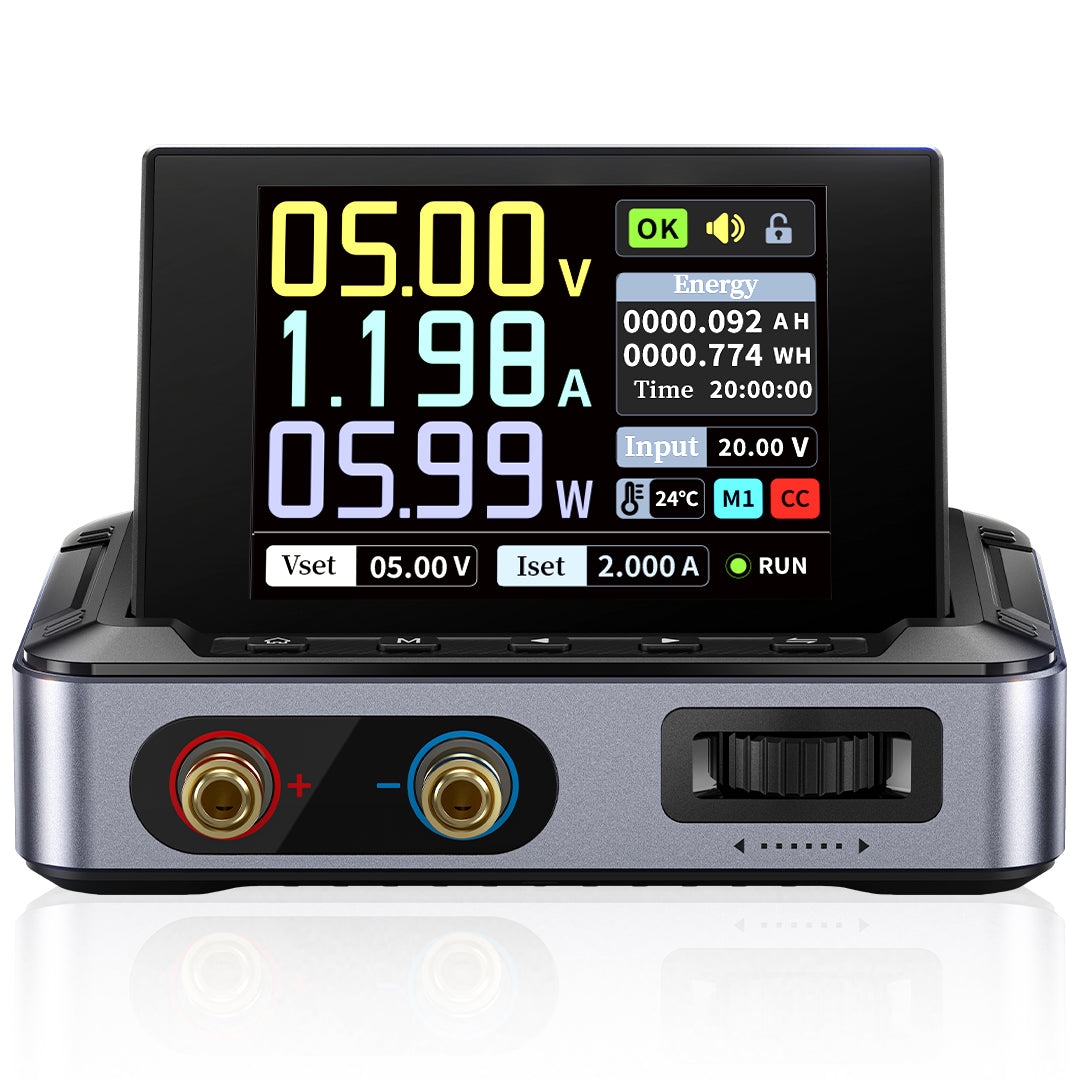

Name: FNIRSI® DPS-150 Programmable Mini Portable DC Power Supply
Price: 7499
Availability: InStock

FNIRSI® DPS-150 Programmable Mini Portable DC Power Supply

Brand FNIRSI
Model DPS-150
Input Voltage DC 5.0V~32V
Input Current 100mA-5A
Input Way PD fast charger
DC power adapters
Output Voltage 0~30V
Output Current 0~5A
Output Power 0-150W
Full Load Efficiency 96.30%

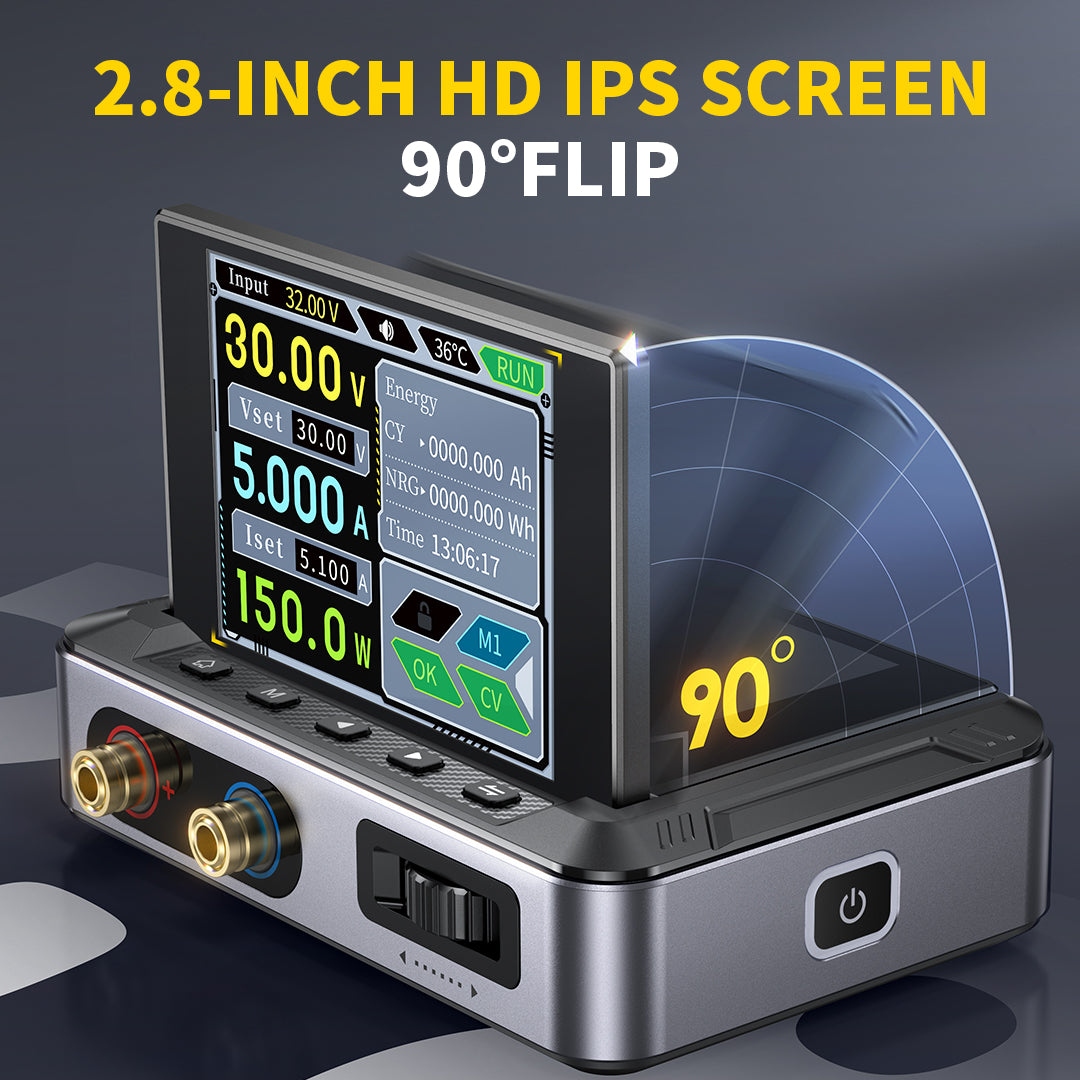

Screen 2.8 Inch (320×240)
Weight about 178g
Dimensions 106x76x28mm

Add ৳ 3,000 to cart and get free shipping!

1 in stock

The FNIRSI-DP150 is a high-performance adjustable DC power supply launched by our company. It features a Type-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30V) and current (0-5A). It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection. It can be flexibly applied to serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable humanized design, meeting various application needs. It is designed to provide you with high-performance and stable CNC power supply.

Specifications

Brand FNIRSI

Model DPS-150

Input Voltage DC 5.0V~32V

Input Current 100mA-5A

Input Way PD fast charger
QC fast charger
Power bank
DC power adapters

Output Voltage 0~30V

Output Current 0~5A

Output Power 0-150W

Operating Environment 0℃-40℃

Load Regulation 0.49%

Full Load Efficiency 96.30%

Screen 2.8 Inch (320×240)

Weight about 178g

Dimensions 106x76x28mm

Overvoltage Protection Support

Overcurrent Protection Support

Undervoltage Protection Support

Overpower Protection Support

Overtemperature Protection Support

Reverse Input Protection Support

Reverse Output Protection Support

Short Circuit Protection Support

Upper Computer Software Support

Firmware Upgrade Support

⚠ Precautions

The product operates in step-down mode, so ensure that the input voltage is higher than the output voltage
The power supply range for this product is Dc 5V~30v. Output will be disabled if the input voltage is lower than 5.0V due to undervoltage lockout, and the device may be damaged if the input voltage exceeds 30V. lt is recommended to use a power supply ranging from 5V to 30V.
When supplying power to inductive and capacitive loads, it is recommended to connect the load before turning on the device output.
When outputting high power, some heat generation is normal. lt is recommended to use the device in a well-ventilated environment.
Please remember not to connect power to both power ports of the device simultaneously, as simultaneous power supply may potentially damage the input source with lower voltage.
When charging batteries, it is strongly recommended to add a reverse current protection module (such as a Schottky diode) to the output end to protect the device from damage.
