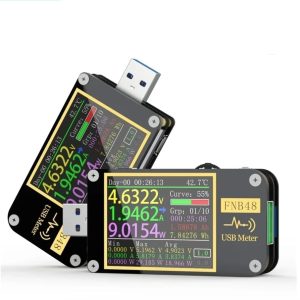

FNIRSI® FNB48S USB Tester
FNIRSI® FNB48S USB Tester Original price was: 9,800.00৳ .Current price is: 3,999.00৳ .

HA01 24V Battery Equalizer

Original price was: 3,600.00৳ .Current price is: 1,950.00৳ .

  • Model: HA01
  • Battery: 2*12V battery
  • With inside LED light
  • Size: 70*70*27mm
  • Weight: 0.18KG
  • CE RoHS certification
Add 2,740.00৳  to cart and get free shipping!

Out of stock

Description

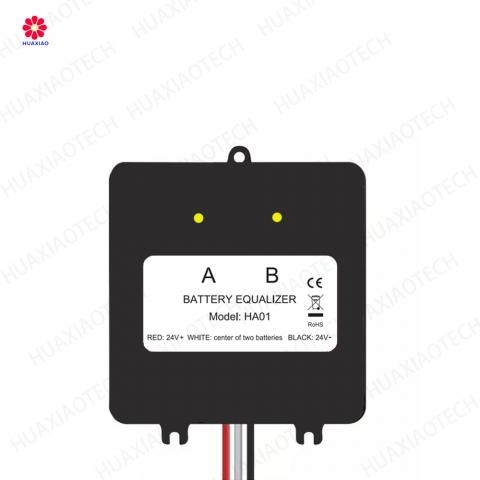

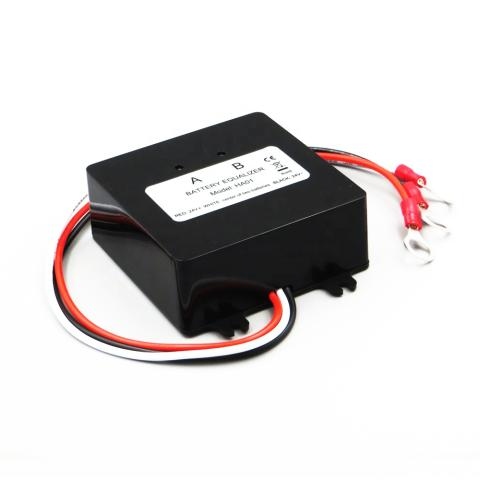

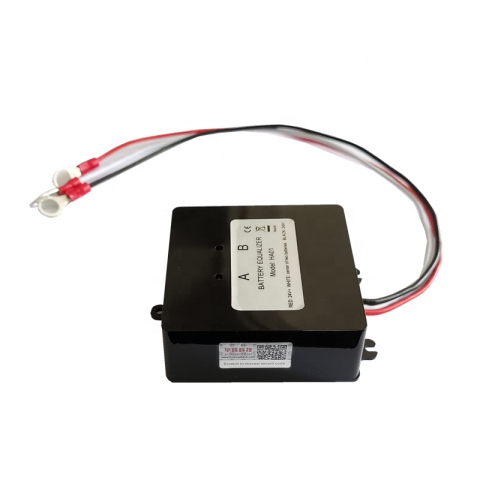

HA01 24V Battery Equalizer

HA01 battery equalizer is for balancing 2*12V battery bank. Compatible with lead acid battery, lifepo4 battery, NiMH Battery, etc. It start work when there is 20mv voltage difference between batteries.

  • Model: HA01
  • Battery: 2*12V battery
  • With inside LED light
  • Size: 70*70*27mm
  • Weight: 0.18KG

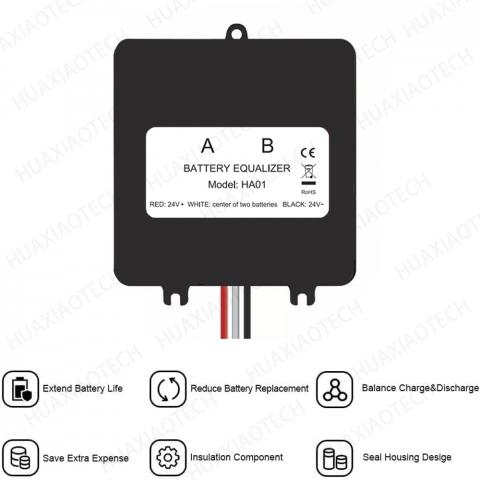

Main Features:

  • For 2*12V Batteries
  • With Inside LED Light
  • Balance in series connected battery bank
  • Extend battery lifetime
  • Active Energy Transfer Equalizer
  • Compatible with all batteries, No Battery type limited
  • Low power consumption,High efficiency
  • Small size, easy installation.
  • CE, RoHS certification
  • Customization service

Working Principle

1

Technical Specification:

Model HA01
Battery Normal Voltage 2*12V
Battery cell voltage range 10V-18V
Balance current 0-5A(based on voltage difference)
Balance status keep on working in charging/discharging/free status when there is 20mv voltage difference
Dimensions 70*70*27 mm
Weight 0.18kg
Protection Reverse polarity protection
Low Voltage Disconnect 10V
Certification CE, RoHS
customized Yes, offer OEM ODM service



LED INDICATOR

led A LED B
U(A)=U(B) Off Off
U(A)>U(B) Flash Off
U(A)<U(B) Off Flash
U(A)<10V On Off
U(B)<10V Off On
U(A/B)<10V On On

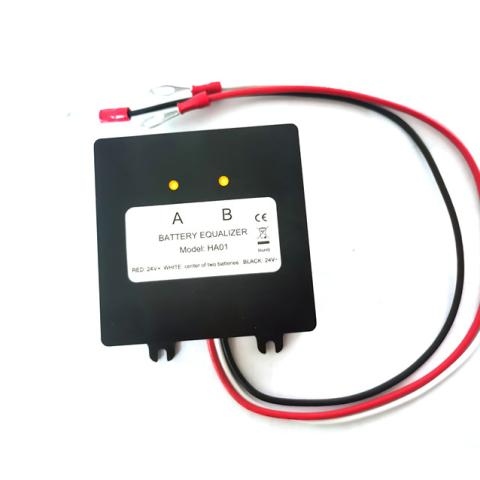

INSTALLATION

Please connect battery equalizer to batteries as the following order (showed in the picture)

  1. Black cable: Battery A negative/- pole
  2. Red cable: Battery B positive/+ pole
  3. White cable: Battery B negative pole or Battery A positive pole.(The pole which connected Battery A and Battery B in series)

1

Package:

  • 1x battery equalizer
  • 1x user manual

1
