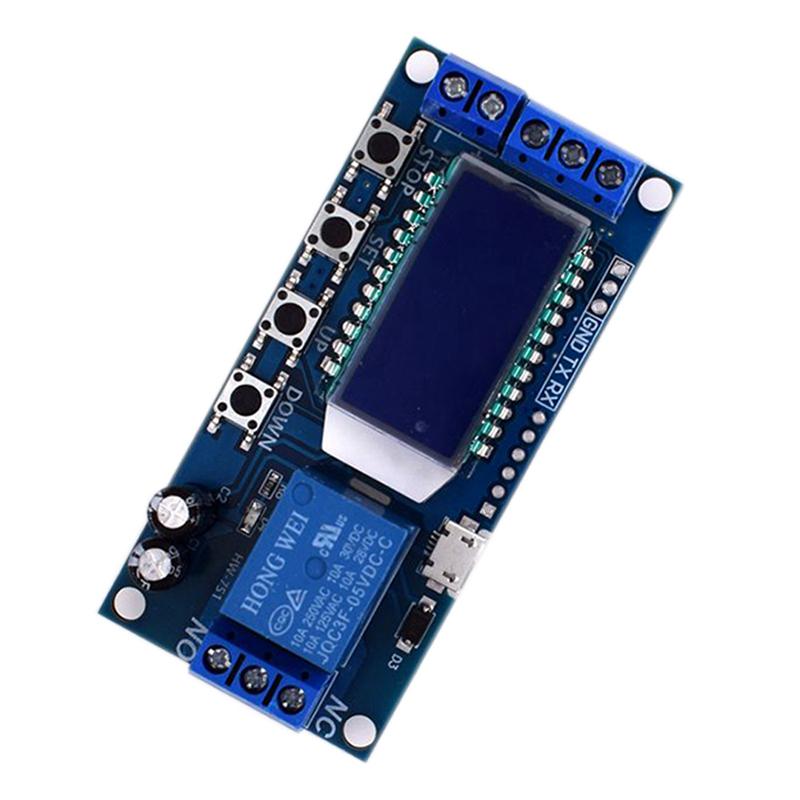

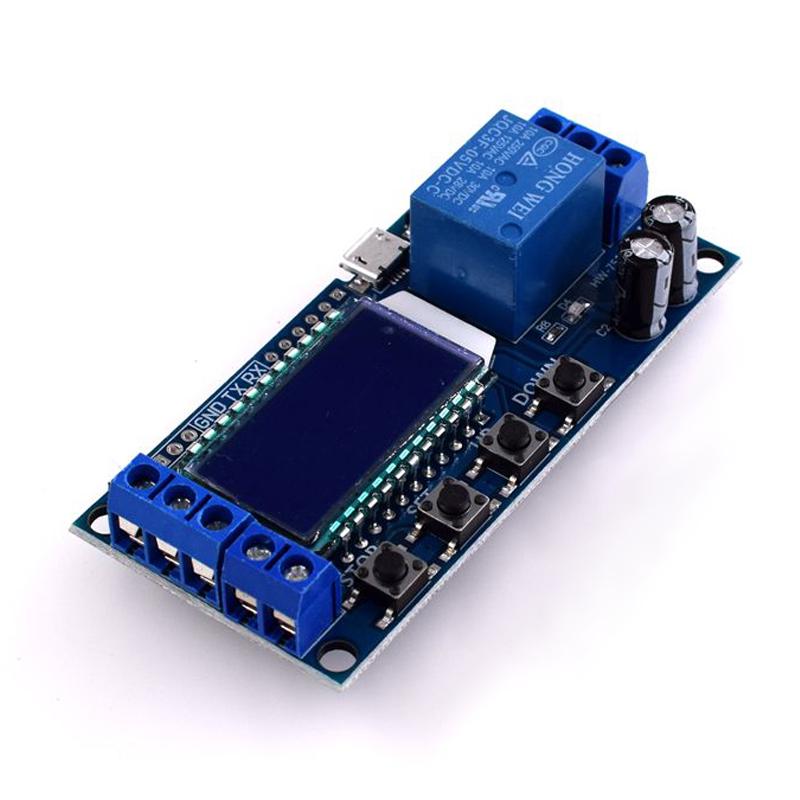

Home DC 5V-30V LCD Display Time Delay Relay Module 12V 24V with MICRO USB Interface 0.01-9999 Minutes Continuously Adjustable

Description:

– With LCD display, parameters are clear at a glance, very clear, simple and practical.
– Support high and low level trigger and switch quantity control.
– Wide voltage supply: 6-30V; Support micro USB 5.0V power supply.
– Support UART data upload and parameter setting.
– One button emergency stop function (STOP button) with reverse connection protection.
– Sleep mode: automatically turn off the LCD backlight.
– Can set different OP, CL, LOP parameters.
– All setting parameters are automatically saved after powering off.

Specification:

– Operating voltage: 6–30V
– Size: 80×38.3×19 mm/3.14×1.50×0.74 inch
– Timing Range: 0.01 s (min) ~9999 min (max) continuously adjustable
– Supports micro USB 5.0V power supply

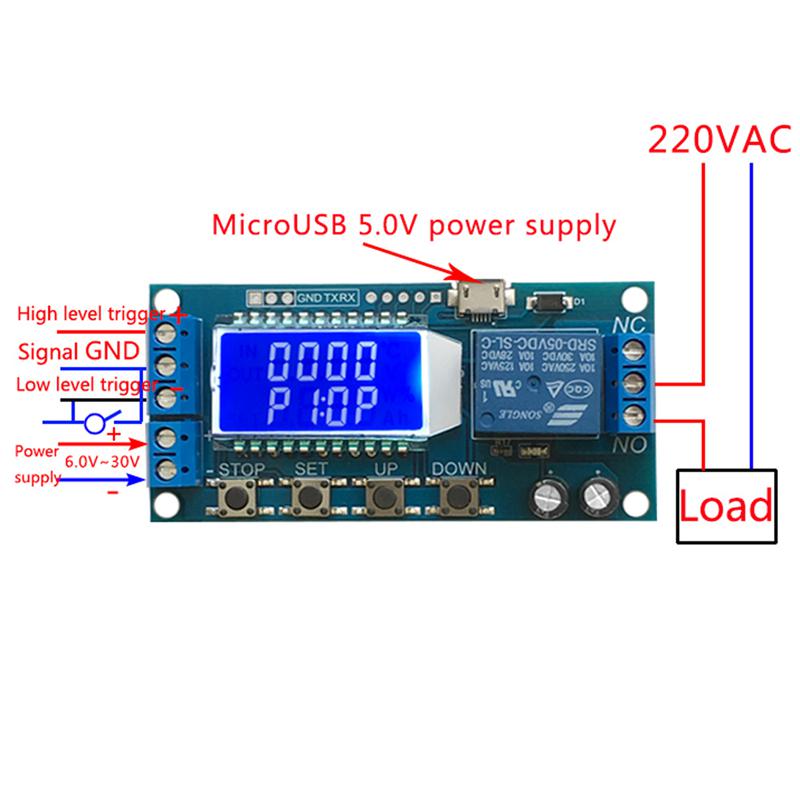

– Trigger signal source: high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switching quantity control (passive switch).
– Output capability: It can control devices within 30V 5A or within 220V 5A.
– Quiescent current: 15mA; Operating current: 50mA
– Working temperature: -40-85 ° C
– With optocoupler isolation to enhance anti-interference ability

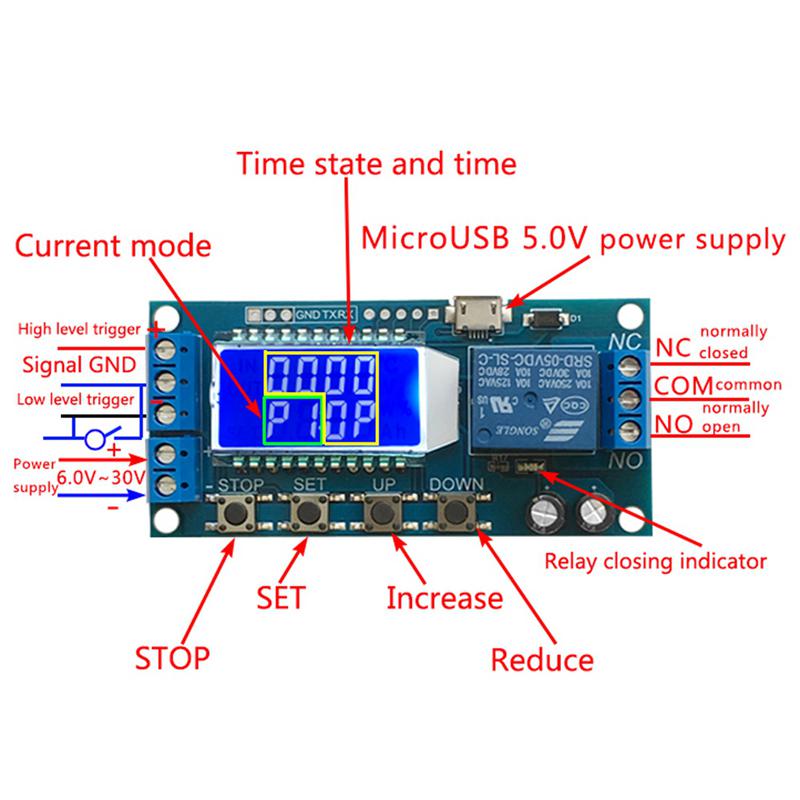

Parameter Settings:
– a)Press and hold the SET button to enter the setting interface;
– b)First set the working mode, the working mode flashes reminder, set the working mode by short pressing the UP/DOWN button;
– c)Short press the SET button to select the working mode and enter the system parameter settings;
– d) In the system parameter setting interface, short press the SET button to switch the system parameters to be modified, short press / long press the UP / DOWN button to modify;
– e) In the OP/CL parameter modification interface, short press STOP to switch the timing unit (1s/0.1s/0.01s/1min);
– f) All parameters are set, press and hold the SET button to save the parameter.

Package Includes:

1 piece Delay Timer Relay Module
