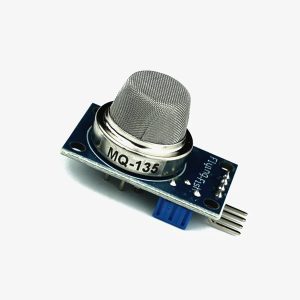

MQ-135 Gas Sensor
MQ-135 Gas Sensor Original price was: 150.00৳ .Current price is: 130.00৳ .
Back to products

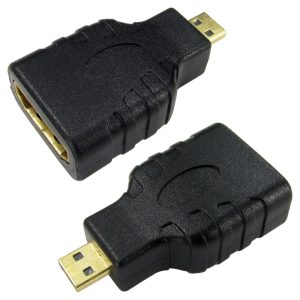

Micro HDMI Male to HDMI Female Adapter
Micro HDMI Male to HDMI Female Adapter Original price was: 150.00৳ .Current price is: 140.00৳ .

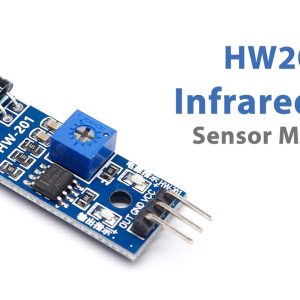

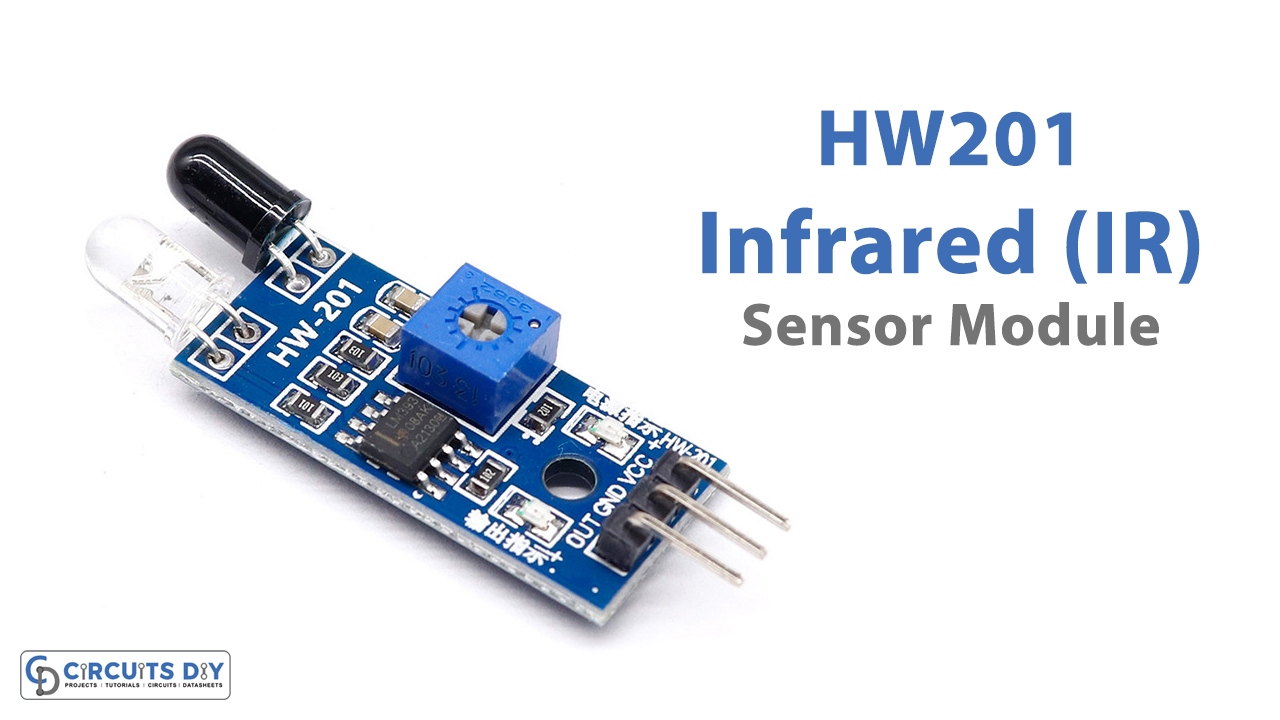

HW201 Infrared (IR) Sensor Module

Original price was: 70.00৳ .Current price is: 60.00৳ .

🔍 Features

  • 📏 Adjustable Range: Sensing distance from 2cm to 30cm (via on-board potentiometer)
  • 🎯 Detection Angle: 35° for focused detection
  • ⚙️ LM393 Comparator: Fast and stable digital output switching
  • 🧰 Easy Integration: Plug-and-play design for Arduino and DIY electronics
  • ⚠️ Surface Dependent: Sensor sensitivity varies with surface material and color reflectivity

📐 Specifications

  • 💡 Main Chip: LM393 dual comparator
  • Operating Voltage: 3.3V to 5V DC
  • 📏 Detection Distance: 2cm – 30cm
  • 🛑 Detection Angle: 35°
  • 📐 Board Dimensions: 31mm × 14mm (1.22in × 0.55in)
  • ⚖️ Weight: 3g
  • 🔌 Current Consumption: ~20mA supply current

Add 3,000.00৳  to cart and get free shipping!

Out of stock

Category:
Description



Features and Specifications

Features

  • 2 to 30cm adjustable sensing range (on-board Potentiometer)
  • 35-degree Detection Angle
  • LM393 Comparator Selection Output
  • Easy to use
  • Please note that the sensor sensitivity varies depending on the reflection surface applied
  • Specifications
  • Main Chip: LM393
  • Detection Distance: 2~30cm
  • Detection Angle: 35 °
  • Working Voltage: 3.3V~5V
  • Board Size: 31 * 14mm / 1.22 * 0.55in
  • Board Weight(1pc): 3g
  • 20mA supply current

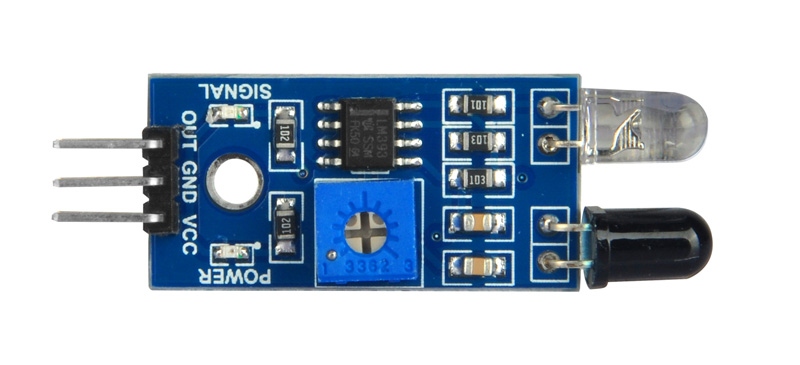

  • Pinouts of HW201 Module
  • Pin Name Description
    VCC Power Supply Input
    GND Power Supply Ground
    OUT Active High Output
  • Applications of IR Sensor
  • IR Imaging Devices
  • IR image devices are one of the primary applications of IR modules, primarily because of their property that is not visible. We used it for thermal imagers, etc.
  • Security Devices
  • Since the IR module works for infrared radiation, therefore, it may be utilized in some Security devices. The transmitter transmits, and the receiver receives the waves. When something comes between these waves, the receiver gives the signal forward to the circuit.
  • Other Applications
  • Flame monitors
  • Obstacle detection devices
  • Robotics
  • Gas detectors
  • Gas analyzers, etc
