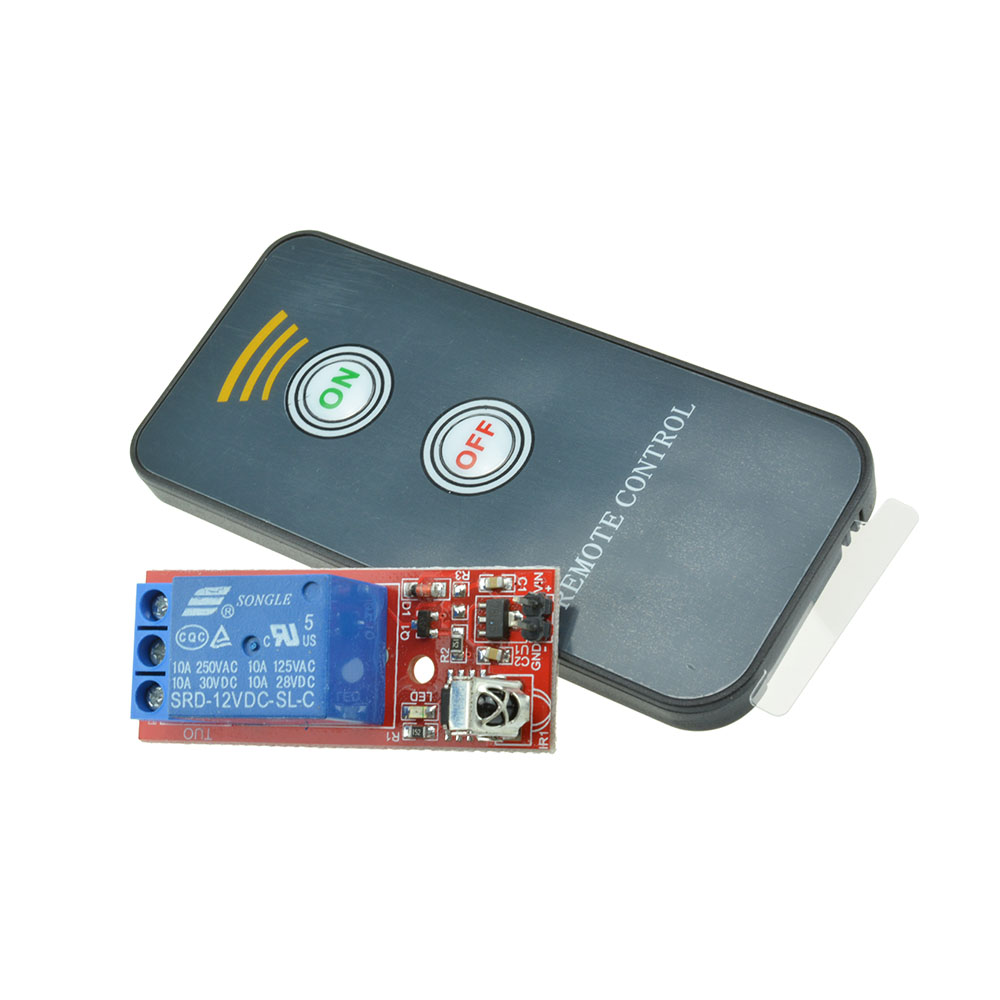

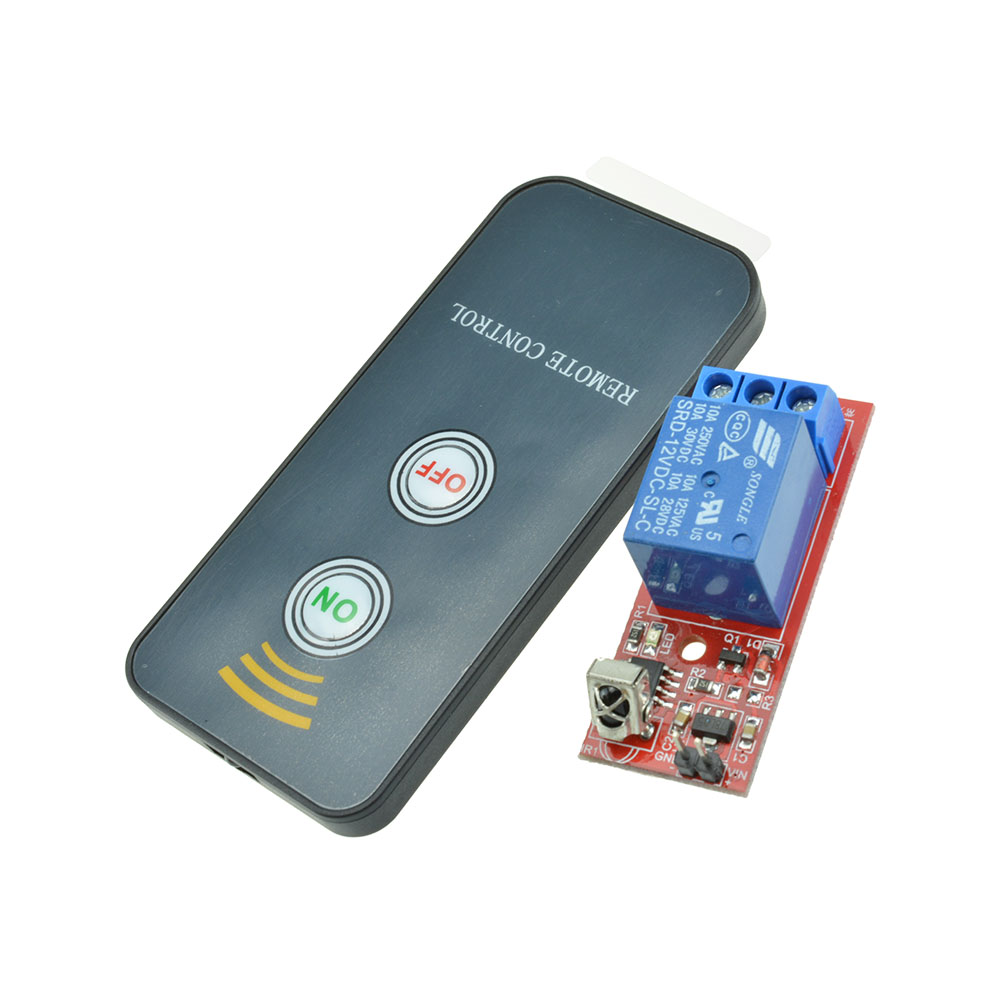

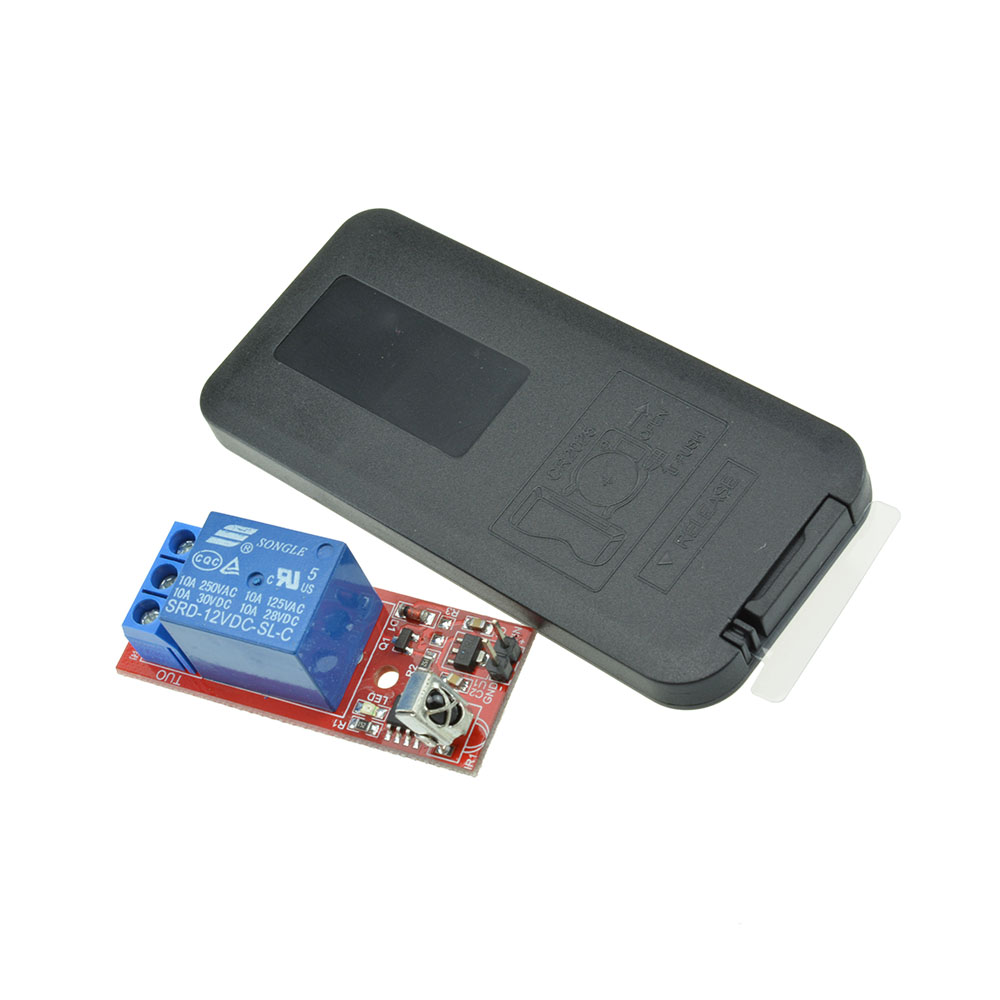

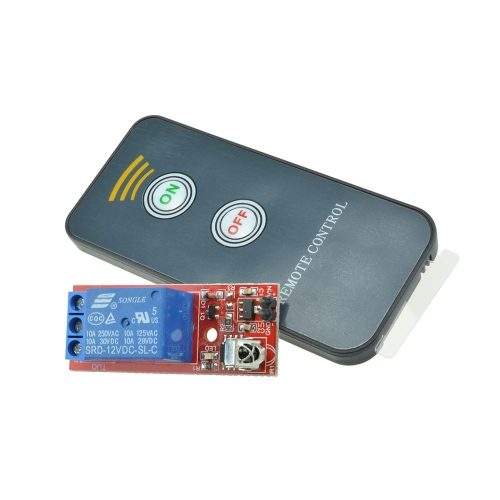

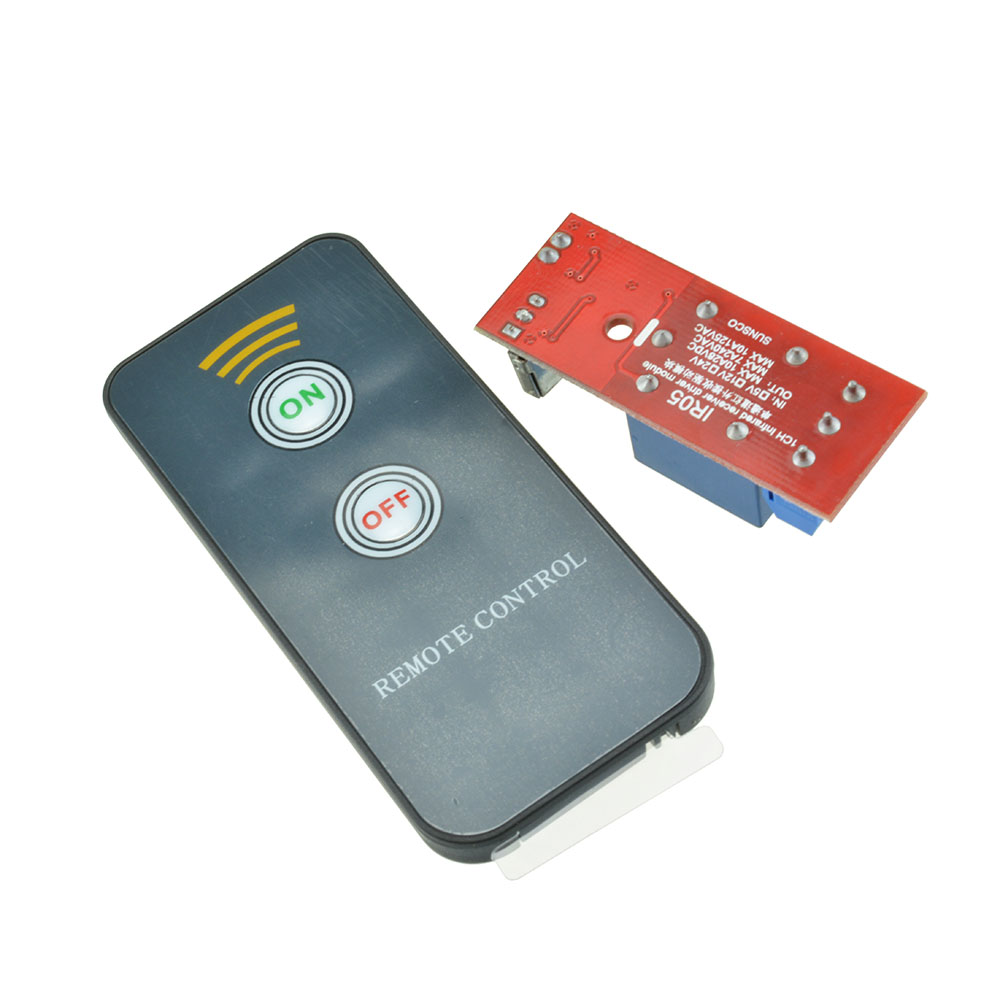

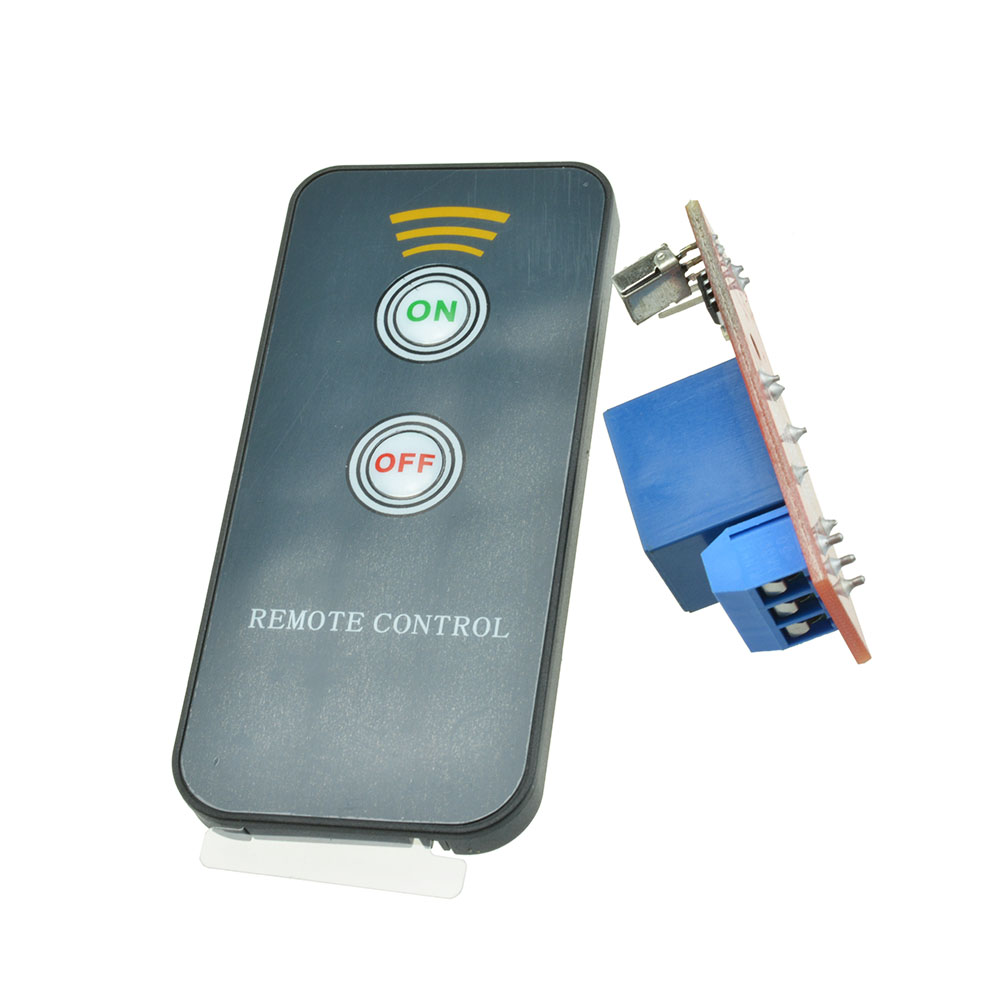

IR 1 Channel Infrared Receiver Driving Switch Relay Driver Module Board 5V + Active Remote Controller

Original price was: 440.00৳ .Current price is: 290.00৳ .

  • Operating Voltage: DC 5V / 12V
  • Remote Distance: 8m
  • Weight: 33g
  • Relay Size: 5(L)x2(W)x1.8(H)cm
  • Remote Controller Size: 4(L)x0.7(W)x8.5(H)cm🔴 LED indicator for power/status visibility
    🪛 3mm screw holes for easy mounting
    🔌 VIN+ (9–13V) and GND power input terminals
    🔁 Middle port is common—supports NO/NC relay output
    🧯 Electrical isolation between input and relay output
    📡 Remote uses UPD6122 chip with NED coding at 38KHz
    🆔 Remote user code: 0x00FF; ON = 40, OFF = 19
    🔋 Powered by CR2025 battery (not included)
    ⚡ Operating voltage: DC 5V / 12V
    📏 Relay: 5×2×1.8cm | Remote: 4×0.7×8.5cm | Range: 8m
Add 3,000.00৳  to cart and get free shipping!

20 in stock

Description

 Features:
LED indicator
With 3mm fixed screw holes, it’s easy to install.
Module Interface: VIN+ power supply anode 9-13V, GND- power supply cathode
The middle of three ports is public, it can be normally open and normally closed output with the others.
The circuit is insulated before the relay’s output and input.
Remote Controller make use of UPD6122 chip and NED coding format,
frequency is 38K.
Remote Controller User Code: OxOOFF
Key Value: “ON”—40, “OFF”—19
Battery: CR2025(Batteries are not included.)

 Specification:
Operating Voltage: DC 5V / 12V
Remote Distance: 8m
Weight: 33g
Relay Size: 5(L)x2(W)x1.8(H)cm
Remote Controller Size: 4(L)x0.7(W)x8.5(H)cm
