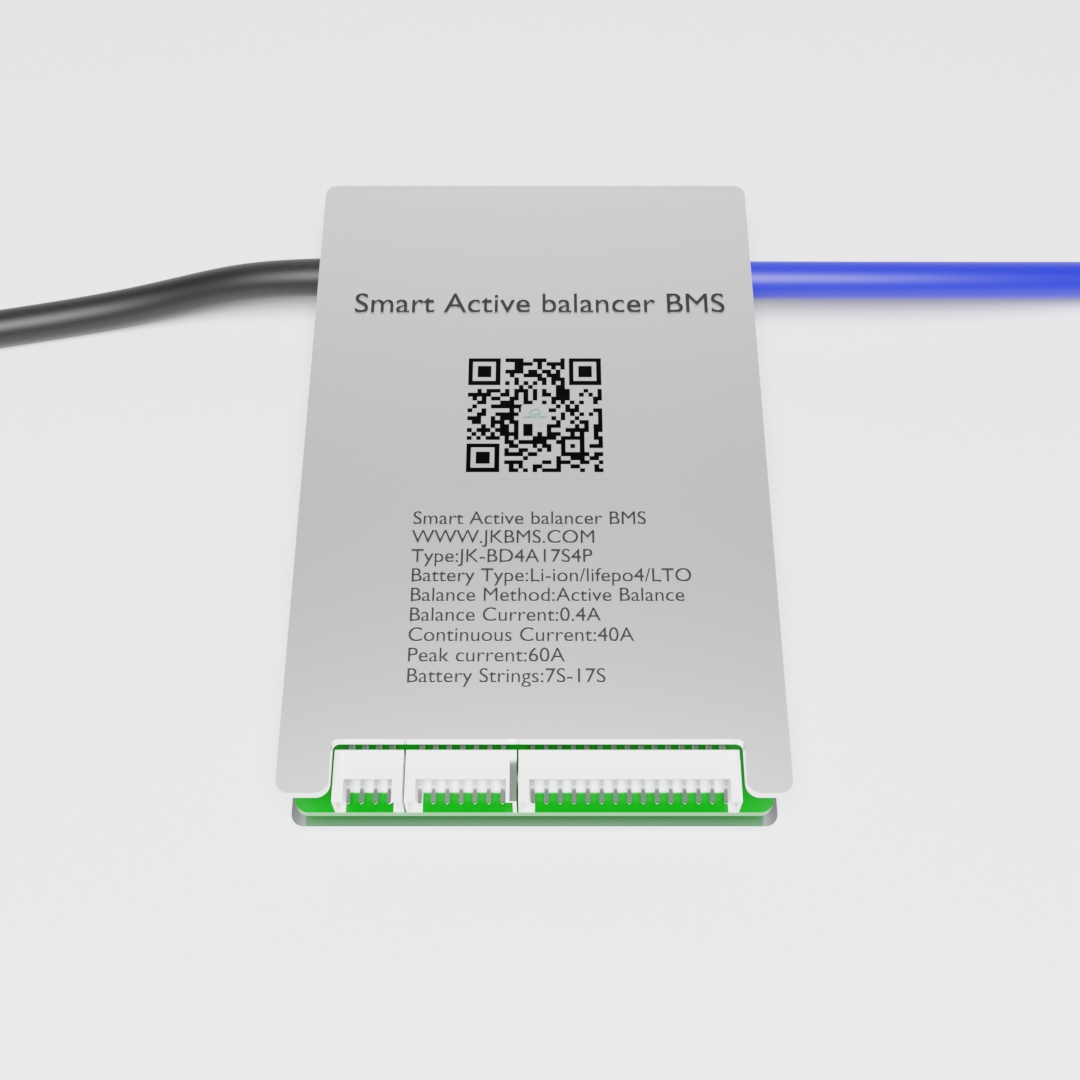

JK SMART BMS JK-BD4A17S4P

Original price was: 9,800.00৳ .Current price is: 6,190.00৳ .

Charging Current 40a
Usage Scenario Power BMS,Energy Storage BMS
Certification CE,RoHS
Balance Function Active Balanced BMS
Handware or Smart SMART BMS
Charge and Discharge Port Common Port BMS

Add 3,000.00৳ to cart and get free shipping!

Out of stock

Add to wishlist

Category: Uncategorized Tags: BALANCE, BMS, JK SMART BMS JK-BD4A17S4P, JK-BD4A17S4P, SMART BMS

Description

product advantages：

◆Active balance, good durability, long life, good balance and stable performance

◆Real-time active energy transfer equalization with supercapacitor as the medium (patent number: ZL 2019 2 0479589.6)

◆Single voltage range 1V~5V, equalization accuracy ±5mV

◆It can achieve 2-10A continuous balanced current, ensure battery consistency, improve battery cruising range, and delay battery aging.

◆Mobile phone Bluetooth communication, equipped with mobile APP, real-time view of battery status, support Android and IOS operating systems.

◆Support balanced cascading, suitable for more than 24 battery packs.

◆Suitable for lithium iron phosphate, ternary lithium, lithium titanate and other battery types.

☆Package
BMS{Bluetooth bulit-in(with P- and B- 7AWG 13cm*2)}
* Temperature sensor(40cm)
* Balance Wires(75cm)If you need to use BMS in parallel,
Fast Class T Fuse must be added to each battery pack.
Or discharge diode (high power diode selected according to load)

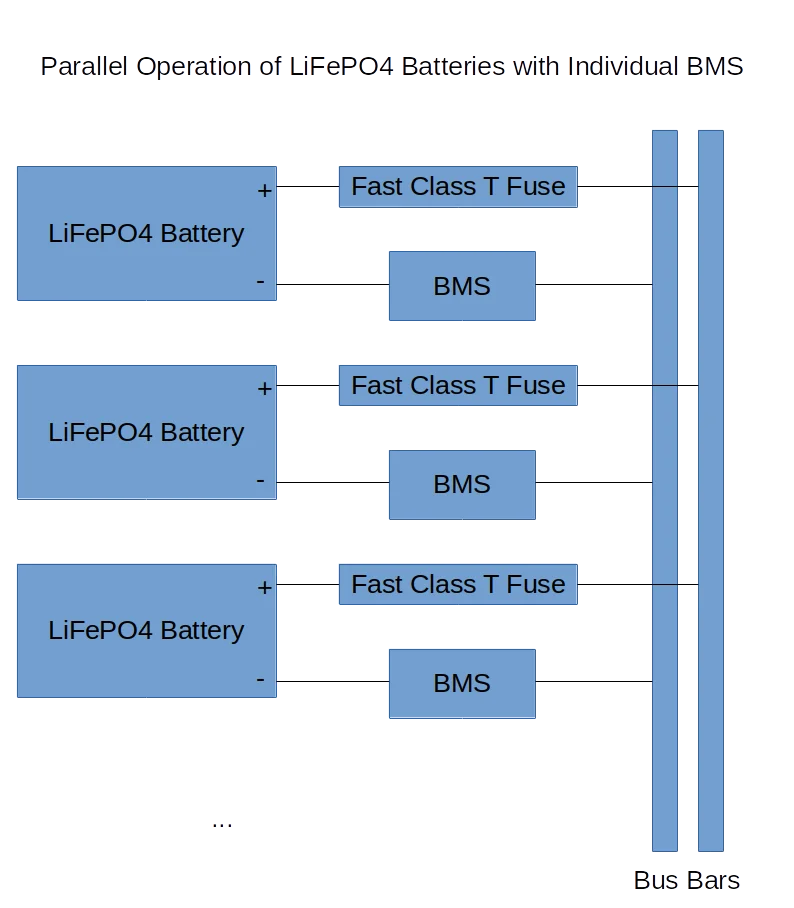

Provide a diagram (thanks to members of diysolarforum for sharing).

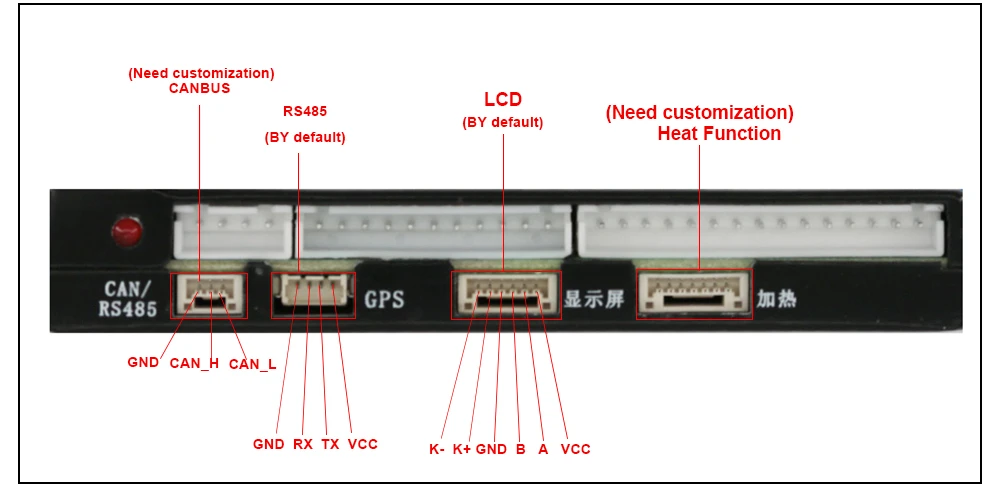

NOTE:
①: Temperature sensor
②:RS485 interface(At present, all JK BMS are configured with RS485 function by default)
③:LCD interface(At present, all JK BMS are configured with LCD interface by default) (Except of JK-BD4A17S4P)
④:Heat Function interface(At present, the heating function customized by customers can be accepted)
⑤ : CANBUS interface ( Needs customized)
