D

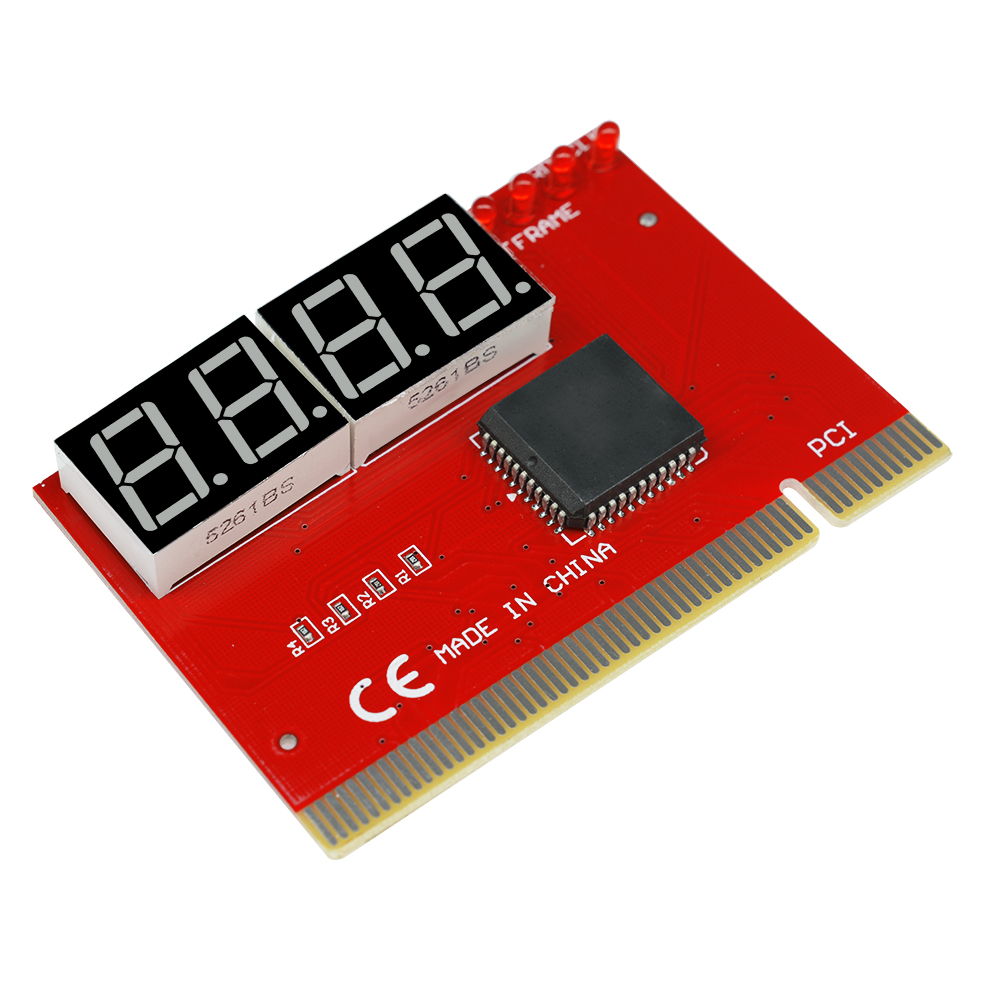

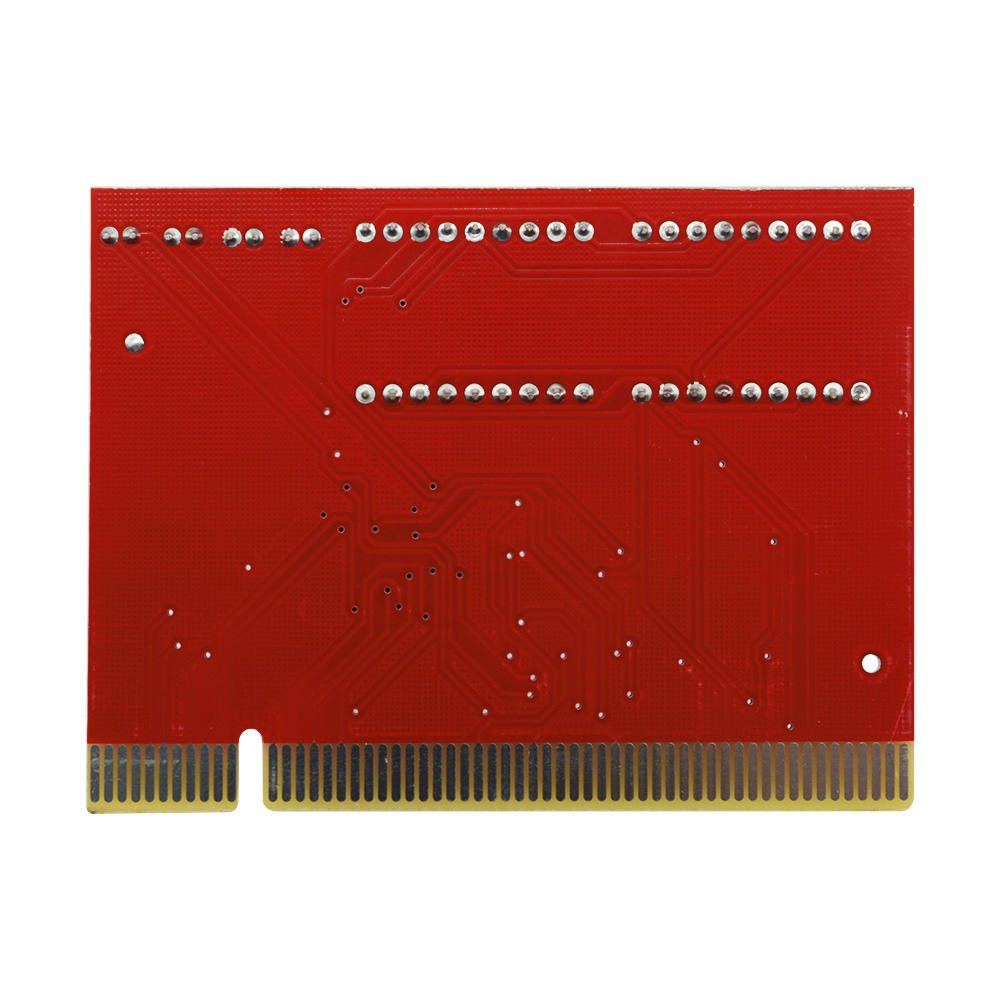

Features:
- 100% brand new and high quality
- It is used to test motherboard problems
- It is fit for desktop with PCI to which POST codes is output.
- 8 LED indication, easy to read LED Display on the Display, LED displays shows diagnosis result of motherboard.
- Diagnosis the motherboard signal which show the problem of CPU, Memory, display card and so on
- The POST code display is made up of a dual, dot matrix hexadecimal read-out that display’s Power On Self Test (POST) status codes
- Support the power source working indicator — +5V,+12V,+3.3V and 12V(When indicator LED is on to indicate its respective power is fine, otherwise to indicate its respective power is failure.)
- Help you remove the most headachy fault which sometimes normal but sometimes wrong
- Dual POST code display – User can readout the POST at PCB component and solder side. It is easy to view the
- POST code when user plugs the POST card in computer system
- Easy and quick to install, four-bit code is displayed
- The value of four-bit-code PC Analyzer’s “initiative code” is specified and it is “0000” or “FFFF”.” initiative code” is clear at a glance. While the value of conventional two-bit-code PC Analyzer’s “initiative code” is uncertain and man is unable to distinguish accurately by unaided eye
- Extra cable LED will be convenient for user to observe the code when the PC diagnostic card is insert in the narrow PC case

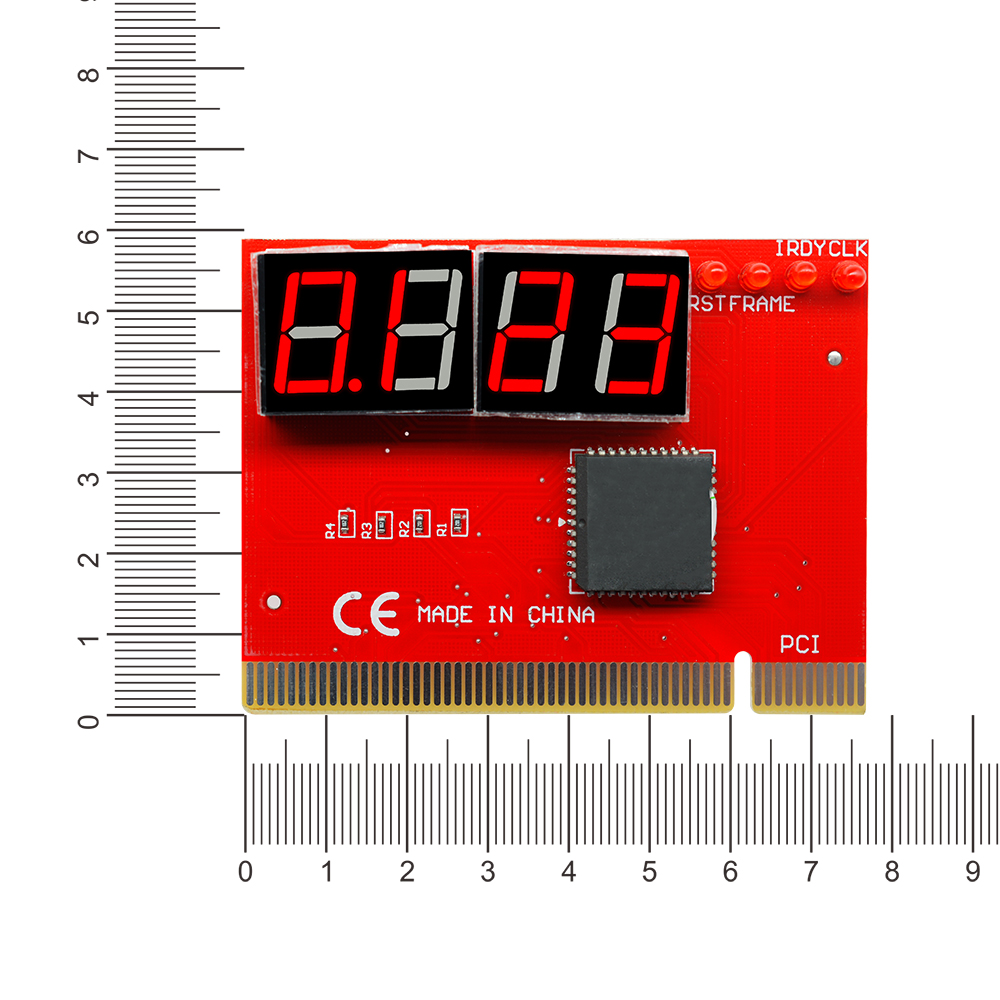

- Dimension:80 x 58mm(LxW)
Package Included:
1 X PC 4 Digit Diagnostic Analyzer Card Motherboard Tester
