M28 Bluetooth 4.2 Audio Receiver Module With 3.5mm Audio Interface Lossless Car Speaker Headphone Amplifier Board Wireless Refit

(1 customer review)

Original price was: 380.00৳ .Current price is: 280.00৳ .

Add 3,000.00৳  to cart and get free shipping!

Out of stock

Category:
Description

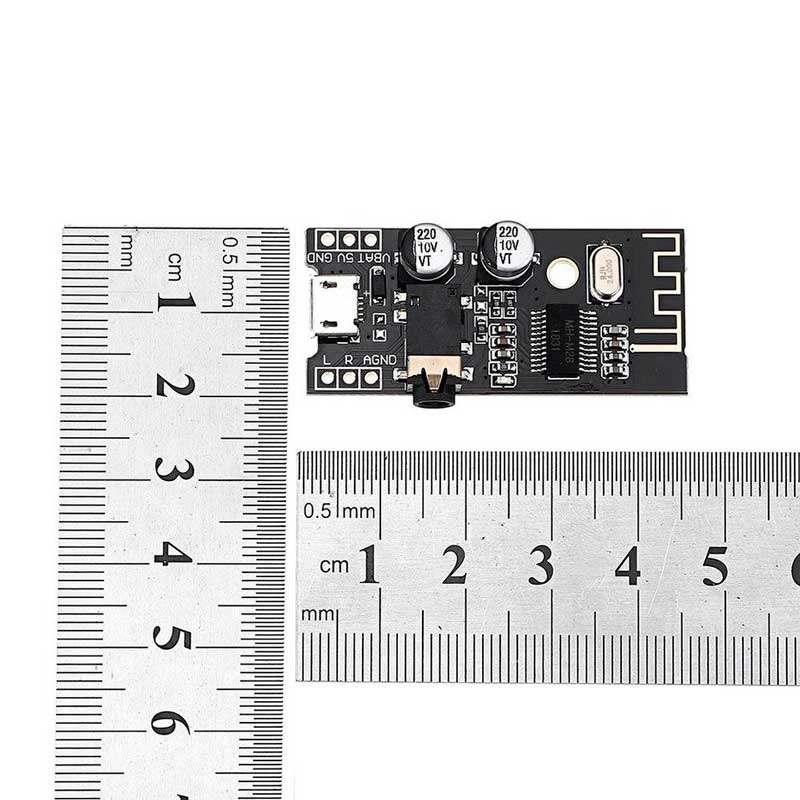

Product details of M28 Bluetooth 4.2 Audio Receiver Module With 3.5mm Audio Interface Lossless Car Speaker Headphone Amplifier Board Wireless Refit

  • Bluetooth V4.2 version, supports Bluetooth automatic connection technology, supports WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
  • After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and can play music after connecting Bluetooth.

For different needs of customers, we offer 3 versions for you to choose from:

Function / Model M18(Product ID:1476791) M28(this item) M38(Product ID: 1486746)
Micro power supply ×
Audio headphone jack × ×
Built-in amplifier × × √(5W+5W)
Lithium battery powered
Support USB sound card, free drive × ×
Volume memory/adjustment × ×
MUTE mute interface × ×
Button extension × ×
    Bluetooth version bluetooch V4.2
    Support Bluetooth protocol HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
    Format support Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo two-channel output
    Operating Voltage 5V/3.7V-4.2V
    Broadcast status not connected 5.5MA
    Connection working status 20MA
    Deep sleeping 3UA
    Transmission distance 20 meters (empty or low interference environment)
    Operating temperature -40°C to +85°C
    Sensitivity -87dbm





This product MH-M28 is a low-power Bluetooth design solution, supporting the latest Bluetooth 4.2 transmission, two-channel stereo lossless playback, Bluetooth connection after the module is connected to Bluetooth, very convenient. In an open environment, the Bluetooth connection distance can be up to 20 meters.

Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modification.

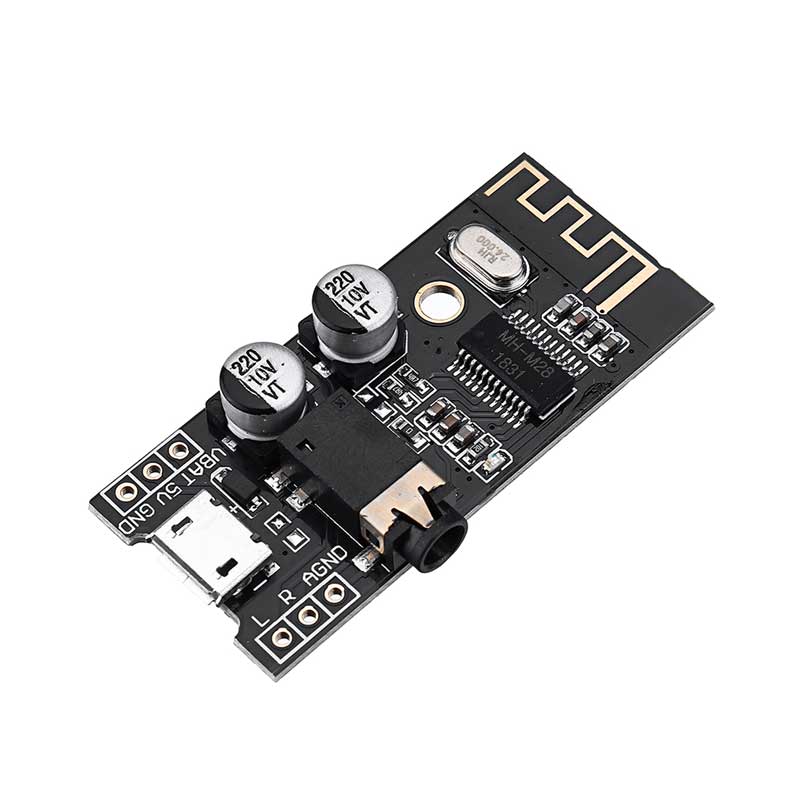

Pin number Pin header Description
1 5V Power positive 5V
2 GND Negative power supply
3 VBAT Lithium battery positive 3.7-4.2V
4 L Left channel output
5 R Right channel output
6 AGND Audio ground



Function Description:



Bluetooth V4.2 version, supports Bluetooth automatic connection technology, supports WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.

After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and can play music after connecting Bluetooth.



Package includes:

Specifications of M28 Bluetooth 4.2 Audio Receiver Module With 3.5mm Audio Interface Lossless Car Speaker Headphone
