NE555 Timer Switch Adjustable Module Time Delay Relay DC 12V Delay Connect Turn-On Module AC 250V 10A DC 30V 10A Shield 0~10S

Name: NE555 Timer Switch Adjustable Module Time Delay Relay DC 12V Delay Connect Turn-On Module AC 250V 10A DC 30V 10A Shield 0~10S
SKU: '010509
Availability: InStock

৳ 160

⏱️ Delay relay module based on NE555 chip for precise timing control
🔋 Operates at DC 12V with max load capacity of 2200W
💡 Power and trigger LEDs indicate module status clearly
⚡ Supports AC 0–250V / 10A and DC 0–30V / 10A output loads
🧠 Adjustable delay from 0 to 10 seconds via potentiometer or capacitor tweak
🛠️ Simple circuit design with precision pulse generation and adjustable duty cycle
🚗 Ideal for automotive delay systems to prevent ignition surge damage
📏 Compact and easy to integrate into DIY or industrial setups
🔥 High-performance timing CPU ensures stable operation
📦 Includes: 1 × DC 12V Delay Relay Timer Module

Add ৳ 3,000 to cart and get free shipping!

Add to wishlist

SKU: '010509 Category: Uncategorized Tags: 2200W delay timer circuit, AC DC relay controller, adjustable delay relay board, automotive ignition delay module, conduction delay relay shield, DC 12V delay relay module, DIY electronics delay switch, NE555 timer switch Bangladesh, precision pulse timer, timer relay for car electronics

Description

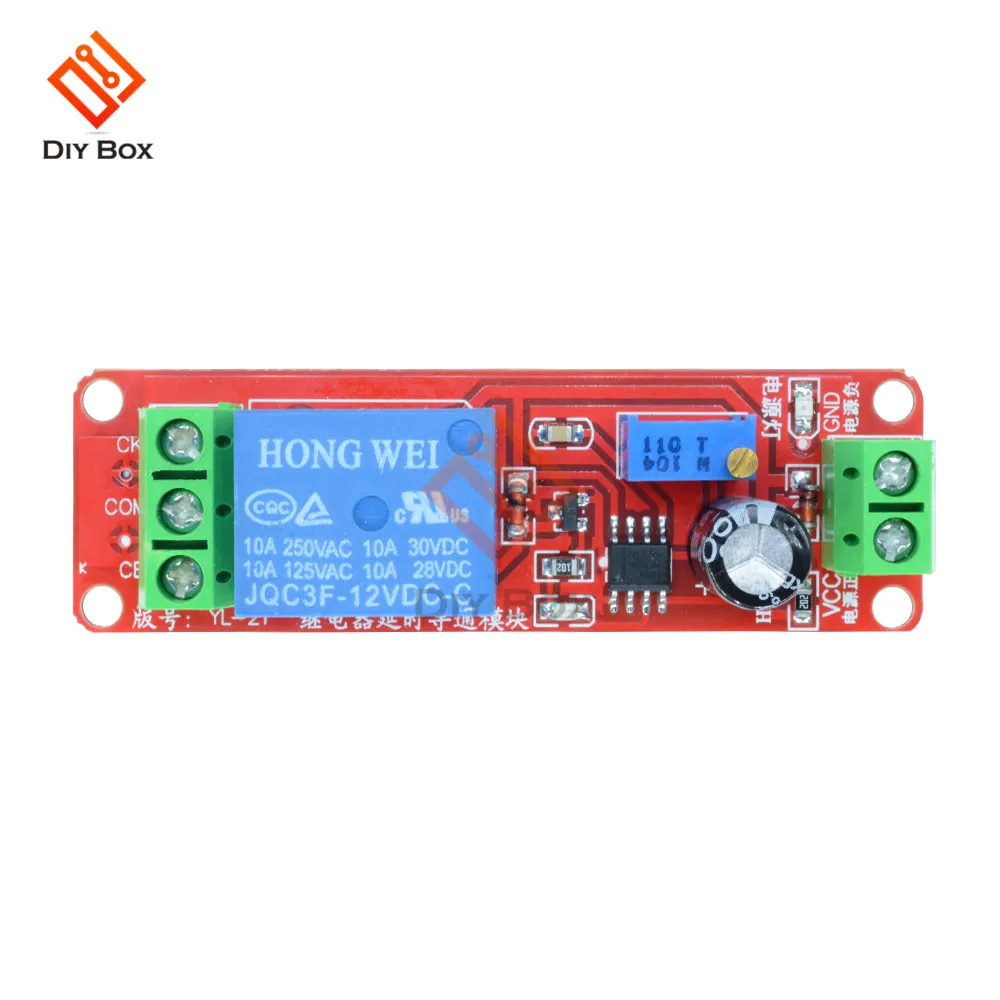

This is a12V Conduction delay relay module

– This is a brand new and high quality delay turn-on module.

the use of high-performance timing CPU design.
– the power indicator LED and switch trigger timing indication
LEDs;
– The output can be connected to AC 250V 10A DC 30V 10A
load;
– There is the chronopotentiometry regulation time, adjustable
from0 to 10 seconds by default, or by changing the
capacitance adjustment time longer

For applications of:
Vehicle equipment-delay to prevent car ignition, prevention of
high sudden current to burn components and devices.

Specification:
1.Module based on: NE555 chip.
2.Delay modue :delay connect module
3.Input voltage: DC12V
4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 5V optional)
5.Max. load: 2200W

Main Chip (NE555) Characteristics:
1.Timing from microseconds to long hours
2.Simple circuit design
3.Precision Pulse Generation / Timing,
4.Adjustable Duty Cycle

Package:

1PCS*DC 12V Delay relay shield Timer Switch Adjustable Module 0 to 10 Second
