NY-D08 Spot Welding Machine Controller Pneumatic Color LCD Display Multi-point Personalization with Temperature Sensor

4,400.00৳

๐Ÿ“Ÿ NY-D08 controller with colorful LCD and STM32 chip
๐ŸŒก๏ธ Integrated temperature, fan, pneumatic & cascade control
โšก Drives 12V solenoid valve and fan directlyโ€”no extra power needed
๐ŸŽ›๏ธ Adjustable welding points: 1โ€“10 for flexible pneumatic setups
๐Ÿง  Anti-jamming STM32 chip for fast, stable operation
๐Ÿ”ง Personalize name, voltage, power, and address settings
๐ŸŒฌ๏ธ Fan control with temp protection and smart modes
๐ŸŒ Dual language interface: English & Chinese
๐Ÿ”Œ Terminals for foot switch, sensor, fan, solenoid, and status
๐Ÿ“ฆ Includes controller, temp sensor, and cable

Add 3,000.00৳  to cart and get free shipping!
Description






This NY-D08 spot welding machine controller is integrated temperature, fan, pneumatic control, and cascade control, strong and powerful. Large colorful display, simple structure, showing clear. Pneumatic parameters can be changed, continuous pneumatic spot welding point 1-10 adjustable, and can be changed according to machine characteristics. Support for personalization: name, voltage, power, address and etc.. You can have a try.Features:
Integrated temperature, fan, pneumatic control, and cascade control, strong and powerful.
Integrated control, the high current drive chip can directly drive DC12V solenoid valve and fan, does not need external power supply.
Large colorful display, simple structure, showing clear.
Imported STM32 single chip, quickly operation, with preferable antijamming ability, stable and reliable.
Pneumatic parameters can be changed, continuous pneumatic spot welding point 1-10 adjustable, and can be changed according to machine characteristics.

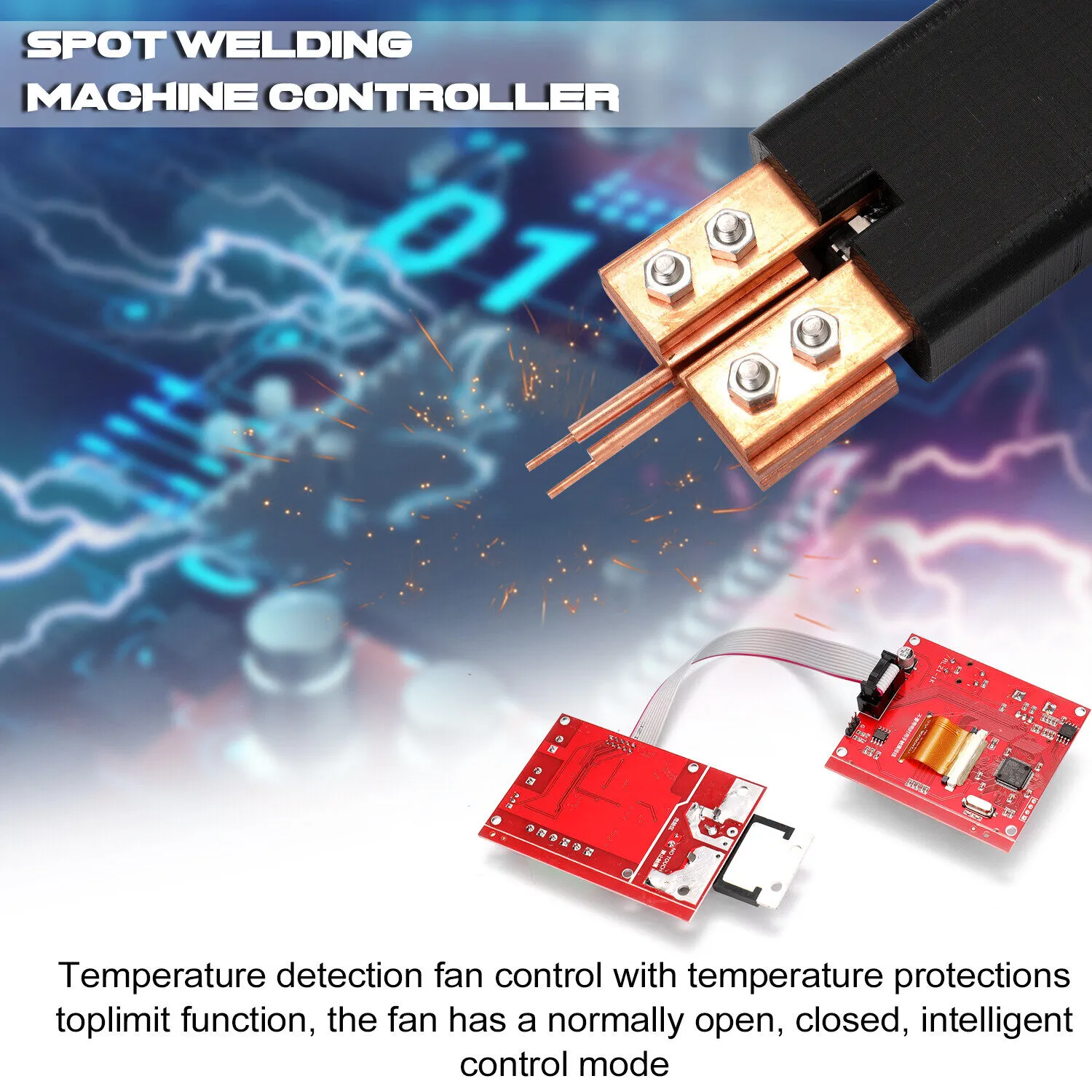

Temperature detection fan control with temperature protections top limit function, the fan has a normally open, closed, intelligent control mode.

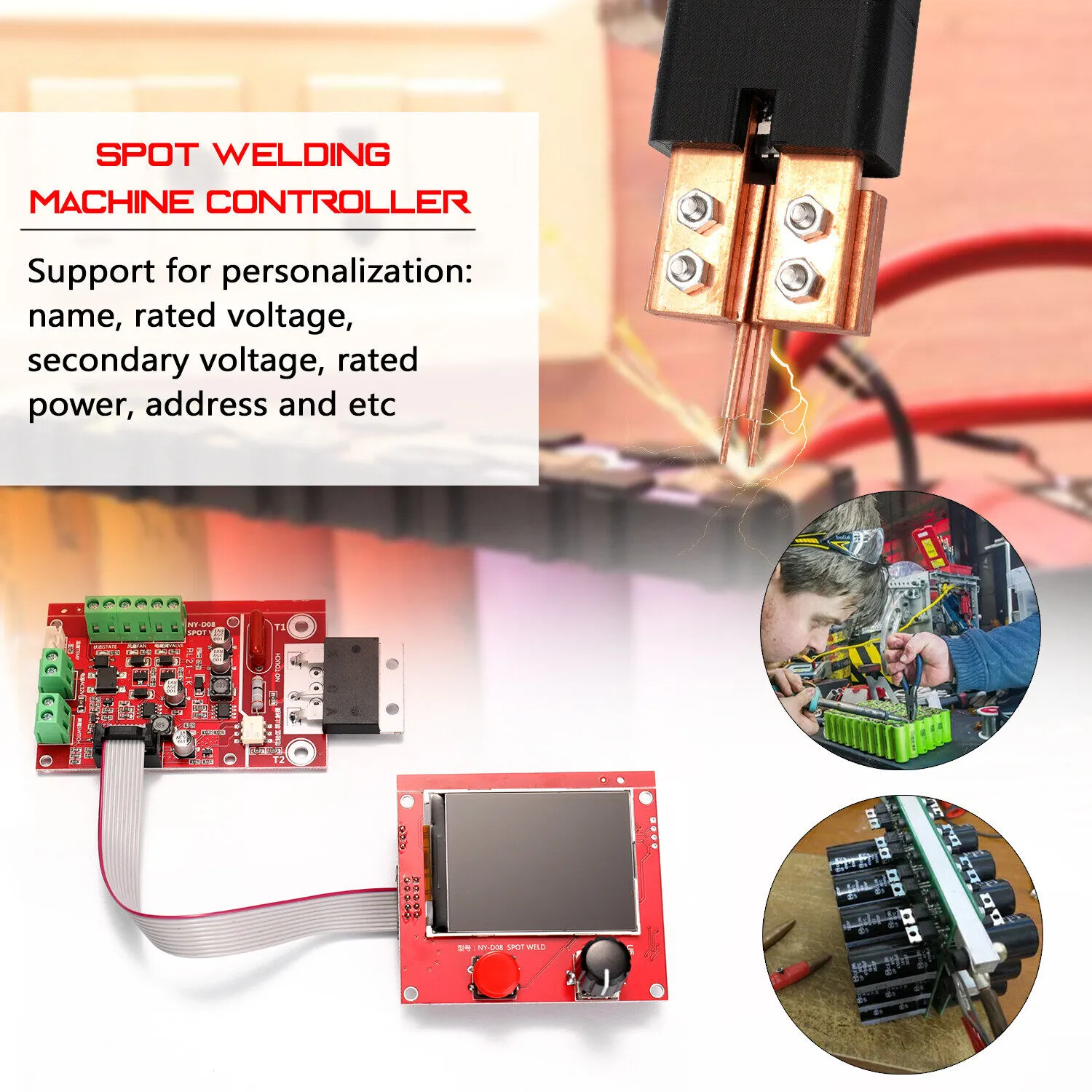

Support for personalization: name, rated voltage, secondary voltage, rated power, address and etc..
Dual language selectable, with English interface and Chinese interface for you to choose.

Terminal Description:
1: foot switch terminal, mechanical switch
2: The power supply of the control board is connected to the 9-12VAC power supply.
3: Temperature sensor terminal
4: Status terminal, controller welding status, output during welding
5: fan terminal, connected to 12VDC fan
6: Solenoid valve terminal, connected to 12VDC pneumatic solenoid valve

Specifications:
Name: Spot Welding Machine Controller
Model: NY-D08
Item weight: 155g / 5.47ounce
Package size: 140 * 110 * 100mm / 5.51 * 4.33 * 3.94in
Package weight: 193g / 6.81ounce

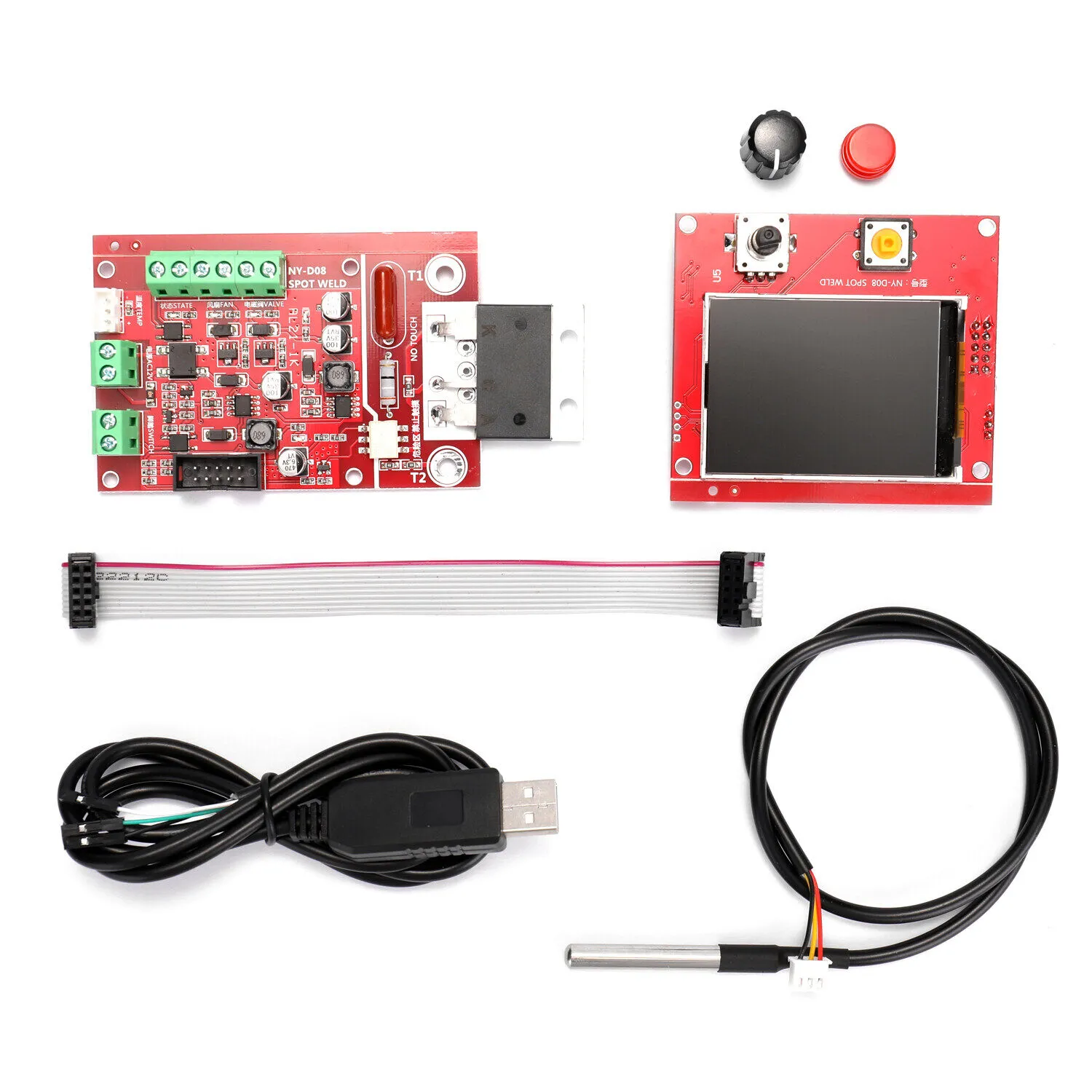

Packing List:
1 * Spot Welding Machine Controller
1 * Temperature Sensor
1 * Cable
