Application:
1. Electronic enthusiasts, mobile phone maintenance personnel, electronics industry personnel DIY fully compatible mobile phone flash charging module.
2. Open days, long-term power outages, etc., all brands of mobile phones use batteries, solar panels, and other DC power supply, flashing. Feature: Suitable for Qualcomm QC4 + / QC4.0 / QC3.0, Huawei SCP / FCP, OPPO VOOC, Apple 2.4A, Samsung AFC, one plus DASH, VIVO 9V2A dual-motor flash charger, MediaTek PE2.0
Reminder: in the market, some similar fast charging boards use QC4.0, VOOC, DASH, not support IP6518 solution, and full service is not fast charging. And IP6518 output current is limited, so Huawei’s super-fast charging SCP compatibility is not good. High efficiency:
With an external MOS tube, conversion loss is much lower than the built-in mos of the IP6518 scheme.
Double-wire and + iron-silicon-aluminum magnetic ring is used more efficiently than the same power chip inductor and low temperature.
Input and output are double parallel low resistance electrolytic capacitors with 6 1206 chip ceramic capacitors! Only for higher performance! Measured map: Huawei super-fast charging 5V
Perfect implementation of 5A (SCP) measure: type-c port is used for output charging! Use cccc / type-c male double-headed data cable to charge your cell phone or laptop. OPPO and one plus mobile phone charging by USB port. The QC4 + / QC4.0 / PD3.0 protocol uses the type-c port. When the power supply voltage is higher than 21 volts, the C port PD protocol supports up to 20V 3A output, and the module is small. When charging the laptop, please ensure good ventilation and heat dissipation. When the USB port and type-c port are plugged into the mobile phone at the same time, the dual-port is 5V output. Professional car charger / high-efficiency DC-DC rarely use chip inductors, most of them are made of iron silicon aluminum magnetic ring. Because of the chip inductor’s low cost, the heat is serious!
Package includes:

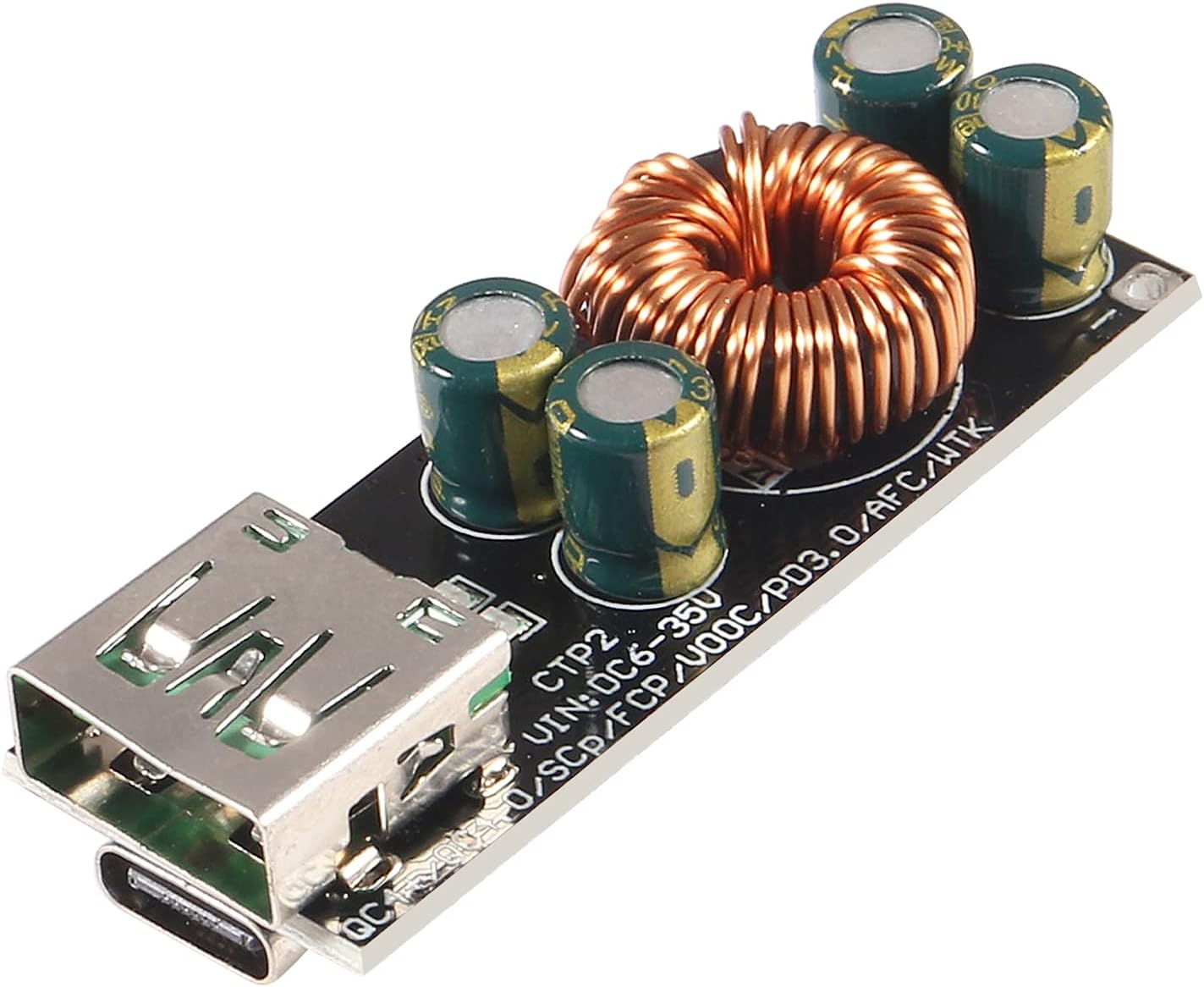

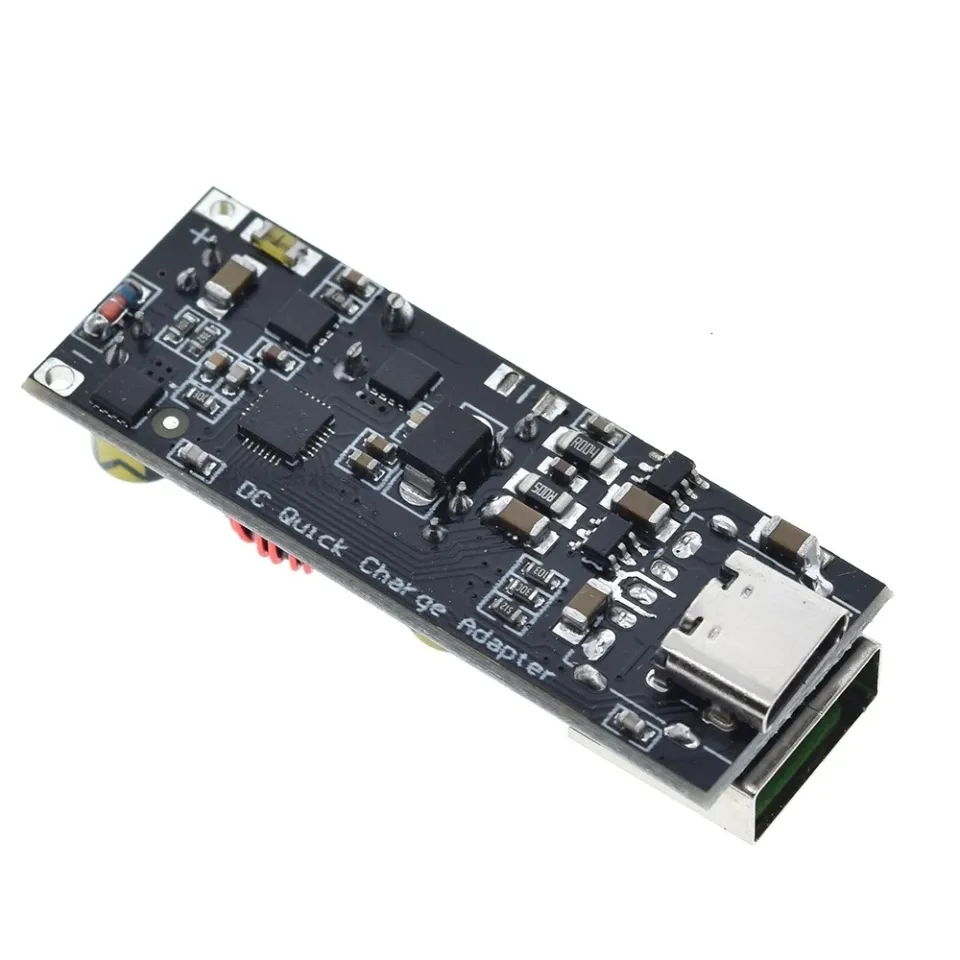

1 * DC-DC 6-35V step-down Buck module QC4.0 QC3.0 fast charging adapter module
