Real 10W DC-DC multi-function mini boost module 3V-5.5V to 5V 8V 9V 12V /3.7V lithium battery boost LED indicator

🔋 Real 10W DC-DC multi-function mini boost module for lithium battery projects ⚡
📥 Input voltage range: 3V–5.5V, must be lower than output 🔌
📤 Output options: 5V, 8V, 9V, 12V—default set to 12V 🎚️
🔧 3.6V input gives 5V 1.5A, 8V/9V 1A, 12V 0.8A 🔋
⚡ 5V input boosts to 8V/9V 1.2A, 12V 1A 🚀
💡 LED indicator consumes ~1mA at 12V output 🌟
🛠️ No-load input current <1mA when LED is active 🧪
📦 Compact and efficient for portable power builds 📐
🔌 Ideal for 3.7V lithium battery boost setups 🔋

Add 3,000.00৳  to cart and get free shipping!
Description
Basic parameters:

// Input voltage range: 3v to 5.5v. The input voltage must be lower than the set output voltage.

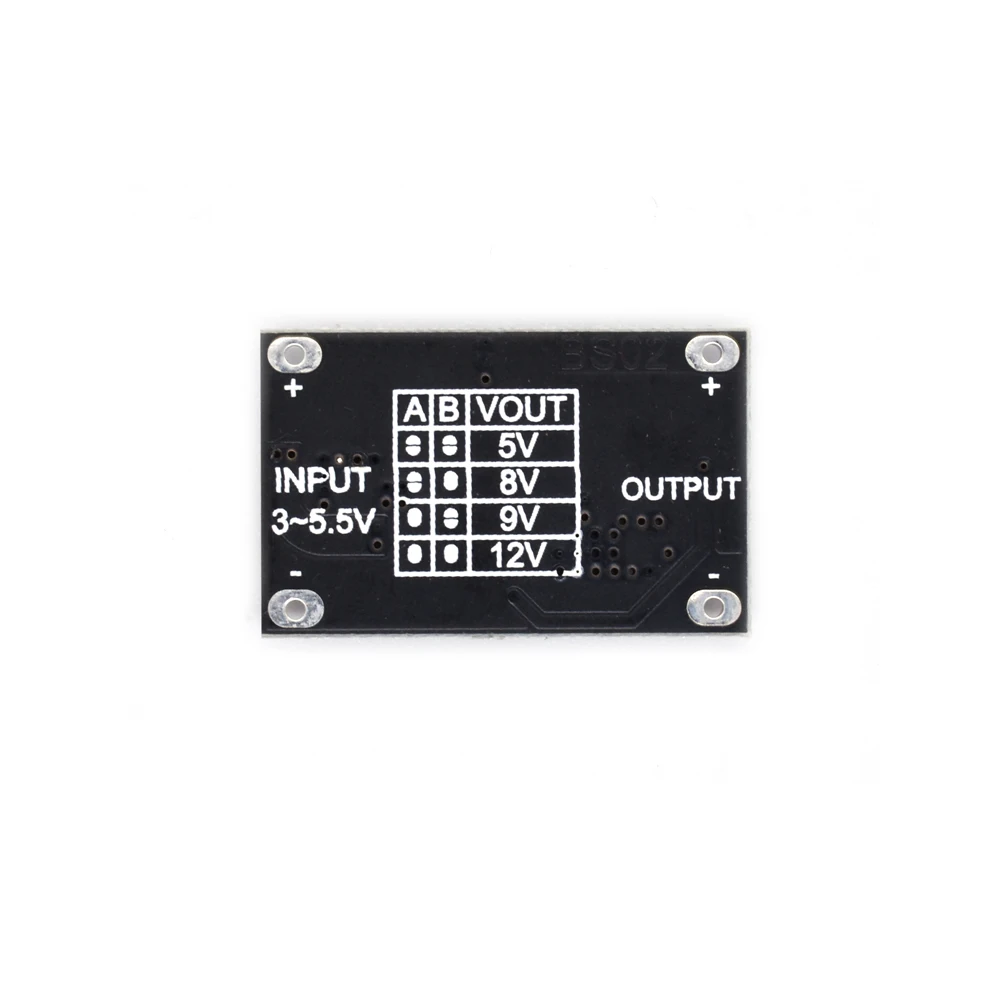

// Set the output voltage to 5v/8v/8v/12v. Default value: 12v.
// Output capacity: When the 3.6v lithium battery is input, 5v1.5a, 8v1a, 9v1a, 9v1a and 12v0.8a can be output. When the 5v lithium battery is input, 8v1.2a, 9v1.2a and 12 v1a can be output. When the 12v output
is realized, the LED indicator lamp consumes about 1ma (input current is about 3ma).
// If the indicator lamp is on, the input current is less than 1ma during no-load.





As shown in the figure:
