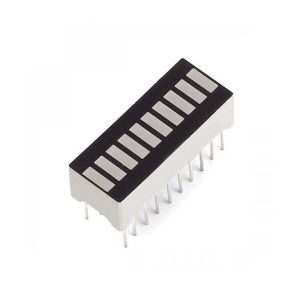

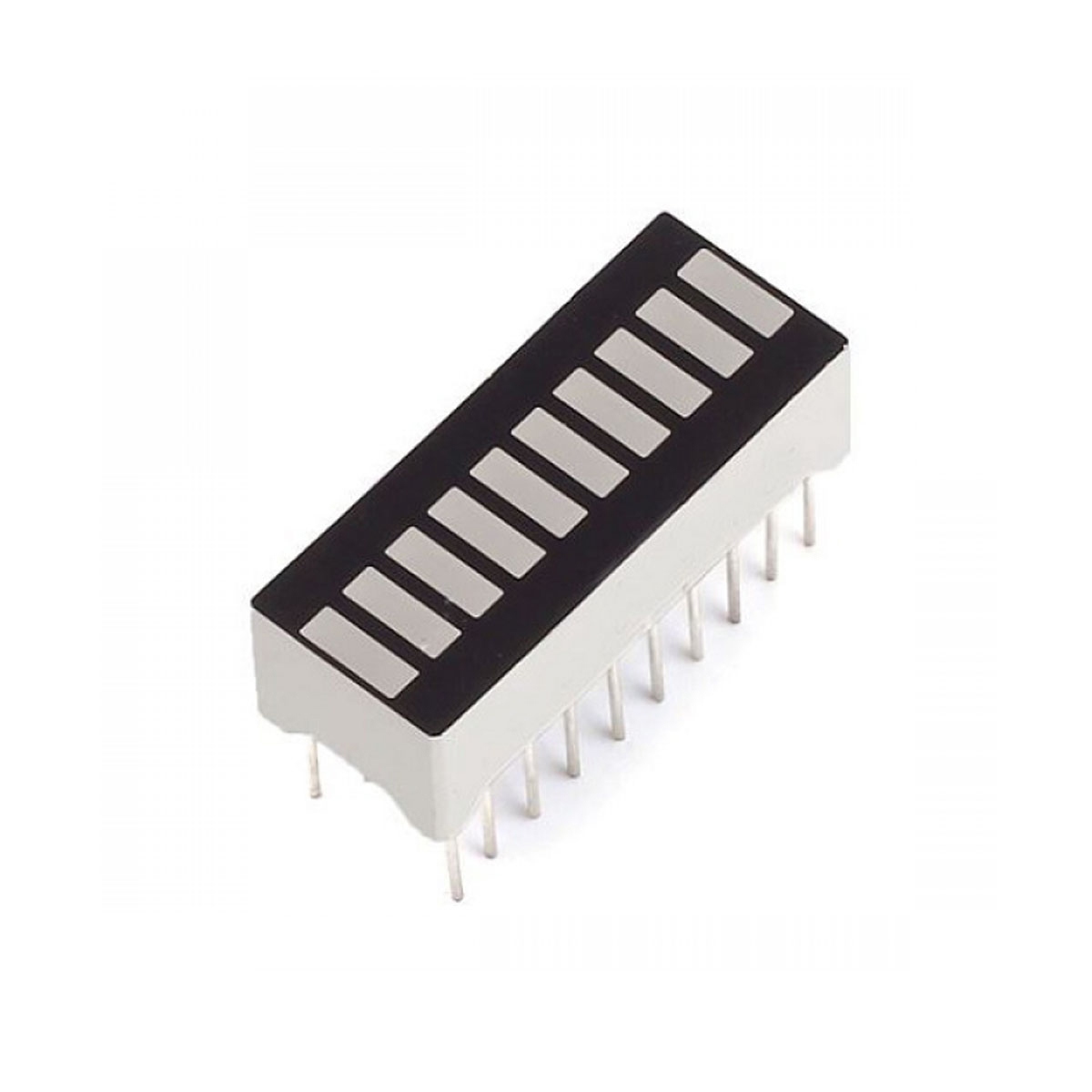

RED 10 Digits Battery Indicator LED Bar Graph Red 10 Segments LED Red Yellow Green Blue 5 Segment Red LED Display 4 color Display Light 25x10x7mm For Batteries Indicators Light Electronics Circuitry & Parts - Image 1

RED 10 Digits Battery Indicator LED Bar Graph Red 10 Segments LED Red Yellow Green Blue 5 Segment Red LED Display 4 color Display Light 25x10x7mm For Batteries Indicators Light Electronics Circuitry & Parts

Price range: 50.00৳ through 70.00৳

🔴 10-Segment Display: Compact red LED bar for visual level indication
📐 Standard Size: 25×10×7mm — fits easily on PCBs and control panels
🔌 Easy Hookup: Individual anode/cathode pins for flexible wiring
⚡ Low Power Consumption: 25mA per segment, 5V max reverse voltage
🛠️ Multiplex Compatible: Suitable for dynamic display applications
🎮 Gray Face, White Segments: High contrast for clear visibility
🌱 Eco-Friendly Build: Pb-free and ROHS compliant
🎨 Color Options Available: Also offered in green and blue variants
📦 Ideal For: Battery indicators, audio VU meters, instrument panels
📦 Includes: 1 × Red LED Bar Graph Display

Add 2,930.00৳ to cart and get free shipping!

Color

Clear

Add to wishlist

SKU: N/A Category: DIY Kits & Learning Tags: 10 segment LED bar graph, 25×10×7mm display module, audio VU meter LED, Bangladesh electronics parts, low power LED indicator, multiplex LED bar, PCB mount LED bar, red LED battery indicator, ROHS compliant LED module, signal strength LED display

Description

Description: LED Bar Graph Red 10 Digit Segment LED Display Light 25x10x7mm For Battery Indicator

RED 10 Digits Battery Indicator LED Bar Graph Red 10 Segments LED Display Light 25x10x7mm For Batteries Indicators Light Electronics Circuitry & Parts

These 10 segment bar graph LEDs have many uses. With a compact footprint, and a simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual red LEDs housed together.

These 10 segment bar graph LEDs have many uses. With a compact footprint, simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual blue LEDs housed together, each with an individual anode and cathode connection.

We also carry these in red, and green. Note: The pinout on these bar graphs may vary from what is listed on the datasheet. Rotating the device 180 degrees will correct the change making pin 11 the first pin in line. We have contacted our supplier to correct this mistake in the future.

Features:

10 Bar Graph Display
Low Power Requirement
Can Be Used With Panel And Legend Mount
Suitable For Multiplex Operation
Easy Mounting On P.C.B
Pb Free Products
ROHS Compliance
Gray Face, White Segments

Applications:

Audio equipment
Instrument panels
Digital readout display
Signal strength display
Power status display
Art display

Specifications:

Forward Current (Per Segment): 25mA
Max Reverse Voltage: 5v
10 segment bar
Color: Super Bright Red
Industrial standard size
Low power consumption
Categorized for luminous intensity
Dimension: 25x10x7mm

Package Included:

1 X LED Bar Graph Red 10 Segment LED Display Light 25x10x7mm For Radio Battery Indicator

Additional information

Color	Multicolor , Red
