REX-C100 Digital PID Temperature Controller Thermostat SSR output Max.40A SSR Relay K Thermocouple Probe High Quality ( same as pic )

Original price was: 1,200.00৳ .Current price is: 1,180.00৳ .

🔧 Bullet Point Highlights

📐 Model: REX-C100 — compact 48×48mm panel-mount design
🔌 Power Supply: AC 100–240V, 50/60Hz — universal compatibility
🌡️ Temperature Range: 0–999°C — suitable for high-temp environments
🎯 Control Type: PID with auto-tuning — ensures stable and accurate temperature regulation
🔁 Output: Solid State Relay (SSR) — supports up to 40A load switching
📊 Sensor: K-type thermocouple probe — 1m cable, 4.5mm diameter, 0–400°C range
💡 Display: Dual LED — shows Process Value (PV) and Set Value (SV)
🧠 Features: Cold-end compensation, compressor delay protection, multiple control modes (ON/OFF, step PID, continuous PID)
🧱 Build: Durable ABS housing — designed for industrial and lab use
🧩 Applications: Brewing, seedling germination, heating chambers, packaging equipment, and more

Add 3,000.00৳ to cart and get free shipping!

Out of stock

Add to wishlist

SKU: XA0047 Category: Uncategorized Tags: 40A Solid State Relay, Digital Temperature Thermostat, Dual LED Display Controller, Electronics Bangladesh, Incubator PID Module, Industrial Heating Controller, K-Type Thermocouple Probe, Oven Temperature Regulator, REX-C100 PID Controller, SSR Output Controller

Description

REX-C100 Digital PID Temperature Controller Thermostat SSR output + Max.40A SSR Relay + K Thermocouple Probe

Description

Features

REX-C100 Temperature Controller

Model No:REX-C100FK02-V*AN

Range: 0 to 400 °c K

Output:SSR

Supply:Usually sell AC100V–240V 50/60HZ , AC220V50/60HZis also available.

Attention: some other seller use fake SSR40A with very cheap price but less than 10A in fact.

Indication for you: if your voltage is between 100V–240V like 110V or 240V , you’d better choose AC100V–240V 50/60HZ, if your voltage is 220V, you can use both AC100V–240V 50/60HZ and AC220V.

The correct way to the SSR output is

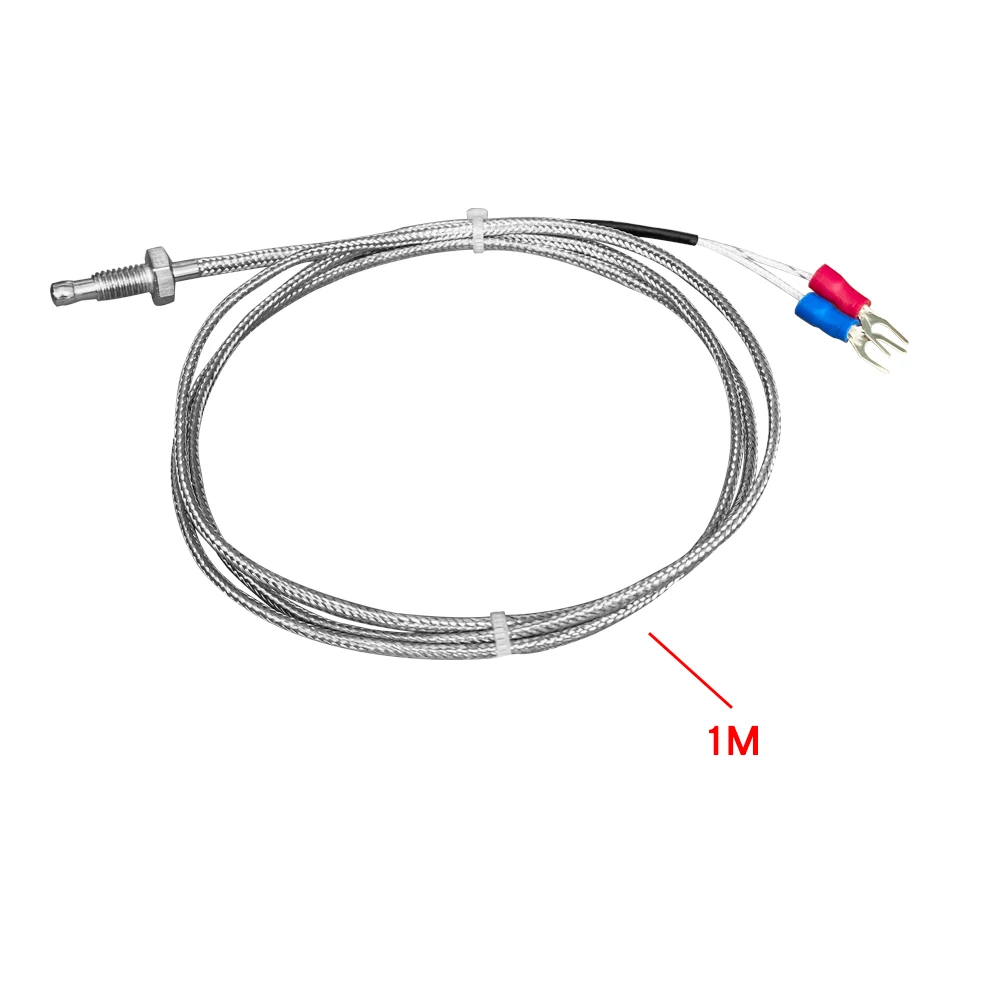

K Thermocouple Probe Cable

1.Length: 1M

2.Sensor diameter:5mm

3.Temperature rang :0-400

4.Internal Insulation: Fiberglass

5.External Shielding: Insulated Shielding

Max.40A SSR

1.Output Current:40A

2.Input Voltage:DC 3-32V

3.Output Voltage:24-380V AC

4.Output Voltage Range:Standard Type

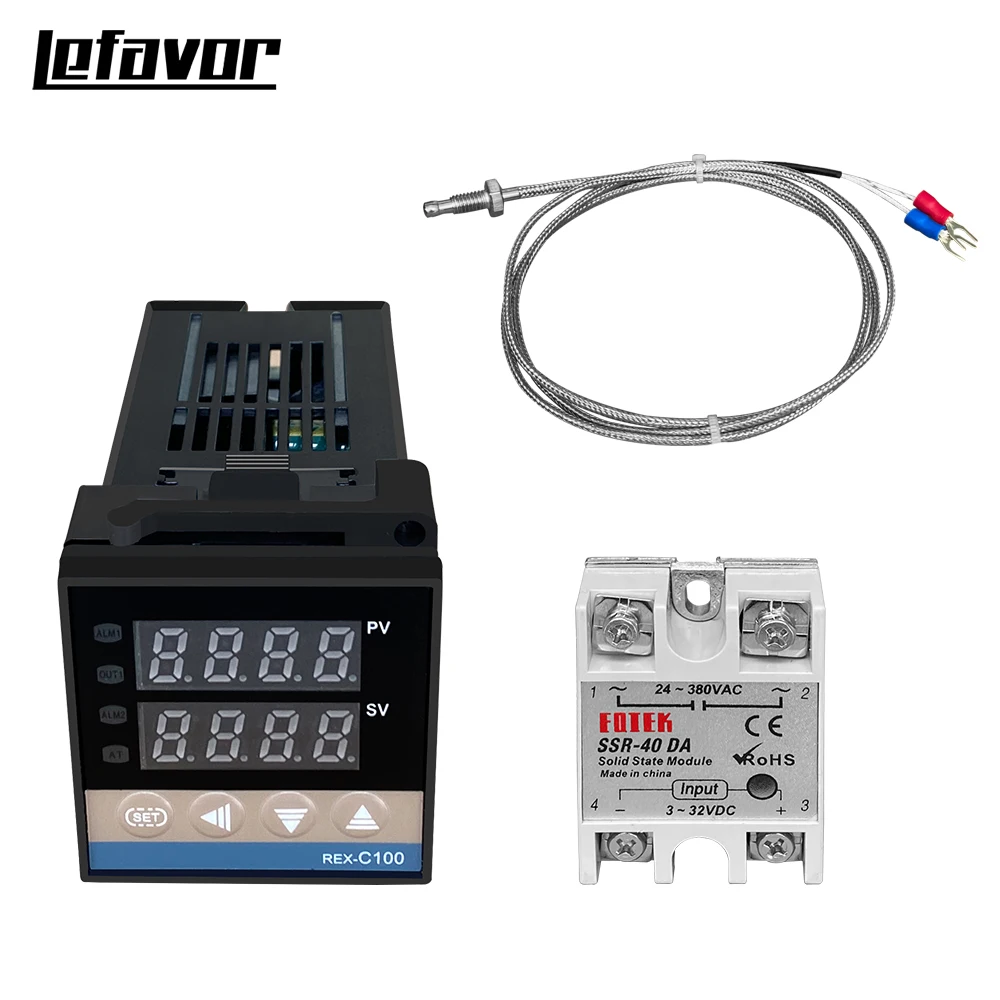

Package Included:

1 X PID Temperature Controller

1 X K Type Probe Sensor

1 X Max.40A SSR

Package include:

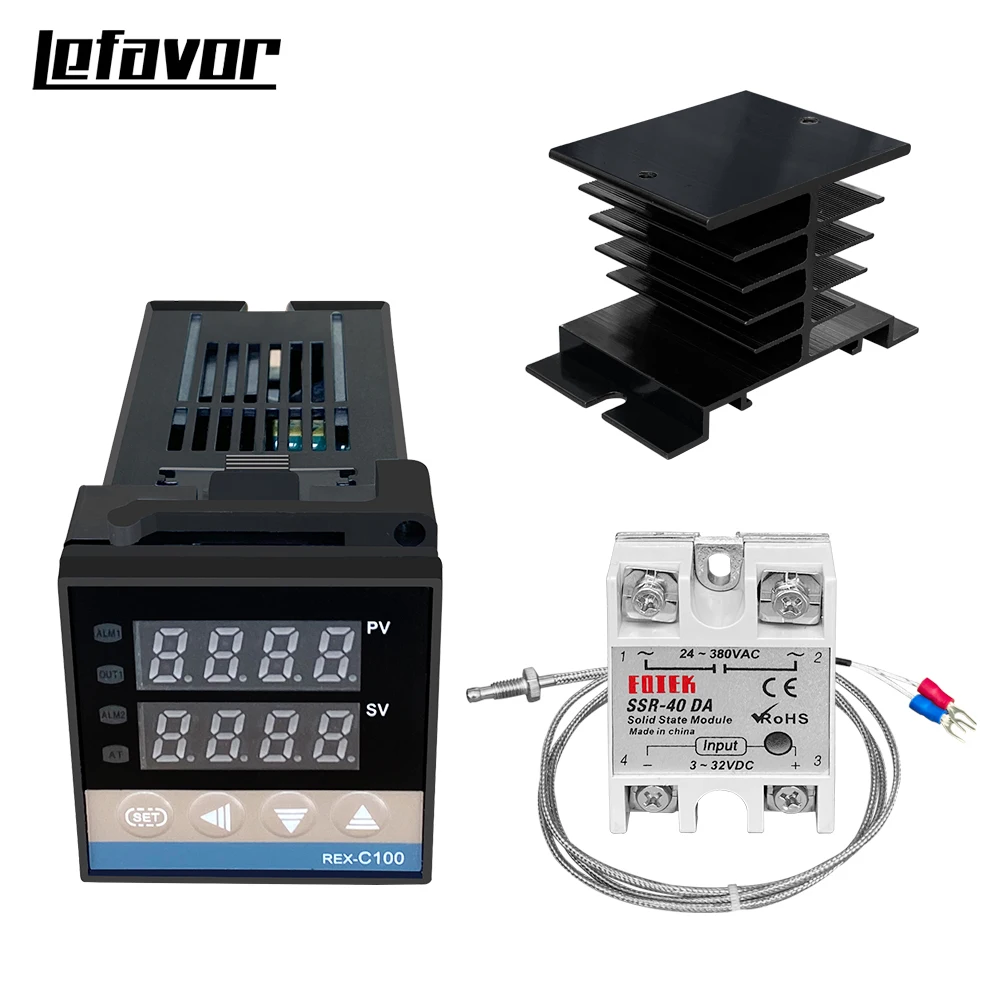

3.set ——include include a thermostat+ A SSR 40DA relay+ A 1M K type sensor , A radiator

Note: The two functions are the same, the width and height are the same, only the difference in length, one is 107mm, the other is 86mm, please don’t worry, we randomly send these two lengths of products
