Product information:

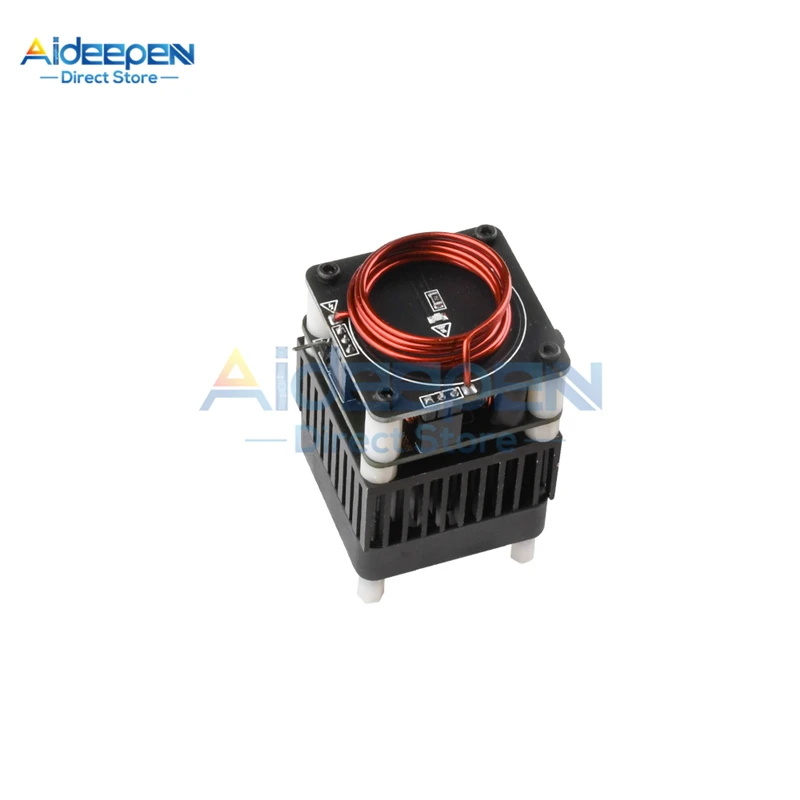

Name: Hfsstc (High Frequency Tesla Coil) commonly known as “Electronic Candle”

Working voltage: DC36V-48V

Working current: 1.8-2.5A

Working frequency: around 15mhz

precaution:

Please use only according to the instructions, if improper use may cause fire, electric shock, burns and other accidents

Parts that are strictly prohibited from being touched during work: the secondary coil, the upper coil of the host, and the output discharge needle of the host

Do not use overvoltage, the operating power supply voltage should not be higher than DC 52V

Do not change the parameters as you wish.

It is strictly forbidden to reverse the positive and negative poles of the power supply.

The recommended working time is less than 10 minutes. Exceeding the time will cause high temperature aging and damage to the ignition coil.

To ensure safety, please make sure there are no flammable and explosive materials around the product before working.

During work, it will produce certain electromagnetic interference to the surrounding electronic equipment.

This product is not waterproof, please do not use it in a too humid place.

Do not use objects to connect the high temperature film part of the primary secondary coil during work to avoid secondary damage.

Use steps/methods

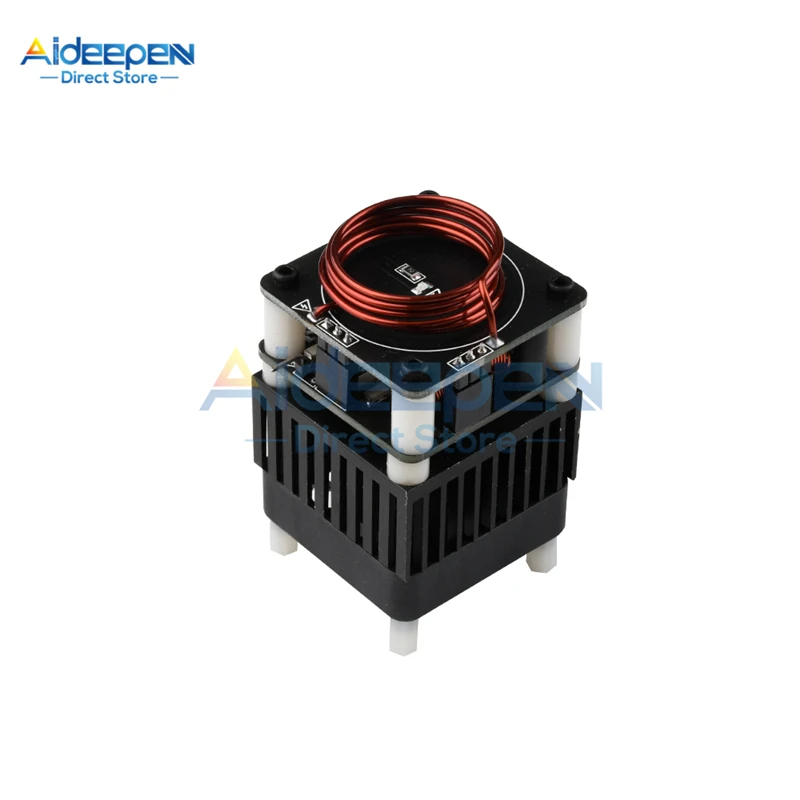

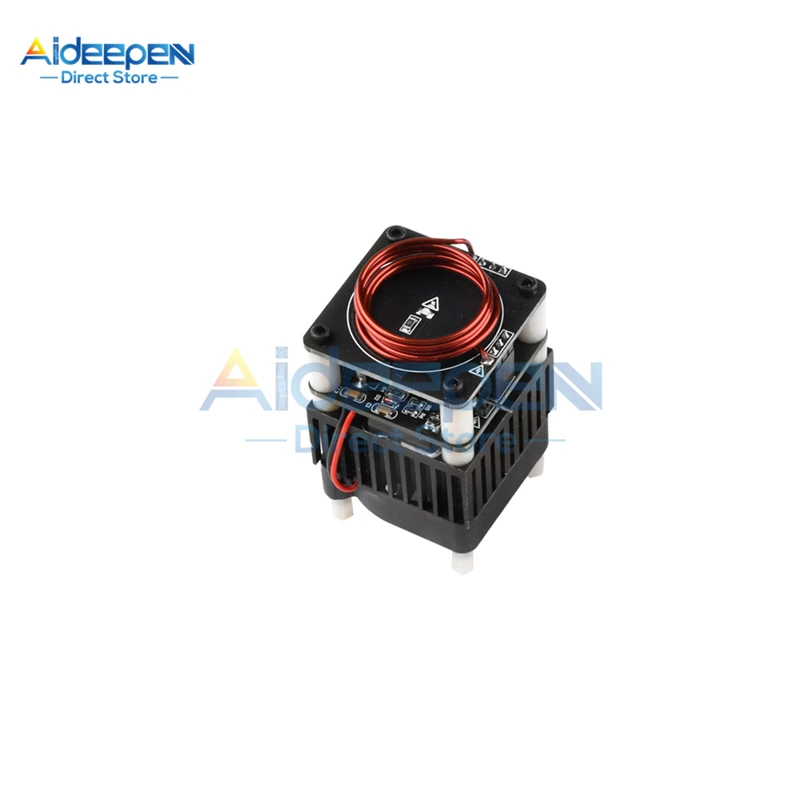

1.Place the host and connect the host and secondary coil correctly

2. Connect the power supply and the fan starts working.

3. Turn on the switch, and the indicator light next to the switch is on (the left side of the switch is on and the right side is off) The indicator light at the bottom of the coil is on

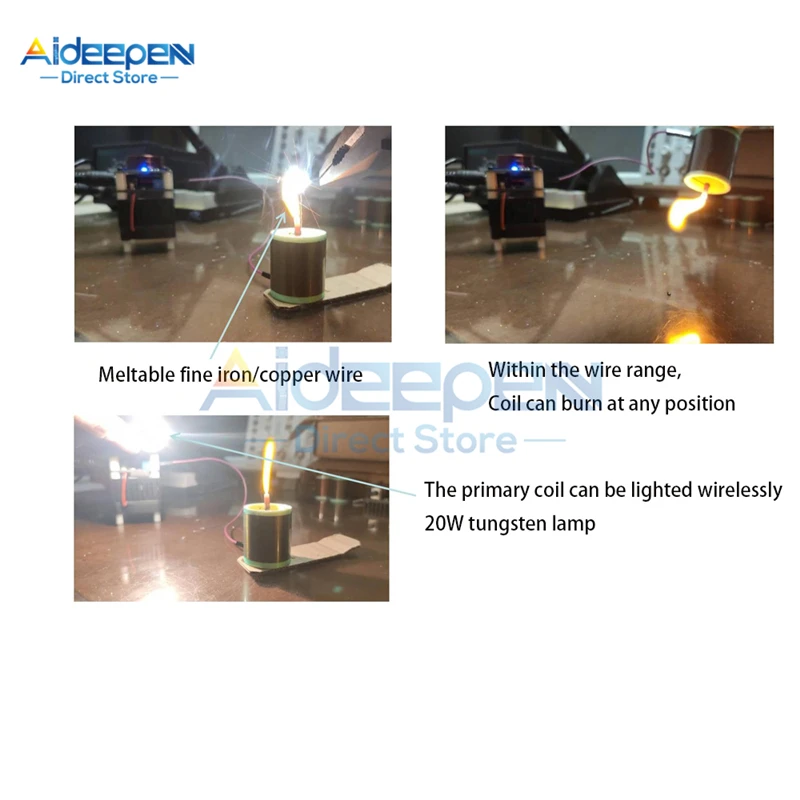

4.Touch the top of the secondary coil with metal as soon as possible to ignite the flame

Note: If the voltage indicator is on after turning on the switch, but does not work, you need to adjust the potentiometer on the host

Adjustment method: After turning on the switch, slowly rotate clockwise until the signal light at the top of the main motor lights up, and the secondary ignition coil can be ignited. Adjustment only to the arc is the best situation, too large will cause the main circuit current to be too large or even damage! (All are debugged before shipment, use this method to adjust under special circumstances)

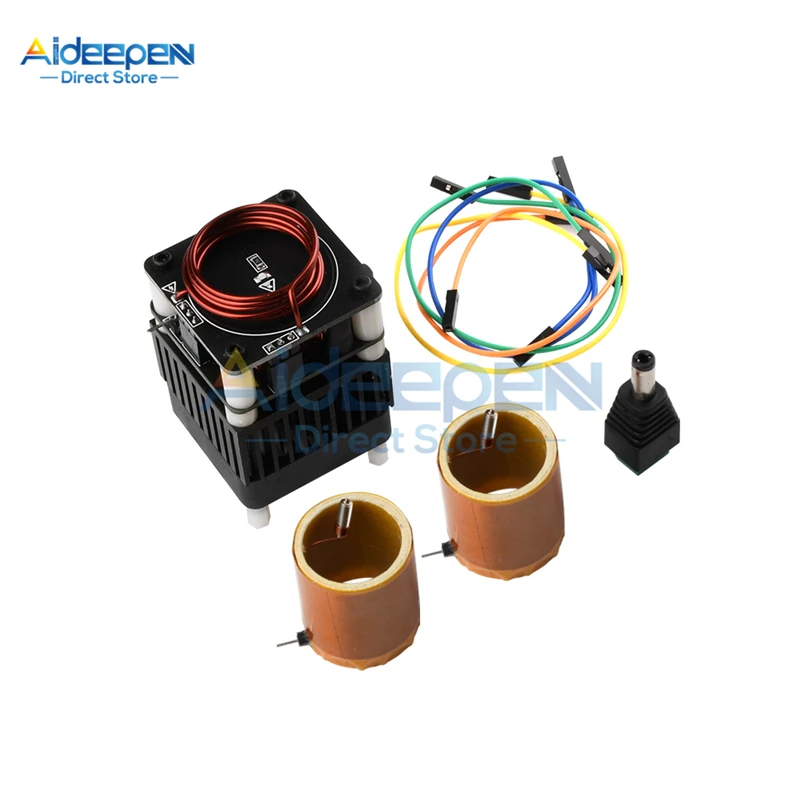

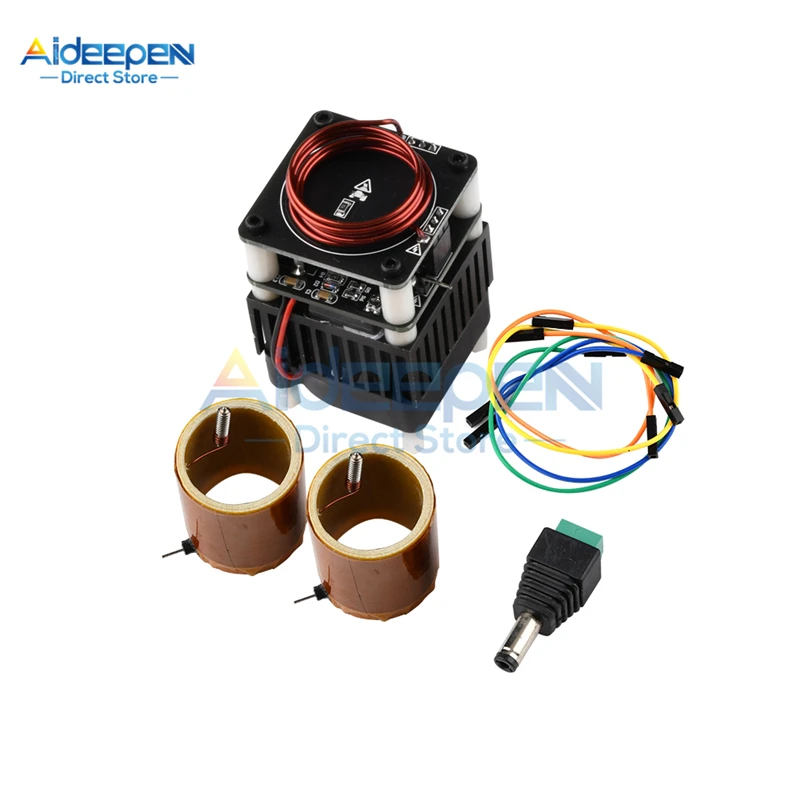

Package included:

Host x1

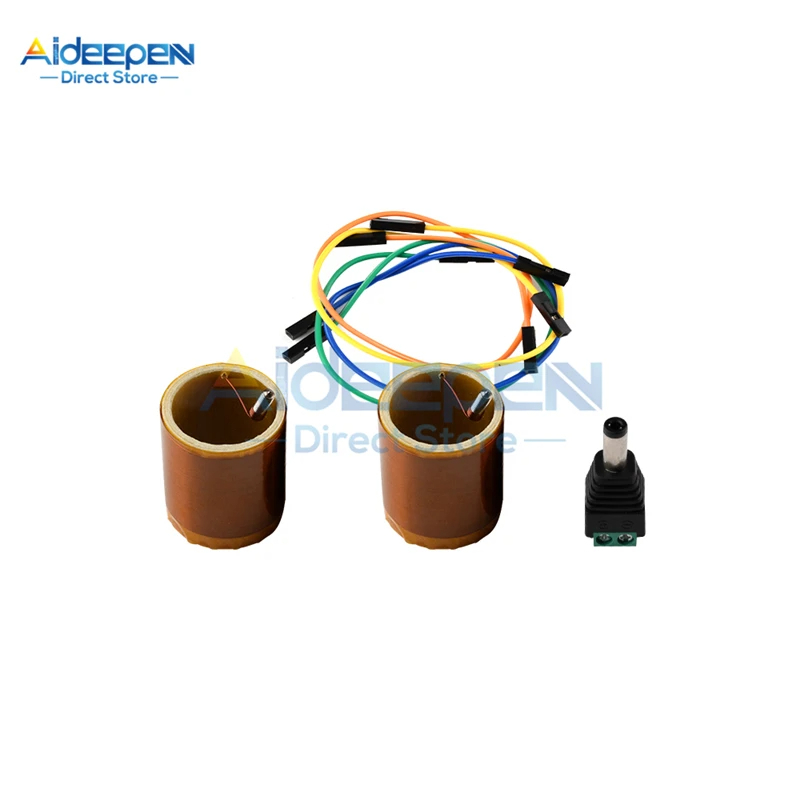

Coil x2

DuPont line x3

Connection terminal X1
