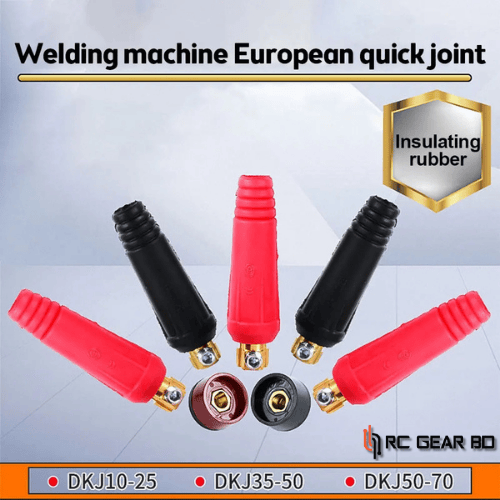

TIG Welding Cable Panel Connector Parts, DKJ10-25, DKJ35-50, Plug, Welding Machine, Quick Fitting Connector

500.00৳

🧱 Made of forged brass with insulated rubber jacket—durable & heat-resistant
🔌 Quick-connect design for fast, secure welding cable attachment
⚡ High conductivity, anti-corrosion, and rust-resistant for long-term use
🔥 Withstands high temperatures and aging—ideal for heavy-duty welding
📐 DKJ10-25: 9mm plug, 200A, 10–25mm² cable, fits 200/250A welders
📏 DKJ35-50: 13mm plug, 315A, 35–50mm² cable, fits 315A welders
📏 DKJ50-70: 13mm plug, 400A, 50–70mm² cable, fits 400/500A welders
🛠️ Easy to install, operate, and replace—great for field repairs
🔗 Compatible with MMA, TIG, and other square-shank welding tools
📦 Includes: 1× DKJ connector (choose model based on amp rating)

Add 3,000.00৳  to cart and get free shipping!
Description
Product features:
1. The material is made of brass material to create an insulated rubber jacket, which is durable and long lasting
2. Easy to operate, easy to use, and easy to install
3. Brass forging, high hardness, strong conductivity, anti-corrosion and rust resistance, long service life
4. It can be used at high temperatures and has a longer aging time. It uses non renewable flexible rubber jackets that are not easy to crack and have strong insulation

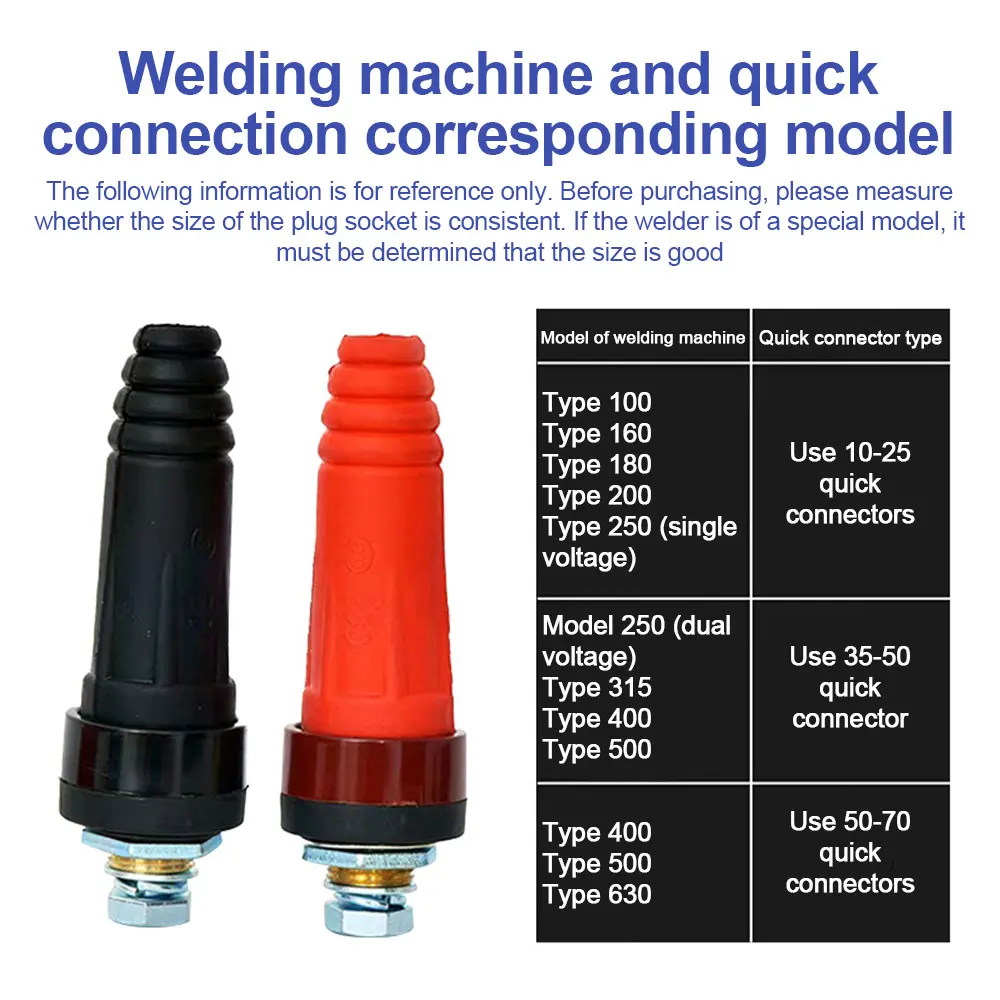

5. Widely applicable, with a variety of quick connector models for welding machines to meet different operational needs
Product parameters:

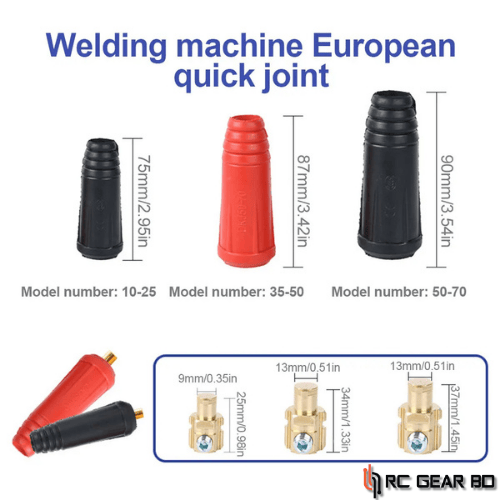

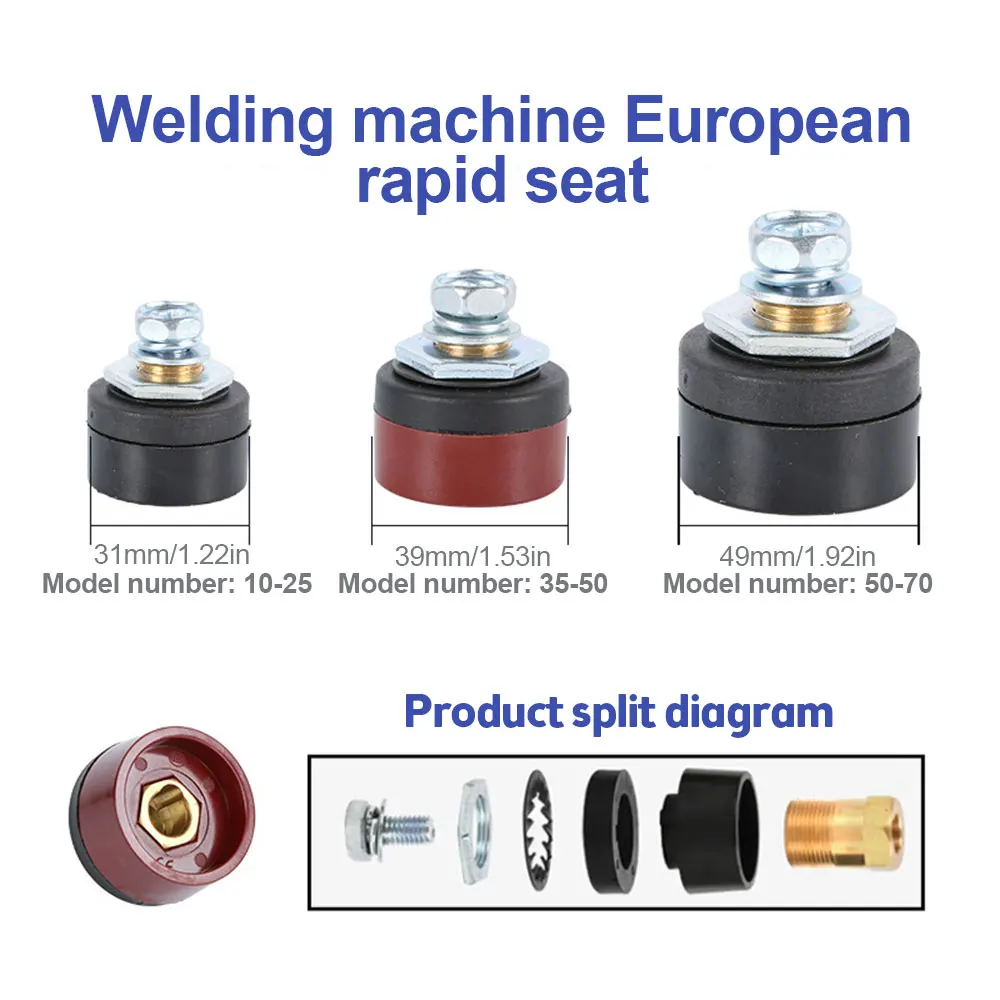

Model: DKJ10-25
Material: All copper
Plug copper head diameter: 9mm
Socket diameter: 9.3mm
Outer diameter of the thick part of the rubber sleeve: 24mm
Using a welding machine: 200/partial 250
Rated current: 200A
Cable cross-sectional area: 10-25
Model: DKJ35-50
Material: All copper
Plug copper head diameter: 13mm
Socket diameter: 13.2mm
Outer diameter of the thick part of the rubber sleeve: 29.5mm
Using a welding machine: 315/partial 250
Rated current: 315A
Cable cross-sectional area: 35-50
Model: DKJ50-70
Material: All copper
Plug copper head diameter: 13mm
Socket diameter: 13.2mm
Outer diameter of the thick part of the rubber sleeve: 36mm
Using a welding machine: 400/500
Rated current: 400A
Cable cross-sectional area: 50-70
Note:

Regarding color difference, it is normal for product images to show varying degrees of slight color difference on different monitors due to shooting, display, and lighting reasons. The actual color should be based on the actual product received.

Additional information
Welding diameter

10-25Plugwith socket

,

35-50Plugwith socket

,

50-70Plugwith socket

Color

Black

,

Red
