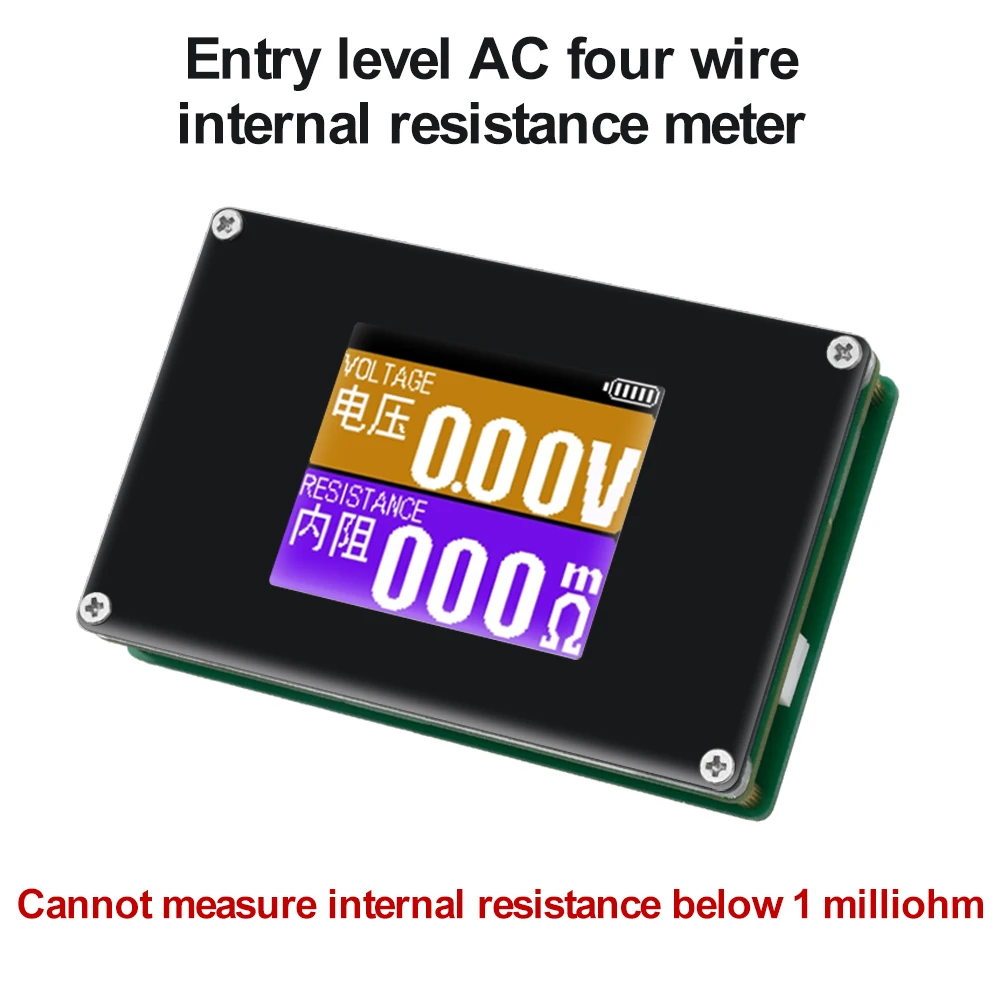

TS235 DC5V Digital Voltmeter Automatic Voltage Internal Resistance Tester AC 4-Wire Lithium Battery Internal Resistance Tester

2,000.00৳

🔌 DC5V digital voltmeter with integrated battery charging module
🔋 Supports external battery power—18650 recommended (LiFePO₄ not supported)
📊 Measures internal resistance from 1mΩ to 2.00Ω with ±0.8% + 3LSB accuracy
⚡ Voltage test range: DC 0–35V (AC not supported)
🔄 Display flipping supported—long press button to rotate screen
🔗 Includes 4-core USB to Kelvin clamp test cable (65cm total length)
🔌 Type-C power interface with independent power line
📐 Host size: 80×52×17mm—compact and portable
🧠 Reserved XH2.54-2P external battery interface for flexible setups
📦 Shipping list: 1× tester host, 1× Kelvin clamp cable, 1× aircraft box, 3× button caps

Add 3,000.00৳  to cart and get free shipping!
Description
TS235 DC5V Digital Voltmeter Automatic Voltage Internal Resistance Tester AC 4-wire Lithium Battery Internal Resistance Tester

Product Features:
Support for external battery power supply
Supports display flipping up and down

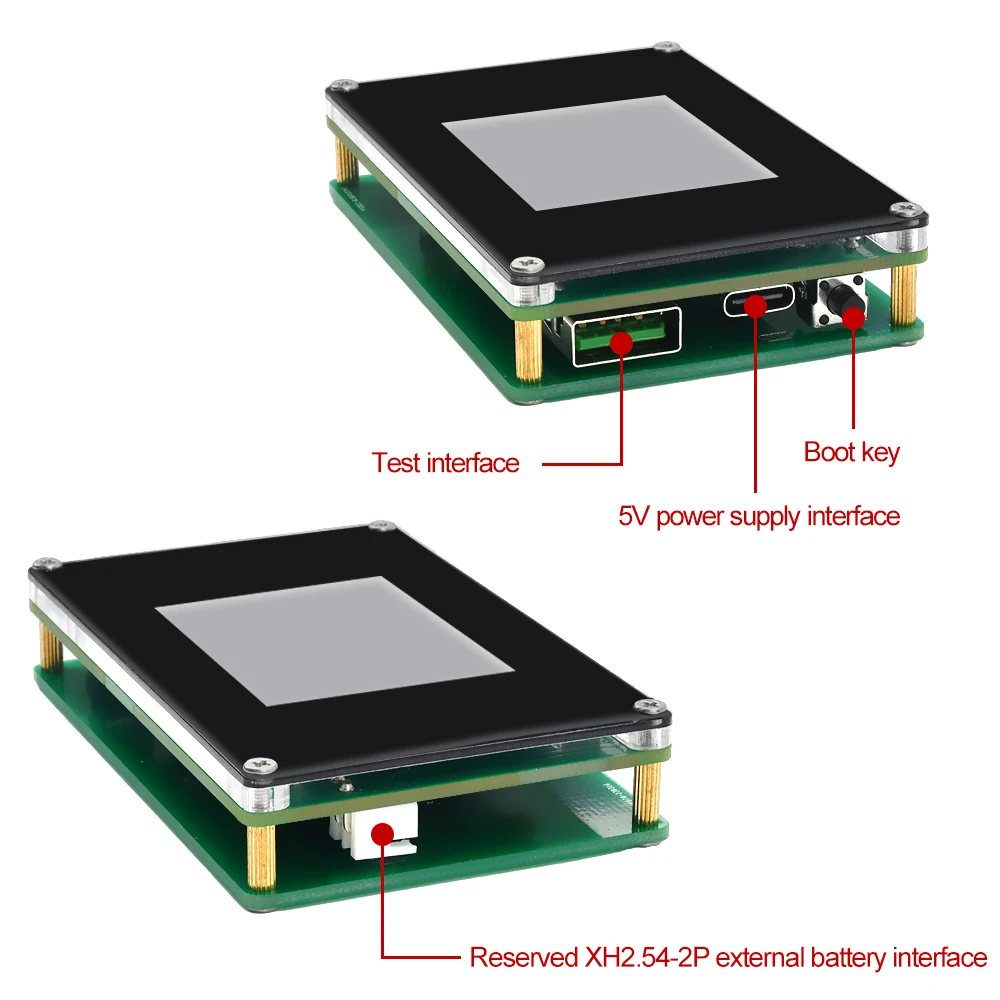

Reserved XH2.54-2P External battery interface

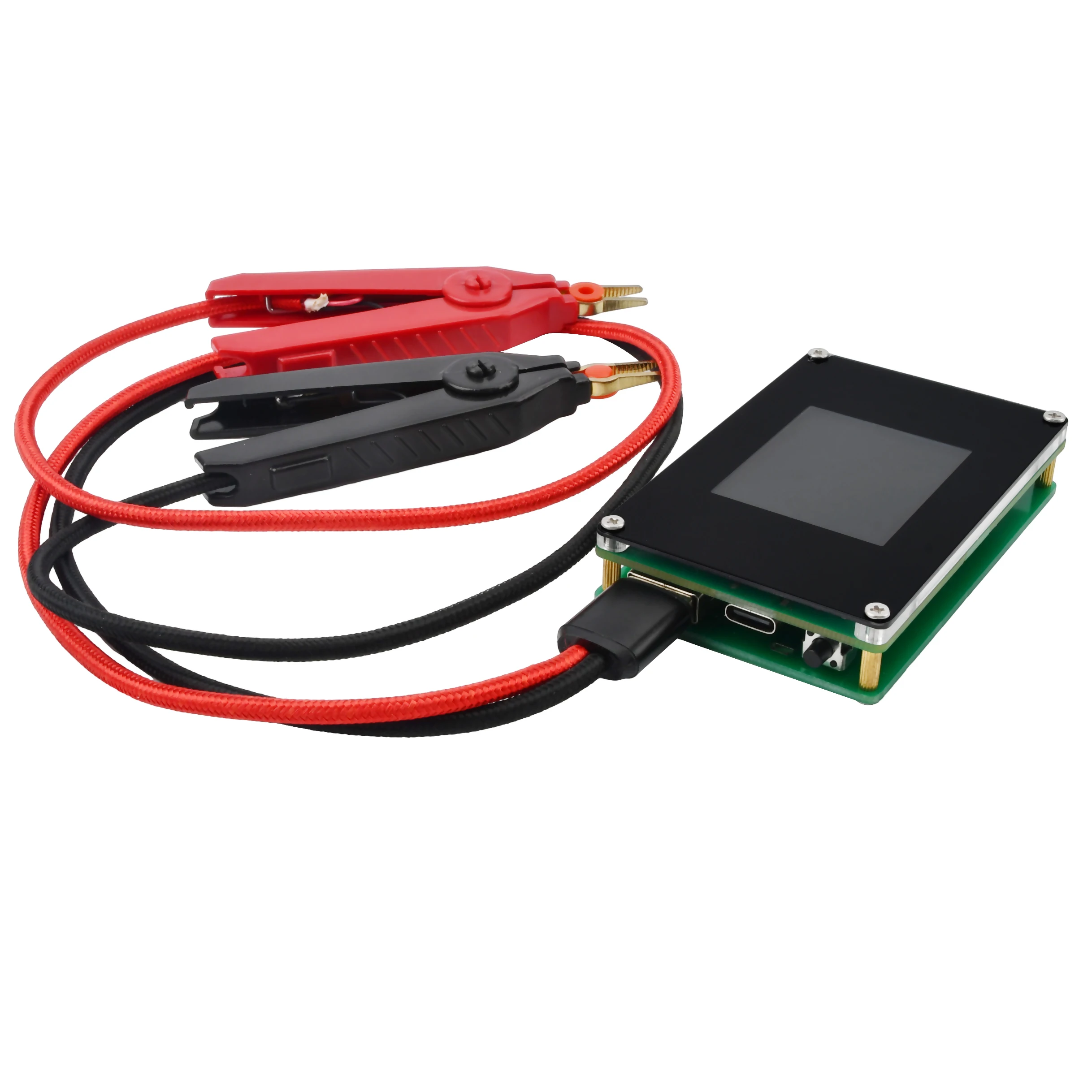

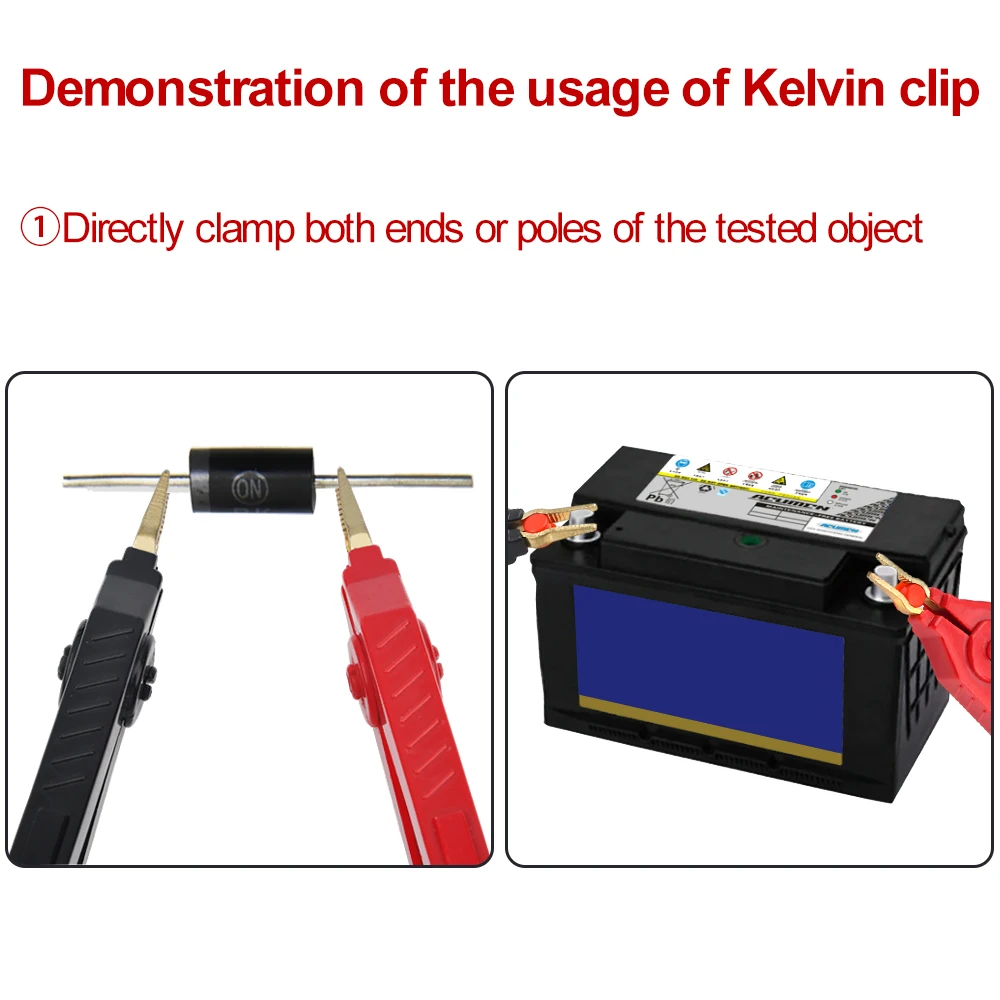

Four core USB to Kelvin clamp test cable

Integrated battery charging module
Technical parameters Working power supply: DC 5V
Power supply interface: Type-C interface, the power supply line is independent
Internal resistance measurement range: 1m Ω ~ 999m Ω ~ 1.00 Ω ~ 2.00 Ω
Voltage test range: DC0-35V, no measurement AC
test frequency: 1Hz AC signal
comprehensive error: ± 0.8% + 3LSB
External battery power supply: It supports external battery power supply, 18650 battery is recommended, integrated battery charging module, lithium iron phosphate battery is not supported
Charging test wire: 4 cores USB to Kelvin clamp test Wire, with a total length of 65cm, a net wire length of 55cm, and a spread length of 110cm

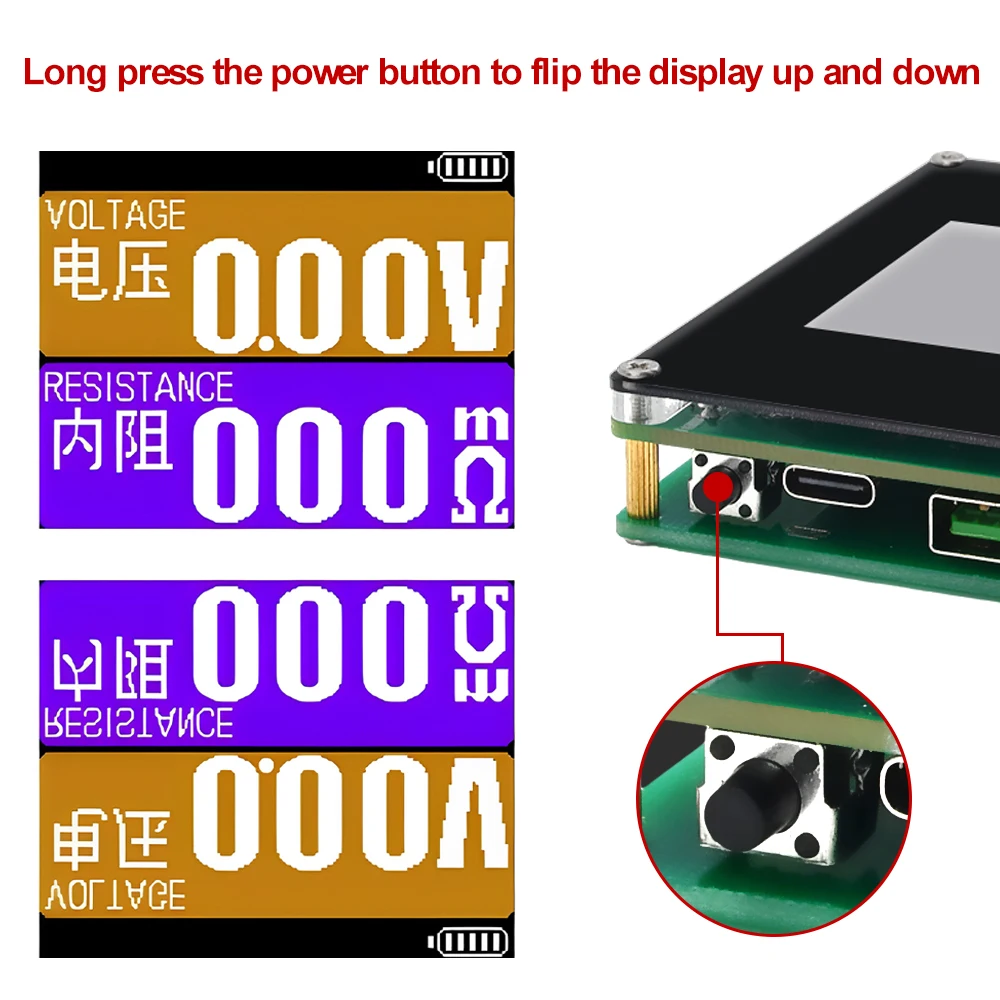

Display flipping: Supports display flipping up and down (long press and hold the button)
Host size: 80 × fifty-two × 17mm
Be careful:
Due to circuit interference, when the Kelvin clamp is opened but not measured, the internal resistance display is not zero value, which is a normal situation and not a product quality problem. This is not used as a basis for quality return. Simply measure and record the test results of the object under test according to normal operation.

Shipping list:
Internal resistance tester host × one
Kelvin clamp test line × one
aircraft box × one
button cap × three
