Waterseal Mastic Tape CONTRA No.KC80 waterproof and insulation tape 1 Meters Length

1, Use for insulation, filling, and moisture sealing in splices of all types of power cables and optical telecommunication cables.
For PRIMARY INSULATION UP TO 1000 VOLTS.
2, Use for insulating and moisture sealing on the bus bar.
3, Use for moisture sealing high or low voltage junction boxes and irregular splices.

Add 2,610.00৳  to cart and get free shipping!
Category:
Description

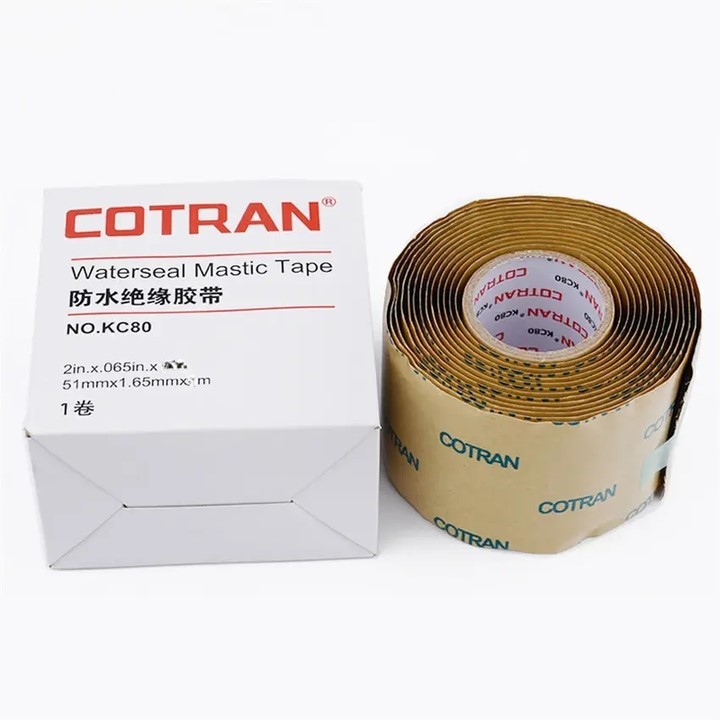

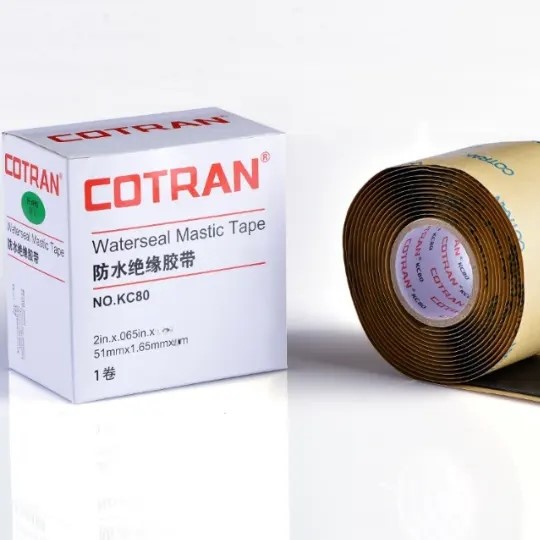

COTRAN NO.KC80 Waterseal Mastic Tape

Instruction:
1, Wipe off the dusts on the splice area before wrapping.
2, Remove the liner and stretch the tape to 1 to 2 times of its original length.
Apply the tape in 50%-lapped with mastic side toward area to be wrapped.
Stretching the tape to 4 times of its original length is not recommended.
3, Be sure to extend wrapping 30mm to 50mm up onto the cable jacket on both sides of the splice area.
4, After KC80 waterseal mastic tape is applied, overwrapping COTRAN PVC insulation tape is recommended. Apply 3 layers of COTRAN
PVC insulation tape in a 50% overlapping with no tension. Make sure not to overstretch the PVC tape during application.
.
item
value
Place of Origin
China
Hebei
Brand Name
BDCA
Model Number
KC80
Type
Insulation Tape
Material
Butyl rubber
Application
High Voltage
Rated Voltage
1kV
Tensile Strength
1.16Mpa
Color
Black
Size
51mmX1.65mmX3m
Width
51mm
Thickness
1.65mm
Length
1m
Packing
BOX
Adhesive
Rubber
Usage
Insulation Protection
