D

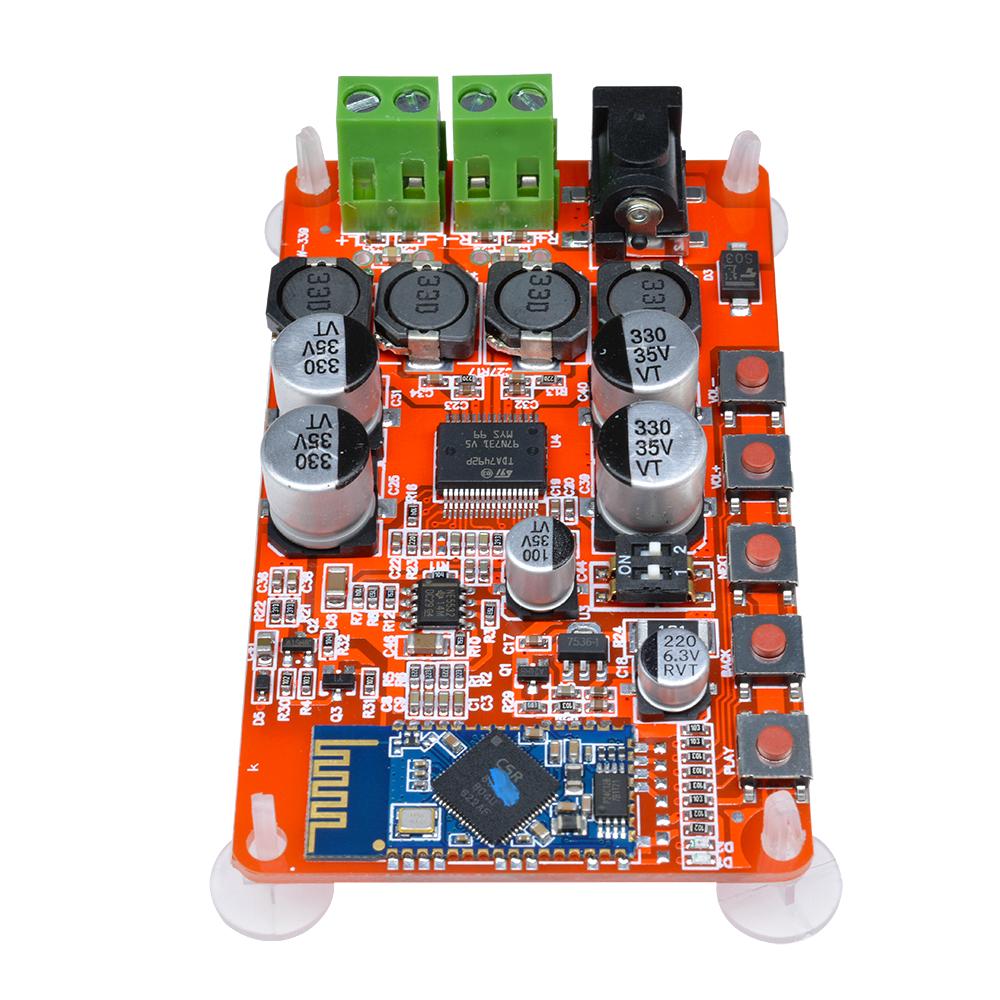

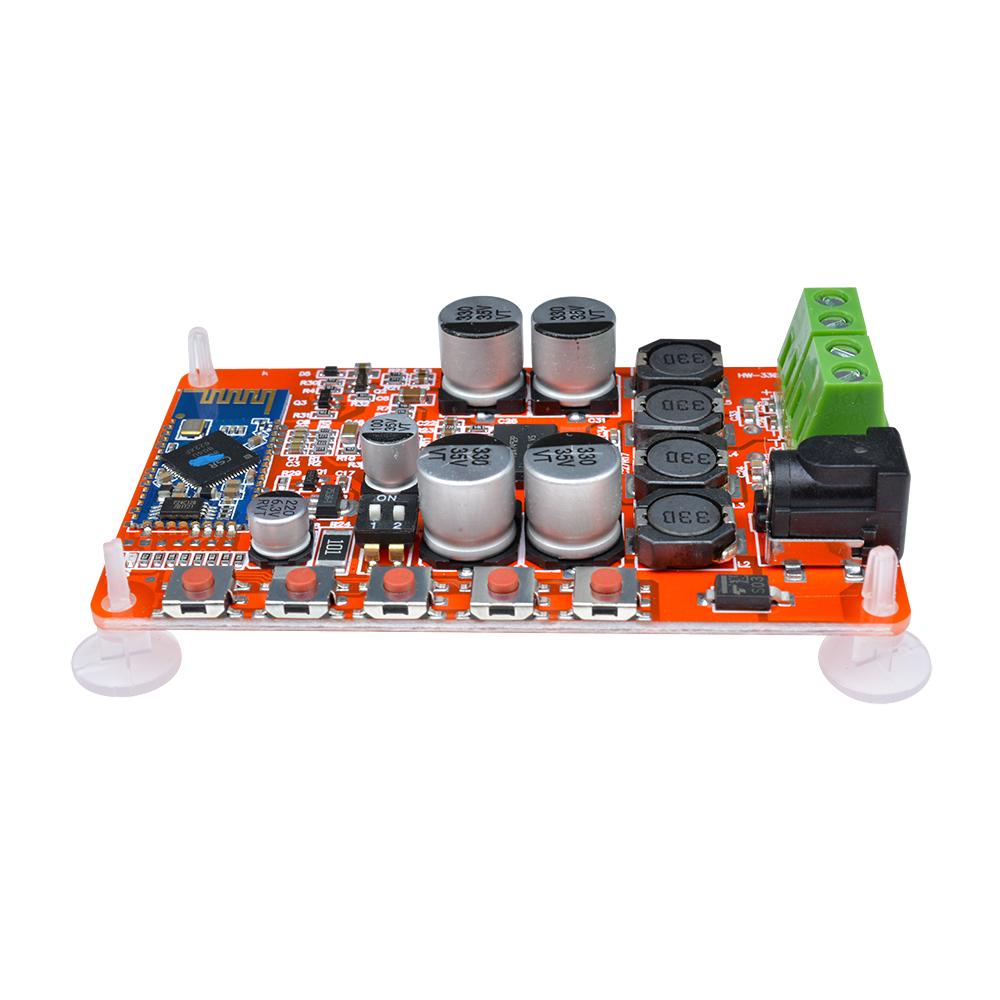

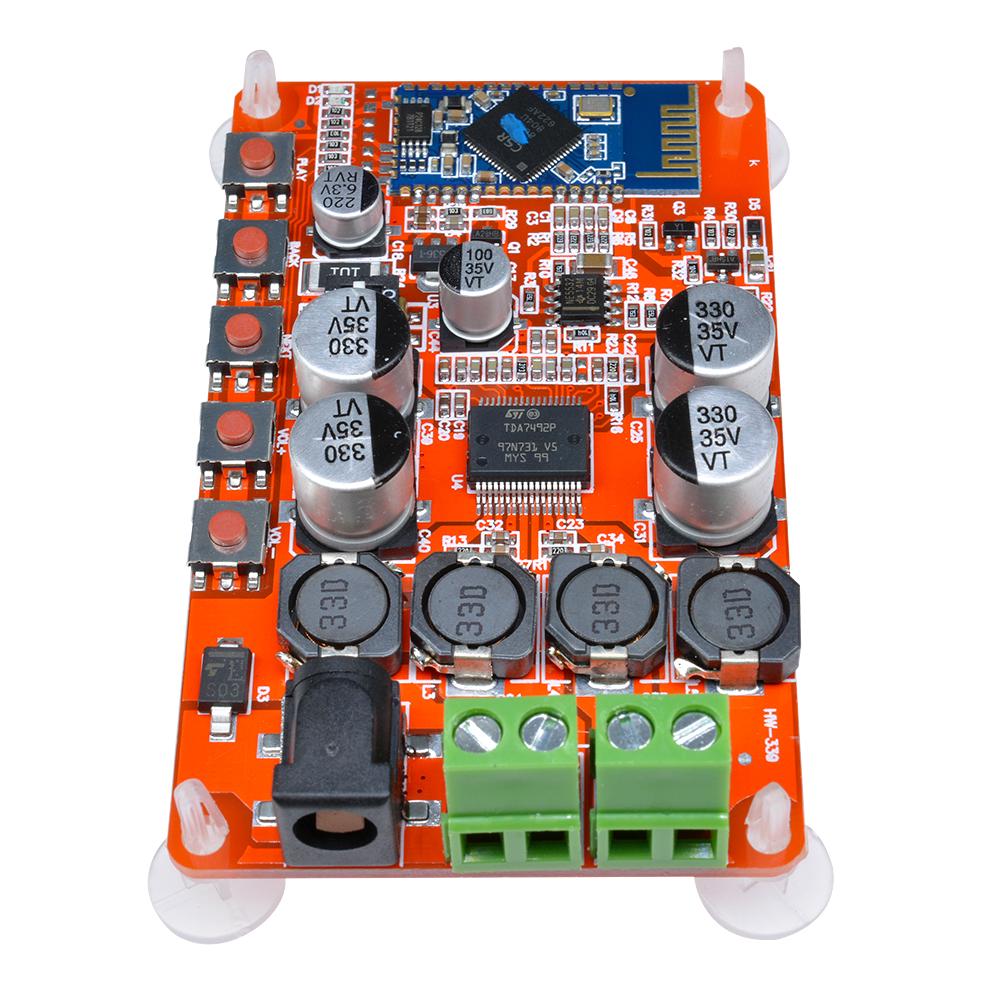

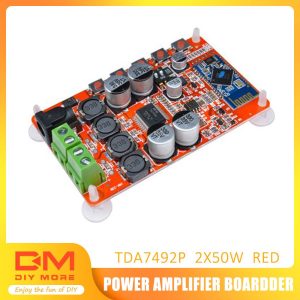

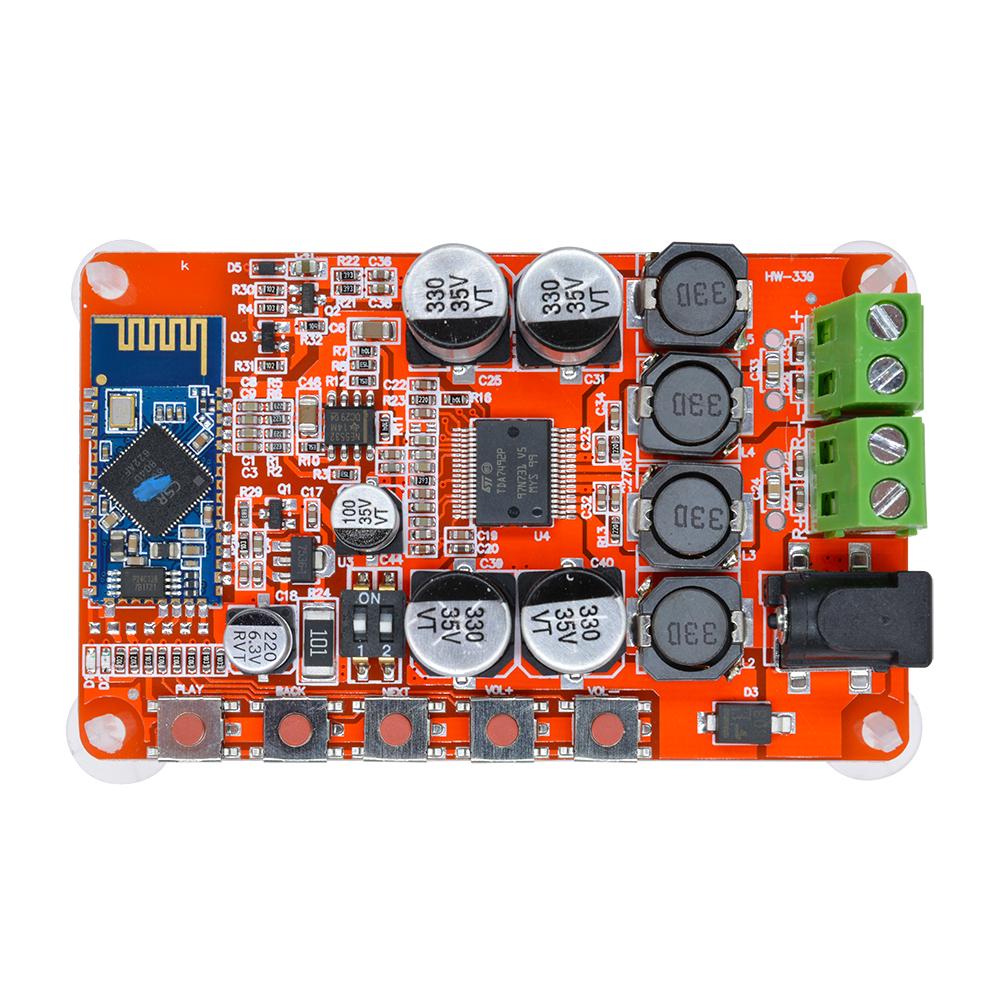

TDA7492P digital amplifier chip, designed to optimize the circuit layout, the sound quality is very good, big power.
DIP switches can be more easily directly adjusted after-class amplifier gain,to better promote the impedance larger speakers.
If you directly use Bluetooth, when power, wait 3s~10s, until led Blue and Red light flashing alternately, then you can use your device to find my Bluetooth module, you will find “SANWU Audio”, then connect it, can directly use it. Remember back to even.
Specifications:
Material: PCB
Color: Red
Digital amplifier board: 8x5x1.6cm
Case size: 10.2x7x2.2(L*W*H)
Power: 2.1 interface 8~25V DC power supply
Best fit speaker: 50W + 50W
Audio input: stereo input various versions of the bluetooth connection, using CSR8630 bluetooth chip, bluetooth V4.0, high software compatibility
Output impedance: 8 ohms best(4,6,8,16 ohm impedance can drive speakers)
Output power: powered 25V ,6-ohm impedance output 2 X 50W, 8 ohm impedance output 2X40W dual-channel
Package included:
1 x TDA7492P Digital Amplifier Board
1 x Acryliccaseor Case
1 x 2.1mm x 5.5mm Male Connector
Note:
– Please allow 1-2mm differs due to manual measurement.
– Due to the different display and different light, the picture may not reflect the actual color of the item. Thank for your understanding.
