XH-M603 Charge Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display NEW

Original price was: 330.00৳ .Current price is: 320.00৳ .

🔋 Product Description – XH-M603 Charge Control Protection Board (12V–24V)

  • Model: XH-M603
  • 🔌 Input Voltage: DC 10–30V — suitable for 12V or 24V battery systems
  • 📊 Display & Control Accuracy: 0.1V — fine-tuned voltage monitoring
  • 🔁 Output Type: Direct output — simple integration into your power system
  • 🎯 Voltage Tolerance: ±0.1V — stable and safe cutoff margins

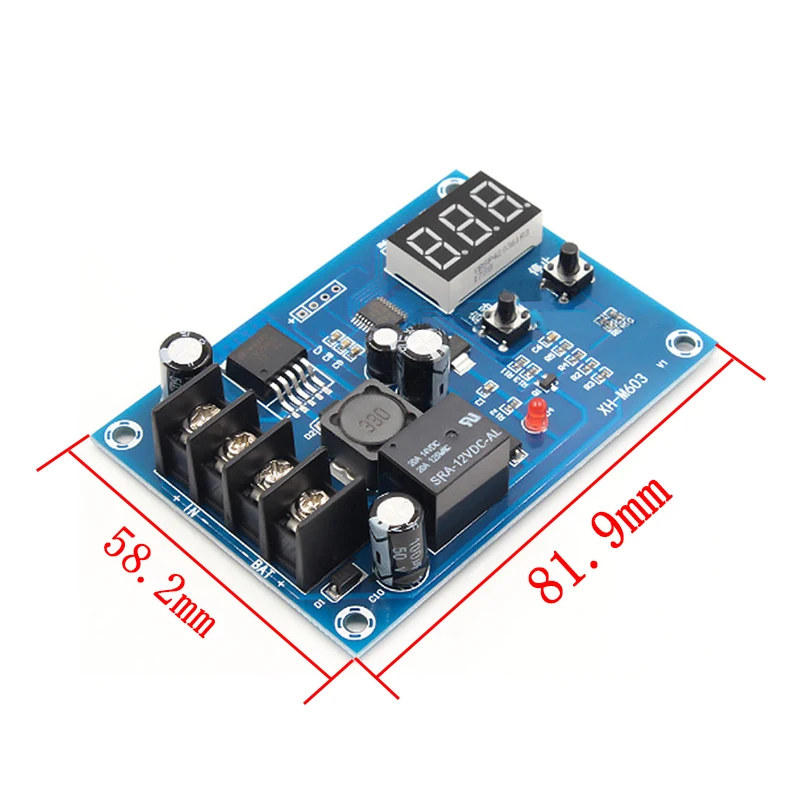

  • 📏 Dimensions: 82 × 58 × 18mm — compact and mountable
  • 🔋 Applications:
  • Lead-acid and lithium battery banks
  • 12V/24V energy storage units
  • Solar charging stations
  • Battery-powered automation projects

Add 3,000.00৳  to cart and get free shipping!
Description
Explanation:
XH-M603 Charge Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board
Product Introduction:
1.Model:XH-M603
2.Input Voltage: DC 10-30V
3. Display Sensitivity: 0.1V
4.Control Sensitivity: 0.1V
5.Output Type: direct output
6. Voltage Tolerance: +/-0.1V
7.Application Areas: 12-24V storage battery
8. Dimensions: 82*58*18mm
Using the Method:
1.Set Starting Voltage: in normal display voltage state, pressing the button will display the charging voltage; long pressing for 3 seconds will make the digital tube flash; you can adjust the start or stop button to set the starting charging voltage value
2. Set Stop Voltage: in the normal display voltage state, press the button to display the stop charging voltage; long press the button for 3 seconds, the digital tube will flash; you can adjust the start or stop button to set the stop charging voltage
3. Factory Reset: In the power-on state, press the start/stop button at the same time, the digital tube will display 888; this represents the factory reset settings
Package Included:

1× DC12V-24V Lithium Battery Charge Control Protection Board/w LED Display XH-M603
