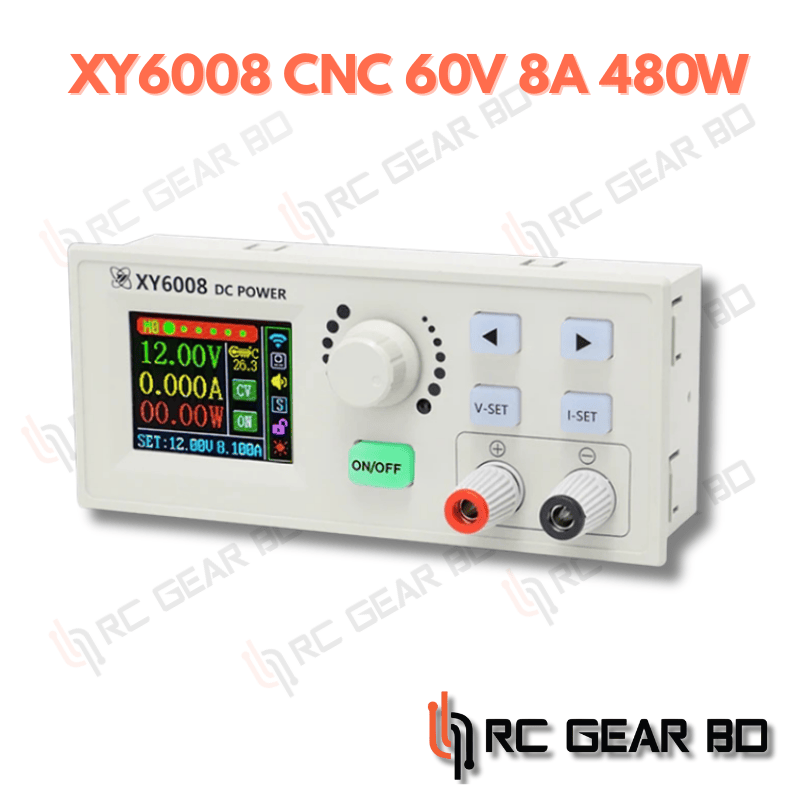

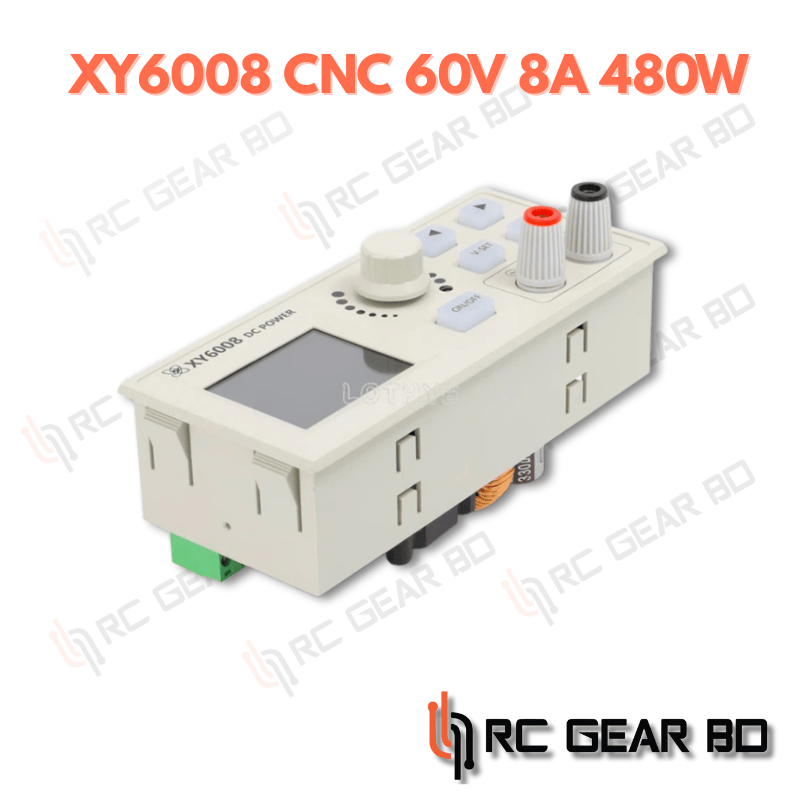

XY6008 CNC Adjustable DC Regulated Power Supply Constant Voltage Constant Current Repair 60V 8A 480W Step-down Module

1: It can be used horizontally or vertically, and can be controlled by a remote control. The screen supports four-way rotation
2: Display color · Match as you like, support 8 colors to combine freely
3: Full numeric keypad · Convenient operation
4: Flame retardant material
5: Firmware upgrade, experience upgrade brings more possibilities

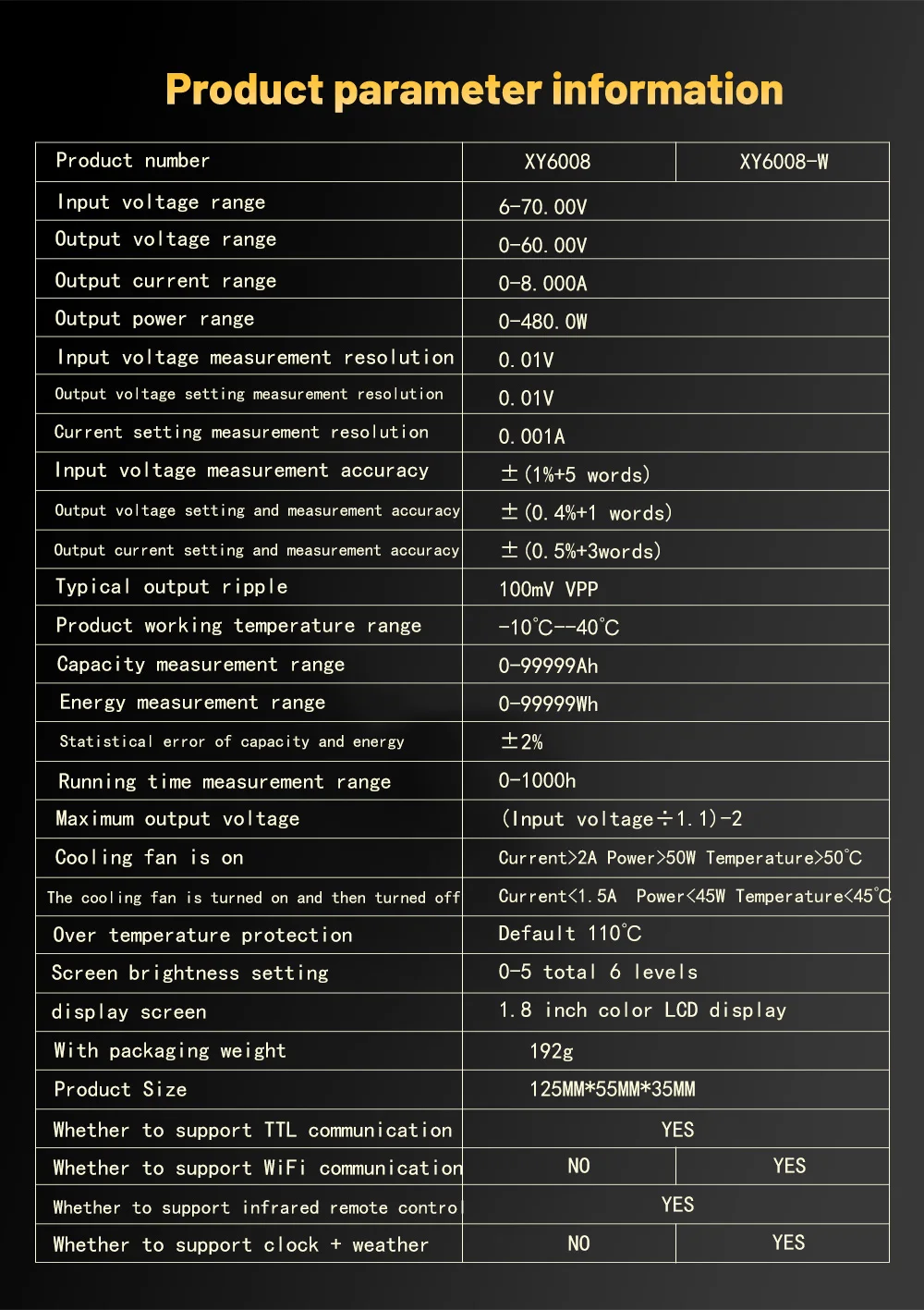

Product parameters
Input voltage range: 6-70 00V
Output voltage range: 0-60.00V
Output current range: 0-8.000A
Output power range: 0-480.0W Input voltage
measurement resolution: 0.01V Output voltage
setting measurement resolution: 0.01V Current setting measurement resolution
: 0.001A
Input voltage measurement accuracy: ±(1%+5 words) Output
voltage setting and measurement accuracy: (0.4%+1 word) Output
current setting and measurement accuracy: ±(0.5%+3 words)
Typical output ripple: 100mv VPP
Product working temperature range: -10℃–40℃
Capacity measurement range: 0-99999Ah
Energy measurement range: 0-99999Wh
Statistical error of capacity and energy: ±2%
Measuring time range run: 0-1000H
Maximum output voltage: (input voltage ÷ 1.1) -2
The cooling fan is on: current> 2A power> 50W temperature> 50 ℃
The cooling fan is on and off: current <1.5A power <45W temperature <45 ℃
Over temperature protection: 110 ℃ by default
Screen brightness adjustment: 0-5 total 6 levels
Display: 1.8 inch color LCD screen
Packed weight: 258 grams
Product size: 125mm * 55mm * 35mm

Package Included:
XY6008: 1 * CNC power supply + 1 * Remote control + 1 * serial communication line
