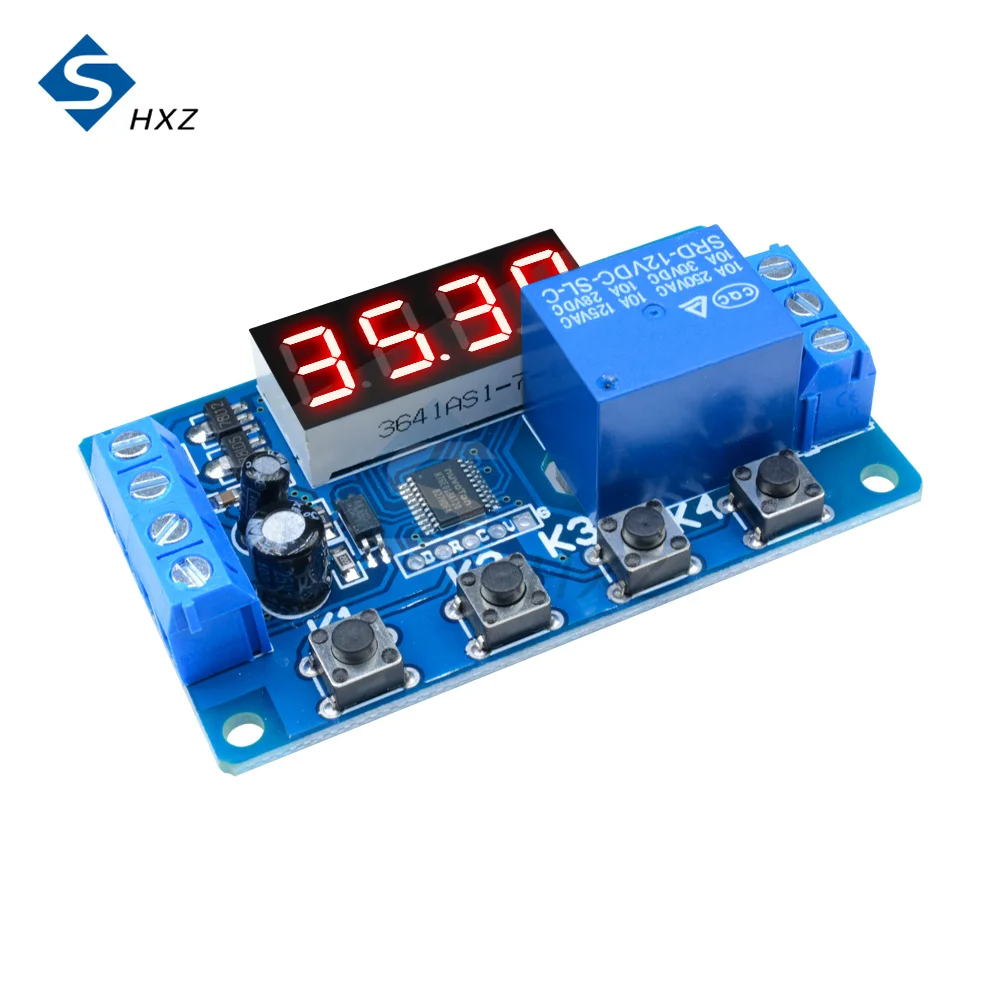

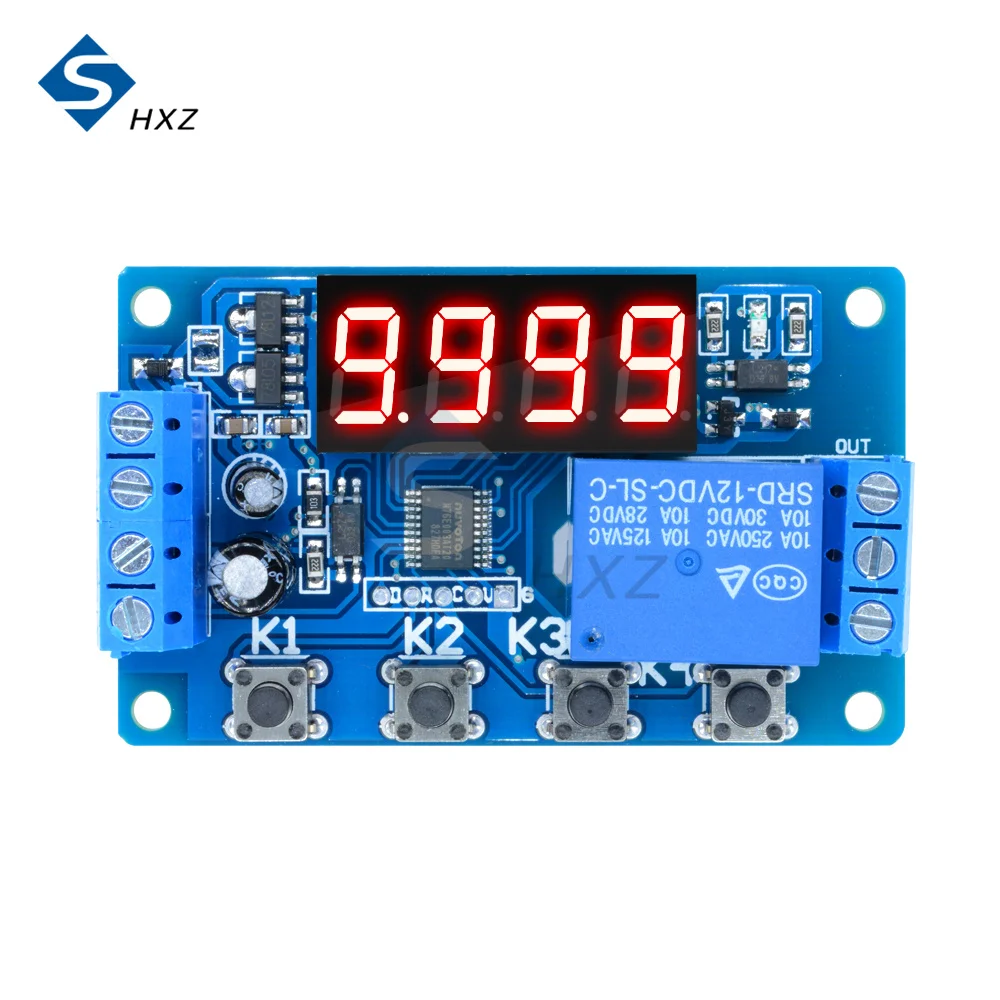

YYC-2S time relay 4 buttons 4 digital tube red 12V digital display delay relay

24 common functions to meet more application needs; Solenoid valves, water pumps, motors, light strips, etc. to operate freely.

Features:

1: product model: YYC-2S

2: input voltage: DC 5/12/24V optional

3: Output power: DC or AC load can be controlled within 10A

4: time range: 0.01 seconds to 999 minutes, adjustable at any time

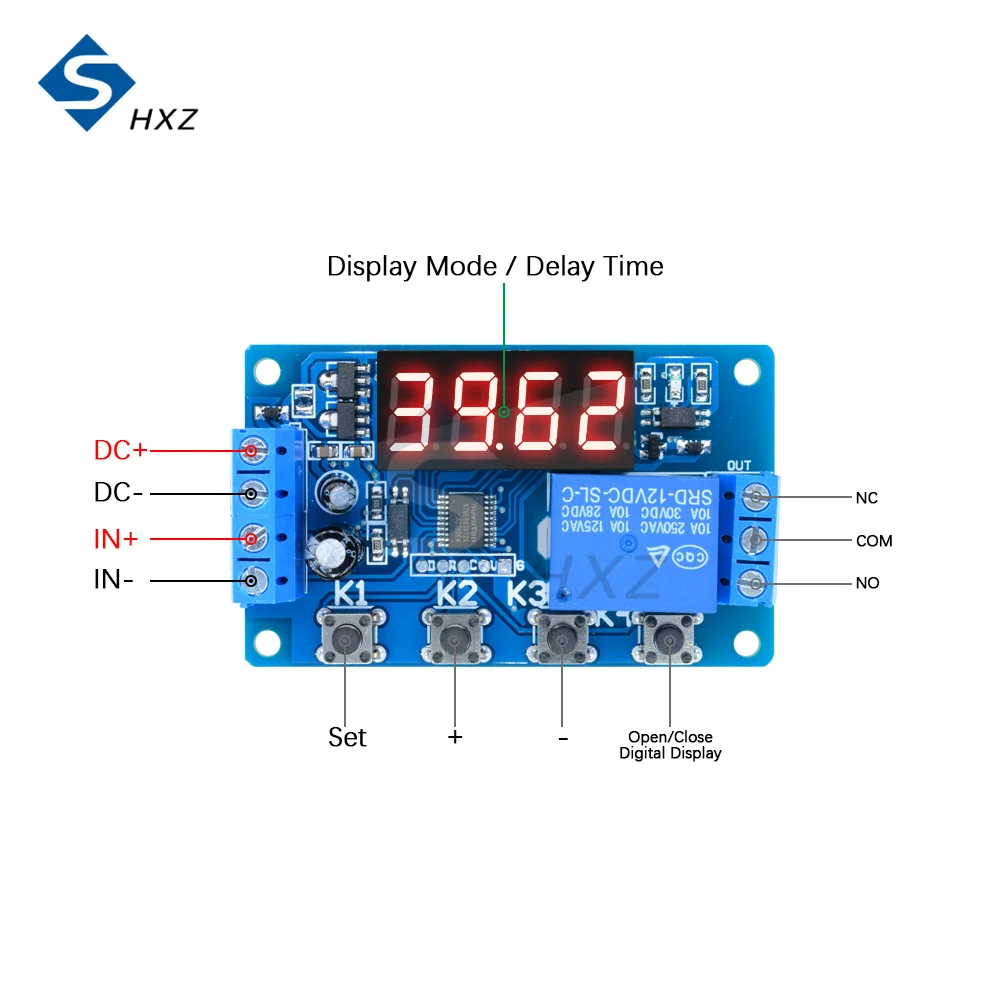

5: wiring port description:

(1) DC+: input the positive pole of DC power supply

(2) DC-: Input the negative pole of the DC power supply

(3) +: positive signal input terminal

(4) IN-: signal input terminal negative

(5) No: relay normally open interface, the relay is suspended before closing, and shorted to COM after closing

(6) COM: relay common interface

(7) NC: relay normally closed interface, short-connected with COM before the relay is closed, and suspended after closing

Function list:

P-11: Jog P-12: self-locking P-13: give the signal, the relay will automatically stop for one second; invalid during the trigger delay time

P-14: give the signal, the relay will automatically stop for one second; trigger re-timing during the delay time

P-15: give the signal, the relay will automatically stop for one second; during the delay time, the superposition timer will be triggered

P-16: Give the signal and the relay will automatically stop for one second; trigger reset during the delay time

P-17: Give the signal, the relay is closed, the input signal is cut off, and the output will be turned off after the timer starts for one second

P-18: After power-on, the relay will immediately open, and the power will be turned off after a delay of one second; until the next power-on

P-21: turn off the signal relay, the relay will be turned off after one second delay

P-22: give the signal, the relay is closed after more than one second, the signal disappears and the relay stops

P-23: After the signal disappears for more than one second, the relay is closed, there is a signal, and the relay stops

P-24: A signal is present. The relay is closed after one second. The relay stops after the signal disappears for more than one second.

P-25: There is a signal. After one second, the relay is closed. When there is a signal for more than one second, the relay stops.

P-26: There is a signal. The relay will stop after closing for one second, and the signal will disappear, and the relay will stop after closing for one second.

P-27: when detecting a pulse signal, the relay is closed; if there is no pulse signal, the relay will stop after a delay of one second;

P-28: After power on, after a delay of one second, the relay will be closed until the power is out

P-31: after power-on, the relay is disconnected for a second, B seconds, infinite loop; Power off stops P-32: signal, start P-31

P-33: P-31 give a signal to start the infinite loop; give another signal to end the loop

P-34: After power-on, the relay will be closed after a delay of one second, and will stop after being closed for B seconds.

P-35: There is a signal, the relay will be closed after a delay of one second, and the relay will be closed after B seconds.

P-36: There is a signal, the relay will be closed after one second, and the relay will be closed after B seconds.

P-37: If there is a signal, the relay will automatically stop when the relay is closed, and then count for B seconds after stopping. The signal trigger is invalid at A+B time.

P-38: When there is a signal, the relay will automatically stop when closed for one second, and after stopping and counting for B seconds, it will automatically stop when closed for one second

P-41: no action when there is a signal; trigger when the signal disappears; relay disconnects after a delay of time

P-42: when the signal disappears, the relay operates after delaying the time A; operating time B ends

P-43: signal disappears after a period of time, the relay operates; operating time B ends

P-44: After power on, the relay will work for a while and stop for B time; it will stop automatically after cycling for C times.

P-45: no action when energized after giving the signal; the relay works for a while, stops for B time; cycles for C times and stops automatically; give the signal again and work again

P-46: relay will be closed after giving the signal more than once; Keep closed; Power off and stop

P-47: After giving the signal more than once, the relay will be closed for B seconds and stop.

P-48: After continuously giving the signal more than once within C seconds, the relay will be closed for B seconds and stop

Button setting instructions:

Power indicator “—-” means entering standby state;

Press K1 for the first time (it takes more than 1 second to take effect to prevent false triggering)

Screen display: P -11: K2 setting main mode, K3 and K4 setting functions

Press K1 for the second time, the screen displays: A001: K2 and K3 adjust A for the first time, K4 adjusts the decimal point (time unit)

Press K1 for the third time, the screen displays: B001: K2 and K3 adjust B for the second time, K4 adjusts the decimal point (time unit)

Press K1 key for the fourth time, the display shows “—-” means it has entered the standby state;

Press K4 in standby mode to turn off/on the screen permanently and enter low power consumption mode.

X.XX decimal point is hundreds, and the timing range is: 0.01 seconds to 9.99 seconds

X XX decimal point in the tenth place, and timing range: 0.1 seconds to 99.9 seconds

XXX no decimal point, timing range: 1 second to 999 seconds

XXX. The decimal point is in place and the timing range is: 1 minute to 999 minutes

Package Included:

1X time delay relay
