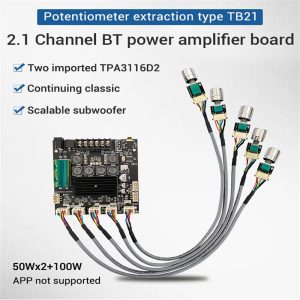

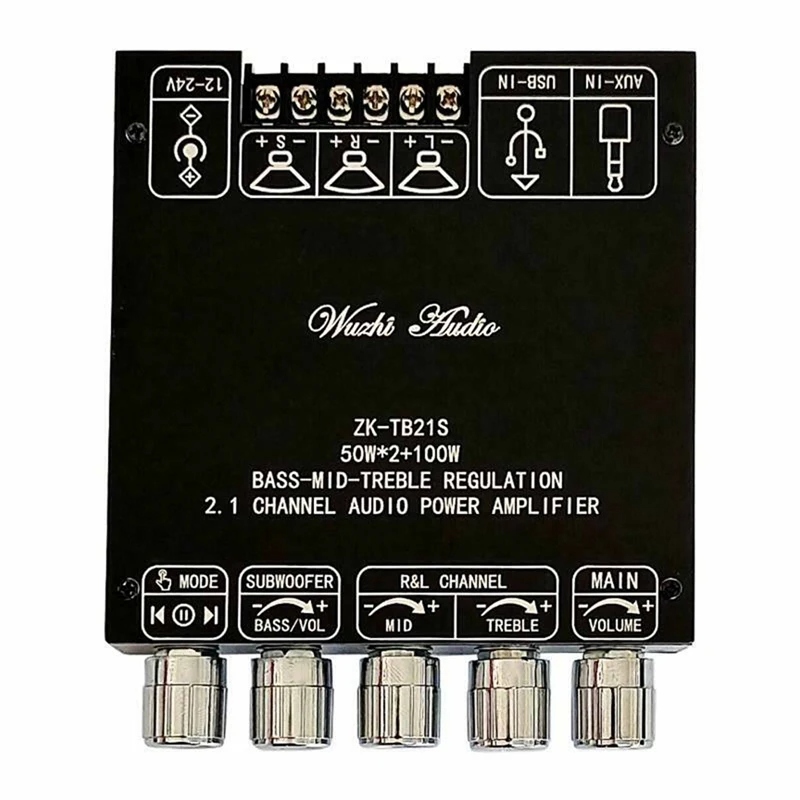

ZK-TB21S Bluetooth 5.1 Subwoofer Amplifier Board 50WX2+100W 2.1 Channel AMP

Product selling point:
1: The appearance of classic low, medium and high frequency full coverage
2: APP has a timer shutdown function
3: One turn on/off, no need to long press and wait to see the indicator light
4: [Input method] AUX+Bluetooth+U disk+USB sound card
5: Input anti-reverse connection, overheating, overcurrent, short circuit protection

Parameter:
2.1 channel bluetooth audio power amplifier board module
【Product Model】ZK-TB21S
【Amplifier chip】 TPA3116D2
[Number of channels] 2.1 channels (left channel + right channel + subwoofer)
【Input method】 AUX+Bluetooth+U disk+USB sound card
【Bluetooth version】5.1
【Switch mode】Mechanical switch (no need to wait for a long press)
【Adapter power supply】DC12~24V ,≥8A
[Adapted speakers] Left and right channels 20-50W, 4-8Ω subwoofer 20-100w, 3-8Ω
[Output power] Left and right channels ≤ 50W subwoofer ≤ 100w
[Protection mechanism] Input anti-reverse connection, overheating, overcurrent, short circuit protection

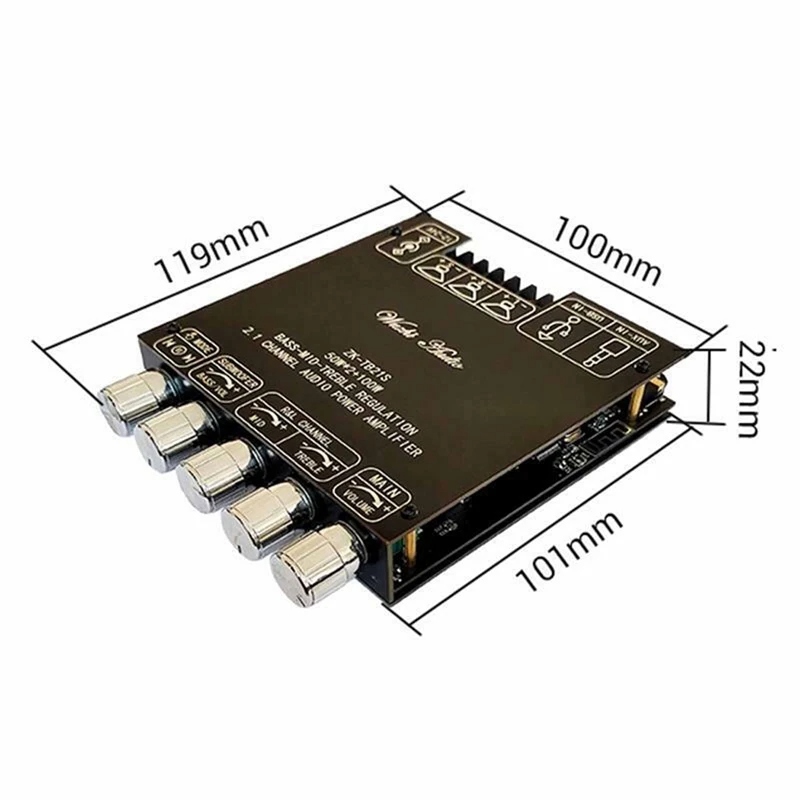

【Product size】119*100*22mm
【Product weight】Net weight 196g including packaging 248g
Tip: Only when the audio signal input is large enough and the power supply voltage/current is large enough will there be enough
Output Power!
The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power! Please ensure that the power of the adapted power supply is greater than the actual working power of the power amplifier!

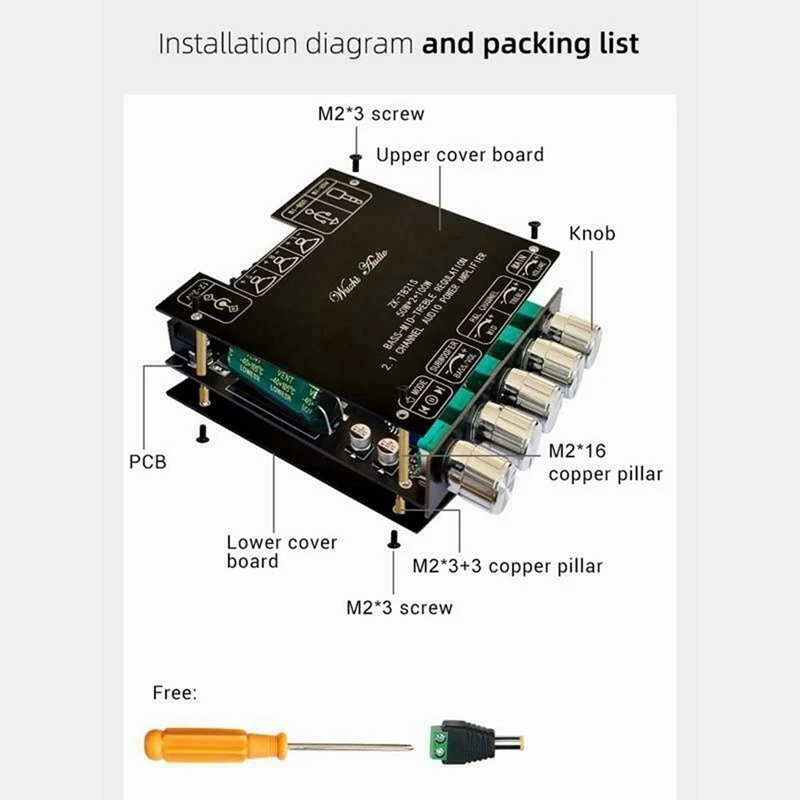

Package Included:
1* Bluetooth audio power amplifier board module
