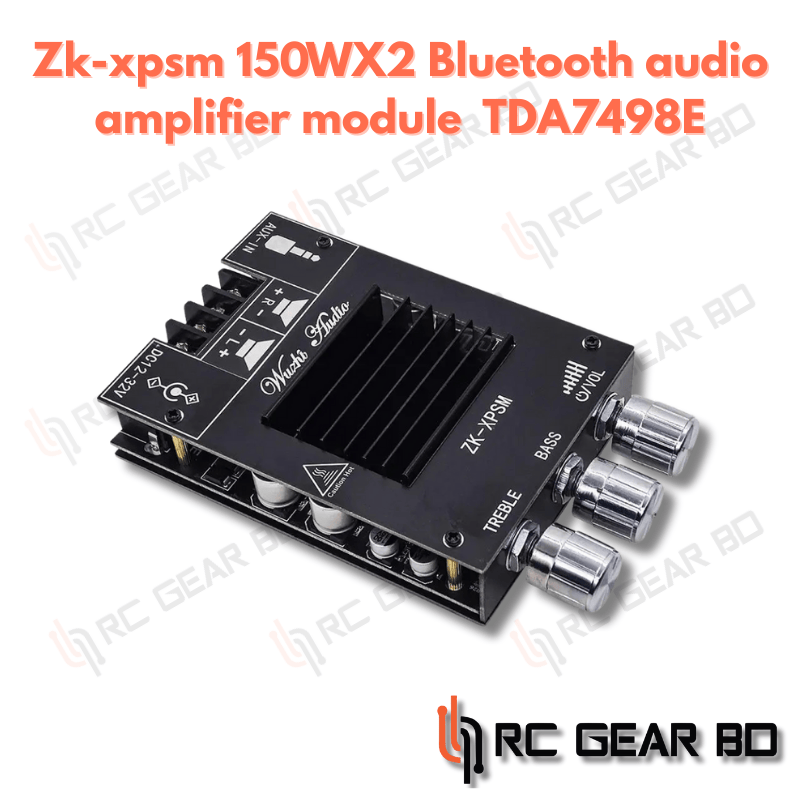

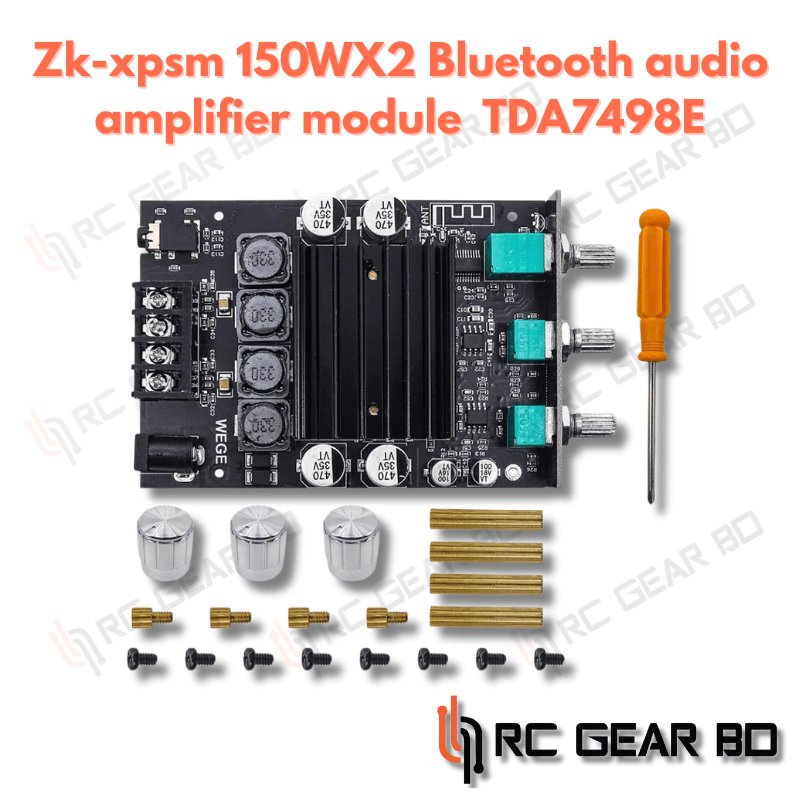

ZK-XPSM 150W * 2 high and low bass adjustment Bluetooth audio power amplifier board module dual channel tda7498E heat sink

Original price was: 2,700.00৳ .Current price is: 2,599.00৳ .

🎼 Stereo Output: Up to 150W per channel — perfect for 30–200W, 4–8Ω speakers
📡 Bluetooth 5.0: 15m range with smooth wireless streaming
🔌 Multi-Input Support: Bluetooth, AUX, and USB for flexible audio sources
⚙️ TDA7498E Chipset: Delivers clean, high-fidelity Class D audio
🔋 Wide Voltage Range: DC 12–32V (undervoltage protection below 9V)
🛡️ Full Protection Suite: Reverse polarity, undervoltage, overheating, overcurrent, short circuit
📐 Compact Size: 119×70×21mm — fits neatly into audio enclosures
📦 Weight: 135g net | 175g with packaging
🔧 Power Tip: Higher voltage + lower speaker impedance = stronger output
📦 Includes: 1 × ZK-XPSM Amplifier Module

Your order qualifies for free shipping!
Description

Product model: zk-xpsm
Version: 5.0 (unobstructed, 15m)
Number of channels: 2.0 channels (left channel + right channel)
Power amplifier chip: tda7498e
Adaptive power supply: DC12 ~ 32V (lower than 9V undervoltage protection, 12V power supply can also be supported)
Adaptive horn: 30-200w, 4-8q
Output power: left and right channels ≤ 150W
Protection mechanism: protection against reverse connection, undervoltage, overheating, overcurrent and short circuit
Product size: 119 * 70 * 21mm
Product weight: net weight 135g, including package 175g
Tip: only when the audio signal input is large enough and the power supply voltage / current is large enough can there be sufficient power supply
Output power!
The higher the power supply voltage, the greater the output power, the smaller the horn impedance, and the greater the output power! Please ensure that the power of the adaptive power supply is greater than the actual working power of the power amplifier!
