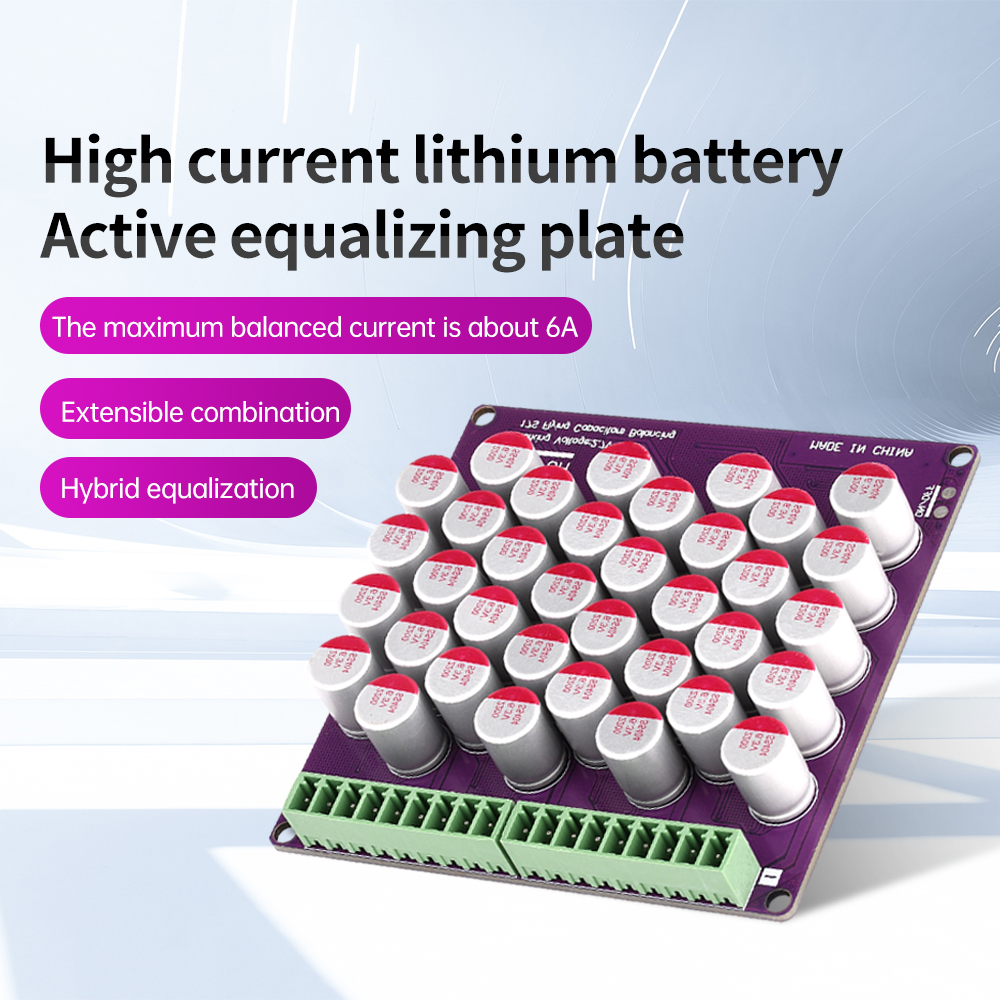

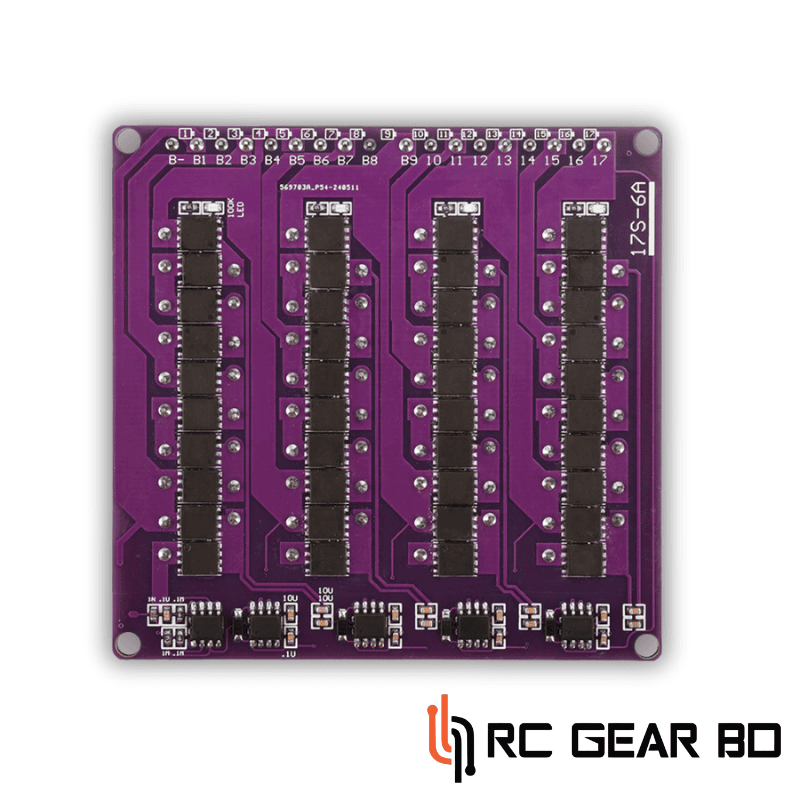

17S 6A Active Equalizer Whole Group Balancer Module Lifepo4 Lithium Active Battery Energy Transfer Equalization Capacitor

1. Multiple models, including 4S, 6S, 8S, and 17S, which are compatible with lithium-ion, lithium iron phosphate, and lithium titanate.

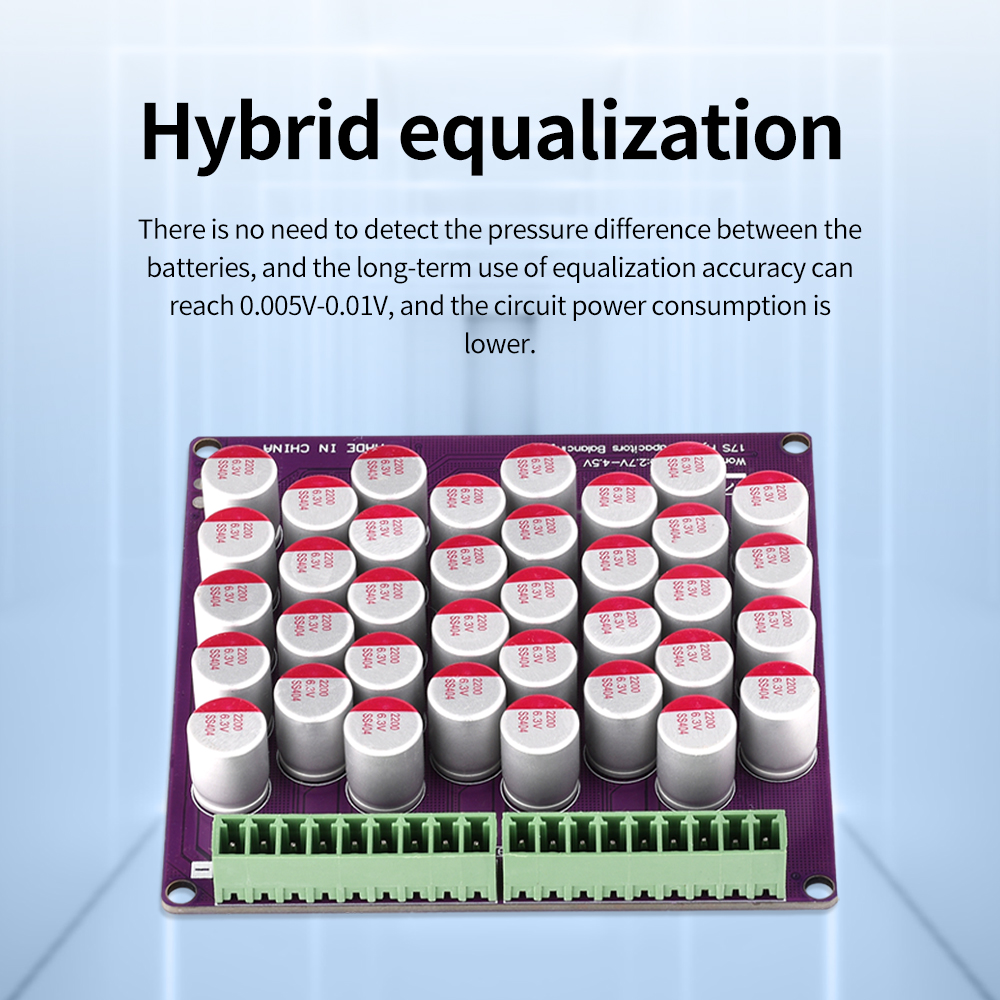

2. Hybrid balancing, simplifying the process. No need to detect the voltage difference between batteries. Directly transfer energy through adjacent capacitors and then connect them in parallel at high frequency. Single-chip microcomputer main control is matched with low-low tubes, which has excellent low-power consumption performance and high efficiency and high balancing effect. The balancing accuracy can reach 0.005V-0.01V for long-term use, and the power consumption of the circuit is lower.
3. The operating power consumption is about 1.5-2.5mA. The battery cell voltage is automatically turned off when it is lower than 2.5V, or it can be manually turned off by the switch.
4. The maximum balancing current is about 6A. The larger the voltage difference, the larger the current. When the voltage difference is 1v, it is about 6a; 0.5v is about 3a; 0.2v is about 1.2a (the above parameters are 4S power lithium batteries, with 10cm square 0.75mm, actual measurement and the power measurement point is a plug).
5. The combination can be expanded. According to the connection method of the battery series, the module combination can be selected. The module can be reduced or expanded. The series can be reduced or multi-board which will be expanded. Please refer to the figure for specific connection methods.

Parameters:
Model specifications: 3s/4s/6s // 8s/17s
Balancing method: active energy transfer
Balancing current: maximum 6a (the greater the pressure difference, the greater the current, and vice versa)
Balancing accuracy: 0.01v
Operation power consumption: 1.5ma-2.5ma
Low voltage protection: <2.5v Automatic power consumption shutdown: oma
Applicable batteries: lithium wire, lithium iron phosphate, lithium-titanate Applicable voltage: 2.5v-4.4v
Product size:
Cable figure: 15 edg-3.81
Compatible wire: 3s/4s/6s/8s Wiring length 30cm, 17s wiring length is 40cm, random colors

Operation indicator light:

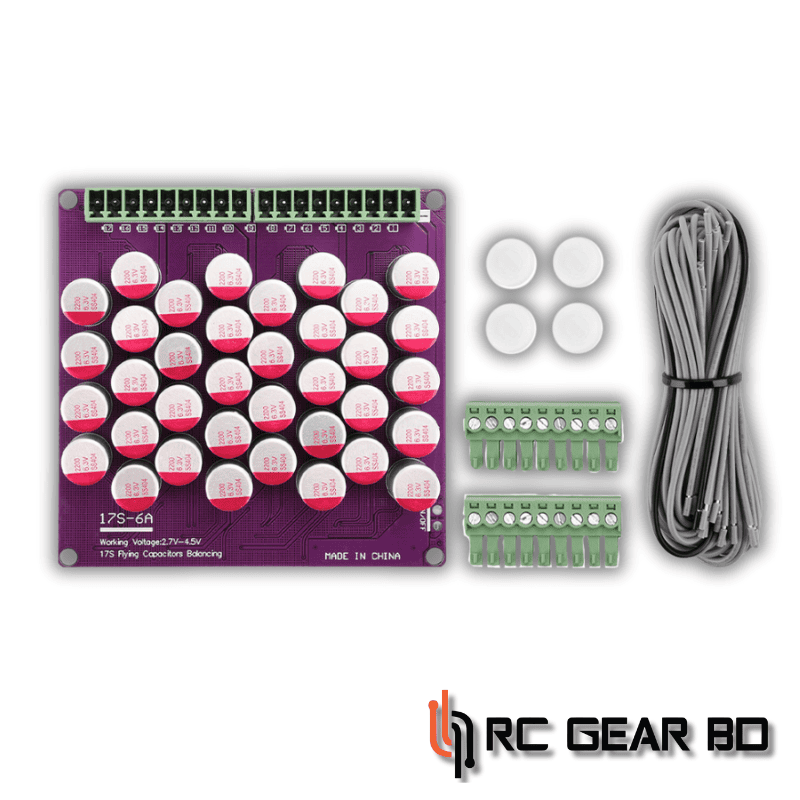

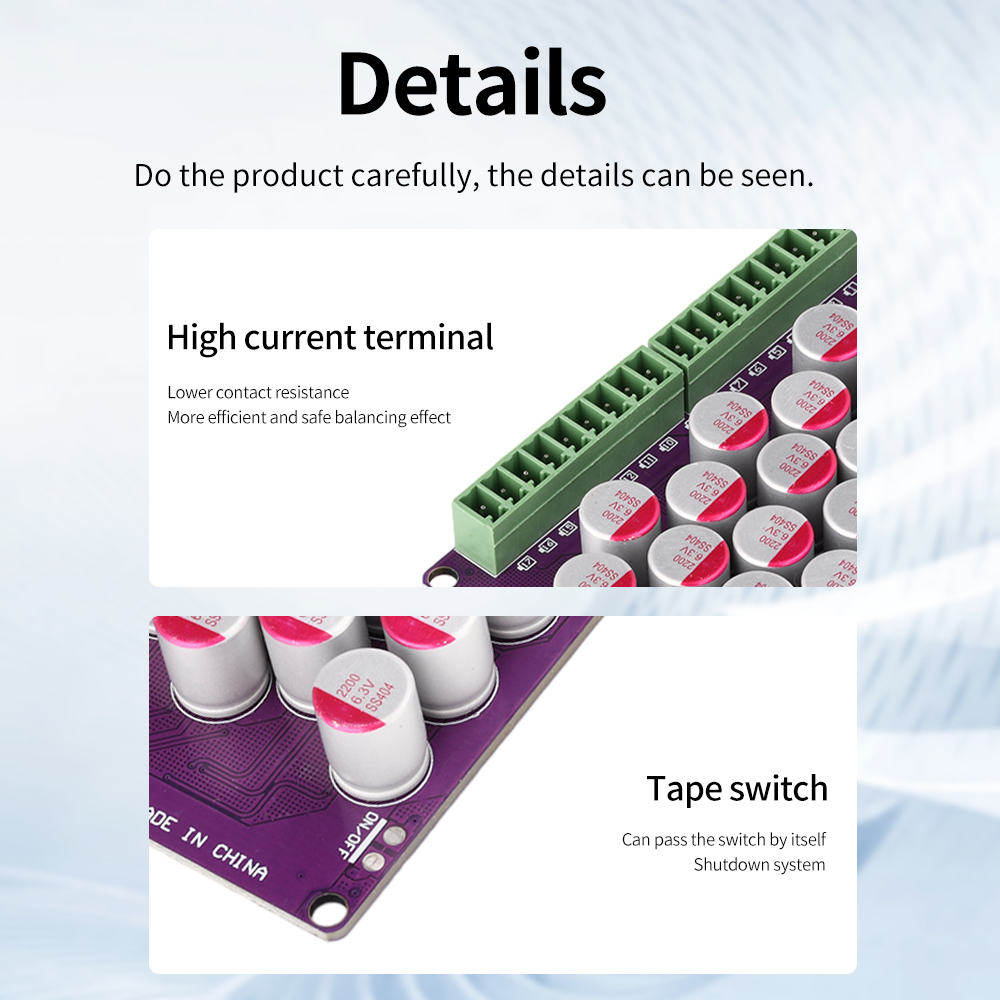

Power indicator light, the light on indicates that the system is working normally, the light off means that the battery cell voltage is lower than 2.5v And it is in the dormant state or the switch is in the closed state. The system is completely closed and the power consumption is 0 Hybrid active balancing: Energy transfer between adjacent cells is achieved through capacitors, and then through high-frequency parallel connection, accurate and efficient balancing effect. The low-power design simplifies the complexity. The circuit does not need to detect the voltage difference between batteries and is in operation for a long time to protect the voltage balance of the battery. The power consumption is only 1.5mA. The battery cell voltage is lower than 2.5v and enters the dormant state. The dormant power consumption is lower to ualevel, protecting the battery from over-discharge. Product list: 1x main circuit board,1x connection plug (1007 18awg 0.75mm)Number of wires Precautions: 1. Pay attention to the commutability. Wrong line sequence or short circuit will cause irreversible damage to the components. Please operate with caution and protect the line circuit and wire insulation.2. Only one string can be used, pay attention to the wiring.
