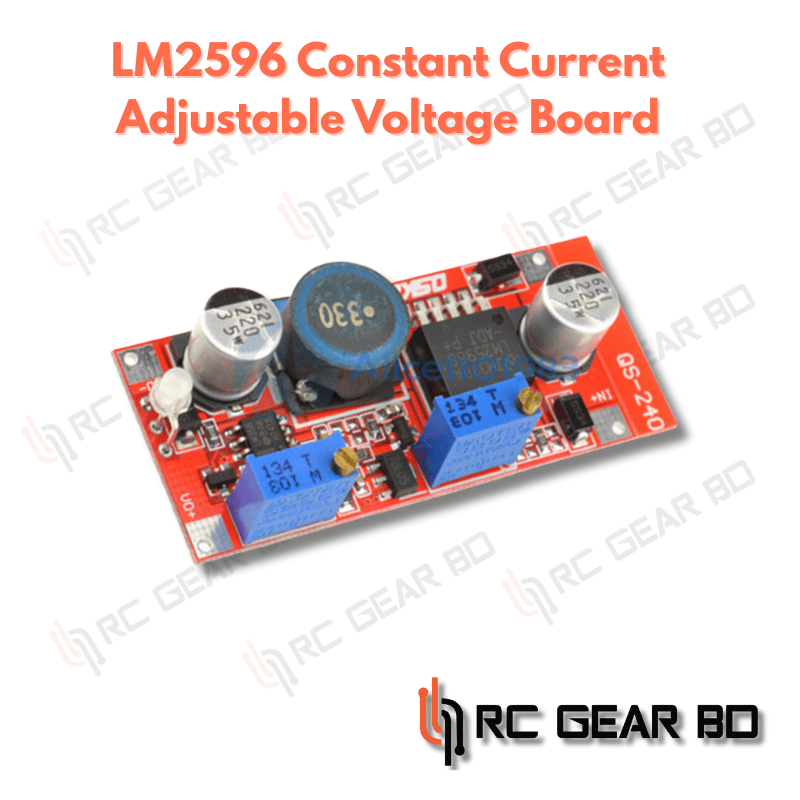

DC DC Step Down Power Supply Module LM2596 Constant Current Adjustable Voltage Board

Specifications:
Input Voltage: 5-35V
Output Voltage: Continuously adjustable from 1.25 V to 30V
Rated Output Current: 3A
Max. Output Current:4A(more than 15W, preferably with a heat sink)
Size (L x W x H): Approx. 1.9 x 0.95 x 0.5 inch / 4.8 x 2.4 x1.3cm
Indicator Light
Constant current indicator(red)
Charging indicator(red)
Charged full (green)
Battery use:

l Make sure of the voltage and current of the battery you need to charge
l Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage
l Potentiometer Adjustment Direction: Clockwise (increase), counterclockwise (decrease)
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value
l The charge current of transfer lamp is default 0.1 times of the charging current (constant current value)
l Connected to the battery and try to charging (for previous 5 steps, module input terminal is connected to power source, output load is NOT connected to batteries)

LED Constant Current Driver Use:
l Make sure operating current and Max operating Voltage of the LED you need to drive
l Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage
Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer
l to make sure the output current to the expected LED operating current
l Join LED, test (For the above 3 steps, module input terminal is connected to power source, output load is NOT connected to LED)

Package included:
1 x Adjustable Power Supply Module
