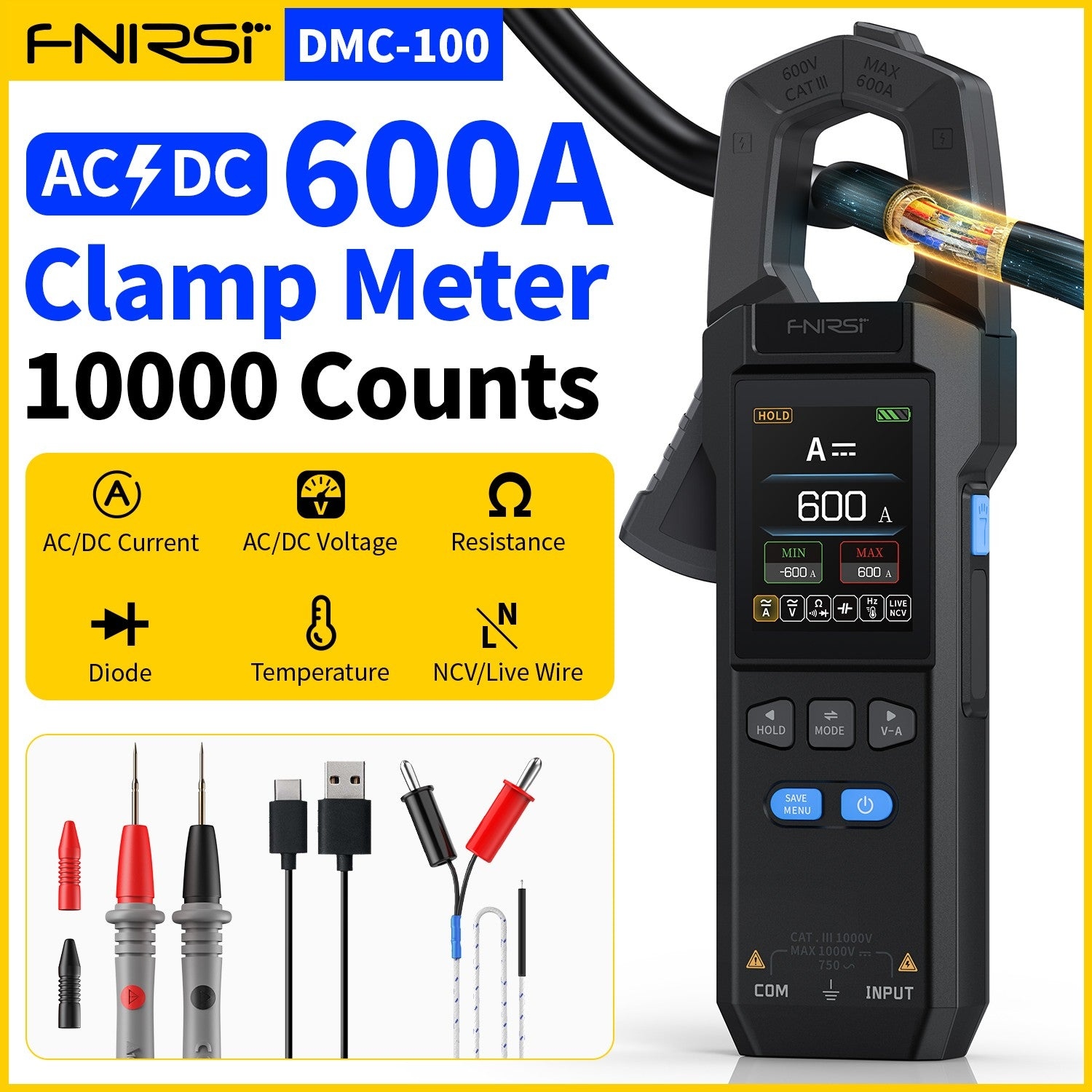

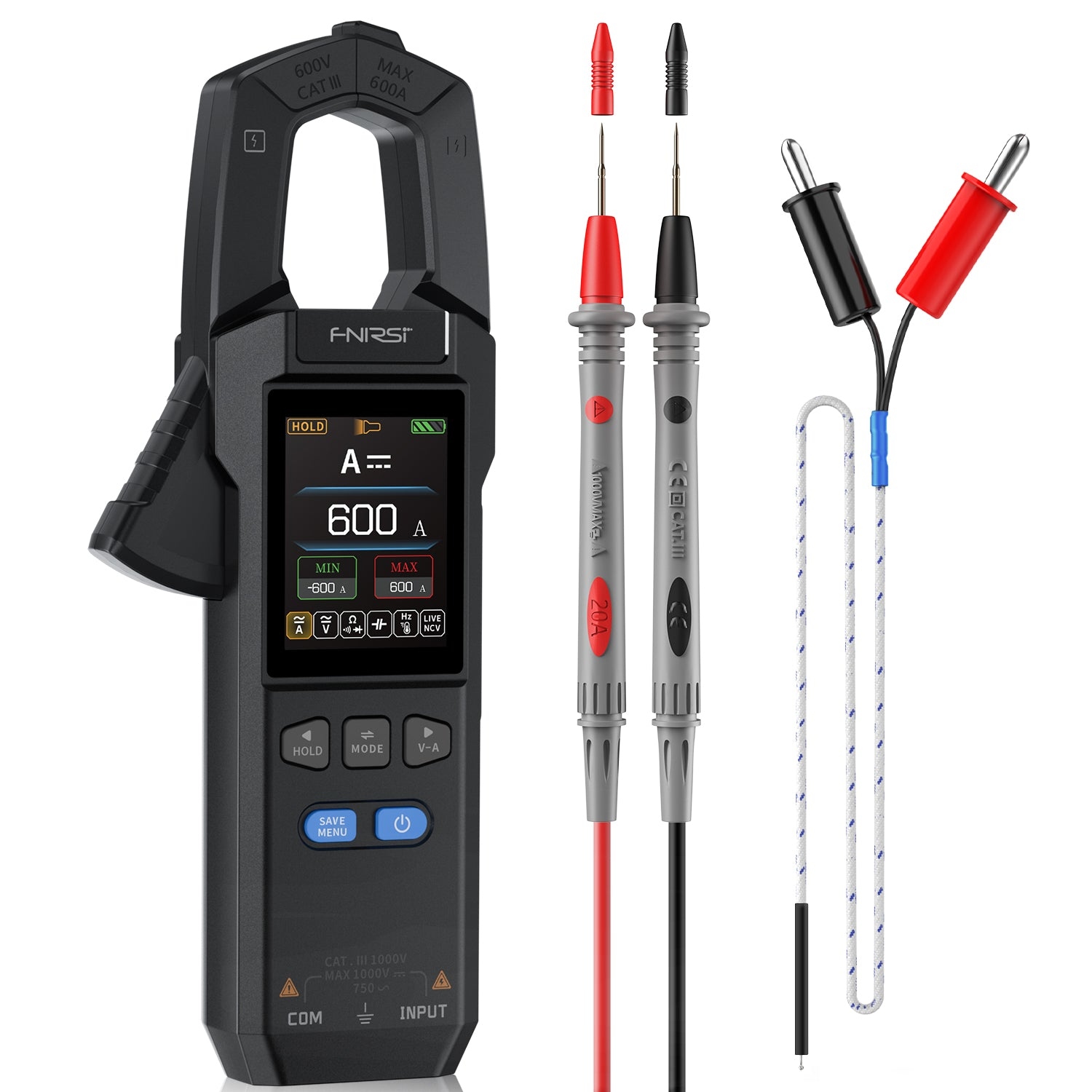

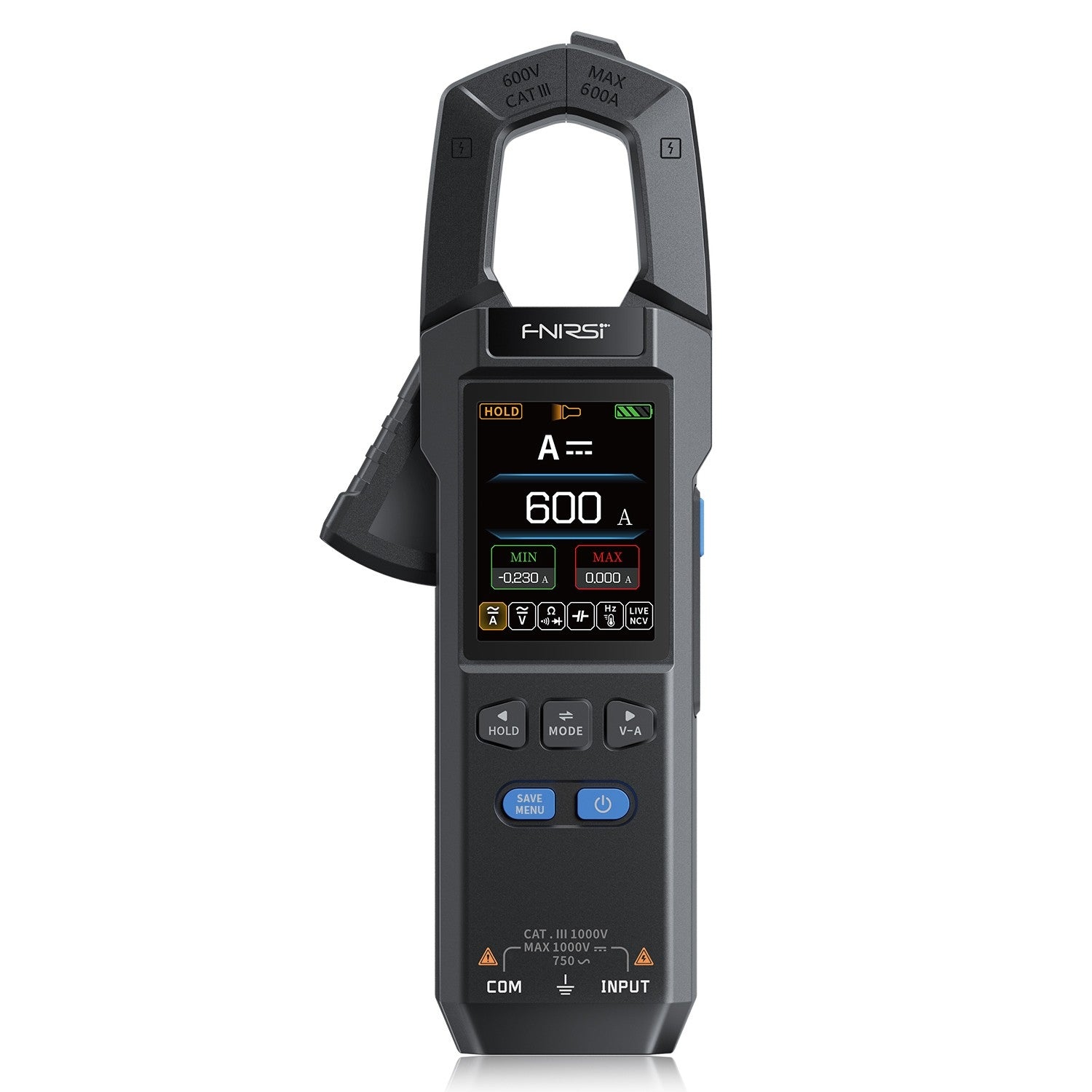

FNIRSI® DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter

FNIRSI® DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter - Image 3

FNIRSI® DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter - Image 4

FNIRSI® DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter - Image 5

FNIRSI® DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter

Original price was: 7,199.00৳ .Current price is: 5,499.00৳ .

Brand FNIRSI Model DMC-10
Screen 2.0” TFT color screen
Screen Resolution 240*320 pixels
Battery 3.7V, 1500mAh Lithium Battery
Charging Specification USB Type-C, 5V/1A
Maximum Jaws Size 25mm
Temperature Unit ℃/℉
Product Size 193x74x32mm
Product Weight 194g
DC Voltage 9.999V / 99.99V / 999.9V
AC Voltage 9.999V / 99.99V / 750.0V
Product Weight 194g

Add 2,605.00৳ to cart and get free shipping!

Out of stock

Add to wishlist

Category: Uncategorized Tags: DC Current Measurement, Digital Clamp Meter, FNIRSI DMC-100

Description

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.

Features

High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
Wide Measurement Range: Supports up to 750V voltage and 600A current.
High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
Intuitive Interface: New UI with data curve display for easy reading at a glance.

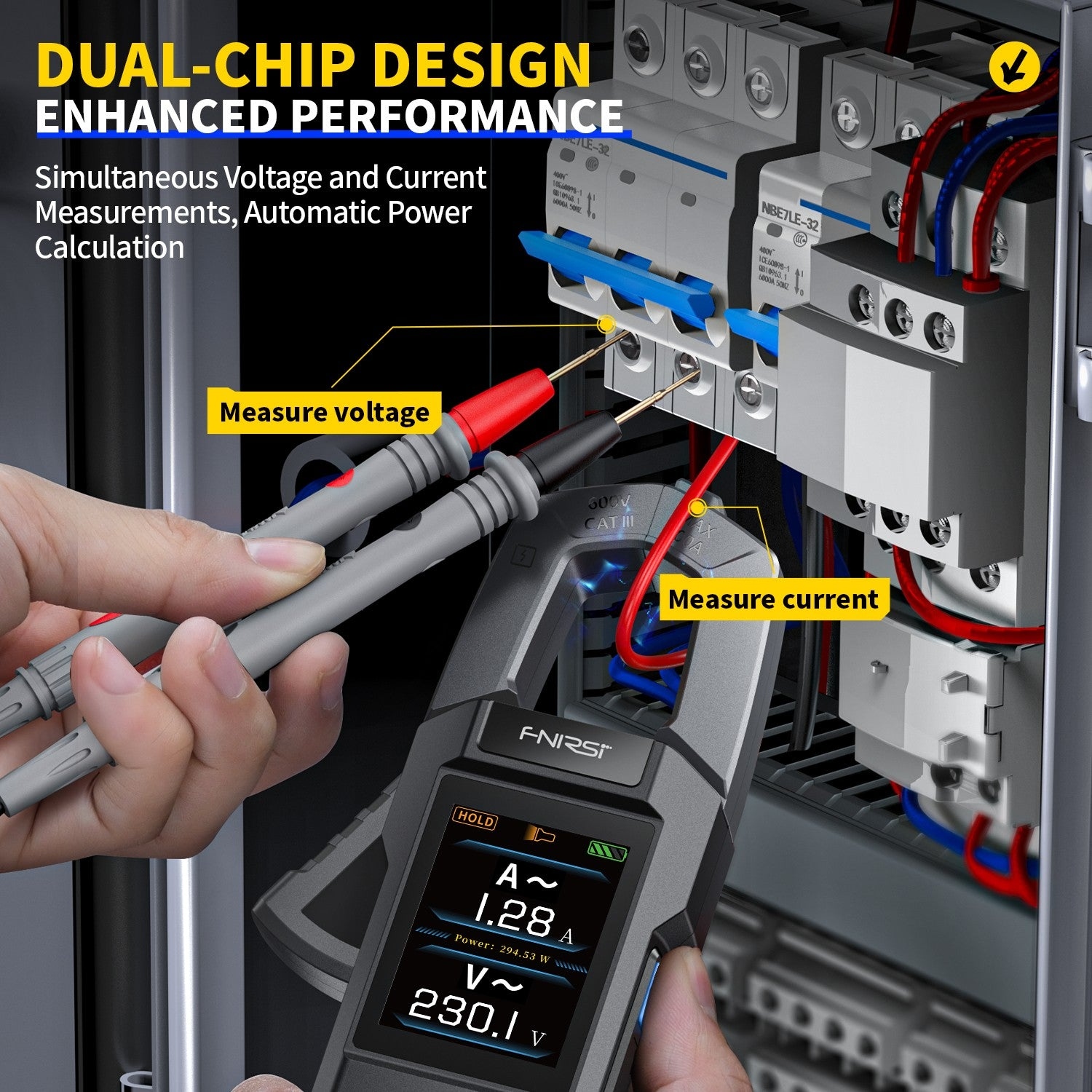

Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
NCV Function: Non-contact voltage measurement and zero/fire line identification.
Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
Type-C Interface: Convenient charging and data transmission via Type-C port.
Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
Temperature Unit Switching: Easily switch between temperature units (℃/℉).
Adjustable Brightness: Screen brightness is adjustable for various environments.
Firmware Upgradeable: Supports firmware updates to enhance functionality.

Specifications

Brand FNIRSI

Model

DMC-100 Screen 2.0” TFT color screen

Screen Resolution 240*320 pixels

Battery 3.7V, 1500mAh Lithium Battery

Charging Specification USB Type-C, 5V/1A

Maximum Jaws Size 25mm

Temperature Unit ℃/℉

Product Size 193x74x32mm

Product Weight 194g

DC Voltage 9.999V / 99.99V / 999.9V

AC Voltage 9.999V / 99.99V / 750.0V

DC & AC Current 99.99A / 600.0A

Resistance 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω

Capacitance 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF

Frequency 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz

Temperature -55~1300℃ / -67~2372℉

Diode Measurement Support

On-off Test Support

Non-Contact Voltage Check (NCV) Support

Zero Fire Wire Check Support

Measuring Mode –

1. General Measurement
2. Waveform Display
3. Power Measurement

Measurement Gear

Manual Adjustment

Torch Support

Data Zeroing Support

Maximum/Minimum Value Support

Waveform Display Support

Power Calculation Support

Data Hold Support

Data Storage and Viewing Up to 30 groups of data

Language Chinese / English

Brightness Adjustment 10-speed adjustment

Auto Power Off OFF / 5min / 15min / 30min

Firmware Upgrade Support

AC Current 4A / 40A / 600A

Resistance 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ

⚠ Precautions

Before using the product, check if the insulation near the casing and interfaces is damaged.
Hold the probes by the protective grips.
Do not touch any of the input ports when measuring a circuit.
Disconnect the test probes from the circuit before changing the measurement range.
When measuring DC voltages above 36V or AC voltages above 25V, exercise caution to avoid electric shock.
Select the correct range for measurement to avoid damaging the instrument. The screen will display “OL” when the measurement exceeds the range.
When the battery level is critically low, a popup will alert you. Charge the battery promptly to avoid affecting measurement performance. Do not use the device while it is charging.
