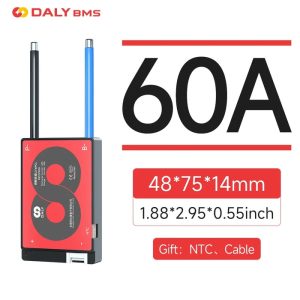

DALY HARDWARE BMS with NTC Lifepo4 48V 16S 60A LFP
DALY HARDWARE BMS with NTC Lifepo4 48V 16S 60A LFP Original price was: 4,500.00৳ .Current price is: 2,850.00৳ .

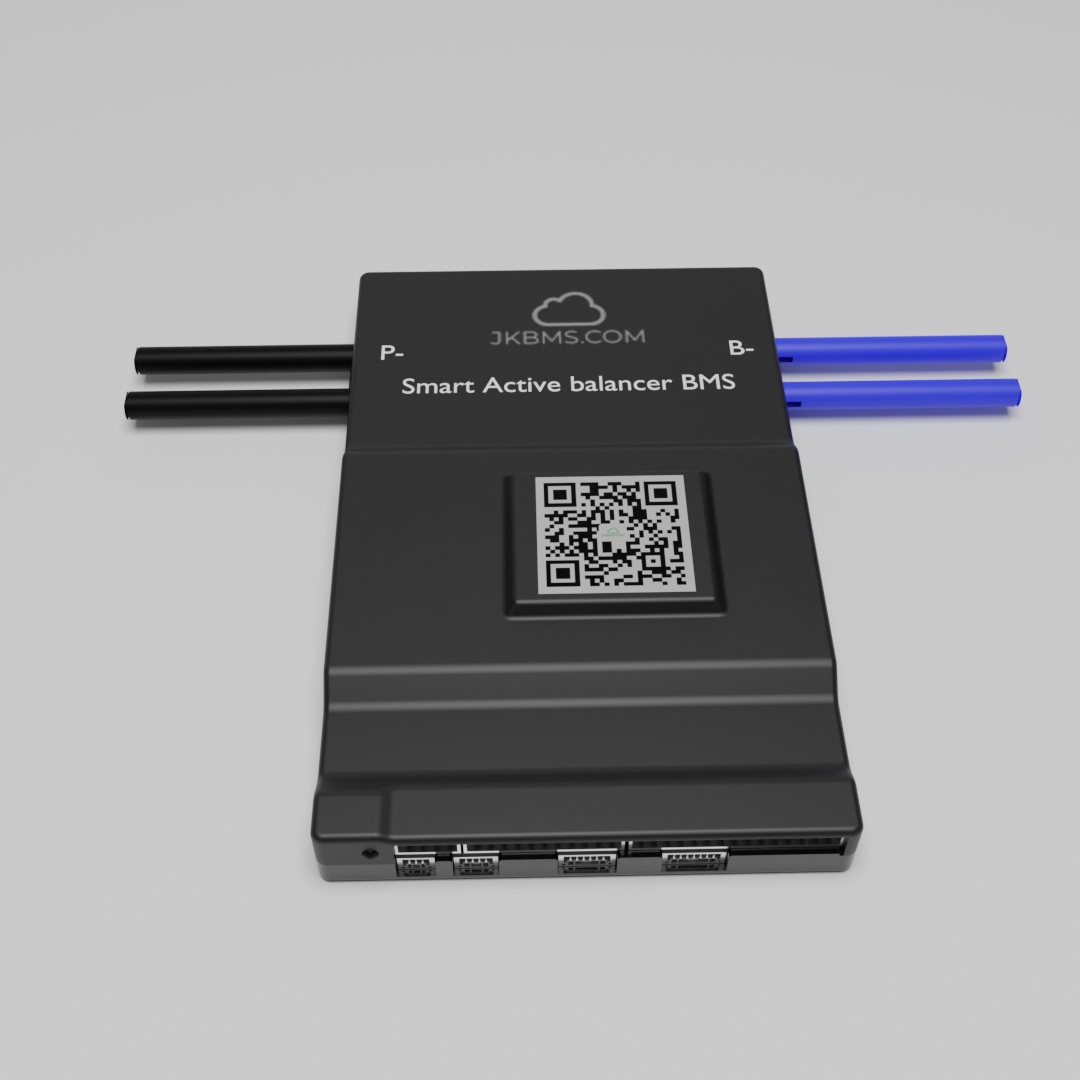

JK SMART BMS BD6A20S15P

Original price was: 16,000.00৳ .Current price is: 11,990.00৳ .



  • Lithium Polymer (LiPO):
  • LiFePO4: 8S ~ 20S
  • LTO: 14S ~ 20S
  • Li-ion/ LiPO: 7S ~ 20S
  • Supported battery types Lithium Iron Phosphate (LiFePO4/ LFP)Lithium Titanate (LTO)
  • LiFePO4: 8S ~ 20S
  • LTO: 14S ~ 20S
  • Li-ion/ LiPO: 7S ~ 20S
  • 2A active balacing
Your order qualifies for free shipping!

Out of stock

Description

  • Li-ion Cell Support: 7~19S
  • LiFePO4 Cell Support: 8~24S
  • LTO Cell Support: 14-24S
  • Bluetooth Supports: Android and iOS
  • BMS Size: 162x102x20.4mm
  • Balance Method: Built-in Active Balancer
  • Balance Current: 2A
  • BMS Internal Circuit Resistance: 1.3 milliOhm
  • Continous Discharge Current: 150A
  • Maximum Discharge Current:300A
  • Over Protection Current: 10-100A (Adjustable)
  • Over Discharge Protection Voltage: 1.2 – 4.35V per cell (Adjustable)
  • Power Output: Same port
  • Single Cell Voltage Range: 1- 5V
  • Voltage accuracy: ±3mV
  • Over charge protection voltage: 1.2V-4.35V (adjustable)
  • Over charge protection release: 1.2V-4.55V (adjustable)
  • Over current protection release time: 2S-120S (adjustable)
  • Over discharge protection voltage: 1.2V-4.35V (adjustable)
  • Over discharge protection release: 1.2V-4.35V (adjustable)
  • Short Circuit Protection: Yes
  • Temperature Protection: Yes
  • Coloumb Counter: Yes
  • Bluetooth Functions: Yes
  • Bluetooth Functions: Supports Android and iOS
  • Temperature Sensor: 3 Points
  • CAN/ RS485 Connectivity: Optional
  • GPS: Optional (connects via RS485)
