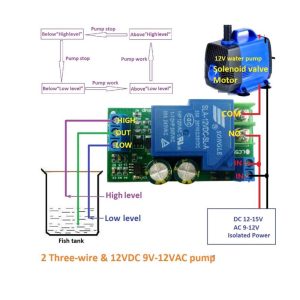

12V Water Level Automatic Controller Liquid Sensor Switch Relay 30A
12V Water Level Automatic Controller Liquid Sensor Switch Relay 30A Original price was: 600.00৳ .Current price is: 525.00৳ .
Back to products

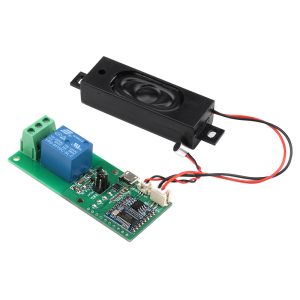

HLK-V20 Serial Port DIY Smart Voice Recognition Voice Control Switch Module
HLK-V20 Serial Port DIY Smart Voice Recognition Voice Control Switch Module Original price was: 900.00৳ .Current price is: 810.00৳ .

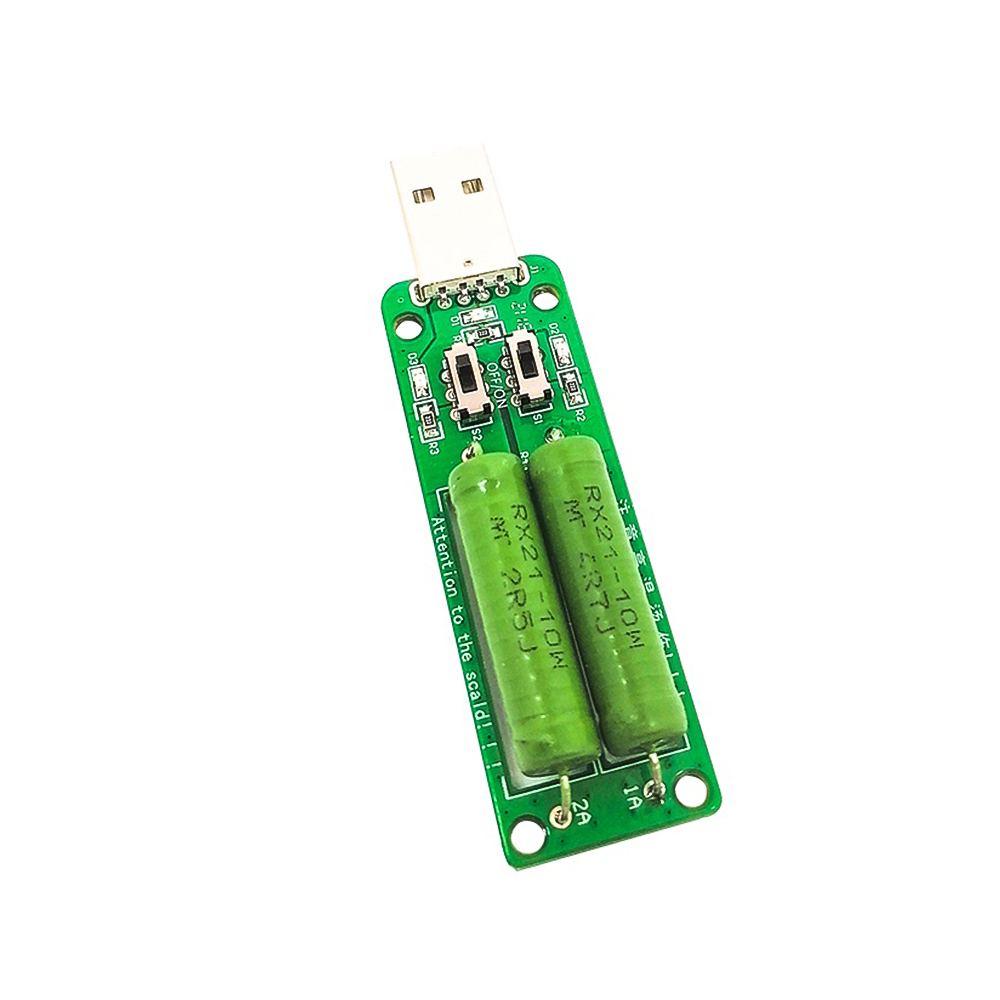

USB Charge Current Detection load Testing instrument 3A/2A/1A Discharge Aging Resistance USB Power Adapter

Original price was: 300.00৳ .Current price is: 190.00৳ .

📐 USB discharge load applies Ohm’s law to simulate 1A, 2A, or 3A current aging via switch-controlled resistors
🔋 Designed for aging tests of power banks, mobile chargers, and USB-powered devices
⚡ Operates strictly on 5V USB output—do not connect to fast charging ports above 5V
🎛️ Three selectable current modes: 1A (S1), 2A (S2), or 3A (S1+S2)
💡 LED indicators show power status and active resistor clearly
📏 Compact board size: 67×22mm, lightweight at only 14g
🔧 S1 activates 4R7 resistor for approx. 1A current, D2 LED lights up
🔧 S2 activates 2R5 resistor for approx. 2A current, D3 LED lights up
🔧 Both switches ON = 3A combined load, both LEDs active
🔥 Resistors heat up during operation—avoid direct contact to prevent burne

Add 2,430.00৳  to cart and get free shipping!

Out of stock

Description

Overview
According to Ohm’s law (voltage/resistance value = output current), the USB discharge load is designed to load different power resistance values ​​through the two switches above, and 3 types of current aging can be obtained, which are 1A/2A/3A. Onboard Corresponding indicator lights and power indicator lights with different resistances are clear. It is easy to use and can be used for aging test of power bank mobile power charger.

Features
1. 5V USB test
2. Three gears can be selected
3. The indicator shows the status

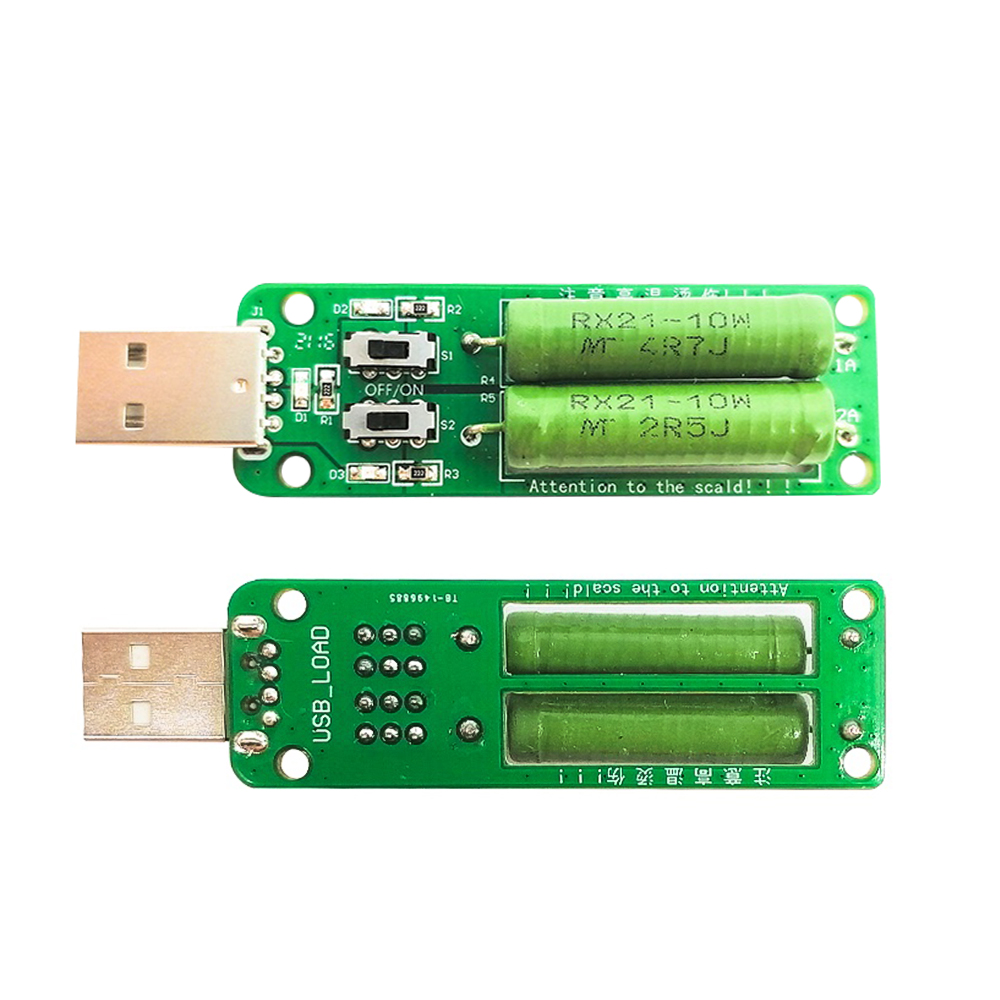

Hardware introduction and description
Board size: 67*22mm
Weight: 14g

Instructions for use
The USB plug is plugged into the 5V output interface. Because of the resistance value and the maximum power limit of the resistor, it cannot be connected to the fast charging interface above 5V.
After power on, the power indicator D1 will light up.
Switch S1 to the “ON” gear, D2 lights up, the 4R7 resistor starts to work, and the current is about 1A.
Switch S2 to the “ON” gear, D3 lights up, the 2R5 resistor starts to work, and the current is about 2A.
If S1 and S2 are switched to the “ON” gear at the same time, the two resistors work and the current is about 3A.

Notice!
Because a large amount of current is consumed by the working heat of the resistor, the resistor will get hot. Take special care not to touch the resistor with your hands to avoid burns.
